Warn 16.5TI 12V 16,500lb Heavyweight Thermometric Winch | 68801 - Heavyweight Thermometric Winch

Warn 16.5TI 12V 16,500lb Heavyweight Thermometric Winch | 68801

by Warn
SKU UF-WAR-00034
Save $350.00 Save $350.00
$5,199.00
$5,199.00 - $5,199.00
$5,199.00
$4,849.00
$4,849.00 - $4,849.00
$4,849.00
4x4 Down Under Buy Now Pay Later Options

    WHY SHOP WITH US?
  • ✔ Fast Shipping with Tracking and Insurance
  • ✔ Australian Owned and Operated
  • ✔ 256Bit SSL Website Encryption for Safe and Secure Shopping
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

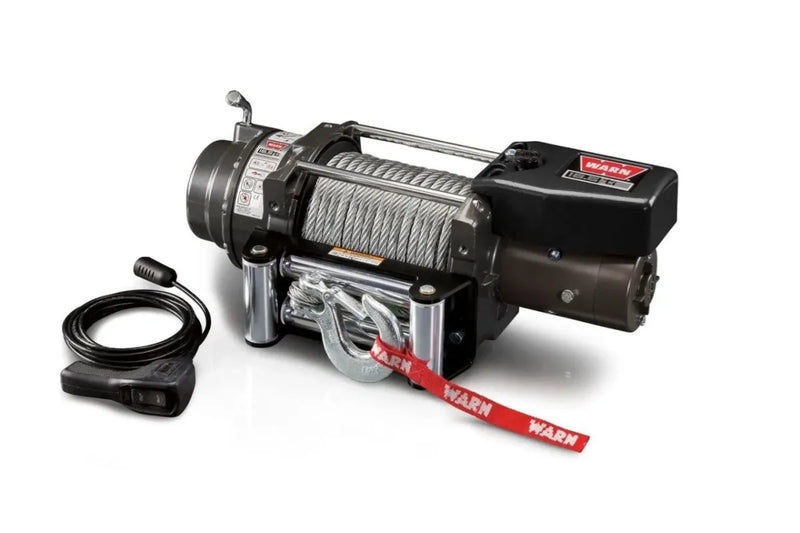

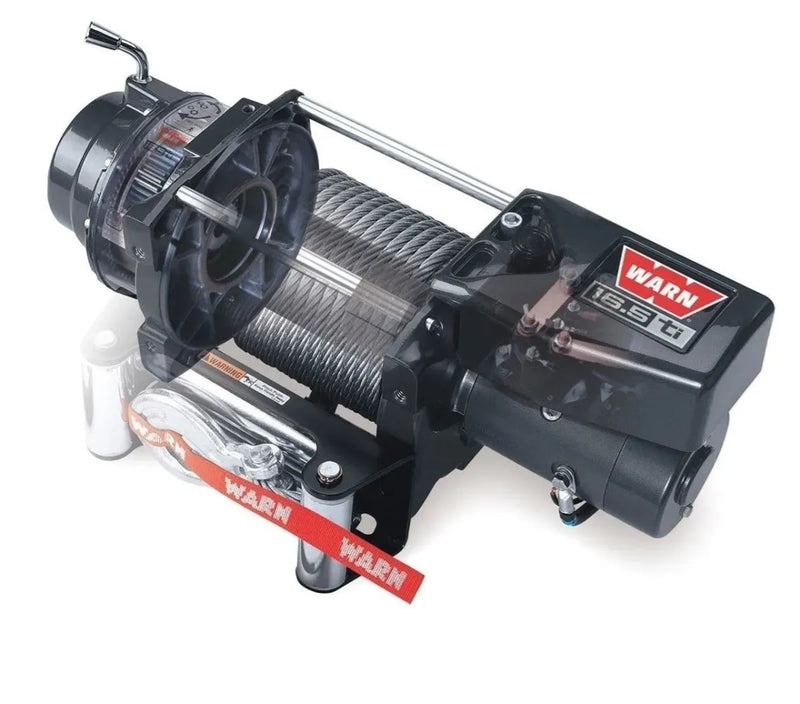

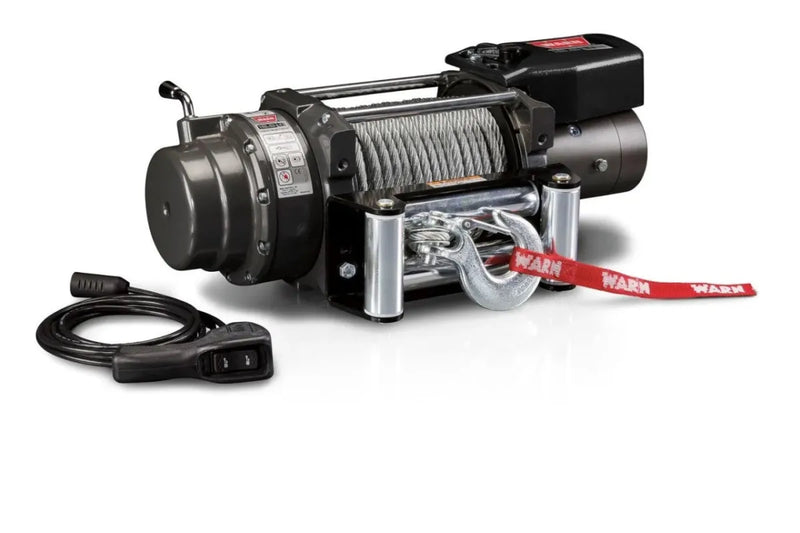

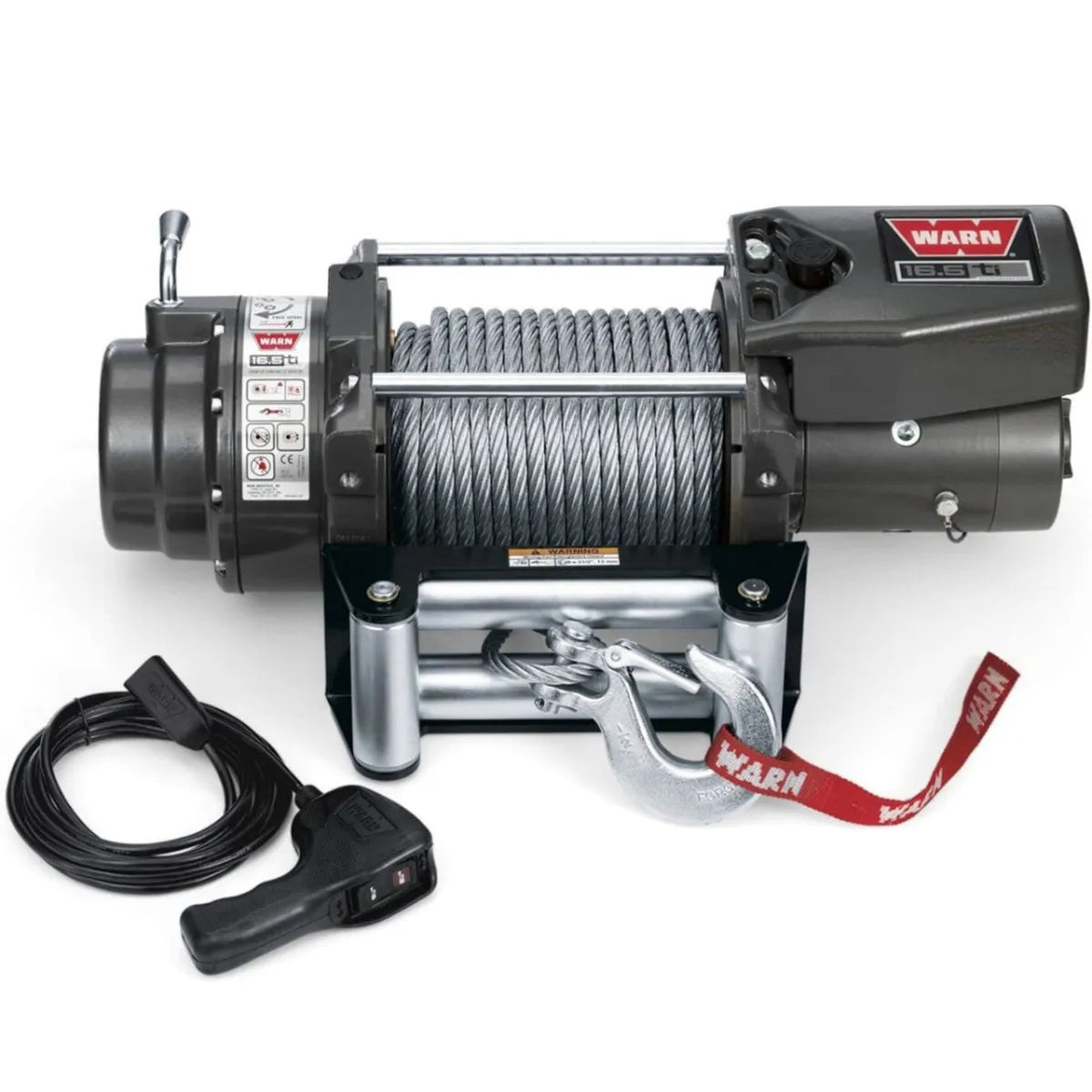

16.5TI 12V 16,500lb Heavyweight Thermometric Winch with Steel Rope and Roller Fairlead from WARN

This Warn Industries 16.5ti Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pounds. It has a 28m wire rope.

What do you get when you combine 16,500lb (7484kg) Of pulling power with all the innovative features of the Warn TI series? the Warn 16.5TI thermometric Winch. The highest capacity, most technologically advanced truck winch in the industry today.

The 16.5TI features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability, and reliability that the Warn TI Series of Winches are known for. The new, more efficient design delivers faster line speeds and lower ampere draw.

Features

  • Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90' of 7/16" (27m of 11mm) diameter wire rope
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
  • Please note: the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.

Specifications

  • Model No: 68801
  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommend Use: Vehicle Recovery
  • Voltage: 12 Volt
  • Motor Horsepower: 4.6 Horsepower
  • Electrical Control Type: Solenoid
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio:315:1
  • Free Spooling: Yes
  • Break Type: Direct Drive Cone
  • Line Diameter: 11mm
  • Line Length: 28m
  • Line Material: Steel
  • Fairlead Type: Roller
  • Conforms to J706 Standards: No
  • Remote Type: Handheld Remote Switch
  • Mounting Hole Quantity: 4
  • Operation Type: Automatic
  • Mounting Pattern Length (in): 10 Inch
  • Mounting Pattern Width (in): 4-1/2 Inch
  • Includes Mounting Hardware: No
  • Colour: Gray
  • Max AMP Draw/Line Pull: 507 Amp Draw / 16500lb ( 7484kg)
  • Max Line Pull/Line Speed: 16500lb / 3.24 Feet Per minute

Please Note: This Winch will require winch mount for proper installation. This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
