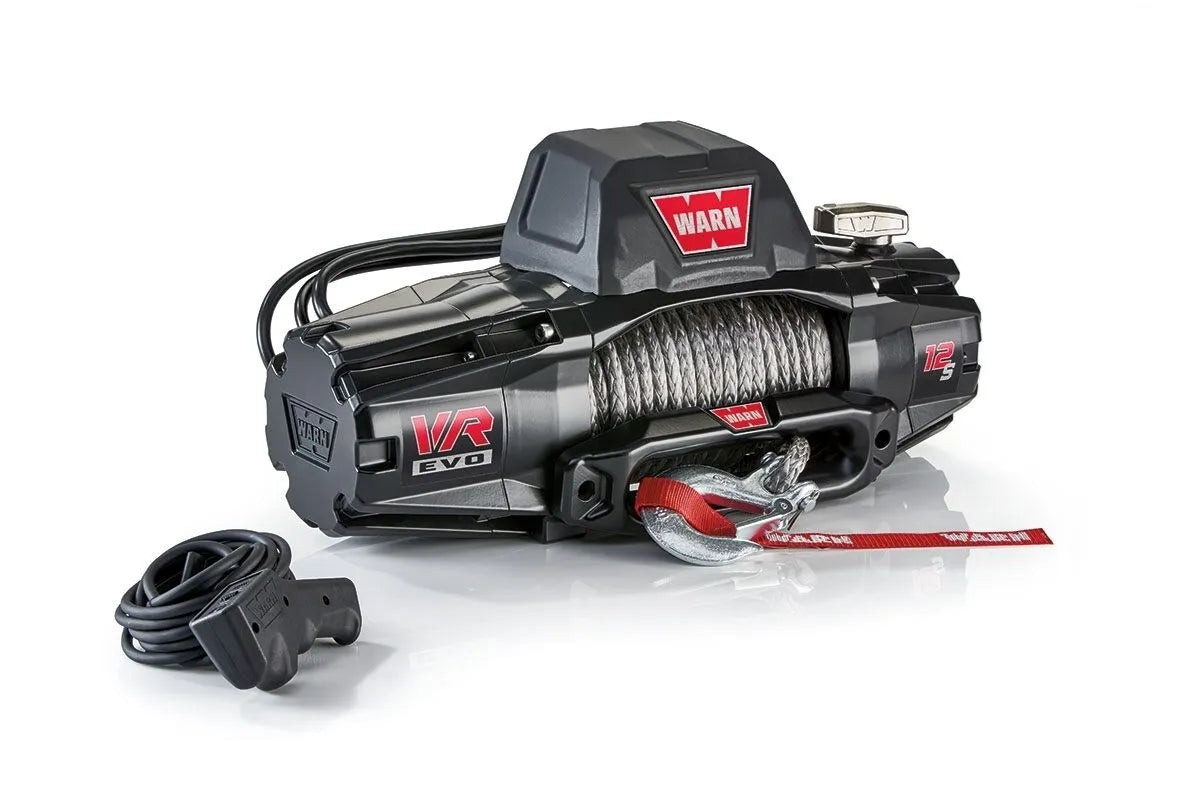

Warn VR Evo 12-S Winch with Synthetic Rope
Warn VR Evo 12-S Winch with synthetic rope and hook for off-road recovery
Warn VR Evo 12-S Winch on garage work bench

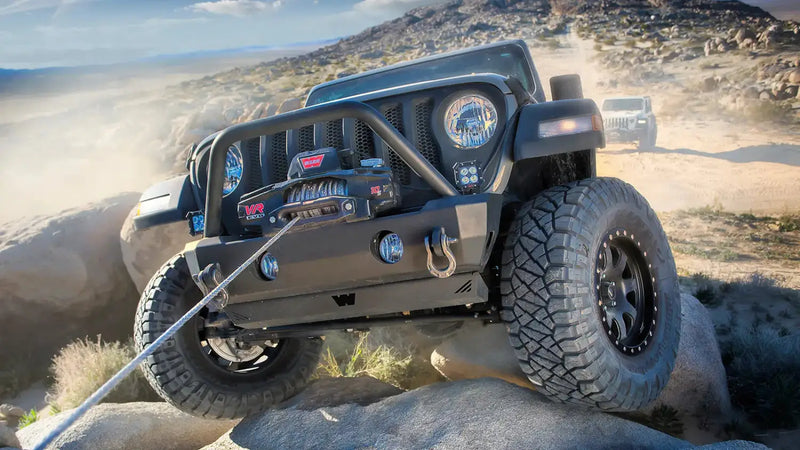

Warn VR Evo 10-S winch mounted on an off-road vehicle during a recovery
Technical schematic of Warn VR Evo 12-S Winch with Synthetic Rope showing multiple views and dimensions
Warn VR Evo 12-S Winch with Synthetic Rope
Warn VR EVO 12-S Winch with heavy-duty steel cable and hook for reliable towing
Warn VR Evo 12-S Winch with synthetic rope and hook for off-road recovery
Warn VR Evo 12-S Winch on garage work bench
Warn VR Evo 10-S winch mounted on an off-road vehicle during a recovery
Technical schematic of Warn VR Evo 12-S Winch with Synthetic Rope showing multiple views and dimensions

Warn VR Evo 12-S Winch with Synthetic Rope

by Warn
SKU UF-WAR-00002
Save $120.00 Save $120.00
$1,599.00
$1,599.00 - $1,599.00
$1,599.00
$1,479.00
$1,479.00 - $1,479.00
$1,479.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

VR Evo 12-S Winch with Synthetic Rope by Warn

The Warn VR Evo 12-S Winch combines tactical styling, fast line speed and lower amp draw with the reliability expected from Warn’s VR Evo range. Its 12,000lb (5,443kg) rated line pull is designed for big utes, large-frame rigs and heavily equipped touring vehicles.

A series-wound motor and three-stage planetary gear train provide dependable recovery performance. IP68-rated construction helps protect the winch from water and dust, while the Albright contactor sits inside a relocatable control pack for flexible installation.

The two-in-one remote supports wired and wireless operation, with a 3.5m lead available when required. Whether the job is a difficult recovery or standard-duty pulling, the VR Evo 12-S gives you straightforward control.

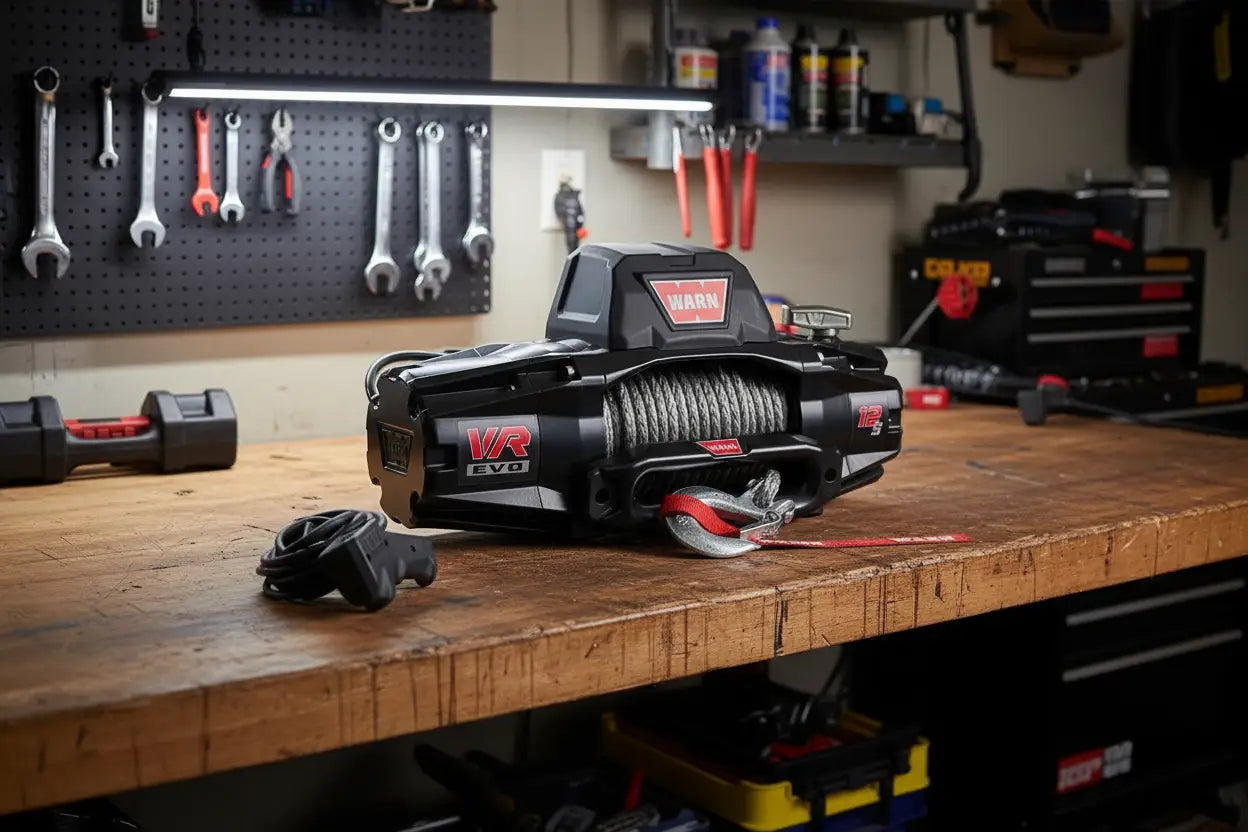

 Warn VR Evo 12-S winch displayed on a workshop bench 12,000lbRated line pull IP68Water and dust rating 27.4mSynthetic rope length 12VSeries-wound motor

Features

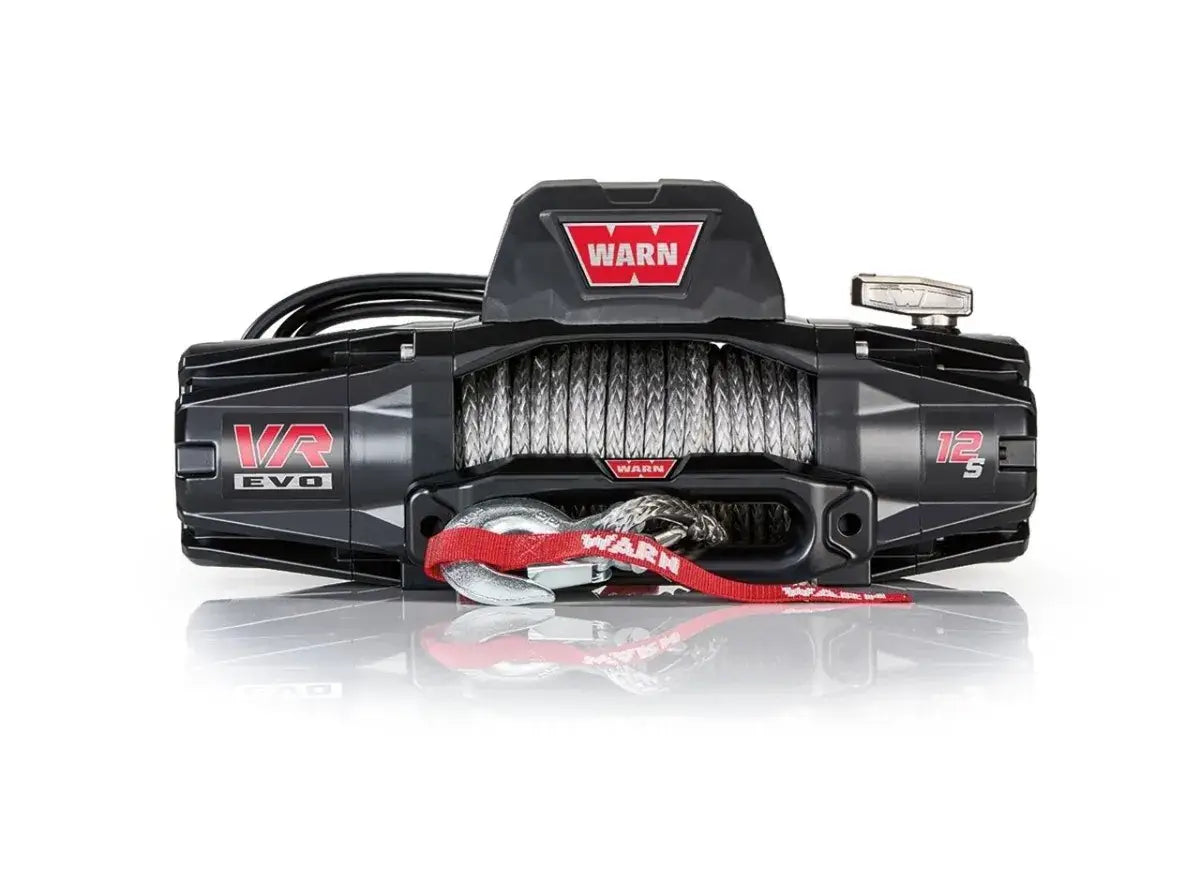

Powerful performanceThe series-wound motor and planetary gear train deliver faster line speed under load with lower amp draw. IP68 protectionThe sealed construction helps protect the winch against water and dust ingress. Reliable contactorA high-performance Albright contactor supports dependable switching under load. Flexible installationThe control pack can be relocated for a low-profile installation. Durable constructionA one-piece cast-aluminium tie-plate adds strength. Two-in-one remoteChoose between wired control via the 3.5m lead or wireless operation. Angled view of the Warn VR Evo 12-S winch and remote Front view of the Warn VR Evo 12-S winch

Angled and front views show the synthetic rope, hawse fairlead, clutch and wired remote.

Specifications

  • Part number103255
  • Rated line pull12,000lb (5,443kg)
  • Motor12V DC, series wound
  • Gear trainThree-stage planetary
  • Gear ratio234:1
  • ClutchRotating ring gear clutch
  • BrakeSpring brake
  • Drum diameter and length6.73cm x 23cm
  • Shipping weight32.84kg
  • Overall dimensions534mm L x 160.5mm D x 256mm H

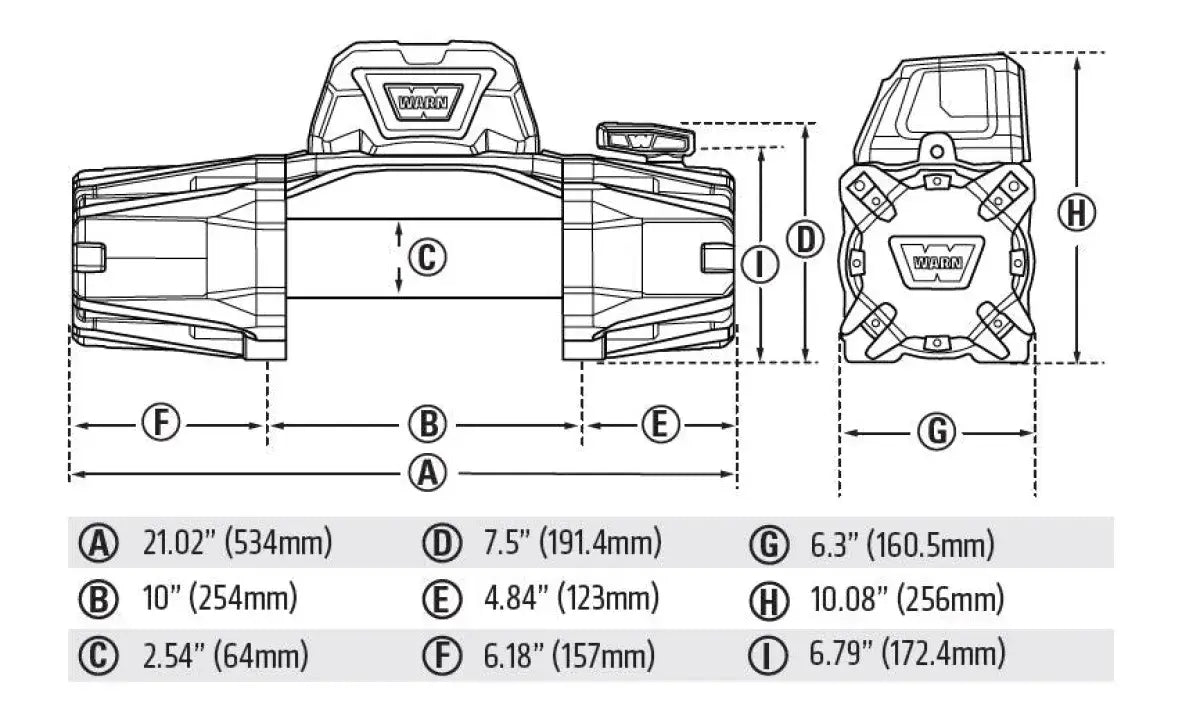

Warn VR Evo 12-S dimensions diagram

Rope, controls and installation

Synthetic rope9.5mm x 27.4m. FairleadDie-cast hawse fairlead. Electrical controlsAlbright contactor. Remote controlTwo-in-one plug-in remote with wireless capability and 3.5m lead. Recommended batteryMinimum 650 CCA for winching. Battery leads25mm x 2m. Mounting bolt pattern254mm x 114.3mm. FinishPowder coat over primer undercoat.

12V DC performance on the first drum layer

Line pull, lb (kg) Line speed, ft/min (m/min) Motor current Pull by layer, layer/lb (kg)
0 26.2 (8.0) 55 amps 1 / 12,000 (5,443)
2,000 (910) 13.9 (4.2) 120 amps 2 / 9,801 (4,446)
4,000 (1,810) 9.5 (2.9) 178 amps 3 / 8,283 (3,757)
6,000 (2,720) 8.1 (2.5) 234 amps 4 / 7,173 (3,254)
8,000 (3,630) 6.8 (2.1) 288 amps 5 / 6,324 (2,869)
10,000 (4,536) 4.9 (1.5) 337 amps
12,000 (5,440) 4.0 (1.2) 396 amps

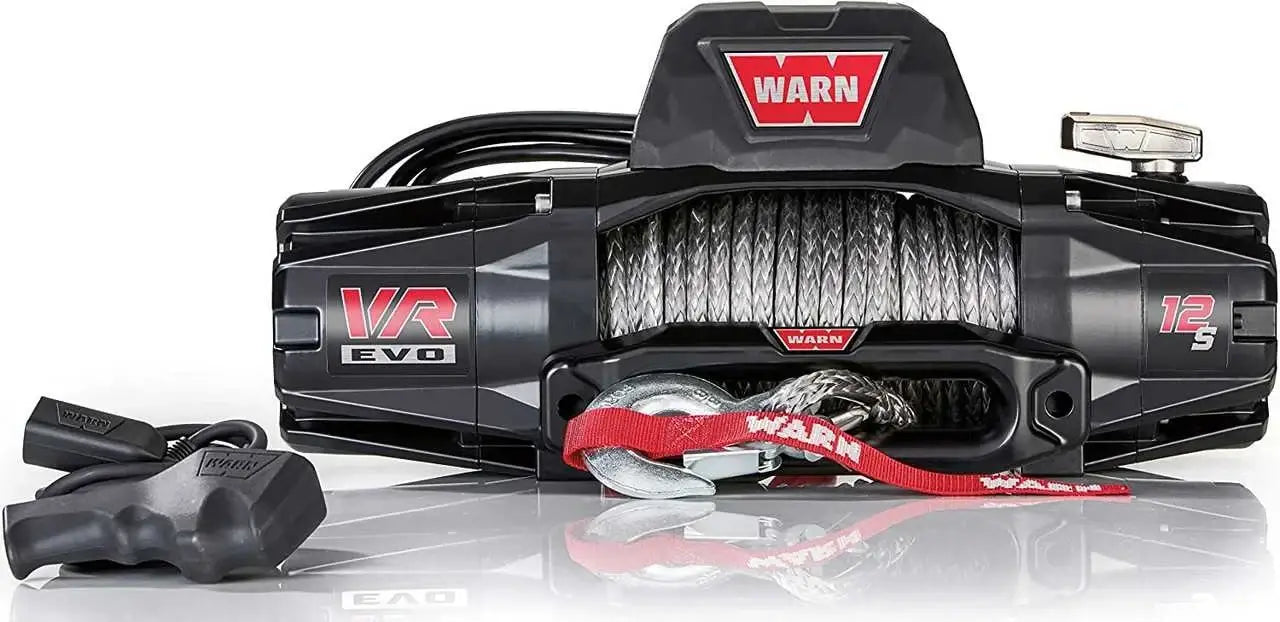

Warn VR Evo 12-S winch with synthetic rope and remote controls

What's in the box

  • Warn VR Evo 12-S winch
  • 9.5mm x 27.4m Spydura synthetic rope, pre-spooled
  • Die-cast aluminium hawse fairlead
  • Two-in-one wired and wireless remote with 3.5m lead
  • Battery leads
  • Mounting hardware

See it in action

 

Warranty

Limited lifetime mechanical warranty and 7-year electrical warranty.

Frequently Asked Questions

What size vehicles is the VR Evo 12-S designed for?

With a rated line pull of 12,000lb (5,443kg), the VR Evo 12-S is built for full-size dual-cab utes, large touring wagons and heavily accessorised 4WDs. Always ensure your bull bar is rated to suit a 12,000lb winch.

Will this winch fit my bull bar?

The VR Evo 12-S uses the industry-standard 254mm x 114.3mm mounting bolt pattern, making it compatible with most winch-ready bull bars in Australia. Confirm your bar is rated for a 12,000lb winch and has adequate clearance around the control pack.

Does this winch come pre-spooled with synthetic rope?

Yes. The VR Evo 12-S is supplied with Warn’s Spydura synthetic rope pre-installed, along with a die-cast aluminium hawse fairlead. Synthetic rope offers safer handling, reduced weight and easier field repairs compared with steel cable.

Is the Warn VR Evo 12-S waterproof?

The winch features IP68-rated sealing for the motor and contactor, offering strong protection against water and dust ingress. It is designed for harsh off-road use, including wet and muddy recovery situations, but regular maintenance is still recommended.

What remote options are included?

The Warn VR Evo 12-S includes a two-in-one wired and wireless remote with a 3.5m lead. This allows you to control the winch from inside the vehicle or at a distance when positioning yourself for recovery.

Is the Albright contactor a meaningful upgrade?

The Albright contactor is widely regarded as an industry standard for reliability and longevity. It provides clean switching under high current loads and performs consistently in hot and wet conditions.

Can the control pack be repositioned?

Yes. The control pack can be relocated, which is useful when fitting the winch to a bar with limited clearance or where a low-profile installation is needed.

How does the 12-S compare with the 10-S?

Both winches share the same IP68 rating, mounting bolt pattern, rope diameter and remote system. The 12-S has a higher gear ratio of 234:1 versus 218:1 and a rated capacity of 12,000lb versus 10,000lb, making it suited to heavier vehicles or applications requiring additional pull margin.

What battery is required?

Warn recommends a minimum 650 CCA battery. For a 12,000lb winch used in demanding conditions, a quality AGM battery or dual battery system is advisable to maintain consistent performance across multiple pulls.

What warranty applies?

The Warn VR Evo 12-S comes with a limited lifetime mechanical warranty and a 7-year electrical warranty.
