TAG 4x4 Recovery Towbar & Wiring Kit for Mitsubishi Pajero Sport (QF & QG Series) (11/2019 - on)

TAG 4x4 Recovery Towbar & Wiring Kit for Mitsubishi Pajero Sport (QF & QG Series) (11/2019 - on)

by TAG
SKU TXR847-K201
$1,499.00 - $1,499.00
$1,499.00
$1,499.00 - $1,499.00
$1,499.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

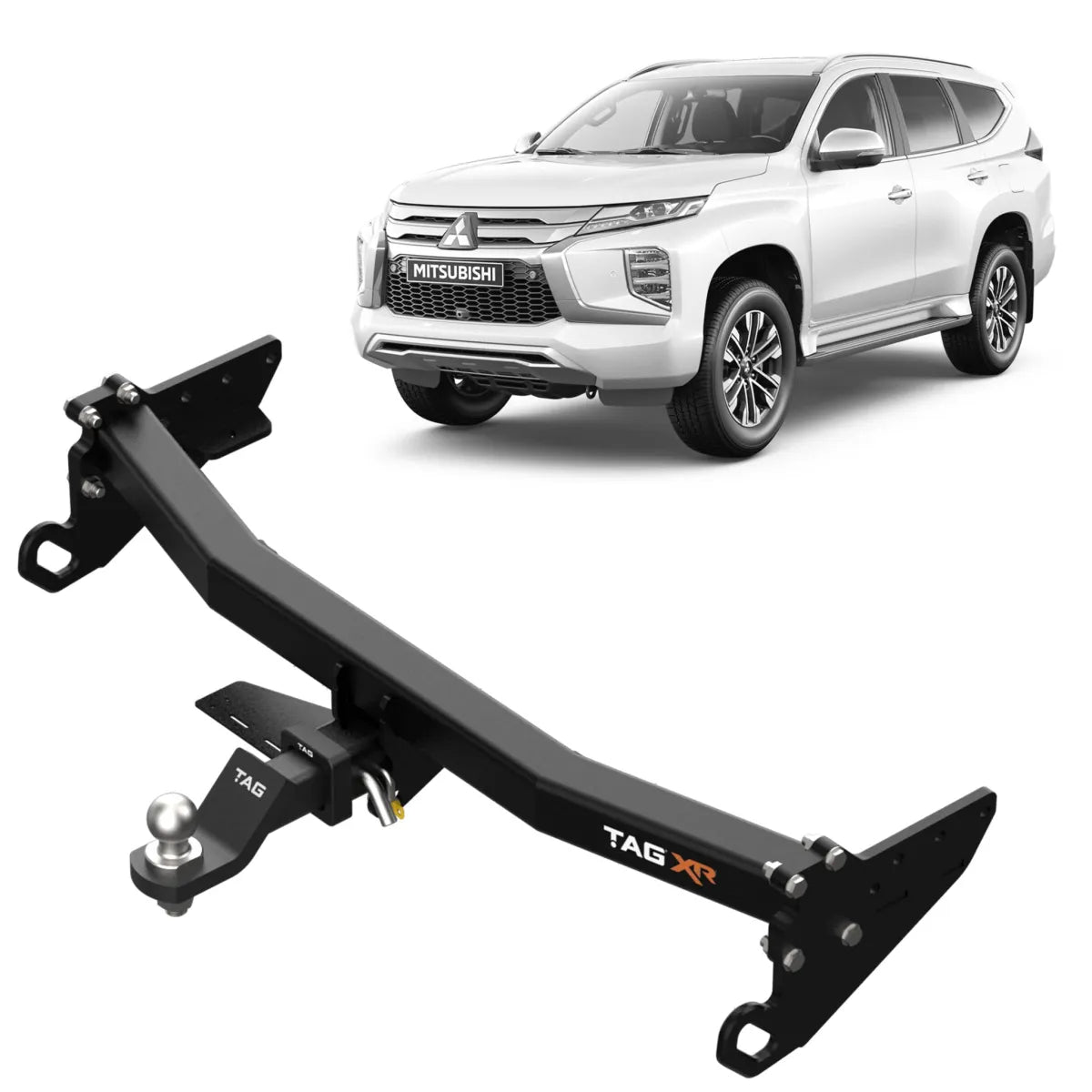

4x4 Recovery Towbar & Wiring Kit for Mitsubishi Pajero Sport (QF & QG Series) (11/2019 - on) by TAG

The complete towbar and wiring package for Pajero Sport QF and QG models from 11/2019 on: the TAG 4x4 Recovery Towbar, a TAG Direct Fit wiring harness, and a 7 pin flat vehicle-side socket.

Same Australian-built towbar as the non-kit version: 65mm x 65mm reinforced crossbar, two 4000kg WLL recovery points, and a partially concealed chassis-mounted fit. Bumper removal and a cut-out are required as part of fitment. It's supplied with a zinc tow ball and Extreme Duty hitch rated at 3100kg towing capacity and 310kg ball weight.

Between the bumper work and the wiring, we'd recommend a professional towbar fitter or auto electrician handle this install. Only need the towbar without wiring? We stock that version too.

Features

  • Kit includes: TAG 4x4 Recovery Towbar (QF & QG models only), TAG Direct Fit wiring harness, 7 pin flat socket
  • 65mm x 65mm Extreme Duty reinforced crossbar
  • Two WLL 4000kg load-rated recovery points, bevelled for soft shackles
  • Flush chassis-mounted profile for maximum off-road clearance
  • Bottom-mounted trailer and Anderson plug mount
  • Class 4 towbar, 50mm square hitch receiver
  • TAG Limited Lifetime Warranty
  • Includes zinc tow ball and Extreme Duty hitch rated at 3100kg towing capacity and 310kg ball weight, pin, clip and D-shackles

Towbar Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3100
  • Ball Weight [kg]: 310
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Exposure: Partially Concealed
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: Yes
  • Fitting Time [min.]: 120

Wiring Specifications

  • Wiring Option: Direct Fit ECU
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Diagnostic Coding: Not Applicable
  • Reverse Sensor Cut Off: Not Applicable
  • Fog Cut Off: Not Applicable

Vehicle Applications

This towbar is listed against the following 3 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
MITSUBISHI PAJERO SPORT 11/2019 - SUV QF 4N15 | 2.4L | Diesel GLS, GLX Automatic RWD
MITSUBISHI PAJERO SPORT 11/2019 - SUV QE, QF, QG (KS1W) 4N15 | 2.4L | Diesel DI-D AWD
MITSUBISHI PAJERO SPORT 11/2019 - SUV QE, QF 4N15 | 2.4L | Diesel CK EDITION, EXCEED, GLS, GLX, GSR Automatic 4WD

Frequently Asked Questions

What's included in this kit?

The TAG 4x4 Recovery Towbar, a TAG Direct Fit wiring harness, and a 7 pin flat vehicle-side socket.

What's the towing capacity and ball weight of this towbar?

3100kg towing capacity and 310kg ball weight, with the lower of this rating or your Pajero Sport's factory tow rating applying.

Does fitting this towbar require cutting the bumper?

Yes, the bumper needs to be removed and a cut-out made as part of fitment on the QF/QG.

Can I fit this myself, or does it need a professional installer?

Between the bumper work and the wiring, we'd recommend a professional towbar fitter or auto electrician handle this install.

Do I need to tell my insurer if I fit a towbar?

Some insurers require you to declare aftermarket accessory fitments. Check your policy terms or ask your insurer.

I only need the towbar, is there a version without wiring?

Yes, the same towbar is available without the wiring kit.
