Zeon XP 10-S 10,000lbs 12V Electric Winch with Spydura Synthetic Rope by Warn

If you're after the perfect mix of power, speed, and premium features, the ZEON XP 10-S hits the sweet spot. With a 10,000lb pulling capacity and a longer 30 metres of 3/8” Spydura synthetic rope, it's a top pick for lighter utes, mid-size 4WDs, Jeeps, and SUVs heading off-road and off-grid.

Please Note: This item requires a compatible winch bar or mounting plate for proper installation.

Top-Shelf Performance for Serious Off-Roaders

Sitting at the top of Warn’s winch lineup, the ZEON XP range is built for those who push their vehicles to the limit. Designed, tested, and assembled in Clackamas, Oregon, USA, the XP series combines cutting-edge tech with rugged dependability.

  • Fast & Reliable: Shares the high-efficiency motor and geartrain found in the ZEON XD, delivering a class-leading no-load line speed of up to 40 ft/min.
  • Smart Control: Equipped with a built-in HUB receiver and sensors that track load, winch temperature, and battery voltage for safer, smarter recoveries.
  • Remote Clutch Control: Engage or disengage with the press of a button, or use the manual clutch lever when needed — your choice.
  • Built to Last: Forged aluminium construction stands up to rust, salt, UV, and impact — perfect for Aussie conditions. OEM-grade sealed bus bars ensure clean and efficient power delivery without messy wiring. Black corrosion-resistant fasteners and UV-stable covers meet the toughest OEM standards.
  • Rope-Friendly Drum: The large diameter drum helps reduce wear on your synthetic rope and keeps brake heat under control. The patented rope anchor system makes it super easy to fit and swap ropes securely.
  • Ultimate Protection: Featuring OEM-grade O-ring seals, this winch is fully rated for IP68 submersion and IP69K high-pressure spray, so it’s ready for creek crossings, bog holes, and whatever else the tracks throw at you.

Specifications

Rated Line Pull (Single Line) 10,000lbs (4536 kg)
No Load Line Speed 40 ft/min (12.19m/min)
Rated Load Line Speed 5 ft/min (1.52m/min)
No Load Motor Current 64 Amps
Rated load motor current 458 Amps
Motor 12V DC, series wound (exclusive WARN high-performance design)
Zeon Electrical controls Contactor
Wiring Automotive OE-grade buss bars
Zeon Corrosion Resistance 408 hour salt spray
Zeon Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
Remote Control Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack

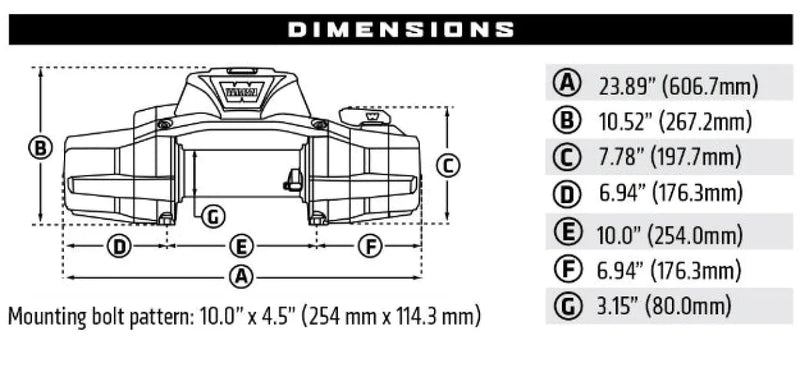

Drum diameter/Length 3.15”/9.0” (80mm/229mm)
Geartrain 3-stage planetary
Zeon Gear Ratio 141:1
Zeon Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation.
Brake Automatic, six segment mechanical cone
Rope 3/8” x 100’ (9.52mm x 30m) Spydura synthetic
Fairlead Black anodized, forged aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Zeon Finish Satin-black powder coat
Final point of assembly Warn facility in Clackamas, Oregon, USA
Warranty Limited lifetime mechanical, 7 years electrical
Weight 85lbs (in box)
