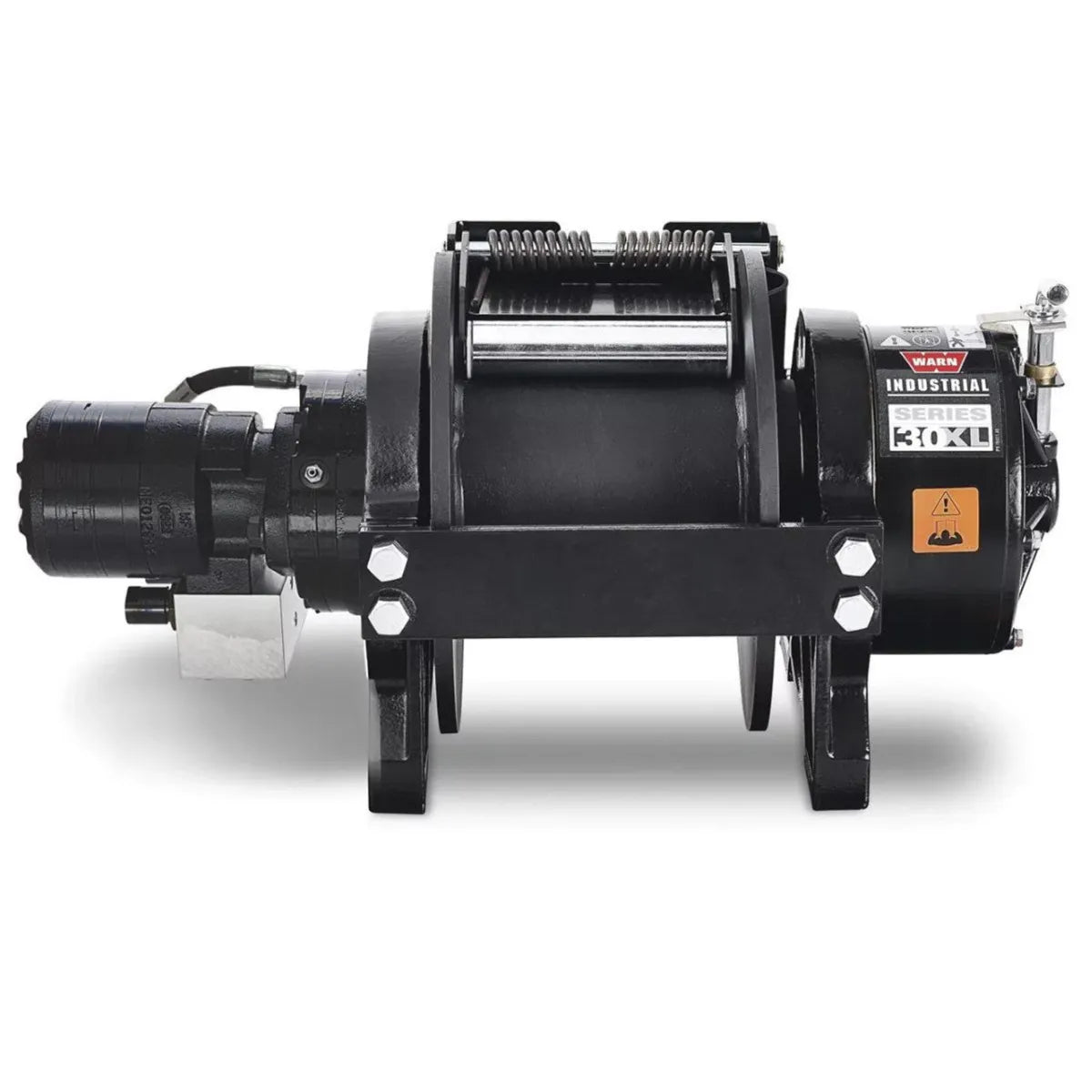

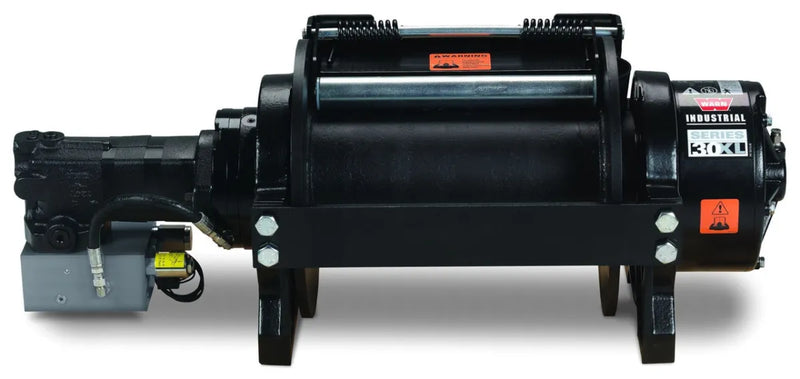

Warn Series 30XL Hydraulic Industrial Winch | Standard Drum And Air Clutch - Industrial Winch

Warn Series 30XL Hydraulic Industrial Winch | 13.6 Tonnes

by Warn
SKU UF-WAR-00032
Save $301.00 Save $301.00
$12,299.00
$12,299.00 - $12,299.00
$12,299.00
$11,998.00
$11,998.00 - $11,998.00
$11,998.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • ✔ Fast Shipping with Free Insurance
  • ✔ Australian Owned and Operated
  • ✔ Expert Before & After Sales Service
  • ✔ Easy Returns & Full Warranty Support

30,000lb / 13.6T Hydraulic Industrial Winch with Standard Drum and Air Clutch by WARN

When it comes to a top tier hydraulic winching solution, nothing surpasses the performance of this 30,000lb (13.6T) Industrial winch from Warn. Engineered to excel in hydraulic winching applications, this winch boasts an exceptional combination of power and reliability.

Unmatched Hydraulic Power: Featuring a robust hydraulic motor, this Warn Industrial winch has been engineered to handle extended duty cycles with ease. You can count on this winch to deliver exceptional performance.

Efficient Two-Stage Planetary Gear Trains: The heart of these winches lies in their hardened steel, two-stage planetary gear trains. This advanced design ensures not only efficient and reliable operation but also lightning-fast line speeds. When time is of the essence, these winches rise to the occasion.

Global Quality and Safety Standards: Just like their electric counterparts, WARN Industrial winches adhere to the highest global quality and safety standards. You can trust in the durability and dependability of these winches to meet your toughest challenges.

For hydraulic winching needs that demand nothing but the best, turn to WARN Industrial winches. With their unwavering power, advanced gear systems, and commitment to safety, they stand as the pinnacle of hydraulic winching technology. Rely on WARN to get the job done efficiently and reliably, no matter the task at hand.

The Warn Series XL product line combines durable cast iron construction, high efficiency hydraulic motor, and a robust 2X rated load braking system with a permanently lubricated and hardened 2-stage planetary gear train for superior intermittent-duty performance for loads up to 30,000 lbs (13600kg). A roller tension plate is standard along with bi-directional operation and a variety of mounting options to fit a variety of applications.

Please Note: Warn Series XL winches are not suitable for hoisting applications or movement of persons.

Please Note: This is the Standard Drum model only.

Features

  • 12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
  • Spring Applied Disc Brake Designed To Hold The Full Rated Load
  • Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
  • Meets SAE J706 And CE Specifications
  • Limited Lifetime Manufacturer Warranty on Mechanical Components
  • Limited 5 Year Manufacturer Warranty on Electrical Components

Specifications

  • Model No. 77900
  • Type: Hydraulic
  • Mount Type: Vehicle Mounted
  • Recommend Use: Industrial
  • Voltage: Not Applicable
  • Motor Horsepower: Not Applicable
  • Electirical Control Type: Not Applicable
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 36:1
  • Free Spooling: Yes
  • Brake Type: Spring Applied Disc
  • Line Diameter: 15.9mm (no cable included)
  • Line Length(FT): 42.7m (no cable included)
  • Line Material: Steel  (no cable included)
  • Fairlead Type: No Fairlead
  • Conforms to J706 Standards: Yes
  • Remote Type: No Remote
  • Mounting Hole Quantity: 8
  • Operation Type: Automatic
  • Mounting Pattern Length(IN): 18 Inch
  • Mounting Pattern Width (IN): 7-1/2 Inch
  • Includes Mounting Hardware: No
  • Colour: Black
  • Max Line Pull/Line Speed: 30000 Pound/ 21.9 Feet Per Minute

PERFORMANCE DATA BY LAYER – 5/8″ (15.9 MM) DIA. ROPE

Drum Line Load * Line Speed 15 GPM Line Speed 20 GPM Drum Capacity
Layer lbf kgf kN ft/min m/min ft/min m/min ft m
1 30000 13608 133.4 14.1 4.3 21.9 6.7 20 6.1
2 25385 11514 112.9 16.7 5.1 25.9 7.9 44 13.4
3 22000 9979 97.9 19.2 5.9 29.9 9.1 72 21.9
4 19412 8805 86.3 21.8 6.6 33.9 10.3 104 31.7
5 17368 7878 77.3 24.3 7.4 37.8 11.5 140 42.7


FIRST LAYER PERFORMANCE

Line Load Pressure Drop at 15 GPM Pressure Drop at 20 GPM Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 875 60.3 975 67.2 N/A
7500 3402 1250 86.2 1533 105.7 N/A
15000 6804 1900 131.0 2050 141.3 N/A
22500 10206 2500 172.4 2600 179.3 N/A
30000 13608 3000 206.8 2950 203.4 N/A



VIEW DATA SHEET HERE

VIEW OPERATORS MANUAL HERE
