TAG 4x4 Recovery Towbar for Toyota Landcruiser 78 Series Troopy (08/1991 - on) - TXR862

TAG 4x4 Recovery Towbar for Toyota Landcruiser 78 Series Troopy (08/1991 - on)

by TAG
SKU TXR862
$1,165.00 - $1,165.00
$1,165.00
$1,165.00 - $1,165.00
$1,165.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

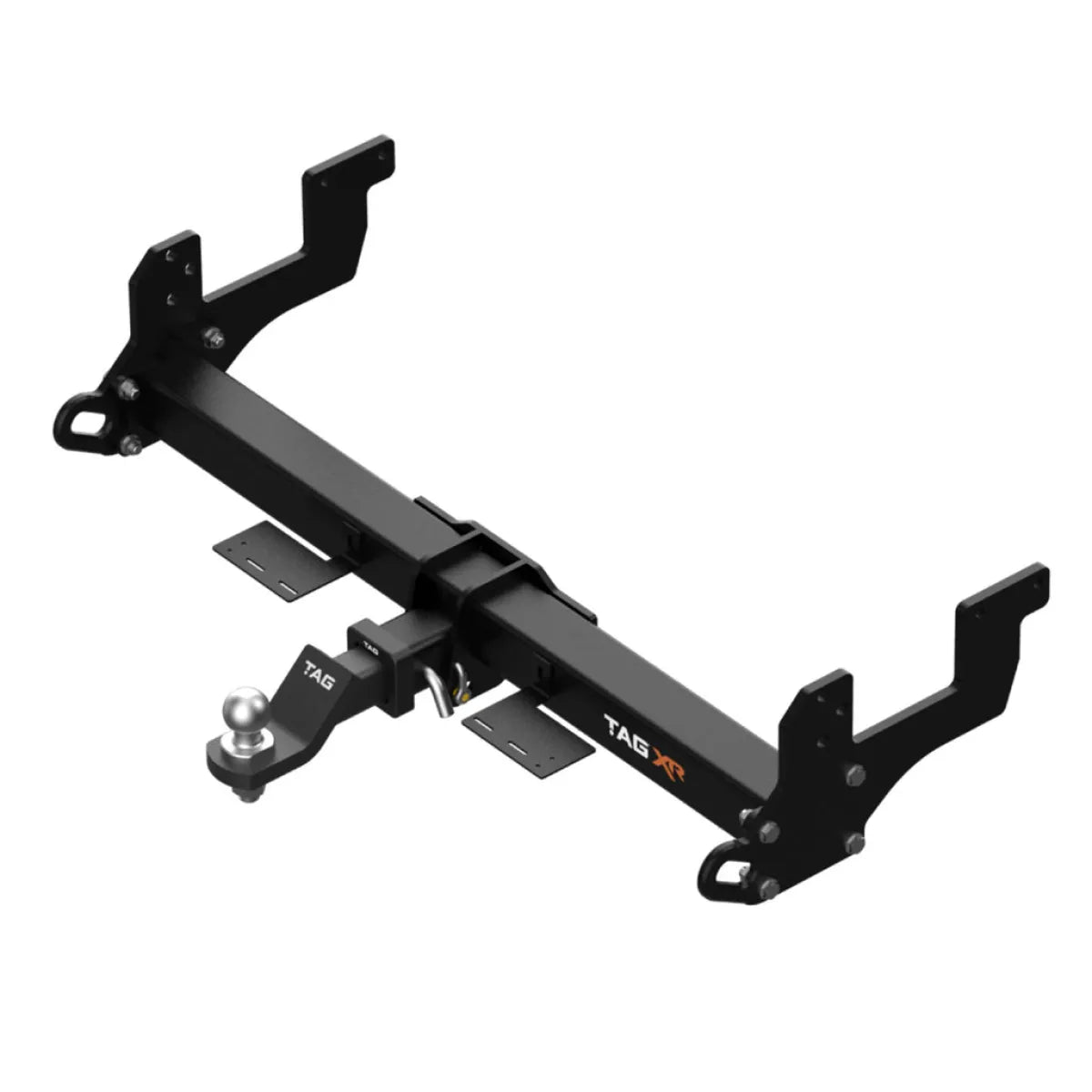

4x4 Recovery Towbar for Toyota Landcruiser 78 Series Troopy (08/1991 - on) by TAG

This TAG Extreme Recovery Towbar is built for the 78 Series Troop Carrier, August 1991 onwards, fitting two WLL 4000kg load-rated recovery points into the side-arms so you've got a proper anchor point for a snatch strap or winch line.

Unlike most of the range, this towbar sits partially concealed once fitted rather than fully exposed, while still keeping the flush chassis-mounted profile that protects your departure angle. As a Class 4 towbar it's also rated to 3500kg towing and 350kg ball weight with the hitch supplied.

Built in Australia and backed by TAG's limited lifetime warranty, it comes standard with a zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles. Fitting takes around 90 minutes, with the bumper removed during the process but no cutting required.

Features

  • Extreme Duty Reinforced Crossbar
  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles
  • Flush chassis-mounted, partially concealed profile for off-road clearance
  • Textured Powder Coated Finish
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar - 50mm Square Hitch Receiver
  • TAG Limited Lifetime Warranty
  • Comes standard with zinc tow ball, extreme duty drop hitch (3500kg towing / 350kg ball weight), pin and clip, and D-shackles

Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towing Capacity: 3500kg
  • Ball Weight: 350kg
  • Recovery Points: 2, WLL 4000kg load-tested
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Exposure: Partially concealed
  • Fitting Time: approximately 90 minutes
  • Fitment: 78 Series Troop Carrier, August 1991 onwards

Vehicle Applications

This towbar is listed against the following 15 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 09/2023 - Troop Carrier 78 Series 1GDFTV | 2.8L | Diesel GXL+ Automatic 4WD
TOYOTA LANDCRUISER 09/2023 - Troop Carrier 78 Series 1GDFTV | 2.8L | Diesel WORKMATE Automatic AWD
TOYOTA LANDCRUISER 09/2022 - Troop Carrier 78 Series 1VDFTV | 4.5L | Diesel GXL, Workmate Manual 4WD
TOYOTA LANDCRUISER 09/2022 - Troop Carrier 78 Series 1VDFTV | 4.5L | Diesel GXL, Workmate Manual 4WD
TOYOTA LANDCRUISER 09/2016 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R (with DPF) 4WD
TOYOTA LANDCRUISER 03/2007 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel GXL WORKMATE Manual 4WD
TOYOTA LANDCRUISER 03/2007 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R Manual 4WD
TOYOTA LANDCRUISER 11/2001 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 11/2001 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1999 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
TOYOTA LANDCRUISER 01/1990 01/2007 Wagon HZJ78 1H-Z | 4.2L | Diesel D AWD
TOYOTA LANDCRUISER 01/1990 01/2007 Wagon 73 Series 1H-Z | 4.2L | Diesel D AWD
TOYOTA LANDCRUISER 01/1990 01/2007 Wagon HZJ70 1H-Z | 4.2L | Diesel D AWD
TOYOTA LANDCRUISER 01/1990 01/2007 Wagon HZJ75, HZJ75R 1H-Z | 4.2L | Diesel D AWD
TOYOTA LANDCRUISER 10/1999 07/2001 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD

Frequently Asked Questions

Is this towbar exposed once fitted, like the rest of the TAG range?

No, this one sits partially concealed rather than fully exposed, while still keeping a flush, chassis-mounted profile.

What towing capacity does this towbar have?

3500kg towing capacity with a 350kg ball weight, as a Class 4 towbar.

What is the WLL rating of the recovery points?

The two integrated recovery points are load-rated to 4000kg WLL.

Is a towbar the same as a recovery point?

No. A standard tow ball or hitch receiver isn't rated for the dynamic forces of a winch or snatch strap recovery. This towbar has two purpose-built WLL 4000kg recovery points for that job.

Does fitting this towbar require removing the bumper?

Yes, the factory bumper is removed during fitment, though no cutting is required.

How long does fitting take?

Around 90 minutes for a professional fitter.

Can I fit this myself?

Because towbars are safety-critical and fitment varies by vehicle, we recommend professional installation by a qualified fitter.

What's included in the box?

The towbar, a zinc tow ball, extreme duty drop hitch rated at 3500kg/350kg, pin and clip, and D-shackles.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
