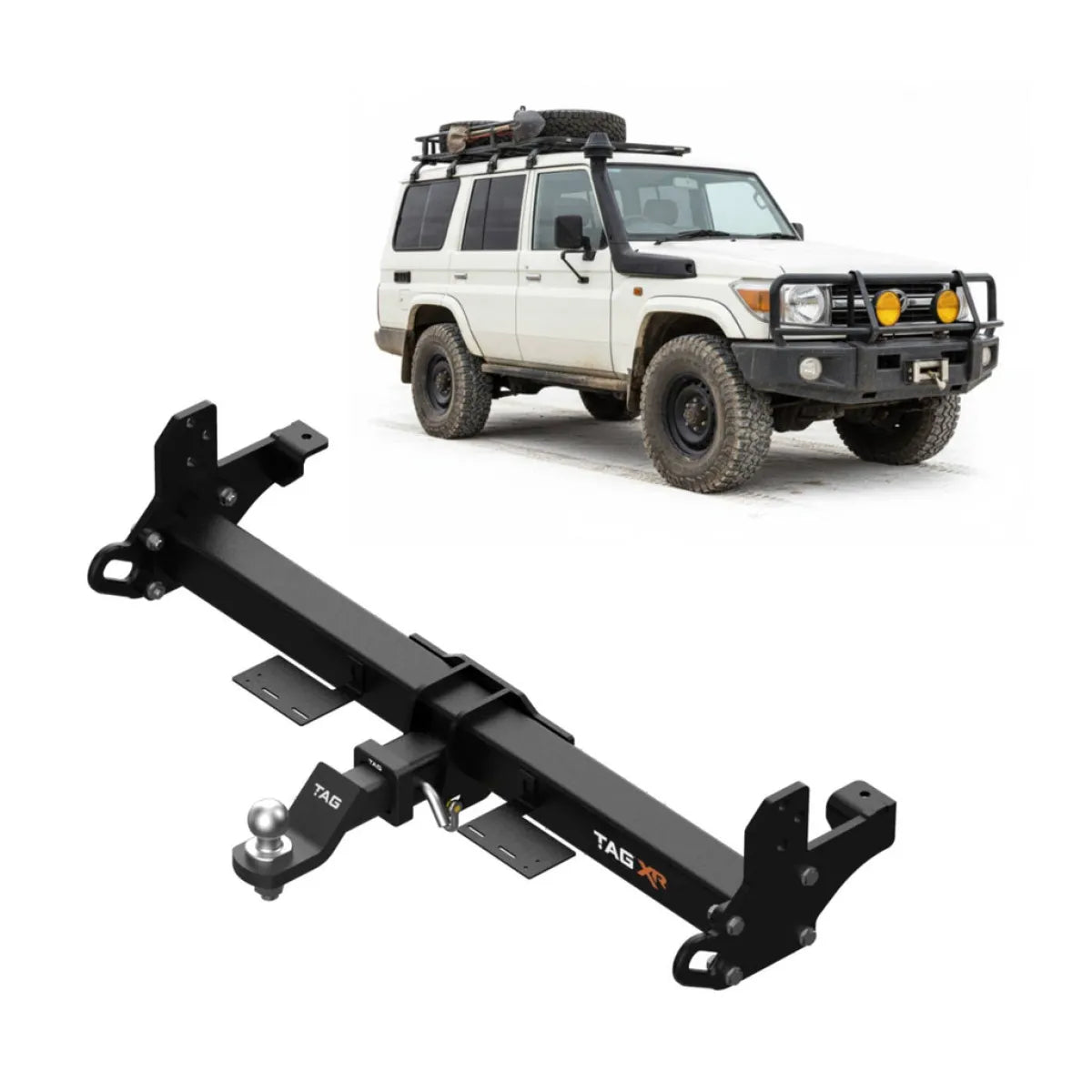

Extreme Recovery Towbar for Toyota Landcruiser 76 Series Wagon (03/2007 - On) by TAG
76 Series 5 Door Models Only. Doesn't Fit Troopy Models.
Built for the 76 Series Landcruiser Wagon, 5-door models only, not the Troopy, this TAG Extreme Recovery Towbar fits two WLL 4000kg load-rated recovery points into the side-arms, giving you a proper anchor point for a snatch strap or winch line.
The reinforced crossbar mounts flush to the chassis to protect your departure angle, and as a Class 4 towbar it's also rated to 3500kg towing and 350kg ball weight. Fitting takes around 90 minutes and the factory bumper is removed during the process, though no cutting is required.
Built in Australia and backed by TAG's limited lifetime warranty, it comes standard with a zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles. This towbar suits 5-door 76 Series Wagon models from March 2007 onwards and does not fit Troop Carrier variants.
Features
- Extreme Duty Reinforced Crossbar
- Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles
- Textured Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Comes standard with zinc tow ball, extreme duty drop hitch (3500kg towing / 350kg ball weight), pin and clip, and D-shackles
Specifications
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towing Capacity: 3500kg
- Ball Weight: 350kg
- Recovery Points: 2, WLL 4000kg load-tested
- Hitch Type: Heavy Duty 50mm Square
- Tow Ball Mount: L4045TXR
- Coating: Textured Powder Coated
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: No
- Exposure: Exposed
- Fitting Time: approximately 90 minutes
- Fitment: 76 Series Wagon, 5-door, March 2007 onwards. Does not fit Troop Carrier models.
Vehicle Applications
This towbar is listed against the following 12 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.
| Make |
Model |
From |
To |
Body |
Series |
Engine |
Variant |
Drivetrain |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
76 Series |
1GD-FTV | 2.8L | Diesel |
D-4D 3.5t |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
78 Series |
1GD-FTV | 2.8L | Diesel |
D-4D 3.5t |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
78 Series, 76 Series |
1VD-FTV | 4.5L | Diesel |
TD 32V 3.5t |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
76 Series |
1VDFTV | 4.5L | Diesel |
GXL, Workmate |
Manual 4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
76 Series |
1VD-FTV | 4.5L | Diesel |
VDJ (with DPF) |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
76 Series |
1GR-FE | 4.0L | Petrol |
– |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
79 Series |
1GR-FE | 4.0L | Petrol |
– |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
71 Series |
1GR-FE | 4.0L | Petrol |
– |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
- |
Wagon |
76 Series |
1VD-FTV | 4.5L | Diesel |
VDJ76R, 70TH ANNIVERSARY SPECIAL EDITION, GXL, WORKMATE |
Manual 4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
12/2022 |
Wagon |
76 Series |
1VD-FTV | 4.5L | Diesel |
– |
Manual 4X4 |
| TOYOTA |
LANDCRUISER |
03/2007 |
08/2022 |
Wagon |
76 Series, 78 Series |
1VD-FTV | 4.5L | Diesel |
TD 32V |
4WD |
| TOYOTA |
LANDCRUISER |
03/2007 |
08/2022 |
Wagon |
76 Series, 78 Series |
1VD-FTV | 4.5L | Diesel |
TD 32V |
4WD |
Frequently Asked Questions
Does this towbar fit the 76 Series Troop Carrier?
No. This towbar is built for 5-door 76 Series Wagon models only; it doesn't fit Troop Carrier variants. See the TAG towbar for the 78 Series Troopy if that's what you need.
What towing capacity does this towbar have?
3500kg towing capacity with a 350kg ball weight, as a Class 4 towbar.
What is the WLL rating of the recovery points?
The two integrated recovery points are load-rated to 4000kg WLL.
Is this towbar rated for vehicle recovery, or just towing?
Both. Beyond the 3500kg towing rating, it has two dedicated WLL 4000kg recovery points built into the side-arms, purpose-rated for a snatch strap or winch line, which a standard tow ball is not.
Does fitting this towbar require removing the bumper?
Yes, the factory bumper is removed during fitment, though no cutting is required.
How long does fitting take?
Around 90 minutes for a professional fitter.
Can I fit this myself?
Because towbars are safety-critical and fitment varies by vehicle, we recommend professional installation by a qualified fitter.
What's included in the box?
The towbar, a zinc tow ball, extreme duty drop hitch rated at 3500kg/350kg, pin and clip, and D-shackles.
Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
