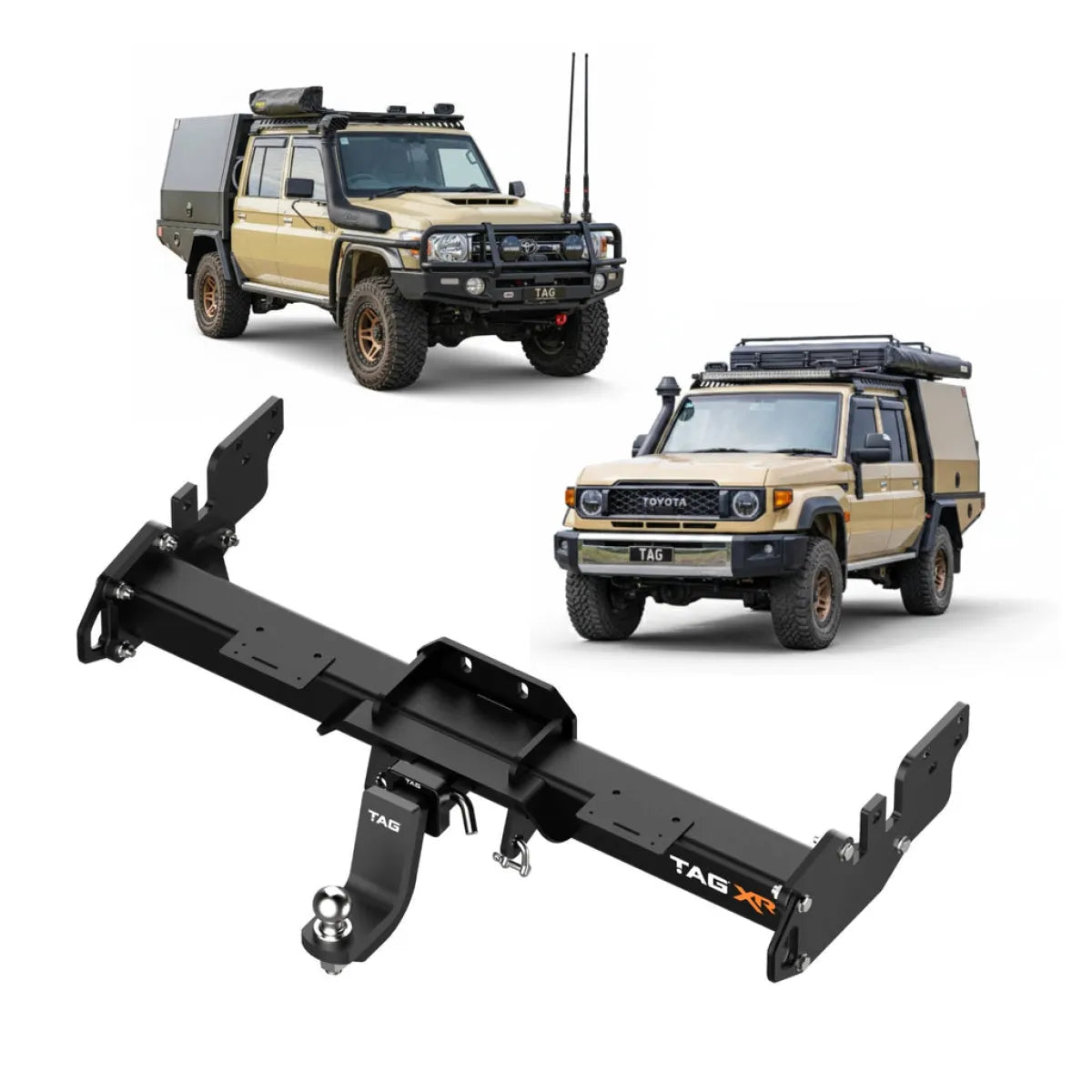

Extreme Recovery Towbar for Toyota Landcruiser 75 & 79 Series Single/Double Cab by TAG

Will Fit Facelift Model.

The TAG Extreme Recovery Towbar for the 75 and 79 Series Landcruiser, including facelift models, builds two WLL 4500kg load-rated recovery points into the side-arms, giving you somewhere properly engineered to hook a snatch strap or winch line.

The crossbar carries an 89mm x 89mm extreme duty section and is chassis-mounted flush for the best departure angle. On 79 Series models built from August 2012 onwards, the bar itself is engineered for up to 4500kg towing and 450kg ball weight, though the hitch and tow ball supplied as standard are rated to 3500kg/350kg. To use the full 4500kg/450kg capacity you'll need a higher-rated hitch and tow ball (TAG list part UNTTBM450 or a 70mm ball as options), plus any pre-registration modifications your state requires to legally tow at that weight. Earlier 75 and 79 Series models, built before August 2012, use a different chassis and this bar is rated to 3500kg/350kg on those regardless of hitch.

Built in Australia and covered by TAG's limited lifetime warranty, it comes standard with a zinc tow ball, drop hitch, pin and clip, and D-shackles.

Features

• 89mm x 89mm Extreme Duty Reinforced Crossbar
• Two WLL 4500kg load-rated recovery points, bevelled for soft shackles, in a 3-piece side-arm design
• Flush chassis-mounted profile for maximum off-road clearance and departure angle
• Highly durable, textured Extreme Duty Powder Coated Finish
• Dual top-mounted Trailer & Anderson Plug Mounts
• Class 4 Towbar - 50mm Square Hitch Receiver
• TAG Limited Lifetime Warranty
• Standard hitch included: zinc tow ball, extreme duty drop hitch (3500kg towing / 350kg ball weight), pin and clip, D-shackles. The Curt Rebellion hitch pictured is sold separately.

Specifications

• Towbar Class: Heavy Duty (4x4 Recovery)
• Towbar (crossbar) rated capacity: 4500kg / 450kg ball weight (79 Series, August 2012 onwards, with upgraded hitch fitted)
• Standard included hitch capacity: 3500kg towing / 350kg ball weight
• 75 & 79 Series before August 2012: 3500kg / 350kg (chassis-limited, no upgrade available)
• Recovery Points: 2, WLL 4500kg load-tested
• Hitch Type: 50mm Square Hitch Receiver
• Tow Ball Mount: L4171TXR
• Coating: Textured Powder Coated
• Bumper Removed During Fitment: No
• Bumper Cut Out Required: No
• Exposure: Exposed
• Fitting Time: approximately 120 minutes

To tow at the full 4500kg/450kg rating you need the higher-rated hitch and tow ball plus any state-required pre-registration modifications. Check your vehicle's compliance plate and your state's transport authority before towing at this weight.

Vehicle Applications

This towbar is listed against the following 45 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
