Towbar 4x4 Recovery for Toyota Hilux (07/2015 - on) by TAG

Trayback Models only.

N90 Hilux Cab Chassis Models from 2026 onwards, require relocation or rear sensor bar.

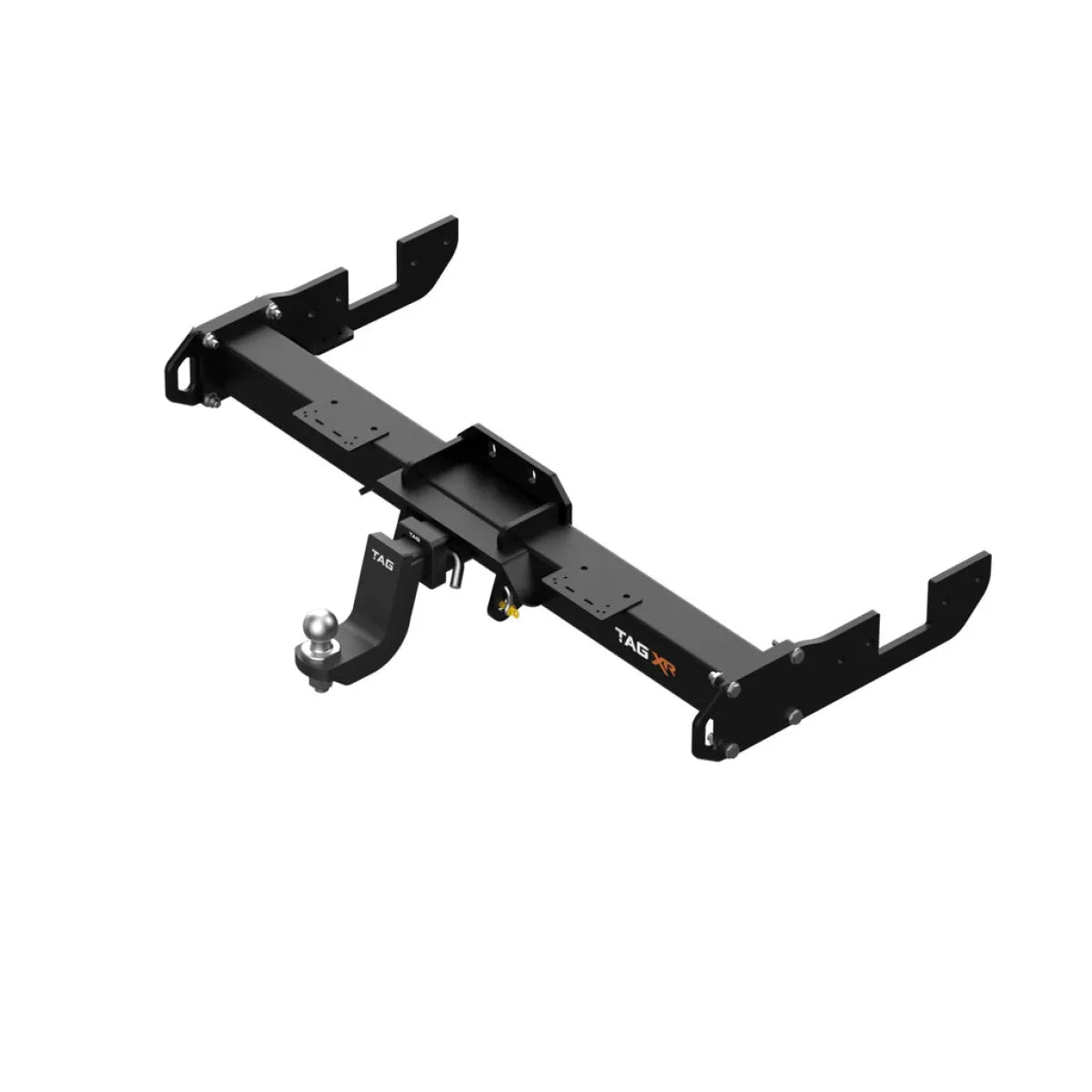

Covering Trayback Hilux models from July 2015 onwards, including the current N90 range, this TAG Extreme Recovery Towbar swaps a standard tow point for two WLL 4500kg load-rated recovery points built into the side-arms.

The 89mm x 89mm extreme duty crossbar mounts flush to the chassis, so your departure angle stays intact instead of dropping away under a hanging towbar. As a Class 4 towbar it's also rated to 3500kg towing and 350kg ball weight with the hitch supplied. No bumper removal or cutting is needed to fit it, and the job takes around 120 minutes.

One fitment note for the newest models: N90 Hilux cab chassis variants built from 2026 onwards need the rear sensor bar relocated, or fitted, to work with this towbar. Built in Australia and backed by TAG's limited lifetime warranty, it's supplied complete with a zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles.

Features

• 89mm x 89mm Extreme Duty Reinforced Crossbar
• Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles
• Flush chassis-mounted profile for maximum offroad clearance for improved departure angles
• Highly durable, textured Extreme Duty Powder Coated Finish
• Dual top-mounted Trailer & Anderson Plug Mounts
• Class 4 Towbar - 50mm Square Hitch Receiver
• No bumper removal or cutting required to fit
• TAG Limited Lifetime Warranty
• Comes standard with zinc tow ball, extreme duty drop hitch (3500kg towing / 350kg ball weight), pin and clip, and D-shackles

Specifications

• Towbar Class: Heavy Duty (4x4 Recovery)
• Towing Capacity: 3500kg
• Ball Weight: 350kg
• Recovery Points: 2, WLL 4500kg load-tested
• Hitch Type: 50mm Square Hitch Receiver
• Tow Ball Mount: L4171TXR
• Coating: Textured Powder Coated
• Bumper Removed During Fitment: No
• Bumper Cut Out Required: No
• Exposure: Exposed
• Fitting Time: approximately 120 minutes
• Fitment: Trayback models, July 2015 onwards. N90 cab chassis from 2026 onwards requires rear sensor bar relocation.

Vehicle Applications

This towbar is listed against the following 30 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
