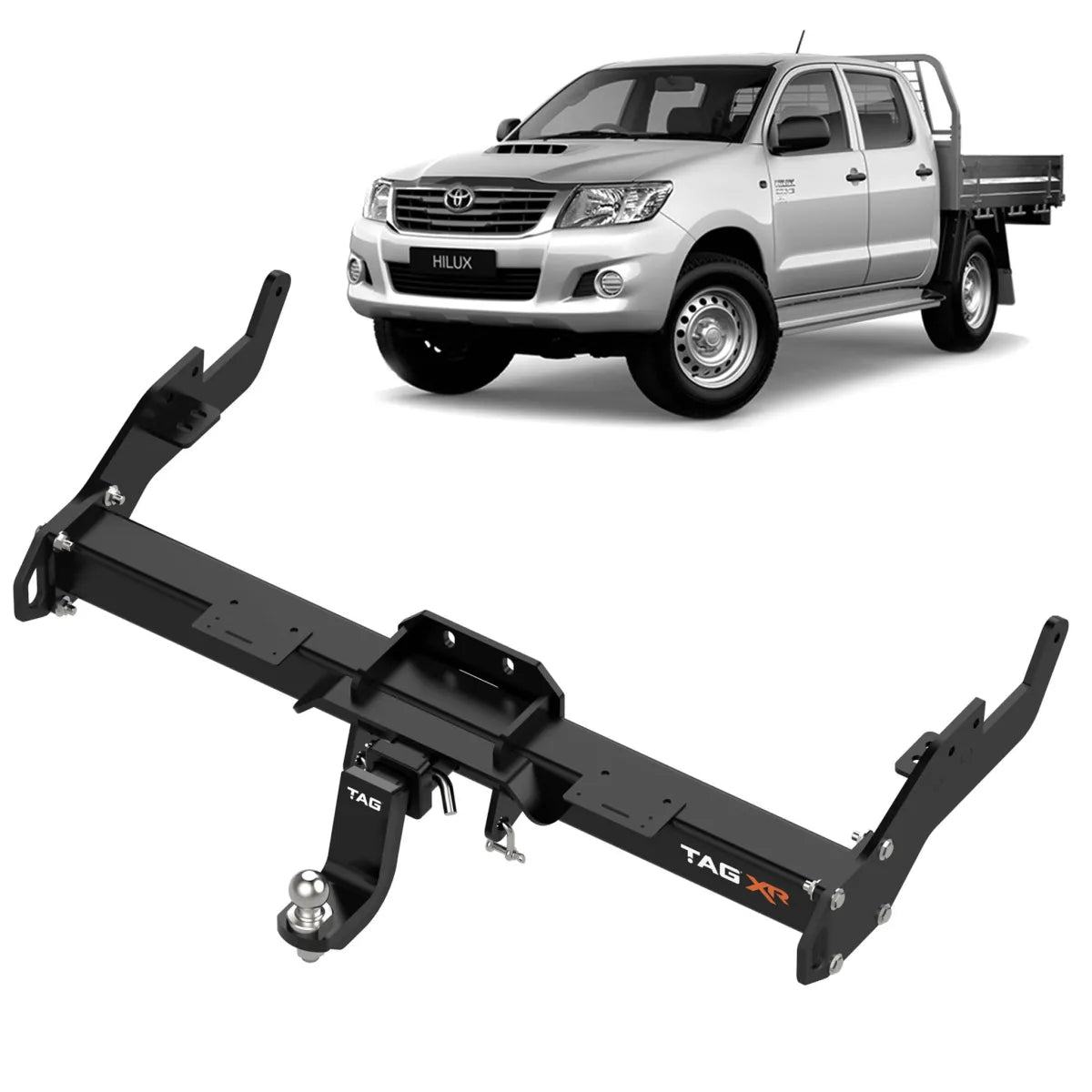

Extreme Recovery Towbar & Direct Fit Wiring for Toyota Hilux N80 (10/2015 - 2026) & N90 (2026 - On) - Cab Chassis by TAG

This TAG Extreme Recovery (XR) kit covers both the outgoing N80 Hilux cab chassis (10/2015-2026) and the newer N90 model (2026 on), so it's a straightforward fit whichever generation you're driving. It pairs a Class 4, 50mm square hitch receiver rated to 3500kg towing and 350kg ball weight with a direct fit ECU wiring harness.

The wiring uses automatic reverse sensor and fog light cut off, so towing lights work correctly without manual switching. Two WLL 4500kg load-rated recovery points are built into the 89mm x 89mm reinforced crossbar, with bevelled edges shaped for a soft shackle, giving the same mounting point both towing and off-road recovery duty.

At 65.8kg it's one of the heavier kits in the TAG Extreme Recovery range, reflecting the ECU wiring hardware bundled in. Budget around two hours in a workshop for the full fit.

Fitment: Fits Toyota Hilux N80 Cab Chassis (10/2015-2026) and N90 Cab Chassis (2026 on).

Features

Class 4, 50mm square hitch receiver rated to 3500kg towing capacity and 350kg ball weight

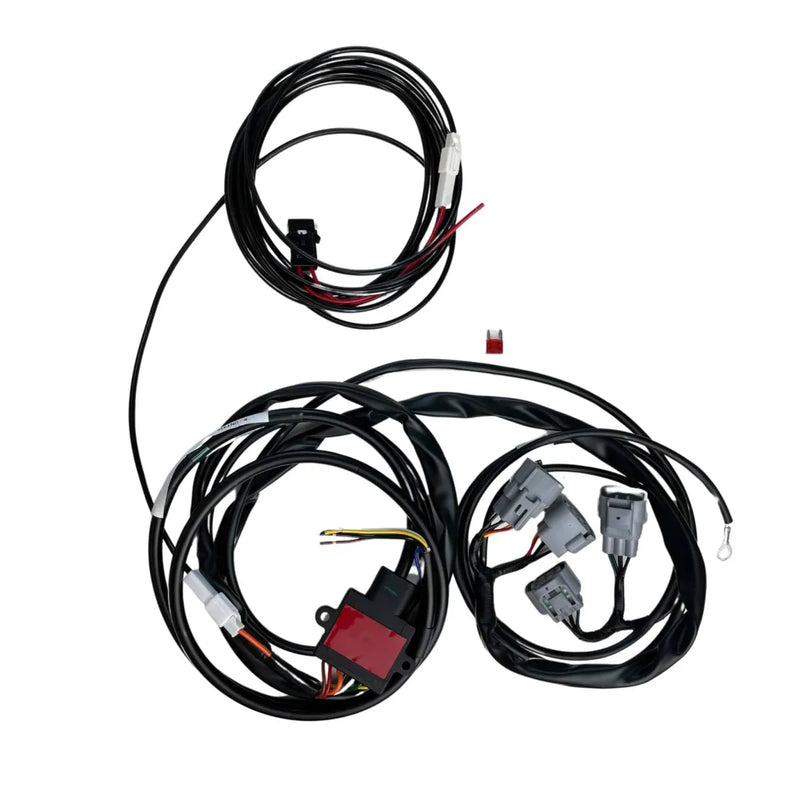

Direct fit ECU wiring harness with automatic reverse sensor and fog light cut off
Two WLL 4500kg load-rated recovery points in a 3-piece side-arm design with bevelled edges for soft shackles
89mm x 89mm extreme duty reinforced crossbar
Flush, chassis-mounted profile for maximum off-road clearance
Highly durable, textured extreme duty powder coated finish
Dual top-mounted trailer and Anderson plug mounts

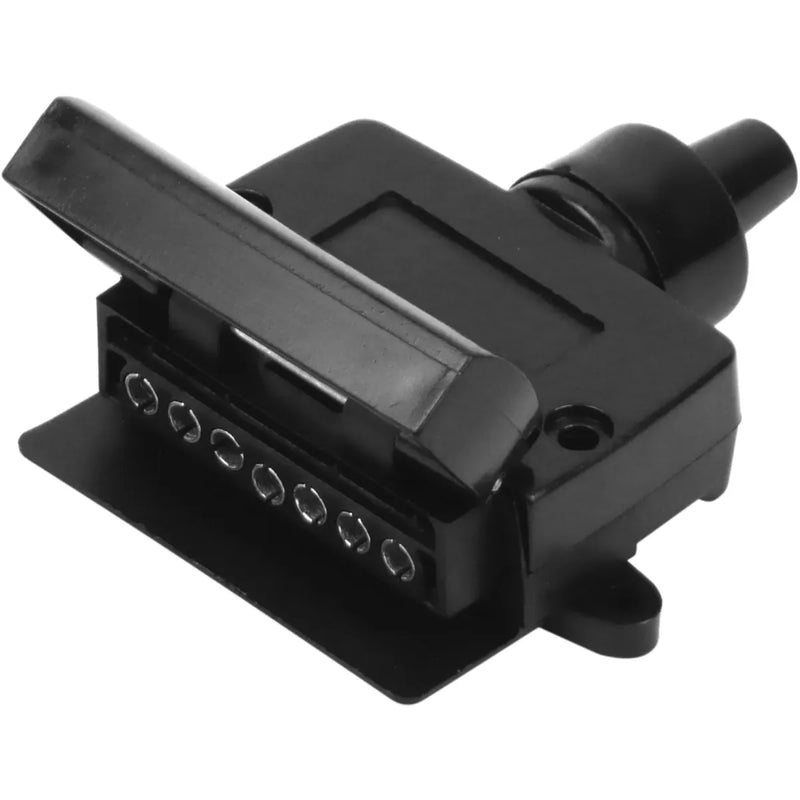

7 pin flat vehicle-side socket included
Zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles included
TAG limited lifetime warranty. Built in Australia

Towbar Specifications

Towbar Class: Heavy Duty (4x4 Recovery)
Towbar Capacity (kg): 3500
Ball Weight (kg): 350
Recovery Load-tested: 4500kg WLL
Recovery Points: 2
Hitch Type: 50mm Square Hitch Receiver
Coating: Textured Powder Coated
Exposure: Exposed
Weight: 65.8 kg

Wiring Specifications

Wiring Option: Direct Fit ECU
Style: 7 Pin Flat
Type: Plugs & Sockets
Reverse Sensor Cut Off: Automatic
Fog Cut Off: Automatic
Diagnostic Coding: Not Applicable
Fitting Time (min): 120

What's Included

Vehicle Applications

This kit is listed against the following 36 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR5 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR Double Cab	Manual 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR Extra Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Automatic 4X2
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Manual 4X2
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN126	1GD-FTV \| 2.8L \| Hybrid (Diesel)	D-4D 48V	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN126	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121R	2TRFE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN135R	2GD-FTV \| 2.4L \| Diesel	Workmate Hi-Rider	Manual RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN123	1GD-FTV \| 2.8L \| Diesel	SR	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	Workmate	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN122R	2GD-FTV \| 2.4L \| Diesel	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	TDi	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN125_	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN112_	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN122_	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN135_	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN111R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121	2TR-FE \| 2.7L \| Petrol	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121R	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN135R	2GD-FTV \| 2.4L \| Diesel	Workmate Hi-Rider	Manual RWD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR EXTRA CAB	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	WORKMATE EXTRA CAB	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	06/2019	Cab Chassis	GUN122R	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Manual RWD
TOYOTA	HILUX	07/2015	09/2017	Cab Chassis	GUN123R	1GD-FTV \| 2.8L \| Diesel	SR	Manual RWD
TOYOTA	HILUX	07/2015	07/2017	Cab Chassis	GUN123R	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	07/2017	Cab Chassis	GUN123	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD

Frequently Asked Questions

Does this towbar fit both the N80 and N90 Hilux?

Yes. This kit is designed to suit both the N80 Hilux Cab Chassis (10/2015-2026) and the N90 Cab Chassis (2026 on).

Does the wiring cut off my reversing sensors automatically when towing?

Yes. This kit uses a direct fit ECU wiring harness with automatic reverse sensor cut off and automatic fog light cut off.

What is the towing capacity of this towbar?

This towbar is rated to 3500kg towing capacity and 350kg ball weight when used with the included extreme duty drop hitch and tow ball.

Can the recovery points be used for snatch recovery?

The two recovery points are load rated to 4500kg WLL and shaped with bevelled edges to suit soft shackles, intended for use with correctly rated recovery accessories. Inspect the points before use and keep the load within their rated capacity.

Is the wiring harness included, or bought separately?

Wiring is included. The kit comes with a TAG direct fit ECU wiring harness and a 7 pin flat vehicle-side socket.

How long does fitting take?

Fitting time is around 120 minutes (roughly two hours), covering the towbar mounting and ECU wiring integration. We recommend fitting by a qualified installer or auto electrician given the ECU wiring.

Will fitting this towbar void my Hilux's warranty?

Fitting a correctly installed aftermarket towbar does not automatically void your vehicle's factory warranty in Australia, but this can vary by manufacturer and dealership. Check with Toyota or your dealer about your specific vehicle if you're unsure.

Do I need to tell my insurer I've fitted a towbar?

Many insurers ask you to declare aftermarket modifications, including towbars, as they can affect your vehicle's listed specifications. Check directly with your insurance provider to confirm their requirements.
