Extreme Recovery Towbar & Direct Fit Wiring for Toyota Hilux Models With No Rear Step (07/2015 - on) by TAG

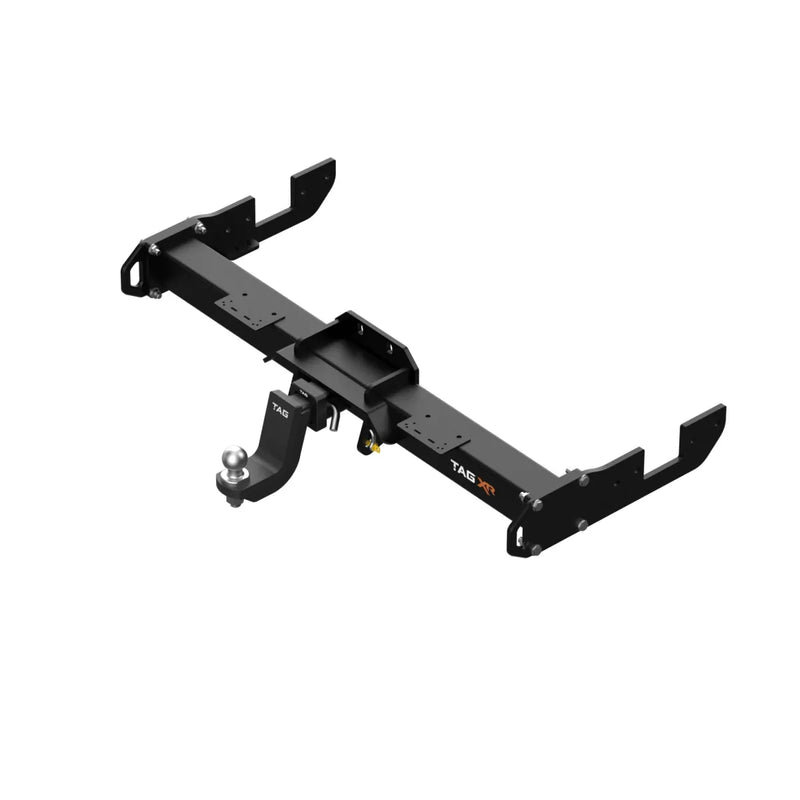

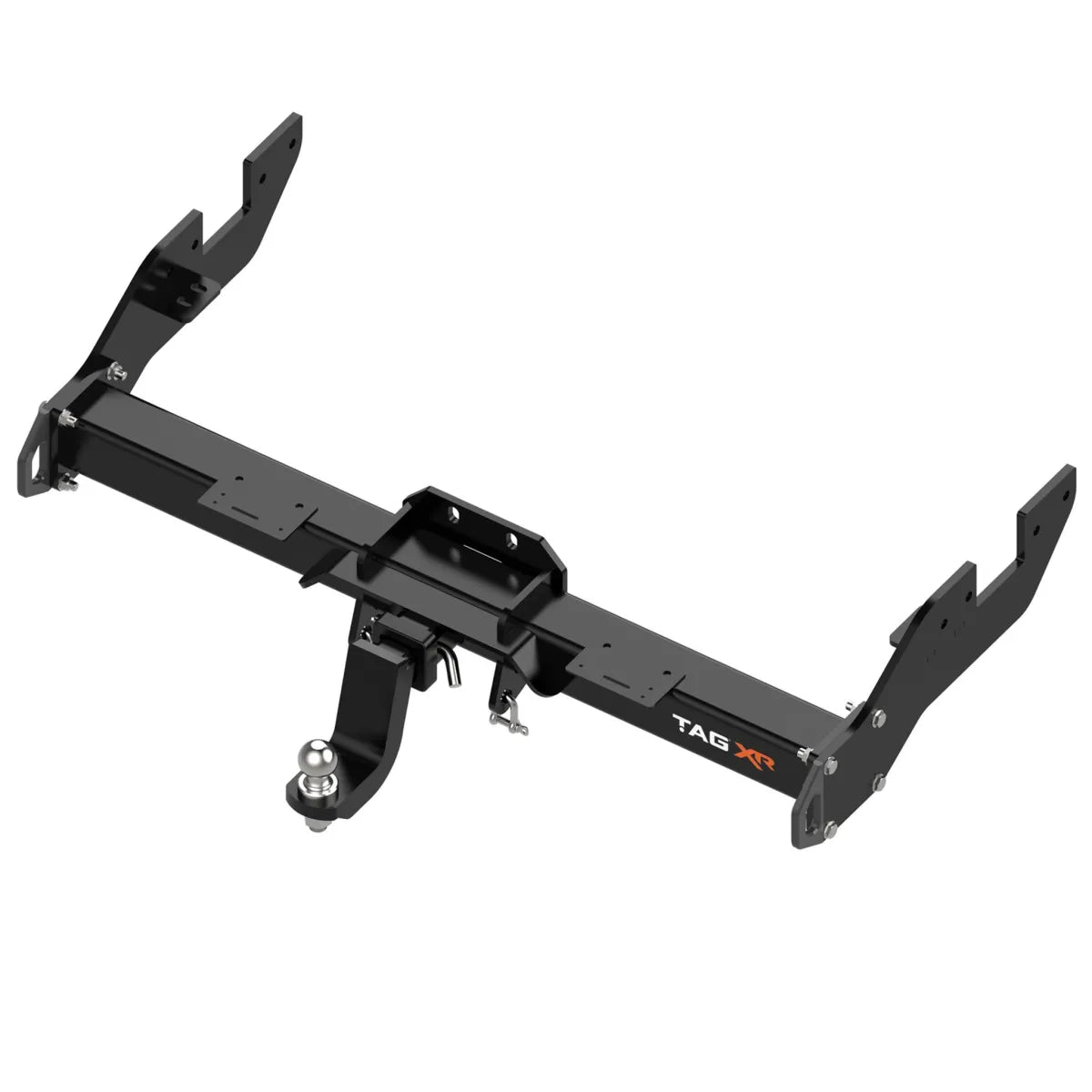

This TAG Extreme Recovery (XR) kit is built for Hilux models from July 2015 on that don't have a factory rear bumper step, pairing a Class 4, 50mm square hitch receiver with a direct fit ECU wiring harness in one purchase.

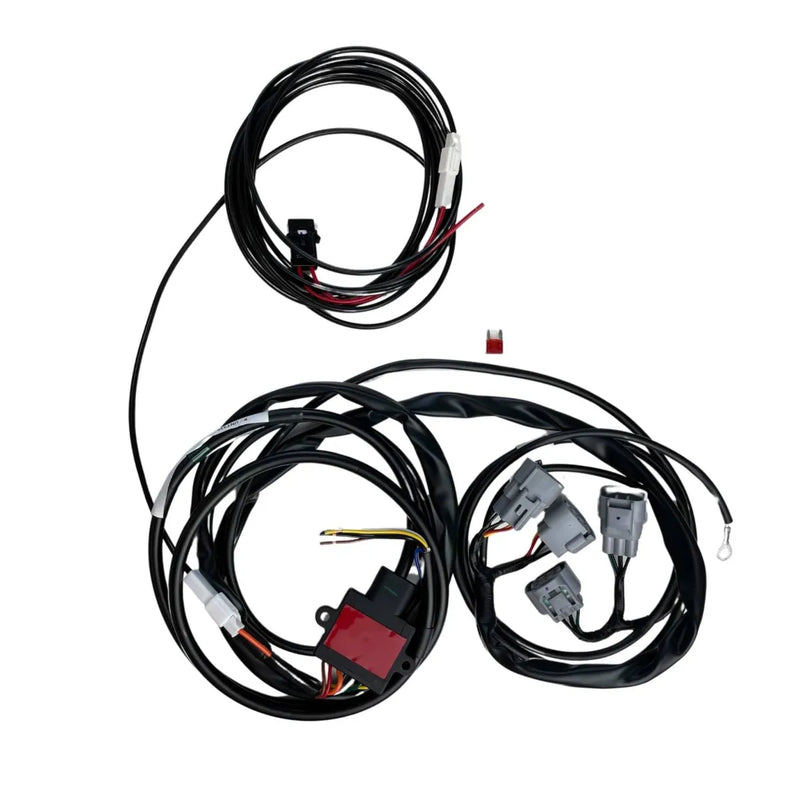

The wiring side is a direct fit ECU harness with automatic reverse sensor and fog light cut off, so towing lights work correctly without extra relay boxes or manual switches to think about. Two WLL 4500kg load-rated recovery points are built into the 89mm x 89mm reinforced crossbar, with bevelled edges shaped for a soft shackle.

Owners of the newer N90 Hilux cab chassis (2026 on) should note this towbar may require relocation of the rear sensor bar as part of fitment. Budget around two hours in a workshop for the full fit.

Fitment: Fits Toyota Hilux models with no rear bumper step, July 2015 on.

Please note: N90 Hilux Cab Chassis models from 2026 onwards require relocation of the rear sensor bar as part of fitment.

Features

Class 4, 50mm square hitch receiver rated to 3500kg towing capacity and 350kg ball weight
Direct fit ECU wiring harness with automatic reverse sensor and fog light cut off
Two WLL 4500kg load-rated recovery points in a 3-piece side-arm design with bevelled edges for soft shackles
89mm x 89mm extreme duty reinforced crossbar
Flush, chassis-mounted profile for maximum off-road clearance
Textured extreme duty powder coated finish
Dual top-mounted trailer and Anderson plug mounts

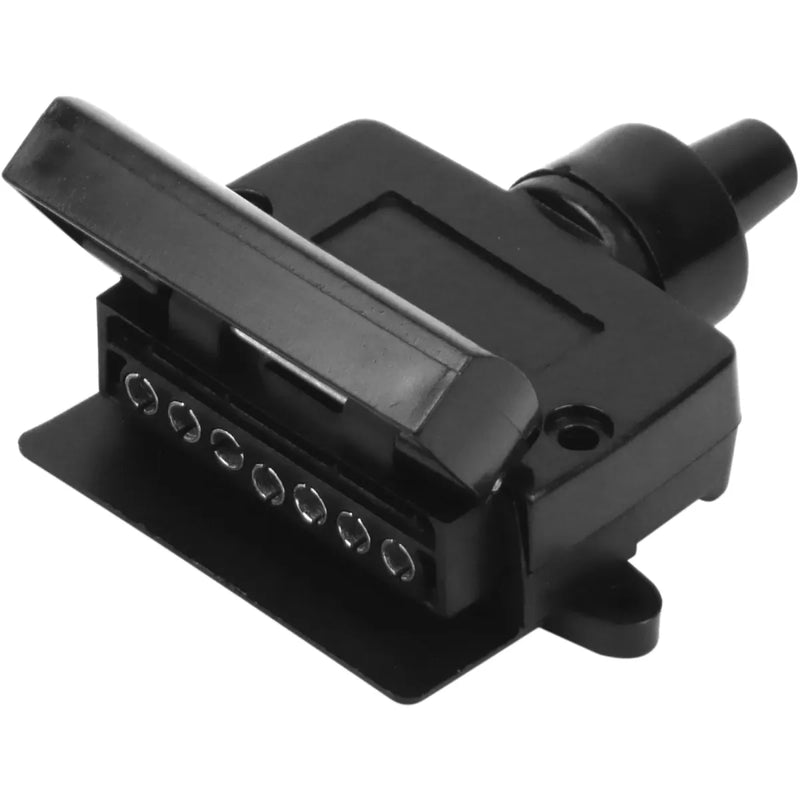

7 pin flat vehicle-side socket included
Zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles included
TAG limited lifetime warranty. Built in Australia

Towbar Specifications

Towbar Class: Heavy Duty (4x4 Recovery)
Towbar Capacity (kg): 3500
Ball Weight (kg): 350
Recovery Load-tested: 4500kg WLL
Recovery Points: 2
Hitch Type: 50mm Square Hitch Receiver
Tow Ball Mount: L4171TXR
Bumper Removed During Fitment: No
Bumper Cut Out Required: No
Coating: Textured Powder Coated
Exposure: Exposed
Weight: 62.9 kg

Wiring Specifications

Wiring Option: Direct Fit ECU
Style: 7 Pin Flat
Type: Plugs & Sockets
Reverse Sensor Cut Off: Automatic
Fog Cut Off: Automatic
Diagnostic Coding: Not Applicable
Fitting Time (min): 120

What's Included

This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.

Vehicle Applications

This kit is listed against the following 18 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	HILUX	03/2024	-	Cab Chassis	GUN126	1GD-FTV \| 2.8L \| Hybrid (Diesel)	D-4D 48V	AWD
TOYOTA	HILUX	05/2020	-	Cab Chassis	GUN126	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	05/2020	-	Cab Chassis	TGN121R	2TRFE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	05/2020	-	Cab Chassis	GUN135R	2GD-FTV \| 2.4L \| Diesel	Workmate Hi-Rider	Manual RWD
TOYOTA	HILUX	10/2015	-	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	AWD
TOYOTA	HILUX	10/2015	-	Cab Chassis	GUN123	1GD-FTV \| 2.8L \| Diesel	SR	RWD
TOYOTA	HILUX	10/2015	-	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	Workmate	AWD
TOYOTA	HILUX	10/2015	-	Cab Chassis	GUN122R	2GD-FTV \| 2.4L \| Diesel	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	TDi	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	GUN112_, GUN122_, GUN125_, GUN135_	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN111R, TGN121R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121	2TR-FE \| 2.7L \| Petrol	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	TGN121R	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	10/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Cab Chassis	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR EXTRA CAB	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Cab Chassis	GUN125R	2GD-FTV \| 2.4L \| Diesel	WORKMATE EXTRA CAB	Automatic/Manual 4WD

Frequently Asked Questions

Does this towbar suit Hilux models with a rear bumper step?

No. This kit is designed for Hilux models from July 2015 on that do not have a factory rear bumper step. If your Hilux has a rear step, a different TAG kit is required.

Does the wiring cut off my reversing sensors automatically when towing?

Yes. This kit uses a direct fit ECU wiring harness with automatic reverse sensor cut off and automatic fog light cut off, so no manual switching is needed.

What is the towing capacity of this towbar?

This towbar is rated to 3500kg towing capacity and 350kg ball weight when used with the included extreme duty drop hitch and tow ball.

Does fitting this towbar to an N90 Hilux require any extra work?

N90 Hilux Cab Chassis models from 2026 onwards may require relocation of the rear sensor bar as part of fitting this towbar. We recommend fitting by a qualified installer familiar with the current Hilux range.

Can the recovery points be used for snatch recovery?

The two recovery points are load rated to 4500kg WLL and shaped with bevelled edges to suit soft shackles, intended for use with correctly rated recovery accessories. Inspect the points before use and keep the load within their rated capacity.

How long does fitting take?

Fitting time is around 120 minutes (roughly two hours). We recommend fitting by a qualified installer or auto electrician given the ECU wiring integration.

Will fitting this towbar void my Hilux's warranty?

Fitting a correctly installed aftermarket towbar does not automatically void your vehicle's factory warranty in Australia, but this can vary by manufacturer and dealership. Check with Toyota or your dealer about your specific vehicle if you're unsure.

Do I need to tell my insurer I've fitted a towbar?

Many insurers ask you to declare aftermarket modifications, including towbars, as they can affect your vehicle's listed specifications. Check directly with your insurance provider to confirm their requirements.
