Extreme Recovery Towbar & Direct Fit Wiring for Toyota Hilux Cab Chassis (08/2008 - 09/2015) by TAG

A cab chassis Hilux built between August 2008 and September 2015 usually ends up towing more than the factory ball mount was ever designed for. This TAG Extreme Recovery (XR) kit replaces it with a Class 4, 50mm square hitch receiver rated to 3500kg towing and 350kg ball weight, engineered and finished in Australia specifically for this Hilux cab chassis.

What sets it apart from a standard towbar is the pair of WLL 4500kg-rated recovery points built into the 89mm x 89mm reinforced crossbar. They sit within the three-piece side-arm design with bevelled edges shaped for a soft shackle, so the same mounting point that tows your trailer on the black top can also anchor recovery gear well off it.

The kit bundles the towbar with a TAG direct fit wiring harness (relay-based) and a 7 pin flat vehicle-side socket, so the mechanical and electrical sides of the job are covered in one purchase rather than sourced separately. Budget around two hours in a workshop for the full fit.

Fitment: Fits Toyota Hilux Cab Chassis, August 2008 to September 2015.

Features

Class 4, 50mm square hitch receiver rated to 3500kg towing capacity and 350kg ball weight
Two WLL 4500kg load-rated recovery points built into the 3-piece side-arm design, with bevelled edges suited to soft shackles
89mm x 89mm extreme duty reinforced crossbar
Flush, chassis-mounted profile that preserves the Hilux's factory departure angle
Textured extreme duty powder coated finish
Dual top-mounted trailer and Anderson plug mounts
TAG direct fit wiring harness (relay-based) and 7 pin flat vehicle-side socket included
Zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles included
TAG limited lifetime warranty
Built in Australia

Towbar Specifications

Towbar Class: Heavy Duty (4x4 Recovery)
Towbar Capacity (kg): 3500
Ball Weight (kg): 350
Recovery Load-tested: 4500kg WLL
Recovery Points: 2
Hitch Type: 50mm Square Hitch Receiver
Coating: Textured Powder Coated
Exposure: Exposed
Weight: 47.8 kg

Wiring Specifications

Wiring Option: Direct Fit Harness with Relays
Style: 7 Pin Flat
Type: Plugs & Sockets
Reverse Sensor Cut Off: Not Applicable
Fog Cut Off: Not Applicable
Diagnostic Coding: Not Required
Fitting Time (min): 120
Fits Vehicle: 08/2008 to 09/2015

What's Included

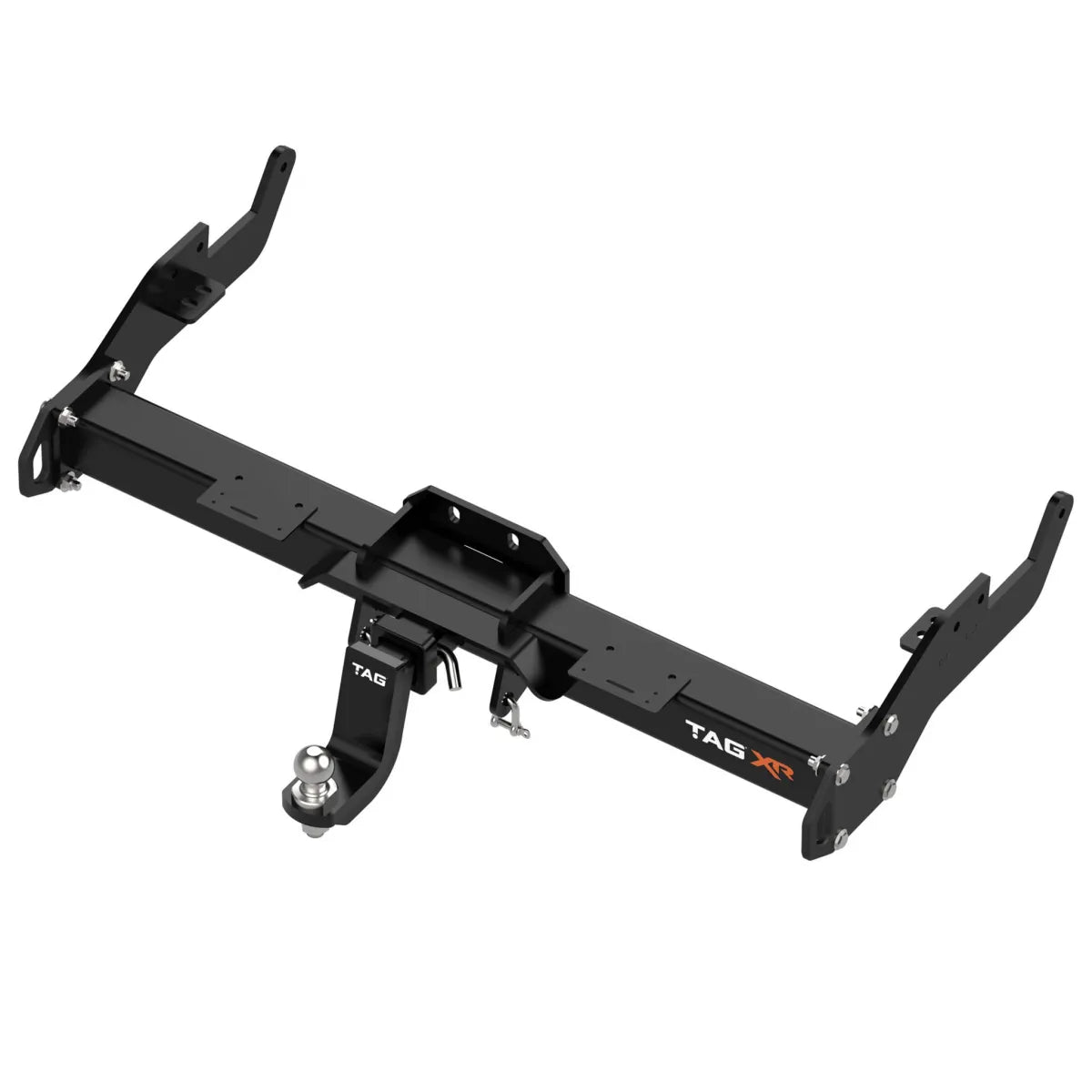

TAG 4x4 Recovery Towbar

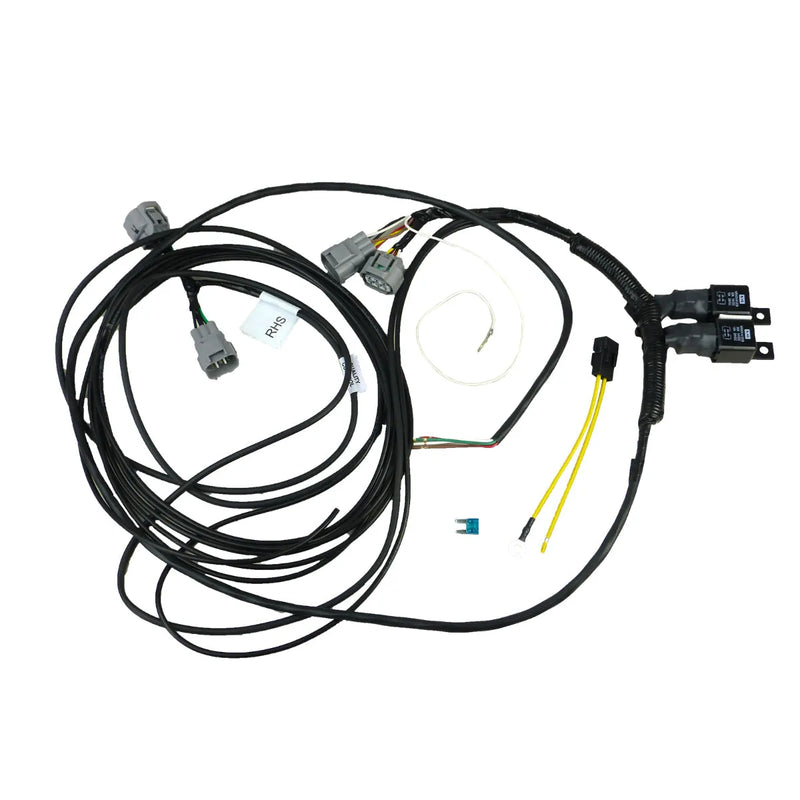

TAG Direct Fit Wiring Harness (relay-based)

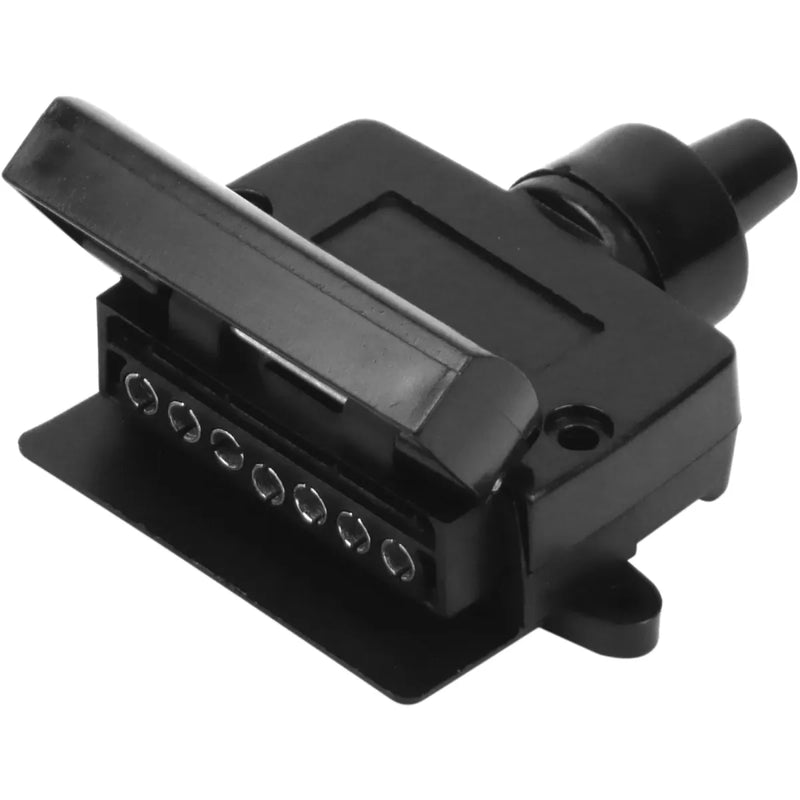

TAG 7 Pin Flat Socket - Vehicle Side
Zinc Tow Ball
Extreme Duty Drop Hitch
Pin & Clip
D-Shackles

This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.

Vehicle Applications

This kit is listed against the following 49 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN15	2KD-FTV \| 2.5L \| Diesel	VIGO VII	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN35L	2KD-FTV \| 2.5L \| Diesel	–	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN35L	2KD-FTV \| 2.5L \| Diesel	–	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN15, KUN35	2KD-FTV \| 4.0L \| Diesel	VIGO VII	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN16R	1KD-FTV \| 3.0L \| Diesel	SR X-CAB	Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN25	2KD-FTV \| 2.5L \| Diesel	VIGO VII	AWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN26	1KD-FTV \| 3.0L \| Diesel	D-4D	AWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN16R	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN16R	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR, WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN16R	1KD-FTV \| 3.0L \| Diesel	SR, WORKMATE	Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26	1KD-FTV \| 3.0L \| Diesel	D-4D	4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26	1KD-FTV \| 3.0L \| Diesel	D-4D	AWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN16	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN16	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN16R	1KD-FTV \| 3.0L \| Diesel	SR	Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR5 EXTRA CAB	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR5, SR5 BLACK	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR EXTRA CAB	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR, WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN25	2KD-FTV \| 2.5L \| Diesel	VIGO VII	AWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN25R	2KDFTV \| 2.4L \| Diesel	–	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN25R	2KD-FTV \| 2.5L \| Diesel	–	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN25	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN25	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	TGN26	2TR-FE \| 2.7L \| Petrol	VIGO VII	AWD
TOYOTA	HILUX	08/2008	10/2015	Ute	TGN16	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	TGN16	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	TGN16R	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15R	1GR-FE \| 4.0L \| Petrol	SR	Automatic/Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN25R	1GR-FE \| 4.0L \| Petrol	SR5	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15R	1GR-FE \| 4.0L \| Petrol	SR5	Automatic/Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15R	1GR-FE \| 4.0L \| Petrol	SR EXTRA CAB	Automatic RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN15, KUN10	2KD-FTV \| 2.5L \| Diesel	VIGO VII	RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	TGN16R	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	GGN25R	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	GGN25R	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	GGN15R	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	GGN15R	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	TGN16R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	TGN16R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	KUN26R	1KD-FTV \| 3.0L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN25R	2KD-FTV \| 2.5L \| Diesel	–	Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN25R	1GR-FE \| 4.0L \| Petrol	SR	Automatic/Manual 4WD
TOYOTA	HILUX	08/2008	10/2015	Cab Chassis	GGN15R	1GR-FE \| 4.0L \| Petrol	SR	Automatic/Manual RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	GGN15R	1GR-FE \| 4.0L \| Petrol	SR5 X-CAB	Automatic RWD
TOYOTA	HILUX	08/2008	10/2015	Ute	KUN16	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD

Frequently Asked Questions

How long does it take to fit this towbar to a Hilux cab chassis?

Fitting time is around 120 minutes (roughly two hours) in a workshop, covering both the towbar mounting and the direct fit wiring harness. We recommend fitting by a qualified installer or auto electrician to ensure the towbar and wiring are correctly torqued and connected.

What is the towing capacity of this towbar?

This towbar is rated to 3500kg towing capacity and 350kg ball weight when used with the included extreme duty drop hitch and tow ball. Always check your vehicle's own towing capacity in the owner's manual, as the lower of the two figures applies.

Can the recovery points be used for snatch recovery?

The two recovery points are load rated to 4500kg WLL and shaped with bevelled edges to suit soft shackles, so they're designed for use with rated recovery accessories such as snatch straps. As with any recovery point, inspect it before use and keep the load within its rated capacity, using recovery equipment that's itself correctly rated.

Does this kit include the wiring harness, or is that bought separately?

Wiring is included. The kit comes with a TAG direct fit wiring harness (relay-based) and a 7 pin flat vehicle-side socket, so no separate wiring purchase is needed for a standard fitment.

Will fitting an aftermarket towbar affect my Hilux's factory departure angle?

The towbar uses a flush, chassis-mounted profile designed to preserve as much of the factory departure angle as possible. This is an aftermarket product, not a genuine Toyota part, so if departure angle is critical for your use, it's worth checking clearances against your specific vehicle configuration.

Will fitting this towbar void my Hilux's warranty?

Fitting a correctly installed aftermarket towbar does not automatically void your vehicle's factory warranty in Australia, but outcomes can vary by manufacturer and dealership, particularly if the fitment damages another component. Check with Toyota or your dealer about your specific vehicle if you're unsure.

Do I need to tell my insurer I've fitted a towbar?

Many insurers ask you to declare aftermarket modifications, including towbars, since they can affect your vehicle's listed specifications and towing use. Check directly with your insurance provider to confirm what they require you to declare.

Is this a genuine Toyota part?

No. This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.
