TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on) - TXR862-K201

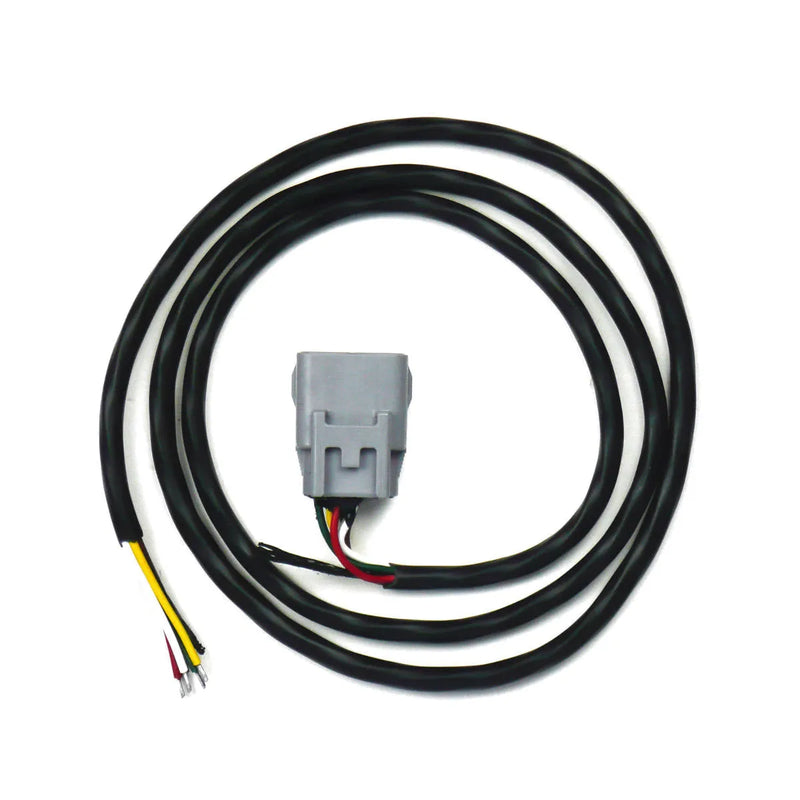

Direct fit wiring harness

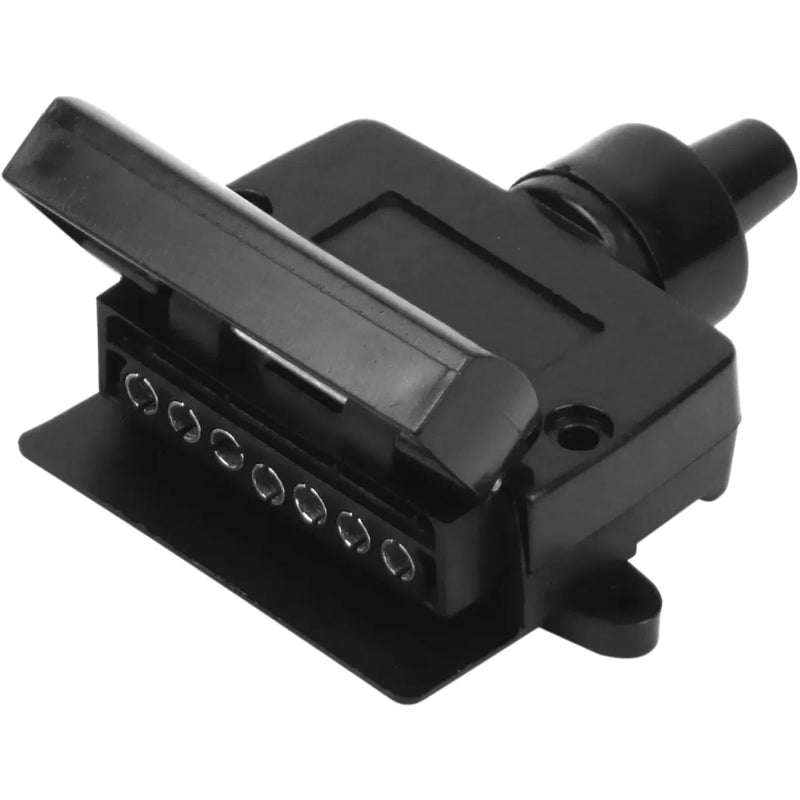

7 pin flat plug - vehicle side
TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on) - TXR862-K201
Direct fit wiring harness
7 pin flat plug - vehicle side

TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)

by TAG
SKU TXR862-K201
$1,235.00 - $1,235.00
$1,235.00
$1,235.00 - $1,235.00
$1,235.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

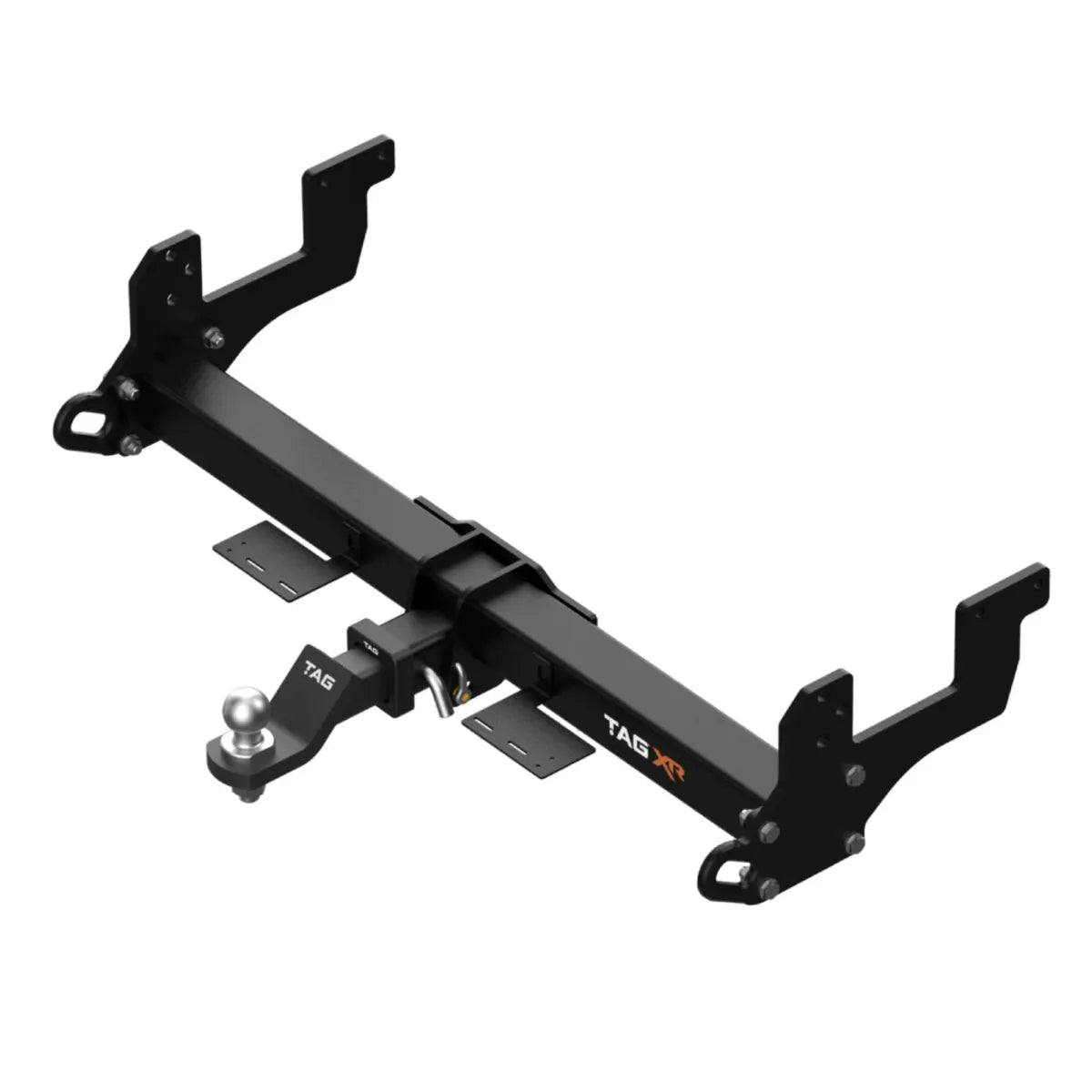

Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on) by TAG

The 78 Series Troop Carrier has been in service since 1991, and this TAG Extreme Recovery (XR) kit is built to suit the full production run since then. It pairs a Class 4, 50mm square hitch receiver with a direct fit wiring harness, rated to 3500kg towing and 350kg ball weight.

Two WLL 4000kg load-rated recovery points are built into the reinforced crossbar, shaped with bevelled edges for a soft shackle, so the same mounting point covers trailer towing and off-road recovery. Fitting this kit involves removing the rear bumper, which leaves the towbar sitting partially concealed rather than fully exposed once installed.

At 34kg, this is one of the lighter kits in the TAG Extreme Recovery range, and fitting takes around 90 minutes in a workshop.

Fitment: Fits Toyota Landcruiser 78 Series Troop Carrier, August 1991 on.

Features

  • Class 4, 50mm square hitch receiver rated to 3500kg towing capacity and 350kg ball weight
  • Two WLL 4000kg load-rated recovery points in a 3-piece side-arm design with bevelled edges for soft shackles
  • Extreme duty reinforced crossbar
  • Flush, chassis-mounted profile for maximum off-road clearance
  • Textured powder coated finish
  • Dual top-mounted trailer and Anderson plug mounts
  • TAG direct fit wiring harness and 7 pin flat vehicle-side socket included
  • Zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles included
  • TAG limited lifetime warranty. Built in Australia

Towbar Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity (kg): 3500
  • Ball Weight (kg): 350
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Coating: Textured Powder Coated
  • Exposure: Partially concealed
  • Weight: 34.0 kg

Wiring Specifications

  • Wiring Option: Direct Fit Wiring Harness
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Reverse Sensor Cut Off: Not Applicable
  • Fog Cut Off: Not Applicable
  • Diagnostic Coding: Not Required
  • Fitting Time (min): 90

What's Included

  • Extreme Recovery Towbar
  • Direct Fit Wiring Harness
  • 7 Pin Flat Socket (Vehicle Side)
  • Zinc Tow Ball
  • Extreme Duty Drop Hitch
  • Pin & Clip
  • D-Shackles

This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.

Vehicle Applications

This kit is listed against the following 9 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 03/1991 - Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R Manual 4WD
TOYOTA LANDCRUISER 03/1991 08/2016 Troop Carrier 78 Series 1VD-FTV | 4.5L | Diesel VDJ78R 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 11/1991 02/2007 Troop Carrier 78 Series 1HD-FTE | 4.2L | Diesel HDJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R 4WD
TOYOTA LANDCRUISER 10/1991 01/2007 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD
TOYOTA LANDCRUISER 01/1991 01/2007 Troop Carrier HZJ70RV, HZJ73, HZJ75RV, HZJ78R 1H-Z | 4.2L | Diesel D 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1FZ-FE | 4.5L | Petrol FZJ78R Manual 4WD
TOYOTA LANDCRUISER 10/1991 07/2001 Troop Carrier 78 Series 1H-Z | 4.2L | Diesel HZJ78R Manual 4WD

Frequently Asked Questions

Does fitting this towbar require removing the rear bumper?

Yes. Fitting this kit to the 78 Series Troopy requires removal of the rear bumper. Once installed, the towbar sits partially concealed rather than fully exposed.

What is the towing capacity of this towbar?

This towbar is rated to 3500kg towing capacity and 350kg ball weight when used with the included extreme duty drop hitch and tow ball.

Can the recovery points be used for snatch recovery?

The two recovery points are load rated to 4000kg WLL and shaped with bevelled edges to suit soft shackles, intended for use with correctly rated recovery accessories. Inspect the points before use and keep the load within their rated capacity.

How long does fitting take?

Fitting time is around 90 minutes, including removal of the rear bumper, towbar mounting, and connecting the direct fit wiring harness. We recommend fitting by a qualified installer or auto electrician.

Is the wiring harness included, or bought separately?

Wiring is included. The kit comes with a direct fit wiring harness and a 7 pin flat vehicle-side socket.

How much does this towbar weigh?

This kit weighs 34.0kg, making it one of the lighter towbars in the TAG Extreme Recovery range.

Will fitting this towbar void my Landcruiser's warranty?

Fitting a correctly installed aftermarket towbar does not automatically void your vehicle's factory warranty in Australia, but this can vary by manufacturer and dealership, particularly given the bumper removal involved in this fitment. Check with Toyota or your dealer about your specific vehicle if you're unsure.

Do I need to tell my insurer I've fitted a towbar?

Many insurers ask you to declare aftermarket modifications, including towbars, as they can affect your vehicle's listed specifications. Check directly with your insurance provider to confirm their requirements.
