TAG Extreme Recovery Towbar and Direct Fit Wiring Harness for Toyota Hilux (10/2015 - on)

TAG Extreme Recovery Towbar and Direct Fit Wiring Harness for Toyota Hilux (10/2015 - on) Styleside

by TAG

SKU TXR819-K201

$1,635.00 - $1,635.00

$1,635.00

$1,635.00 - $1,635.00

$1,635.00

Shipping Calculator

4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

Description
Reviews
Why Shop With Us

Description

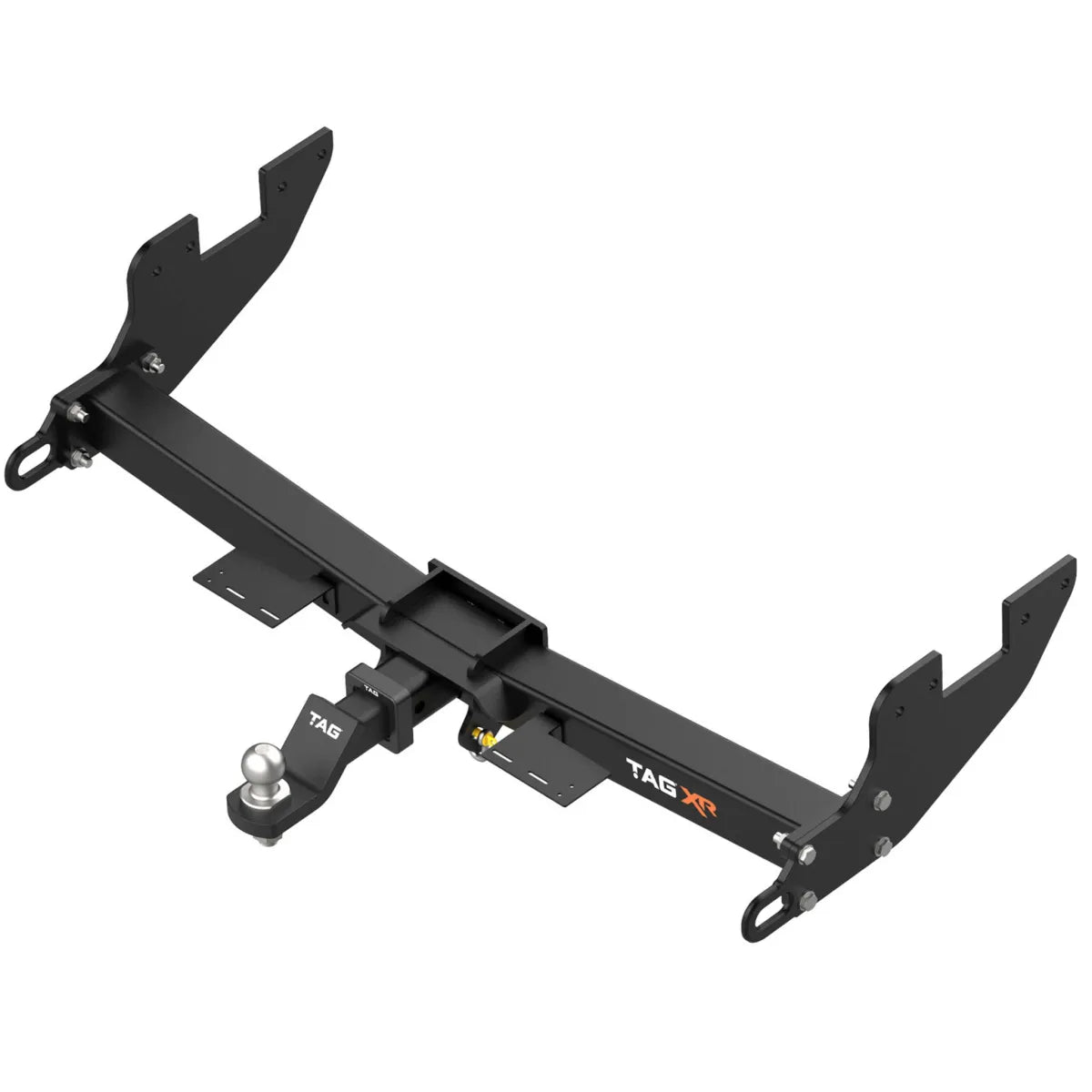

Extreme Recovery Towbar and Direct Fit Wiring Harness for Toyota Hilux (10/2015 - on) Styleside by TAG

Tub and styleside Hilux models need a different towbar to cab chassis versions, and this TAG Extreme Recovery (XR) kit is built specifically for Hilux Tub/Styleside models from July 2015 on. It pairs a Class 4, 50mm square hitch receiver rated to 3500kg towing and 350kg ball weight with a direct fit ECU wiring harness.

The crossbar here is 75mm x 75mm rather than the 89mm x 89mm section used on the cab chassis kits, sized to suit the styleside tub mounting points. Two WLL 4000kg load-rated recovery points are still built into the design, with bevelled edges shaped for a soft shackle. Fitting requires removing the rear bumper.

The wiring harness uses automatic reverse sensor and fog light cut off, so towing lights and reversing sensors work correctly without manual switching. Budget around 90 minutes in a workshop for the full fit.

Fitment: Fits Toyota Hilux Tub/Styleside models, July 2015 on.

Please note: Suits (07/2015 on) Hilux Tub/Styleside models specifically. For cab chassis models, see the corresponding cab chassis kit.

Features

Class 4, 50mm square hitch receiver rated to 3500kg towing capacity and 350kg ball weight

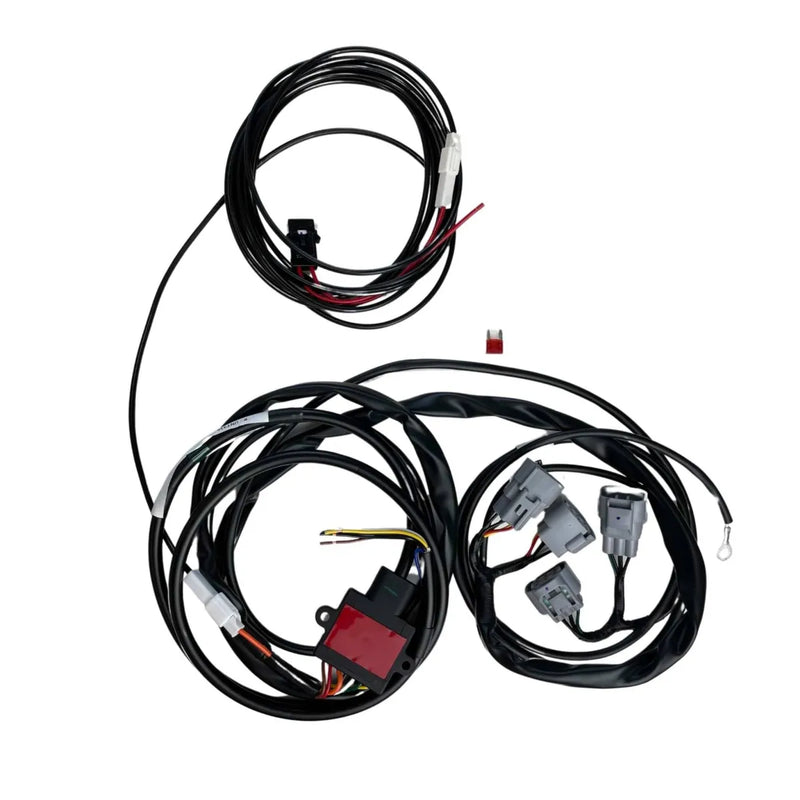

Direct fit ECU wiring harness with automatic reverse sensor and fog light cut off
Two WLL 4000kg load-rated recovery points in a 3-piece side-arm design with bevelled edges for soft shackles
75mm x 75mm extreme duty reinforced crossbar, sized for styleside/tub models
Flush, chassis-mounted profile for maximum off-road clearance
Highly durable, textured extreme duty powder coated finish
Trailer and Anderson plug mounts

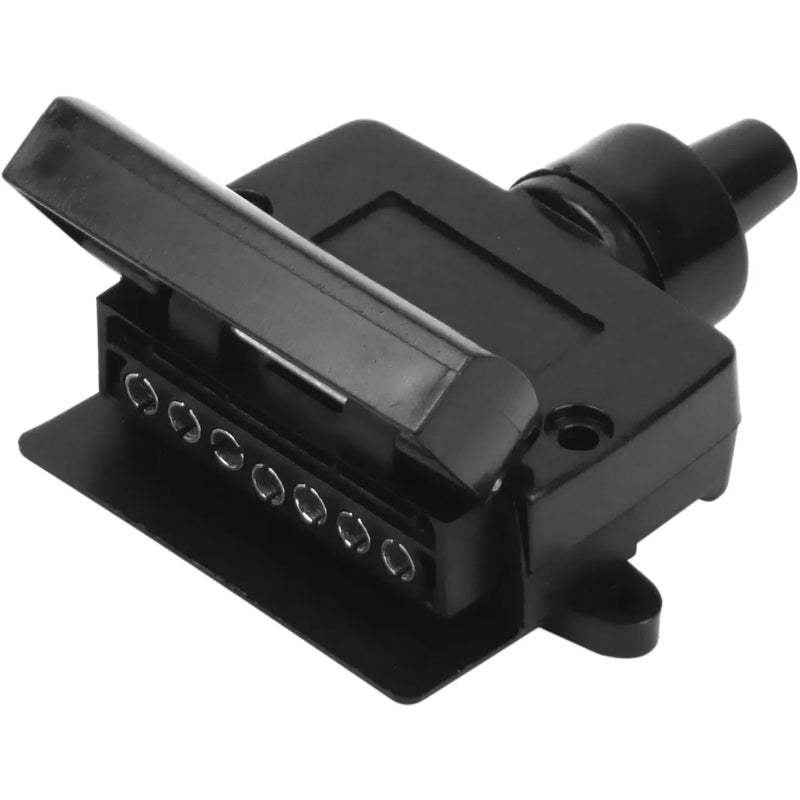

7 pin flat vehicle-side socket included
Zinc tow ball, extreme duty hitch, pin and clip, and D-shackles included
TAG limited lifetime warranty. Built in Australia

Towbar Specifications

Towbar Class: Heavy Duty (4x4 Recovery)
Towbar Capacity (kg): 3500
Ball Weight (kg): 350
Recovery Load-tested: 4000kg WLL
Recovery Points: 2
Hitch Type: 50mm Square Hitch Receiver
Bumper Removed During Fitment: Yes
Bumper Cut Out Required: No
Coating: Textured Powder Coated
Exposure: Exposed
Weight: 58.8 kg

Wiring Specifications

Wiring Option: Direct Fit ECU
Style: 7 Pin Flat
Type: Plugs & Sockets
Reverse Sensor Cut Off: Automatic
Fog Cut Off: Automatic
Diagnostic Coding: Not Applicable
Fitting Time (min): 90

What's Included

This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.

Vehicle Applications

This kit is listed against the following 32 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	HILUX	10/2015	-	Ute	GUN126	1GD-FTV \| 2.8L \| Hybrid (Diesel)	D-4D 48V	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN126	1GD-FTV \| 2.8L \| Diesel	GR Sport	- 4X4
TOYOTA	HILUX	10/2015	-	Ute	GUN126	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN136	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	10/2015	-	Ute	TGN121R	2TRFE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	10/2015	-	Ute	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR5	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN136R	1GD-FTV \| 2.8L \| Diesel	SR5 Hi-Rider	RWD
TOYOTA	HILUX	10/2015	-	Ute	GUN136R	1GD-FTV \| 2.8L \| Diesel	SR Hi-Rider	RWD
TOYOTA	HILUX	10/2015	-	Ute	GUN125R	2GD-FTV \| 2.4L \| Diesel	Workmate	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN122R	2GD-FTV \| 2.4L \| Diesel	Workmate	RWD
TOYOTA	HILUX	10/2015	-	Ute	TGN121	2TR-FE \| 2.7L \| Petrol	Workmate	RWD
TOYOTA	HILUX	10/2015	-	Ute	TGN121R	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	10/2015	-	Ute	GUN125R	2GD-FTV \| 2.4L \| Diesel	TDi	AWD
TOYOTA	HILUX	10/2015	-	Ute	GUN112R, GUN120R, GUN122R, GUN135R	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	10/2015	-	Ute	TGN111R, TGN121R, TGN136R	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	10/2015	04/2020	Ute	GUN126R	1GD-FTV \| 2.8L \| Diesel	ROGUE, RUGGED, RUGGED X, SR5, SR5+	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Ute	GUN136R	1GD-FTV \| 2.8L \| Diesel	SR HI-RIDER	Automatic/Manual RWD
TOYOTA	HILUX	10/2015	04/2020	Ute	GUN125R	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	10/2015	04/2020	Ute	GUN126R	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	10/2015	04/2020	Ute	GUN136	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	10/2015	06/2019	Ute	GUN122R	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Manual RWD
TOYOTA	HILUX	10/2015	09/2019	Ute	GUN126R	1GD-FTV \| 2.8L \| Diesel	SR5 EXTRA CAB	Automatic 4WD
TOYOTA	HILUX	10/2015	09/2017	Ute	GUN123R	1GD-FTV \| 2.8L \| Diesel	SR EXTRA CAB	Manual RWD
TOYOTA	HILUX	10/2015	07/2017	Ute	GUN123	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	10/2015	09/2017	Ute	GGN120R	1GR-FE \| 4.0L \| Petrol	SR	Automatic RWD
TOYOTA	HILUX	10/2015	09/2017	Ute	GGN125R	1GR-FE \| 4.0L \| Petrol	SR5	Automatic 4WD
TOYOTA	HILUX	10/2015	09/2017	Ute	GUN136R	1GD-FTV \| 2.8L \| Diesel	SR5 HI-RIDER	Automatic RWD
TOYOTA	HILUX	10/2015	07/2017	Ute	GGN125, GGN135	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	10/2015	07/2017	Ute	GGN120R, GGN135R	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	10/2015	10/2017	Ute	GGN125R	1GR-FE \| 4.0L \| Petrol	SR	Automatic 4WD
TOYOTA	HILUX	10/2015	09/2015	Ute	KUN112R	2KD-FTV \| 2.5L \| Diesel	SR EXTRA CAB	Manual RWD

Frequently Asked Questions

Does this towbar fit a cab chassis Hilux?

No. This kit is built specifically for Hilux Tub/Styleside models from July 2015 on, using a 75mm x 75mm crossbar sized for that body style. Cab chassis Hilux models use a different TAG kit with an 89mm x 89mm crossbar.

Does fitting this towbar require removing the rear bumper?

Yes. Fitting this kit involves removal of the rear bumper.

Does the wiring cut off my reversing sensors automatically when towing?

Yes. This kit uses a direct fit ECU wiring harness with automatic reverse sensor cut off and automatic fog light cut off.

What is the towing capacity of this towbar?

This towbar is rated to 3500kg towing capacity and 350kg ball weight when used with the included extreme duty hitch and tow ball.

Can the recovery points be used for snatch recovery?

The two recovery points are load rated to 4000kg WLL and shaped with bevelled edges to suit soft shackles, intended for use with correctly rated recovery accessories. Inspect the points before use and keep the load within their rated capacity.

How long does fitting take?

Fitting time is around 90 minutes, including bumper removal, towbar mounting, and connecting the direct fit ECU wiring harness. We recommend fitting by a qualified installer or auto electrician.

Will fitting this towbar void my Hilux's warranty?

Fitting a correctly installed aftermarket towbar does not automatically void your vehicle's factory warranty in Australia, but this can vary by manufacturer and dealership, particularly given the bumper removal involved. Check with Toyota or your dealer about your specific vehicle if you're unsure.

Do I need to tell my insurer I've fitted a towbar?

Many insurers ask you to declare aftermarket modifications, including towbars, as they can affect your vehicle's listed specifications. Check directly with your insurance provider to confirm their requirements.
