San Hima 12V 160W Foldable Solar Blanket Kit

12V 160W Foldable Solar Blanket by San Hima

Solar blankets all promise the same thing on paper. Lightweight. Portable. Easy to roll out at camp. But once you’ve used a few, you start to notice the gaps — slow charging in heat, dust that kills efficiency, and panels that feel one bend away from failure.

This 160W solar blanket from San Hima is built to deal with those realities. It uses HPBC (Hybrid Passivated Back Contact) cell technology to pull more power from the same sunlight, especially in harsh Australian conditions. Less wasted light. Better output when it’s hot. More usable power through the day.

It’s made for people who actually rely on solar — touring rigs, caravans, remote camps, and anyone running a dual battery setup off-grid. Set it up, plug it in, and let it quietly do its job while you get on with the trip.

Features

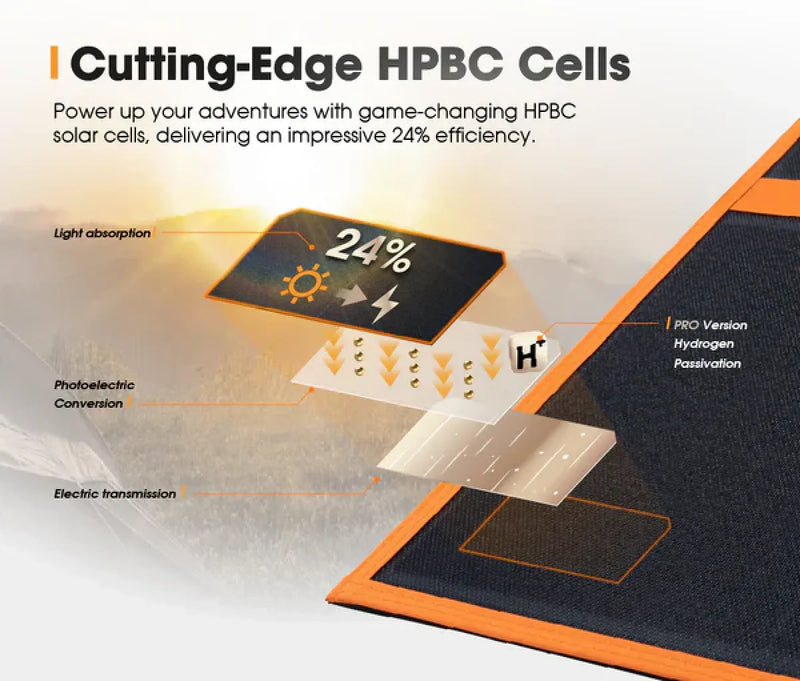

• HPBC cell technology: Back-contact cell design removes front-side shading, allowing more sunlight to hit the cell surface and deliver up to 24% conversion efficiency.

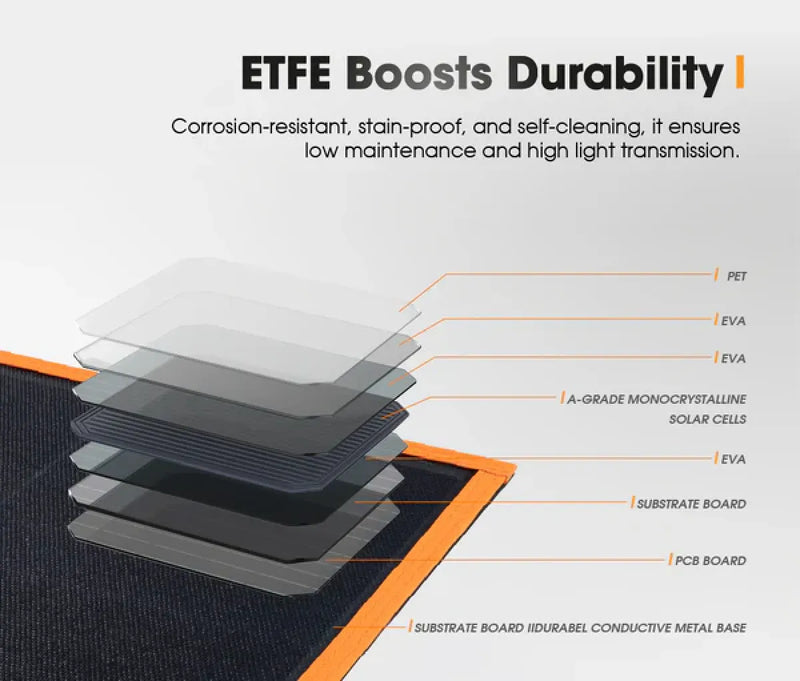

• ETFE protective coating: Tough ETFE film resists corrosion, stains, and grime. It’s non-stick and self-cleaning, helping maintain light transmission over time.

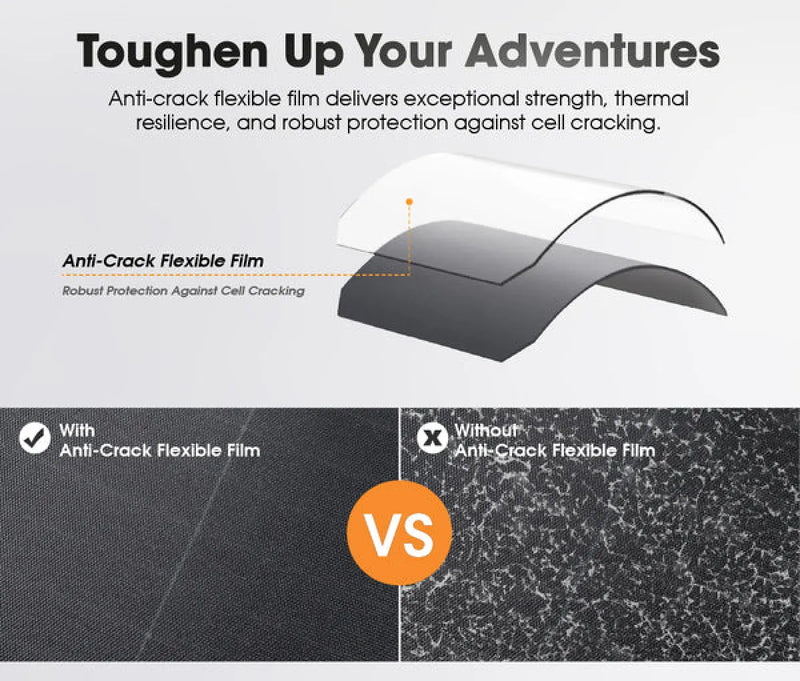

• Anti-crack flexible construction: Built with a high-tensile flexible film that handles bending, heat, and vibration without stressing or cracking the cells.
• MPPT charge controller included: Efficiently charges batteries, powers 12V accessories, and can wake sleeping LiFePO4 batteries.
• Compact and easy to carry: Weighs just 5.1kg and folds down neatly into its carry bag for simple transport and storage.
• Built-in electrical protection: Protection against reverse polarity, overcurrent, undervoltage, overvoltage, and short circuits.

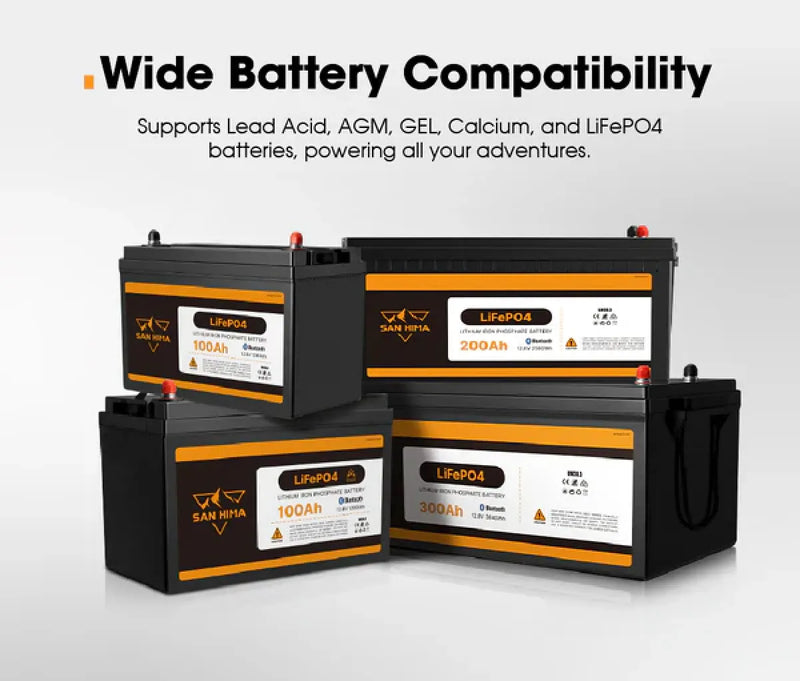

• Wide battery compatibility: Suitable for Lead Acid, AGM, GEL, Calcium, and LiFePO4 battery systems.
• USB charging ports: USB outputs on the controller allow direct charging of phones, tablets, and small devices.

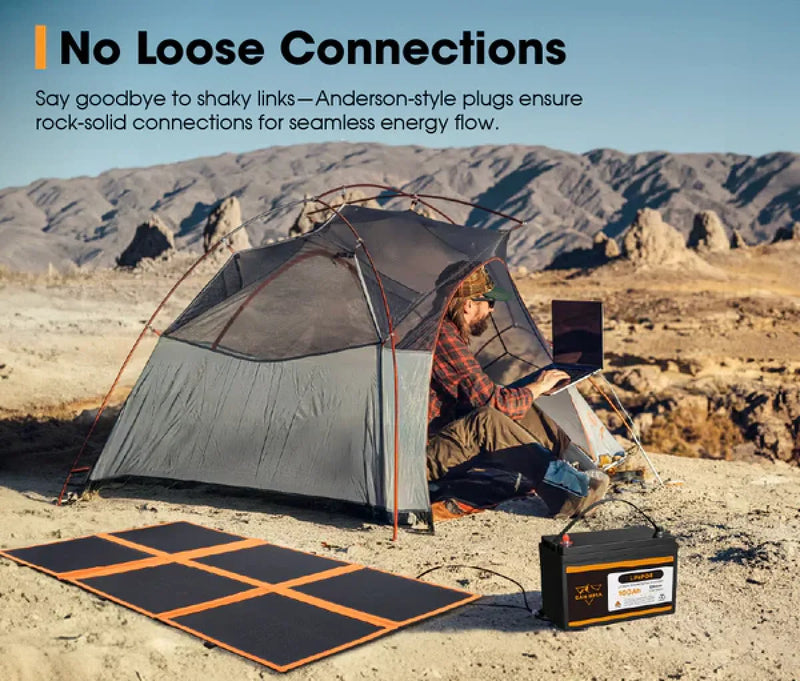

• Anderson-style plug connections: Secure, plug-and-play connections for reliable power delivery.
• Touring-friendly design: Includes a sturdy carry handle, hanging loops for positioning, and a front pocket for cables and accessories.

Specifications

Solar Panel

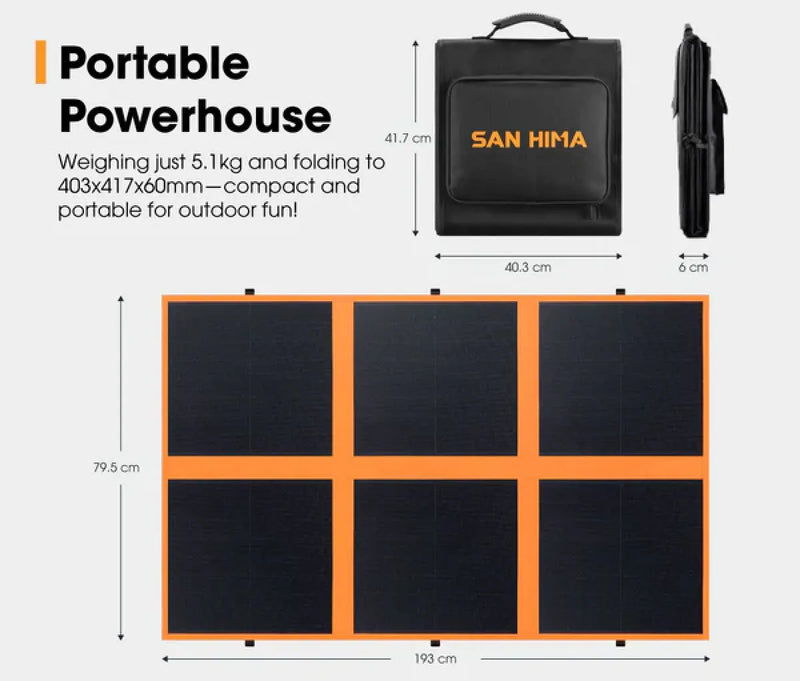

• Product Dimensions (Open): 1,930 x 795 x 5 mm

• Product Dimensions (Closed): 403 x 417 x 60 mm

• Cell Type: HPBC (Hybrid Passivated Back Contact)

• Cell Coating: ETFE

• Backing Material: Nylon

• Conversion Effieiency: 24%

• Max. Power (PM): 160W

• Open Circuit Voltage (VOC): 22.5V

• Short Circuit Current (ISC): 9.9A

• Max. Power Voltage (VMP): 17.3V

• Max. Power Current (IMP): 9.2A

• Max. System Voltage: 36V

• Power Tolerance: ±5%

• Operating Temperature: -40℃~85℃

• Connector Type:    Anderson-style Plug

• Certifications: CE

• Product Weight: 5.1 kg

MPPT Controller

• Battery Voltage Range: 12V/24V

• Max. PV Open Circuit Voltage: 50V

• Max. Solar Input Voltage: 50V

• Rated Charge Current: 20A

• Rated Discharge Current: 20A

• Max. PV Input Power: 500W

• Discharge Circuit Voltage Drop: ≤0.3V

• Self Consumption: ≤8ma

• No Load Current: ＜10ma

• Standby Current Draw: ≤4ma

• Nominal Current Draw: ≤10ma

• USB Output: Type A+Type C; 5V/2.4A

• Operation Temperature:-20℃~50℃

• Storage Temperature:-30℃~70℃

• Relative Humidity:≤90%

• Package Size:45.6cm(L) x 44.7cm(W) x 11.7cm(H)

• Package Weight: 5.5kg

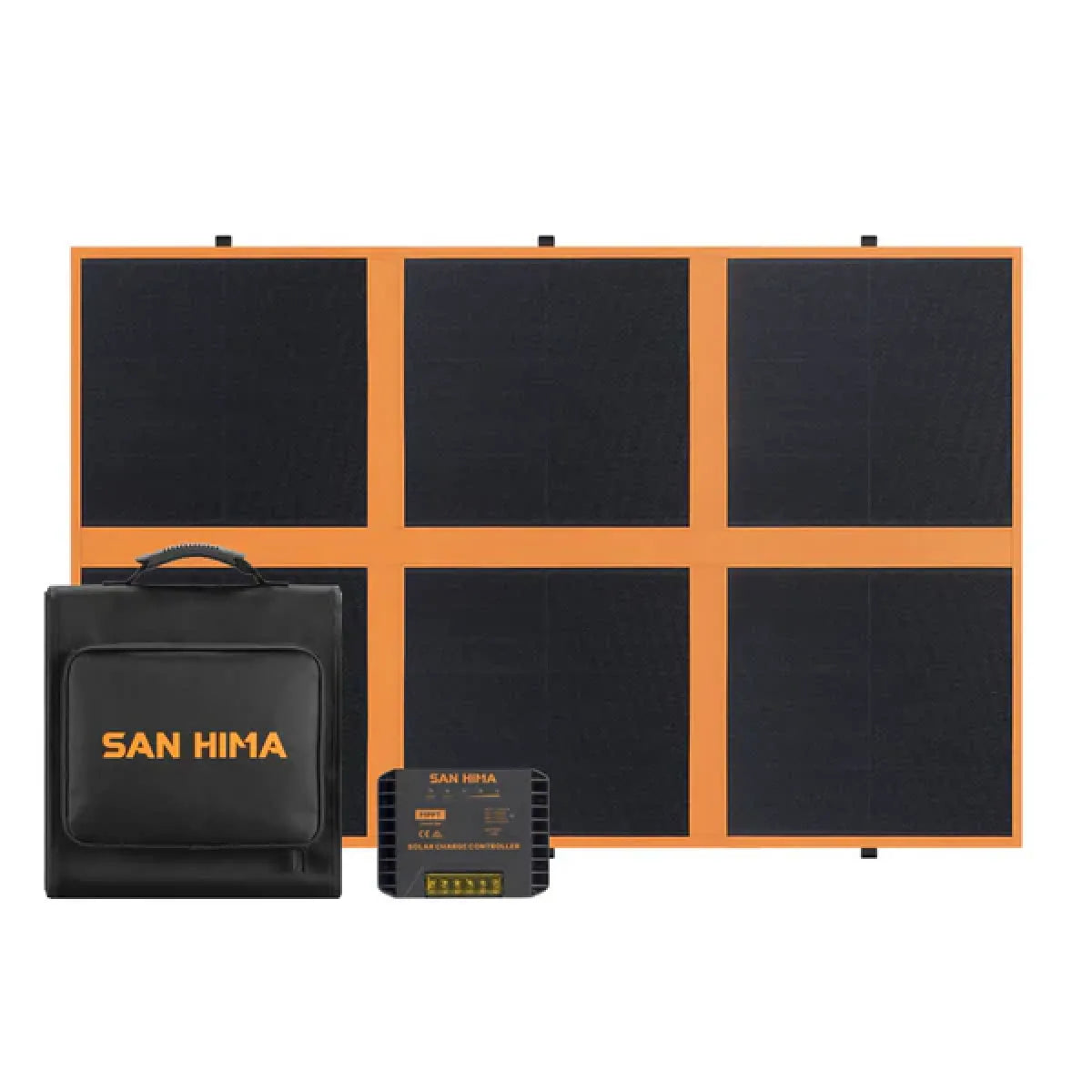

What’s Included

• 1x 160W San Hima Solar Blanket

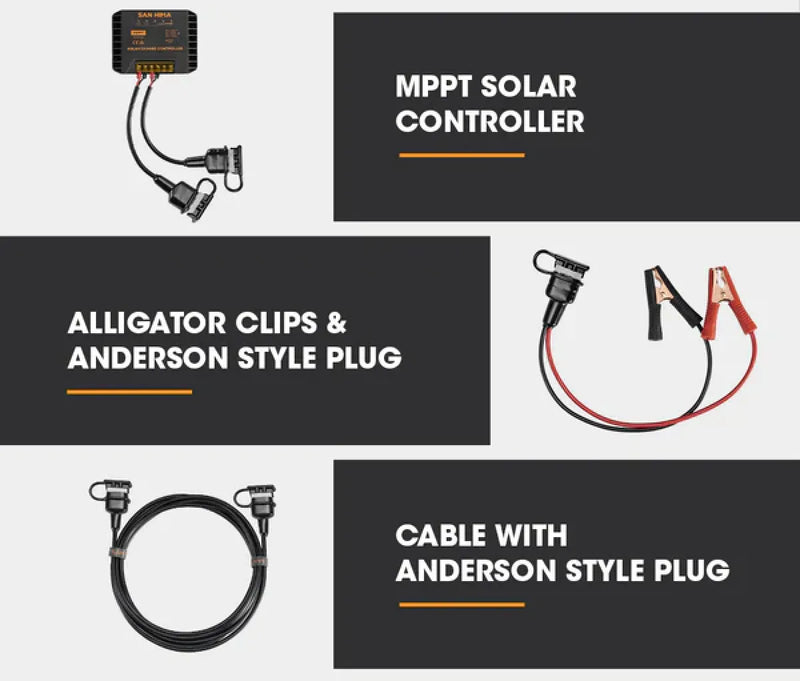

• 1x San Hima 20A MPPT Solar Charge Controller with Anderson-style plugs
• 1x 4.5m extension cable with Anderson-style plugs
• 1x cable with Alligator clips and Anderson-style plugs
• 1x User Manual
