Frequently Asked Questions
How will this fit into my vehicle?
- The Polaris Toyota Luxx is designed to fit into most Toyota models with a 200mm Wide radio.
- The Toyota Luxx has a 7″ screen and sits flush in the dash.
- Some Toyota vehicle may require an extra fascia, please see Question: What Toyota Vehicles does it fit?
What Toyota vehicles does it fit?
- Avensis Verso 2000 – 2009
- Camry 2002 – 2006
- C-HR 2016 – 2018
- Corolla 2002–2011
- Corolla Hatch 2012 – 2015
- FJ Cruiser 2007 – 2015
- Fortuner 2015 – 2020 (Fascia Required, contact Polaris)
- Hiace 2004 – 2011
- Hiace 2012 – 2018
- Hilux 2005 – 2011
- Hilux 2012 – 2013
- Hilux 2014 (Fascia Required: FP8230)
- Hilux 2015 – early 2020 (fascia required, or check out our Hilux Maxx)
- Kluger 2003 – 2006 (excludes Grande)
- Kluger 2007 – 2013 (excludes Grande)
- Kluger 2014 > (fascia required, contact Polaris)

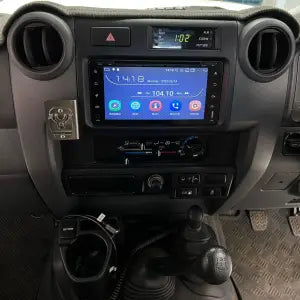

- Landcruiser 79 Series late 2009 and onwards (or check out our 70Maxx)
- Landcruiser 100 series 2002 and onwards (if your model is 2002, please check with Polaris)
- Landcruiser 200 series 2007 – 2011 (some of the higher-end models with the big screen will not be suitable)
- Landcruiser 200 Series 2012 > (some of the higher-end models with the big screen will not be suitable)
- Prado 120 series 2003 – 2009
- Prado 150 Series GX 2009 – 2013
- Prado 150 series (GXL) – 2009 – 2013 (fascia required: FP9166 )
- Prado 150 Series (GXL) 2014 – 2017( fascia required or check out our Prado14 Maxx)
- Prius C 2009 >
- Rav4 2001 – 2018 (excludes integrated head unit)
- Rukus (Rumion) 2010 – 2015
- Tarago (Estima) 2011>
- Tundra 2007 – 2013
- Yaris (Vitz) 2005 – 2011
- Yaris 2011 – 2013
Do you have any head units with a larger screen?
- Yes, we have our universal Maxx which has a 10.1″ screen. It mounts a little differently than the Toyota Luxx. It has a head unit section that sits in the dash but the 10.1″ screen sits out from the dash on an adjustable mount.
- If you want to fit the Universal Maxx to your Toyota vehicle you will most likely need some extra parts for it to fit properly. This information is included in the Universal Maxx FAQ.
What comes in the box?
- Toyota Luxx in dash unit
- Wireless Carplay / Wired Android Auto
- Toyota plug and play harness
- GPS external Antenna
- Bluetooth External Microphone
- 2 x USB Cables (extra USB is built into the front of the head unit)
- Cam in / Front Cam in plug
- Reverse camera depending on which camera you choose
- RR,RL,FR,FL Audio Out / Vid out 1& 2 / SUB
- Vid In / AUX L / AUX R
Is the unit plug and play?
- Yes, the ToyotaLuxx head unit is specifically designed for compatibility with most Toyota vehicles and comes with a convenient plug-and-play harness. In some cases, additional hardwiring may be required, for example: Reverse trigger, illumination
Do I need any extra parts to fit this into my vehicle?
- Some models may require extra parts, please see Question: What Toyota vehicles does it fit?
How much warranty does the unit come with?
- The Toyota Luxx comes with 2 years manufacturer warranty
Does it come with any navigation?
- The ToyotaLuxx comes standard with Wireless Carplay & wired Android Auto.
- We do have other mapping options available at an extra cost:
- Tom Tom street Navigation
What options do I have for off-road navigation?
The beauty of owning an Android Head unit is you can add YOUR favourite navigation app via Google Play store.
Options like:
- HEMA 4×4 app
- ExploreOz Traveller
- Memory Maps
- Gaia GPS
- Newtracs
- Australia Topo maps
- Sygic Maps
Do I need internet connectivity for the TomTom maps?
- No, we preload the maps onto an SD card and you only need GPS satellite.
If I add on the TomTom street navigation, do I get any free map updates?
- Yes, you receive 1 free map update.
- You need to update the maps within 12 months and the date commences from the time that the vehicle has travelled 20 km’s.
Can I get the unit with CarPlay/Android Auto, TomTom & Hema maps?
- Car play and Android Auto are now a standard feature – no extra parts necessary.
- If you want either the Tom Tom or HEMA Off Road maps, this is an optional extra. You can select above the extras that you want before checking out
Does the ExplorOz Traveller app work with your head unit?
- Yes, we have worked with the developers to ensure that their app works with our head unit.
- Exploreoz Traveller is a great mapping system for both on & off road with good reviews and might be worth checking out if you want a mapping system that provides the best of both worlds.
-
Please note that there are a few settings that need to be changed which we can advise at the time of purchase.

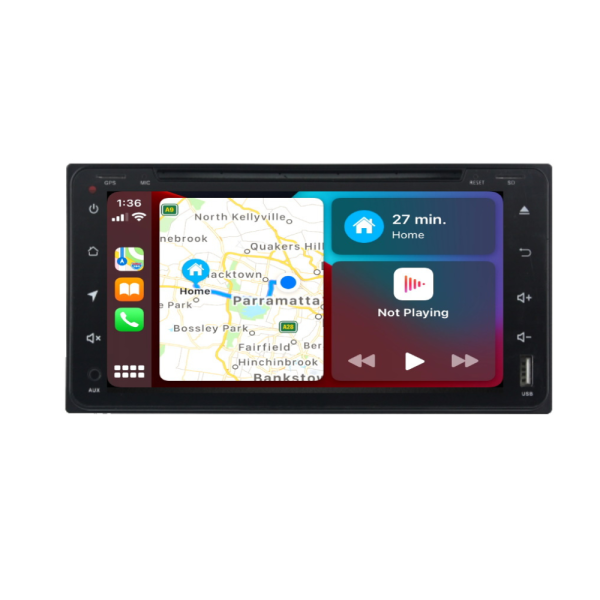

What is CarPlay & Android Auto?
-
Apple CarPlay lets you use a selection of your Iphone’s functions directly through your car’s built-in infotainment system. Apple CarPlay is often more user-friendly and faster to respond than the standard features built into many infotainment systems
-
Android Auto brings a selection of apps to your car display so you can focus while you drive. You can control features like navigation, maps, calls, text messages, and music.
Do I need internet connectivity for CarPlay or Android Auto?
- Yes, your phone is still in use, but now it is displayed on the head unit with the CarPlay/Android Auto interface.
Does Apple CarPlay and Android Auto mirror my phone?
- No, The safety of drivers is a top priority for Apple CarPlay and Android Auto, which is why not all phone apps are available in CarPlay or Android Auto mode. Only apps approved by Apple will appear in CarPlay, and only apps approved by Google will appear in Android Auto.
Does it have Bluetooth?
- Yes you can pair your phone via bluetooth and:
- Make / receive hand free phone calls
- Import contacts
- Stream audio via bluetooth
Will my iPhone work with an Android unit?
- Yes, you will still be able to use the bluetooth feature for calls and streaming audio and you will be able to use Apple Carplay on the head unit.

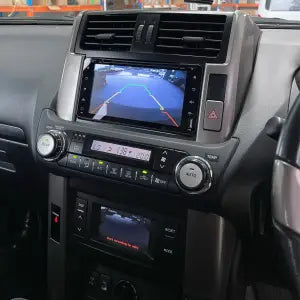

Does it come with a reverse camera?

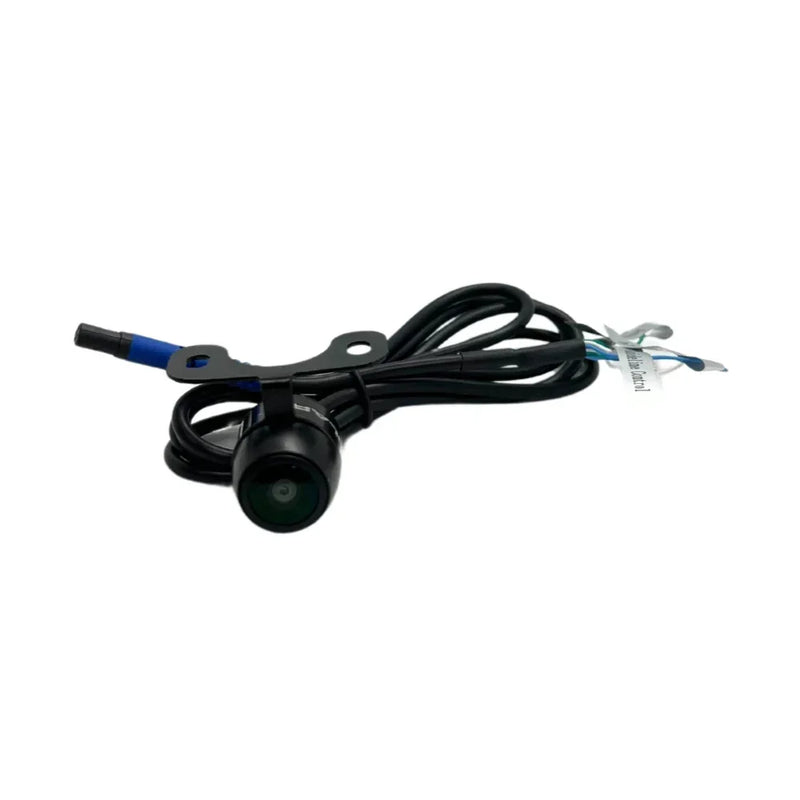

- Yes, it will come with our AHD Mini Camera and also includes a number plate bracket for versatile fitting options.
I have a factory camera, can I retain this?
- It is not a standard feature of the ToyotaLuxx, you will require a factory camera retention harness.
Does it have a second camera input?
- Yes the ToyotaLuxx has a second camera input which can be used for a front camera or a caravan camera.
Can I run more than 2 cameras through the head unit?
Yes, we have control boxes available that will allow you to add more cameras. Contact us at info@4x4downunder.com.au to get advice on the best setup for your application.
Can I add a caravan camera?
We have a dedicated kit for adding a caravan camera for an extra $295.00 which includes:
- RCA Adaptor
- 7 metre extension cable
- WOZA caravan/Trailer cable kit
- Caravan Camera
If I add a caravan camera, can I view it on my head unit at any time?
- Yes, there is dedicated Camera app on the head unit that allows you to view the additional camera at any time.
Does the unit come with built-in radio?
- Yes the unit comes with analogue AM/FM Radio
- Please note that it is not digital radio (DAB+), however you can download many different compatible radio apps on the head unit and stream radio*
- Requires internet connectivity
Does the unit have a CD player?
- Yes the unit comes with a CD/DVD player built in
Does the unit have a DVD player?
- Yes the unit comes with a CD/DVD player built in
Does it have a USB input?
- Yes the unit has 3 USB inputs.
- One located in the front of the head unit and 2 cabled USB inputs that are placed in the glove box.
Does it have WiFi capability?
- Yes, you can use a portable Wifi device or your phones personal hotspot to connect up to Wifi.
Can I insert a SIM card into the unit?
Does it have an SD card slot?
- Yes it actually has 2 micro SD card slots. One for dedicated GPS which we use if you choose one of the preloaded mapping options and a second SD slot for multimedia.
Can I install other apps onto the head unit?
- Yes you can download compatible apps from Google Playstore or install android APK files.
- Please be aware that not all apps are compatible with the head unit. While we will assist you with third-party apps to the best of our ability, there may be some third-party apps that are not supported.
Where can I find the specifications on the unit?
- Click the Specifications tab to view the full specs of the Toyota Luxx
What is the Camps Australia option?
- The Camps 11 POI is an excellent addition to the book. With the Camps 11 POI add-on, you can easily find Camps 11 locations using their designated numbers from the book, and receive turn-by-turn directions. No more manual coordinate input required!
- The Camps 11 add on requires the Tom Tom navigation option
Can I connect an OBD diagnostic reader to the head unit?
- Yes we have an OBDII Reader Add on
Can I run a dash camera through the head unit?
- Yes, we have an add on dash camera
Can I fit this product myself?
Yes, it is possible. However, installation of this unit requires specialised technical skills and expertise. If you lack the necessary confidence or skill to install the product, we recommend utilising the services of a professional technician.
Do you have any installation instructions?
- Yes, visit the installation tab to find the installation instructions.
