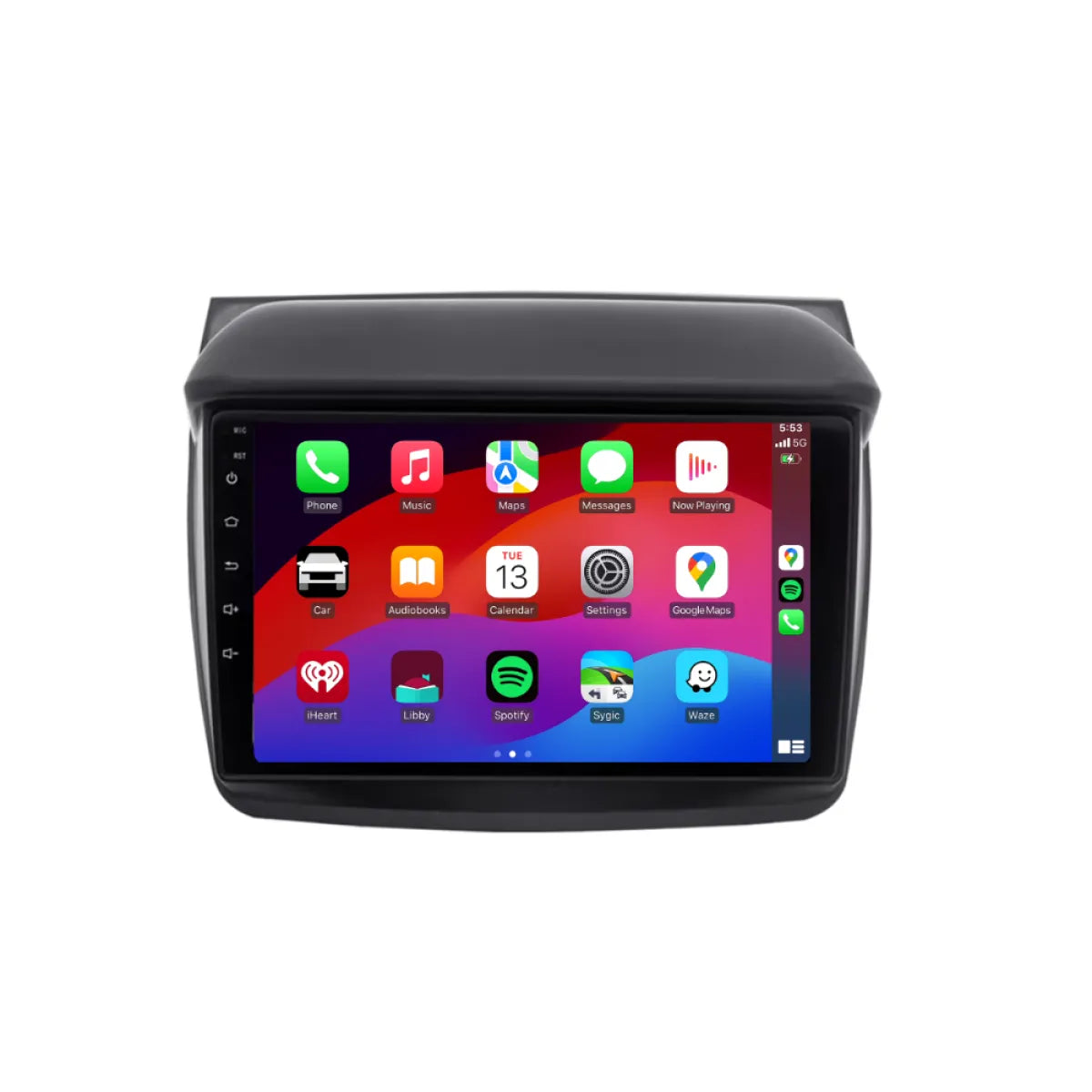

9-inch Android Head Unit for Mitsubishi Triton MN 2015 by Polaris
If you're still running the factory head unit in your 2015 Mitsubishi Triton MN, this Polaris 9-inch Android head unit gives you a more modern way to stay connected on the road. It combines a 9-inch QLED touchscreen with wired and wireless Apple CarPlay and Android Auto, Bluetooth 5.0, dual-band Wi-Fi and 4G SIM support.
The unit also gives you more flexibility when it comes to audio and cameras. You get a MOSFET Class AB amplifier, 13-band graphic EQ, three pairs of RCA pre-outs and multiple camera inputs. The factory reverse camera can be retained where equipped, while the included vehicle-specific wiring harness helps keep installation straightforward.
There are a couple of important Triton-specific details to check before ordering, though. This model does not suit Triton models with a 360° camera, and the factory top compass on GLX-R models will be lost and cannot be retained. Steering wheel controls also require manual programming because the Triton uses a non-CAN system.
Important Compatibility Information
- Suits 2015 Mitsubishi Triton MN models
- Does not suit models with a 360° camera
- The factory top compass on GLX-R models will be lost and cannot be retained
- Factory reverse camera can be retained if equipped
- Steering wheel controls require manual programming
- Non-CAN steering wheel control system
- Vehicle-specific wiring harness included
- Installation is mostly plug and play
- An aftermarket reverse camera can be supplied separately, with reverse trigger wiring required
- This is a special-order product and can take approximately 2 weeks to come into stock

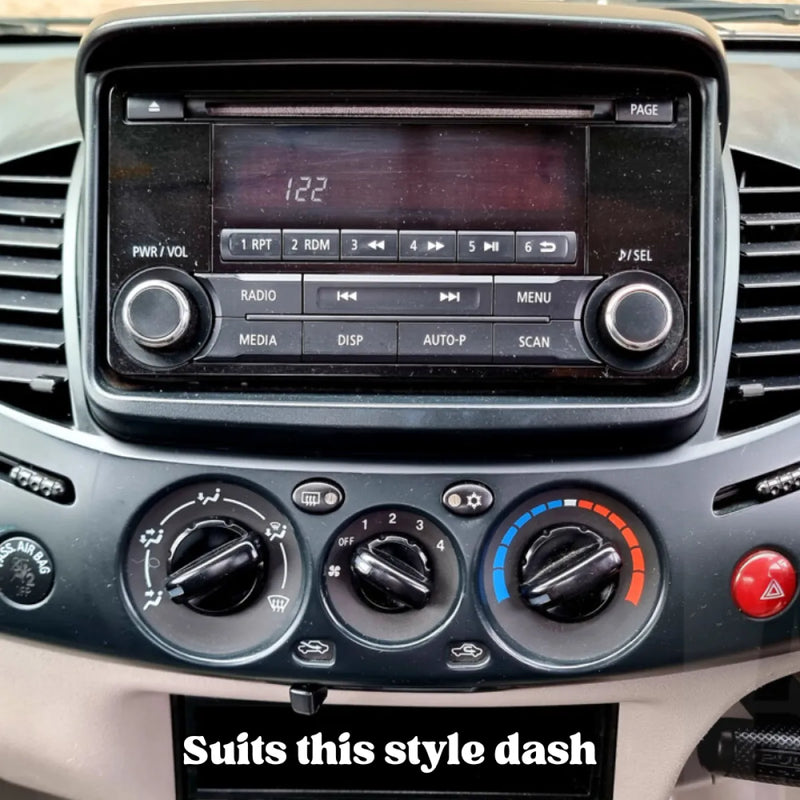

Please check your Triton's equipment and dashboard configuration before ordering, particularly if you have a GLX-R or a factory 360° camera system.
Smartphone Connectivity
The head unit supports both wired and wireless Apple CarPlay and Android Auto, so you can connect your compatible smartphone without relying solely on a cable.
- Wired and wireless Apple CarPlay
- Wired and wireless Android Auto
- Automatic connection after first pairing
- Bluetooth 5.0
- Hands-free calling and Bluetooth audio
- Dual-band 2.4 GHz and 5 GHz Wi-Fi
- 4G SIM compatibility

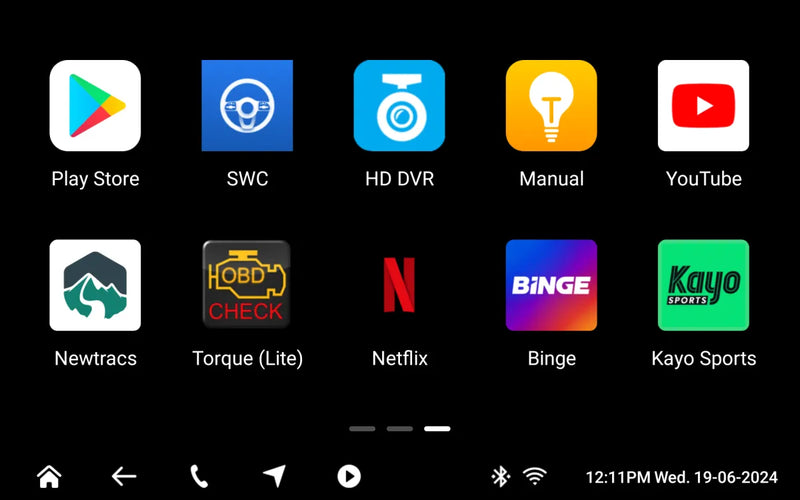

- Android operating system
- GPS support for multiple mapping apps
Display and Audio
The 9-inch QLED touchscreen provides a 1280 × 800 resolution and uses MiraVision display technology. The audio system includes a MOSFET Class AB amplifier with up to 4 × 50 W maximum output, along with a 13-band graphic EQ for adjusting the sound to suit your setup.
- 9-inch QLED capacitive touchscreen
- 1280 × 800 resolution
- MiraVision display technology
- MOSFET Class AB amplifier
- 4 × 50 W maximum output

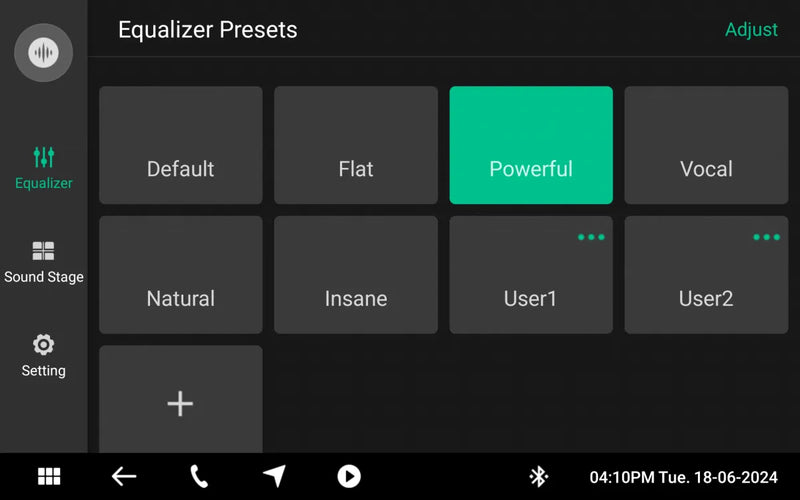

- 13-band graphic EQ
- Multiple EQ presets

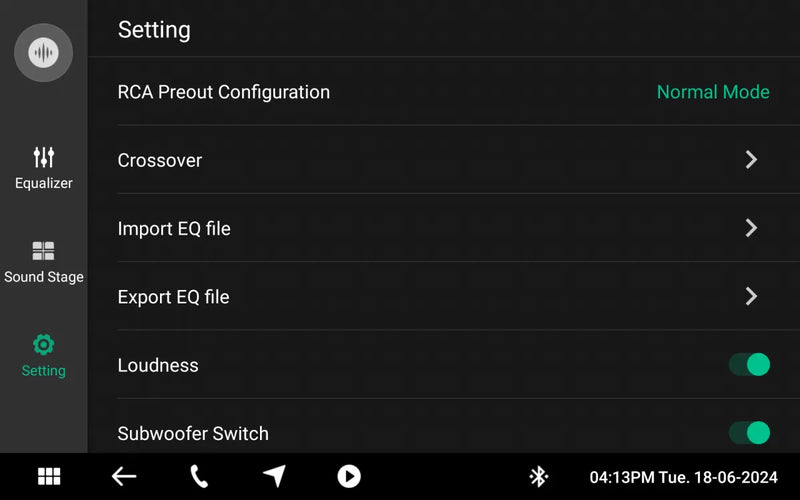

- Three pairs of RCA pre-outs for Front, Rear and Subwoofer
- 24-bit D/A converter

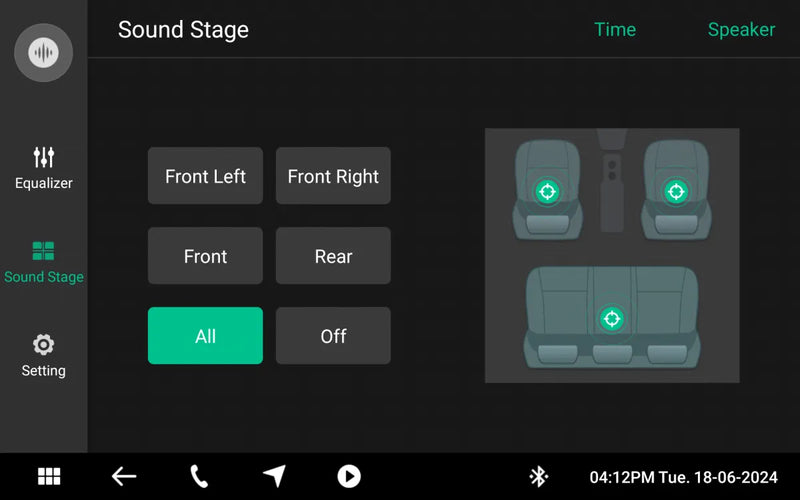

- Time alignment
- Loudness control
- Subwoofer control
- LPF and HPF adjustment
- Hi-Fi class distortion as low as 0.01%
Camera Support
The head unit has multiple camera inputs, giving you options for additional cameras where required.
- 4 × AHD camera inputs
- 2 × CVBS camera inputs
- Factory reverse camera retention where equipped
The factory 360° camera system is not supported by this model.
An aftermarket reverse camera is also available separately. Reverse trigger wiring is required for installation.
Performance and Connectivity
The head unit uses a quad-core 2.0 GHz processor with 6 GB of RAM and 128 GB of storage. Android OS provides access to additional compatible apps, while the built-in Wi-Fi, 4G SIM support and GPS give you more connectivity options when travelling.
Features
- 6 GB RAM
- 128 GB storage
- Quad-core 2.0 GHz processor
- Android OS
- Wired and wireless Apple CarPlay
- Wired and wireless Android Auto
- Bluetooth 5.0
- Dual-band Wi-Fi
- 4G SIM compatible
- AM/FM radio with RDS
- GPS support
- 13-band graphic EQ
- MOSFET Class AB amplifier
- Multiple camera inputs
- Factory reverse camera retention where equipped
- Vehicle-specific wiring harness
- Steering wheel control support with manual programming
- Over-voltage, thermal and short-circuit protection
- Operating temperature from -20°C to +70°C
Installation
This head unit includes a vehicle-specific wiring harness and is designed for a mostly plug and play installation.
Steering wheel controls require manual programming, as the Triton's system is non-CAN.
Before ordering, make sure your vehicle does not have the factory 360° camera system. GLX-R owners should also be aware that the factory top compass will be lost and cannot be retained with this head unit.
What's Included
- Polaris 9-inch Android head unit
- Vehicle-specific wiring harness
Frequently Asked Questions
Will this head unit fit my 2015 Mitsubishi Triton MN?
Yes, it is designed for 2015 Mitsubishi Triton MN models. However, it does not suit models equipped with a factory 360° camera system.
Will I lose the factory compass?
If you have a Triton GLX-R, the factory top compass will be lost and cannot be retained with this head unit.
Can I keep my factory reverse camera?
Yes, the supplied information states that the factory reverse camera can be retained where equipped.
Will the steering wheel controls work?
Yes, but they require manual programming. The Triton uses a non-CAN steering wheel control system.
Does it support wireless Apple CarPlay and Android Auto?
Yes. Both Apple CarPlay and Android Auto are supported wirelessly and through a wired connection.
Does it support a 4G SIM?
Yes. The head unit is 4G SIM compatible and also has built-in dual-band Wi-Fi.
Can I add extra cameras?
Yes. The unit has four AHD camera inputs and two CVBS camera inputs.
Is the product in stock?
This is a special-order product and can take approximately 2 weeks to come into stock.
