Boab 40L Footwell Water Tank With Pump, Hose Kit & Breather Cap

by Boab
Original price $409.00 - Original price $409.00
Original price
$409.00 - $409.00
Current price $409.00
4x4 Down Under Buy Now Pay Later Options

  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

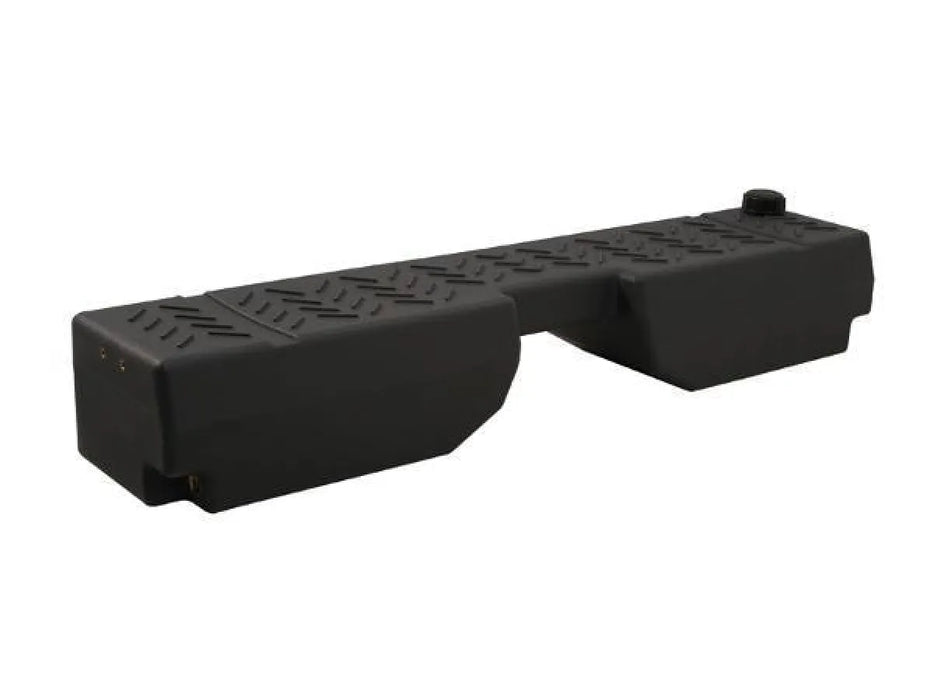

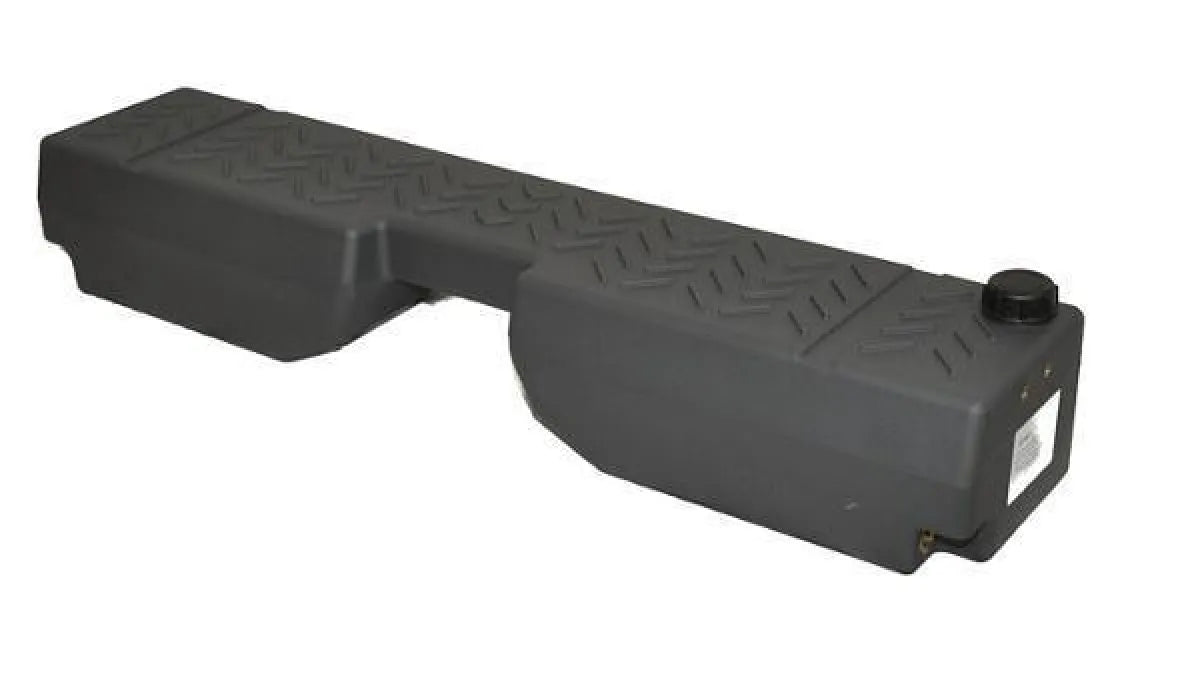

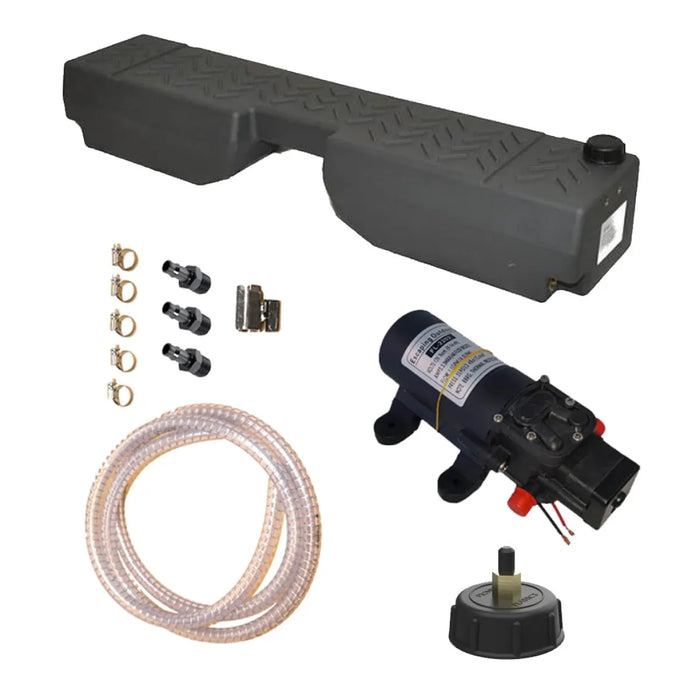

40 Litre Boab Footwell Water Tank with Water Pump, Hose Kit and Breather Cap Bundle

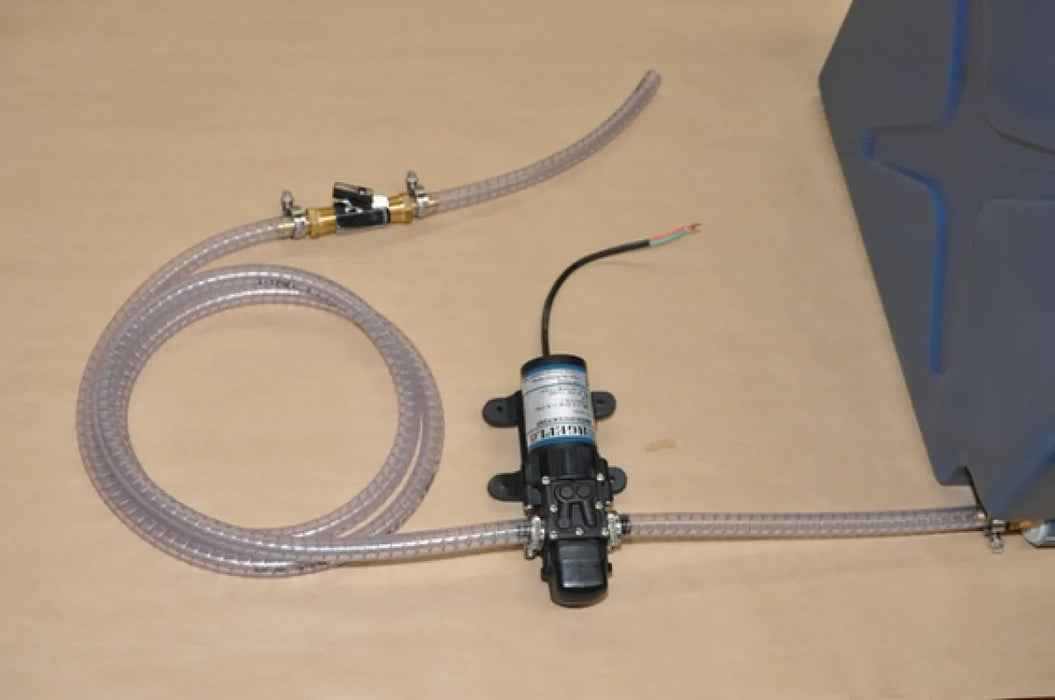

This Boab water tank bundle includes everything needed to get moving, including the Boab 40 litre footwell water tank, a 12v water pump, hoses and a breather tank cap.

This 40 Litre Footwell Water Tank Bundle is the perfect solution for a quick water storage solution in your vehicle. It includes pretty much everything you'll need to get up a running. Place the tank in the footwell of your vehicle's back seat, install the hose, pump and breather cap, and you have an easy to access water storage solution.

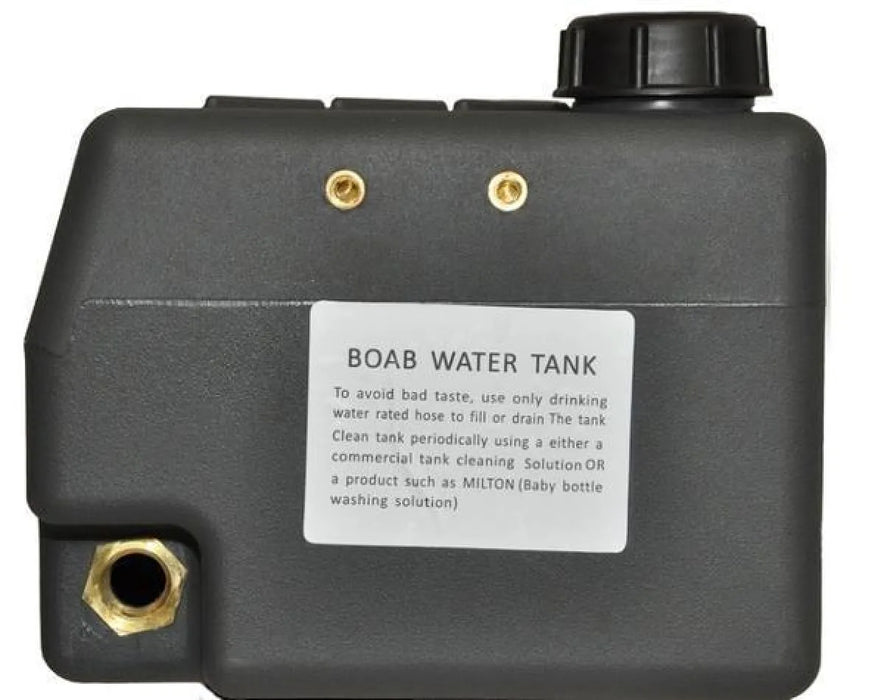

The tank comes equipped with two 1/2" BSP brass outlets, which allow for easy plumbing and customisation with normal hardware fittings. The brass outlets also provide additional strength and resilience, and should last longer than some plastic options out there.

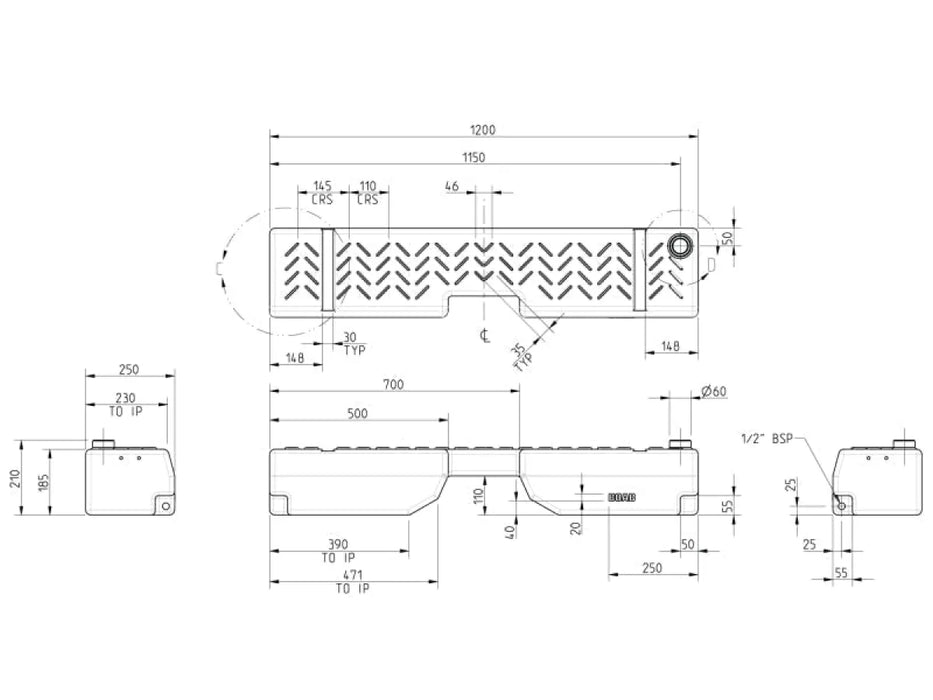

The 40L water tank should fit most vehicle backseat footwells. The transmission tunnel recess is 420mm wide at the base, tapering to 200mm at the top, and is 110mm high, while the cut-out for the center console is 200mm wide and 60mm deep.

Made from UV-stabilised and BPA-free material, this water tank is built to last and ensure safe storage of your drinking water supply.

This tank also comes with nutserts installed. These are not designed to hold the full weight of the tank but can assist in stabilising (stoping the tank from sliding). Depending how you set it up, it is always recommended to support the tank with metal straps using the indents and holes.


  • The transmission tunnel recess is 420mm wide at the base tapering to 200mm wide at top of recess, and is 110mm high.
  • The cut-out for centre consoles is 200mm wide and 60mm deep.
  • Two Brass outlets are fitted (one at each end) and uses 1/2″ BSPT thread to allow normal hardware plumbing fittings to be used for custom hose or pump kits.
  • UV Stabilised Material


    • 210mm (Height)
    • 250mm (Width)
    • 1200mm (Length)
    • Total Weight: 5Kg

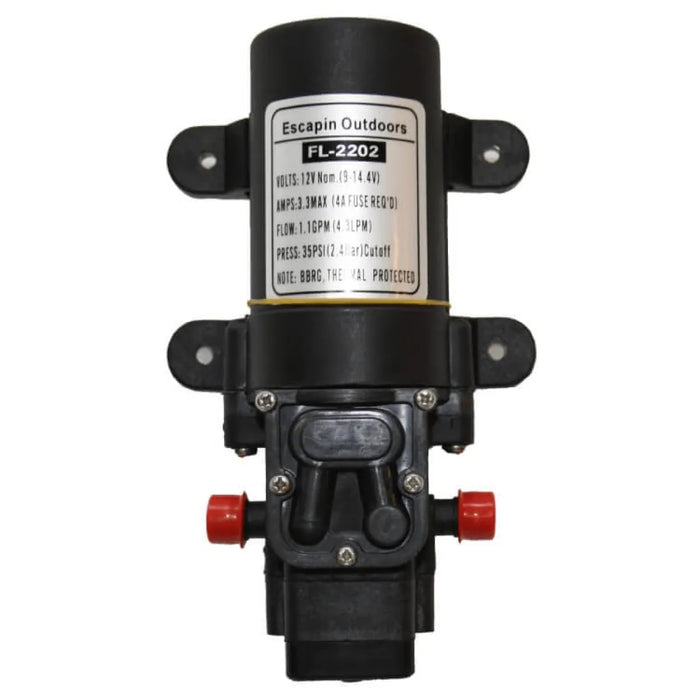

    12V Water Pump With Auto Pressure Switch By Devanti

    The Devanti Poly Water Tank 12 Volt Water Pump with Auto Pressure Switch will pump water efficiently at 4.3 Litres Per Minute from your Tank. Ideal for use with offroad gurney’s.

    • 12V pump with auto pressure switch
    • 3.3 amp power draw
    • 4.3 litres per minute maximum flow
    • 35 PSI pressure
    • 2 metre head and 80cm draw
    • 10mm hose inlet and outlet
    • Run dry protection

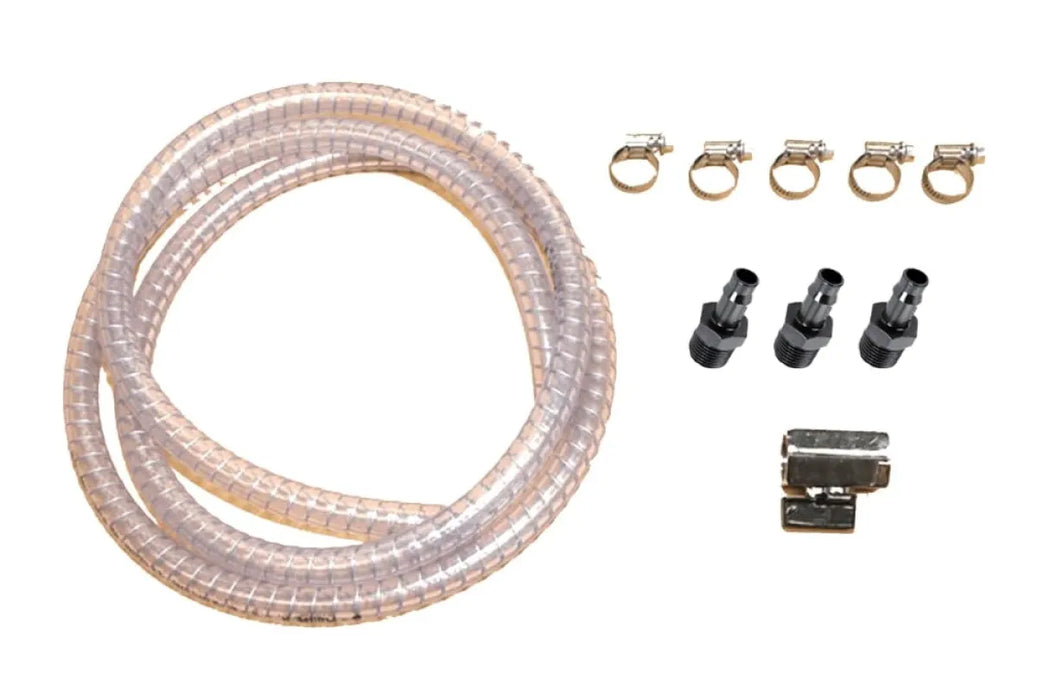

    Boab Hose Kit For Use With 12V Pump


    • Hose kit for use with 12V Pump
    • 2M, 10mm reinforced hose & all fittings
    • 5 x Clamps
    • 3 x Tail fittings
    • 1 x Mini ball valve
    • Fittings in diesel-safe plastic

      Hose Kit Model Number: WTPHK3

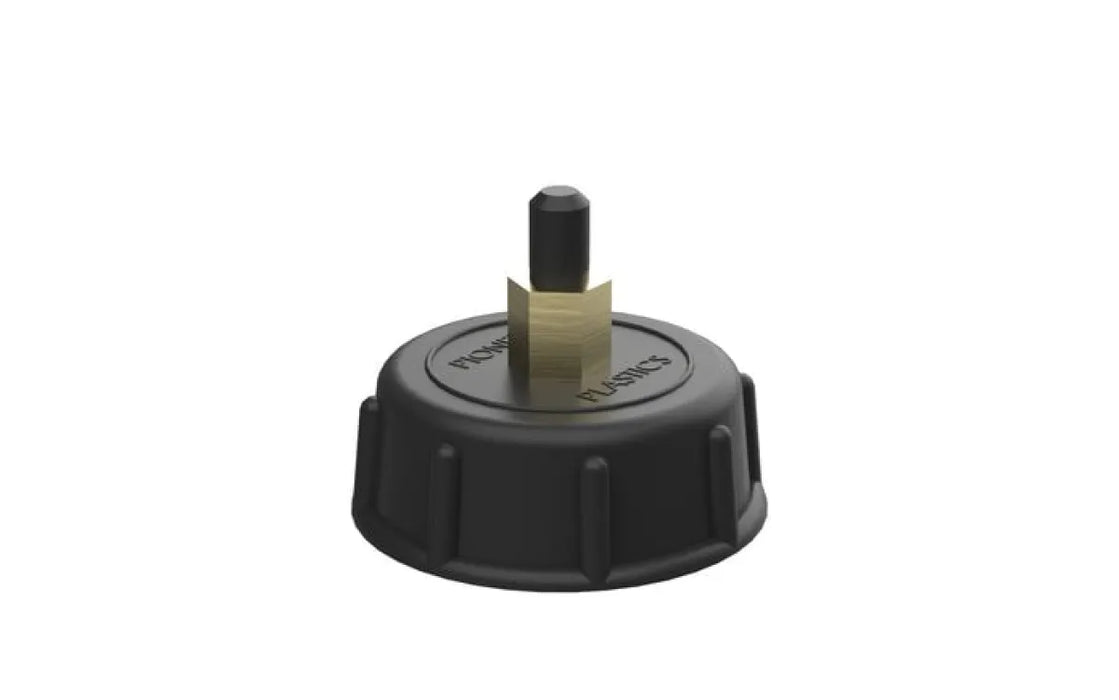

      Boab Breather Tank Cap

      This vented (breather) screw-on cap for the water tank is designed to screw onto the opening of your water storage tank. The cap has a screw thread on the inside, which is used to tighten the cap onto the tank, forming a secure seal.The cap has a built-in vent, which allows air to enter the tank as liquid is dispensed, preventing vacuum pressure from building up and making it difficult to pour the liquid. It essentially allows the tank to breath while preventing spillage. The vented screw-on cap helps ensure that the water tank can be easily filled and emptied, while also helping to prevent spills and leaks.
