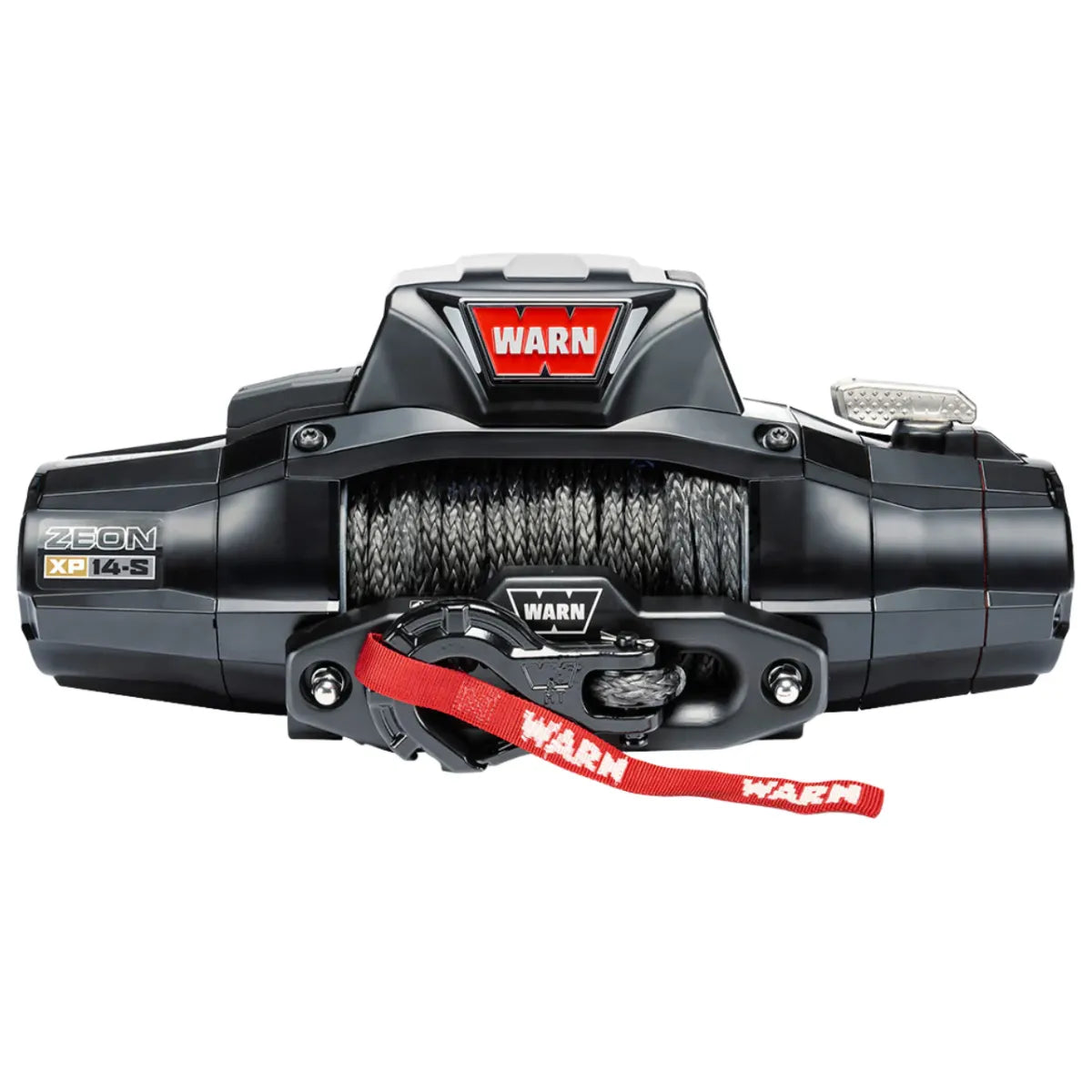

Zeon XP 14-S 14,000lb 12V Electric Winch with 24m of 3/8” Spydura Synthetic Rope by Warn

When you're loaded up with gear and heading off the beaten track, you need a winch that won’t back down. The ZEON XP 14-S delivers a massive 14,000lb capacity, the highest in its class, giving your heavy 4WD or SUV the muscle it needs to power through the toughest recoveries. It comes pre-loaded with 24 metres of 3/8” Spydura Pro synthetic rope — strong, lightweight, and ready for action.

Please note: This product requires a compatible winch bumper or mounting plate for proper installation on your rig.

Why Choose the ZEON XP?

This is Warn’s top-shelf winch — built for those who demand nothing but the best. Proudly engineered, tested, and assembled in Clackamas, Oregon, USA, it’s the winch you can trust when things get hairy out bush.

  • Blazing Fast: Shares the same high-performance motor and geartrain as the ZEON XD, with a lightning-fast no-load line speed of up to 40 ft/min — the quickest in its class.

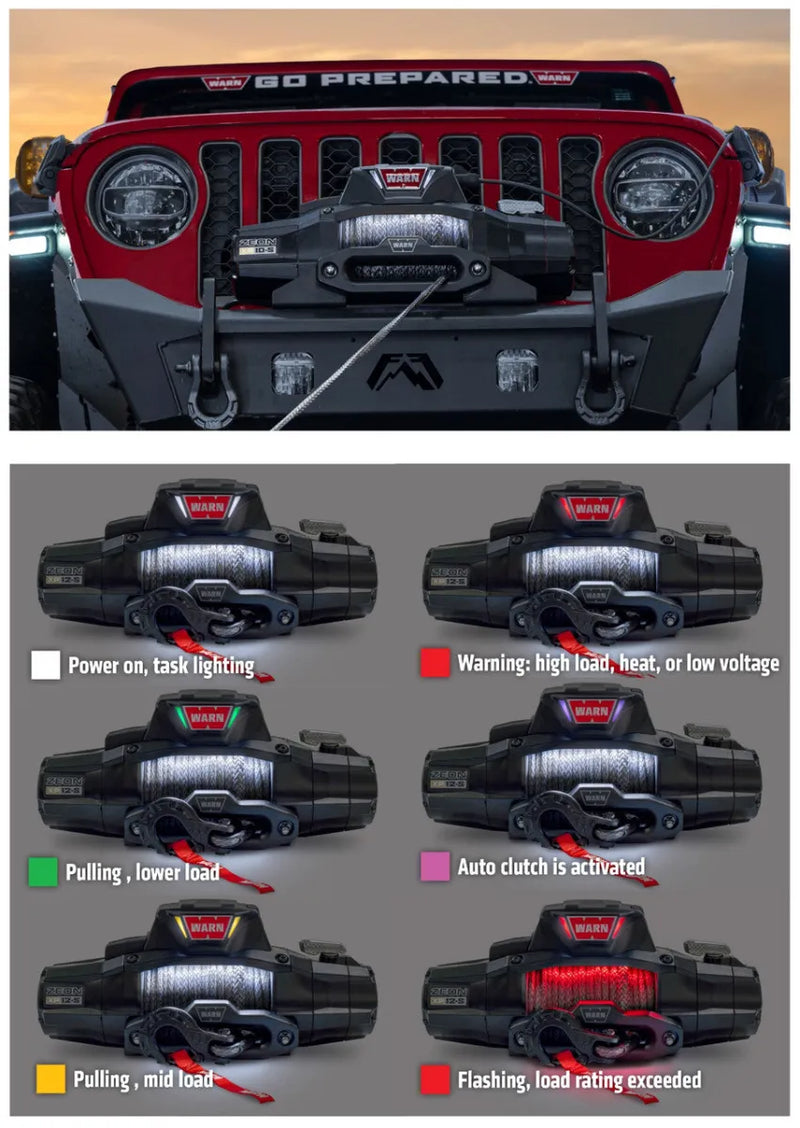

  • Smart and Strong: The control pack includes a built-in HUB receiver and onboard sensors that keep an eye on load, heat, and battery voltage in real-time.
  • Remote Clutch Control: Switch from free spool to engaged at the push of a button, or use the manual clutch if needed.
  • Built Tough: Forged aluminium housing stands up to corrosion, UV rays, and rough weather. OEM-grade bus bars provide efficient, sealed electrical connections — no more messy exposed wiring. Improved black fasteners and UV-resistant covers meet the highest OEM durability specs.
  • Rope Protection: A large-diameter drum reduces rope wear and dissipates heat during braking, while Warn’s patented rope anchor system makes installation a breeze and ensures the strongest hold.
  • Top-Tier Sealing: Rated to IP68 submersion and IP69K high-pressure spray, thanks to heavy-duty OEM-grade O-ring gaskets for ultimate water and dust resistance.

Specifications

Rated Line Pull (Single Line) 14,000 lbs. (6350 kg)
No Load Line Speed 26.1 ft/min (7.95m/min)
Rated Load Line Speed 2.1 ft/min (0.64m/min)
No Load Motor Current 65 Amps
Rated load motor current 482 Amps
Motor 12V DC, series wound (exclusive WARN high-performance design)
Zeon Electrical controls Contactor
Wiring Automotive OE-grade buss bars
Zeon Corrosion Resistance 408 hour salt spray
Zeon Ingress Protection IP68 submersion and IP69K spray testing (entire unit)
Remote Control Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack
Drum diameter/Length 3.15”/9.0” (80mm/229mm)

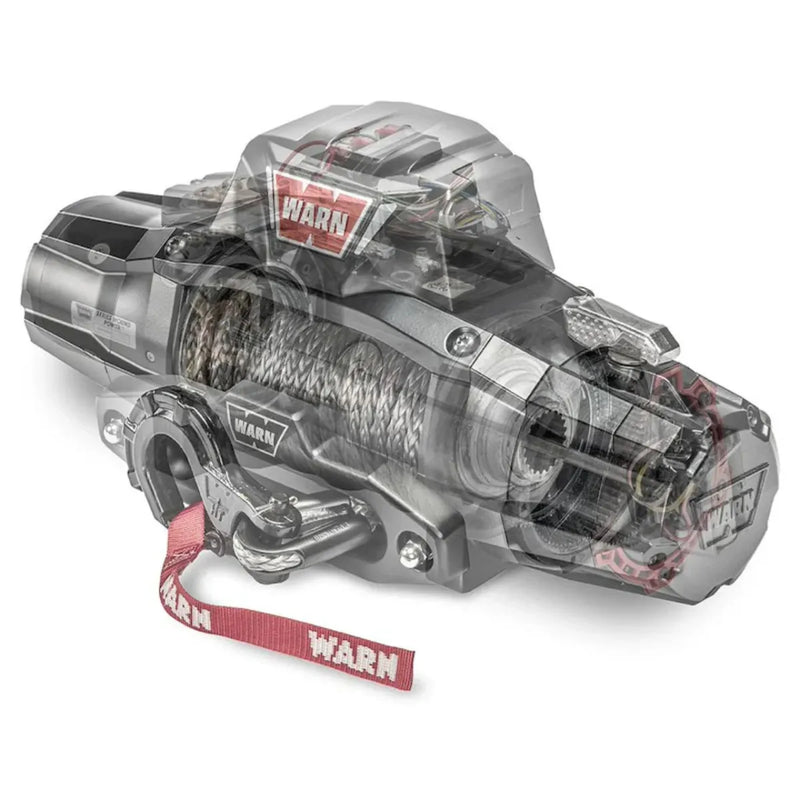

Geartrain 3-stage planetary
Zeon Gear Ratio 141:1
Zeon Clutch (freespooling) Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation.
Brake Automatic, six segment mechanical cone
Rope 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic
Fairlead Black anodized, forged aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Zeon Finish Satin-black powder coat

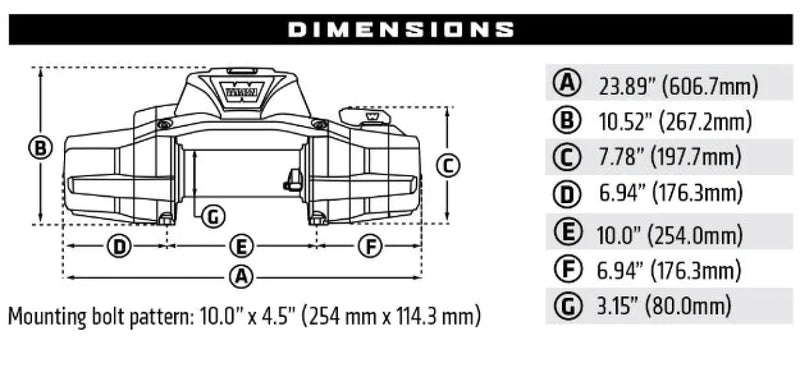

Winch Dimensions 606.7 mm (L) × 197.7 mm (W) × 267.2 mm (H)
Final point of assembly Warn facility in Clackamas, Oregon, USA
Warranty Limited lifetime mechanical, 7 years electrical
Weight 85lbs (in box)



Video

 

Frequently Asked Questions

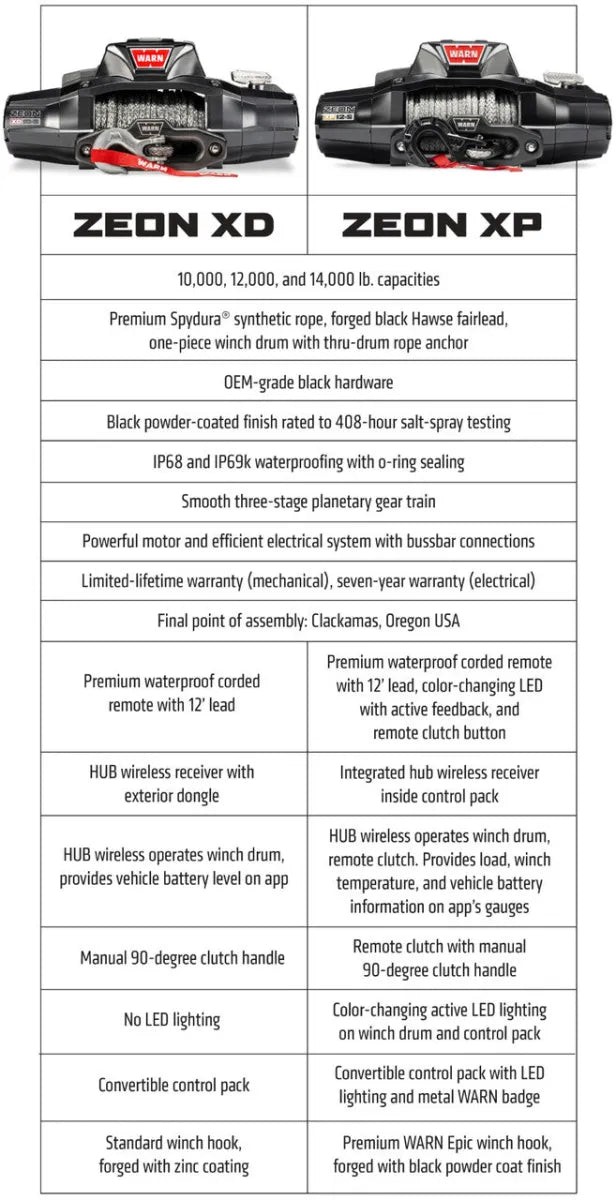

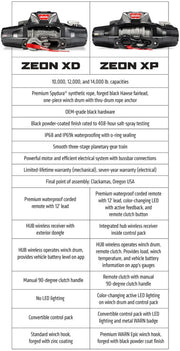

What makes the Zeon XP 14-S different from the Zeon XD 14-S?

The Zeon XP 14-S adds remote clutch engagement, which the XD 14-S does not have. On the XP, you can engage or disengage free spool from the remote or app without leaving the driver's seat. Both share the same motor, geartrain, Spydura Pro rope, and IP68/IP69K sealing, but the XP is Warn's top-of-the-range offering with a higher feature set.

What does remote clutch control actually do?

The clutch disengages the drum from the drive mechanism, allowing the rope to be pulled out by hand (free spool). On the XD 14-S, you must use the manual lever at the winch body. On the XP 14-S, you can activate free spool and re-engage the winch remotely via the controller or WARN HUB app, which is particularly useful when your vehicle is bogged and accessing the front is difficult.

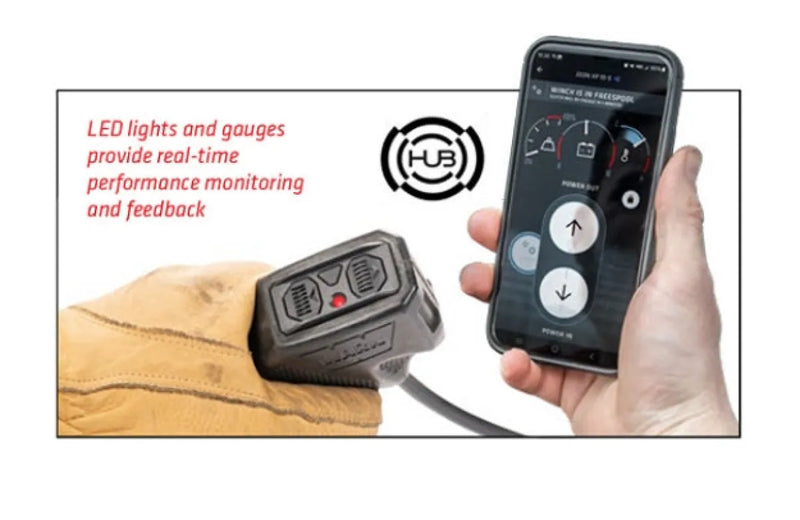

How does the WARN HUB wireless system work?

The control pack includes a built-in WARN HUB Bluetooth receiver. Pair it with the WARN HUB app on your smartphone to control winch operation and monitor load, temperature, and battery voltage in real time from over 30 metres away. A corded remote with LED feedback is also included.

What does IP69K rating add over IP68?

IP68 covers protection against continuous water submersion. IP69K adds protection against high-pressure, high-temperature spray, which is relevant when pressure washing your vehicle with the winch fitted. Most winches only carry IP68, so the XP's IP69K rating is a meaningful step up.

Does the Zeon XP 14-S need a special bull bar?

Yes. This winch requires a compatible winch bumper or mounting plate, which is not included. We recommend confirming with your bull bar manufacturer that their product is rated to accept a 14,000lb (6,350kg) winch before purchasing.

What rope and fairlead come with the Zeon XP 14-S?

The winch arrives pre-loaded with 24 metres of 3/8"" (9.52mm) Warn Spydura Pro synthetic rope and a black anodised forged aluminium hawse fairlead.

Where is the Zeon XP 14-S assembled?

The Zeon XP 14-S is engineered, tested, and assembled at Warn's facility in Clackamas, Oregon, USA.

What warranty does the Zeon XP 14-S carry?

It is backed by Warn's limited lifetime mechanical warranty and a 7-year electrical warranty. We are an authorised Warn retailer, so warranty support is available through the proper Australian supply channel.
