Warn VR Evo 10-S 4x4 12V Winch with Synthetic Rope

by Warn
SKU 103253
Save $121.00 Save $121.00
Original price $1,430.00
Original price $1,430.00 - Original price $1,430.00
Original price $1,430.00
Current price $1,309.00
$1,309.00 - $1,309.00
Current price $1,309.00
4x4 Down Under Buy Now Pay Later Options

  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

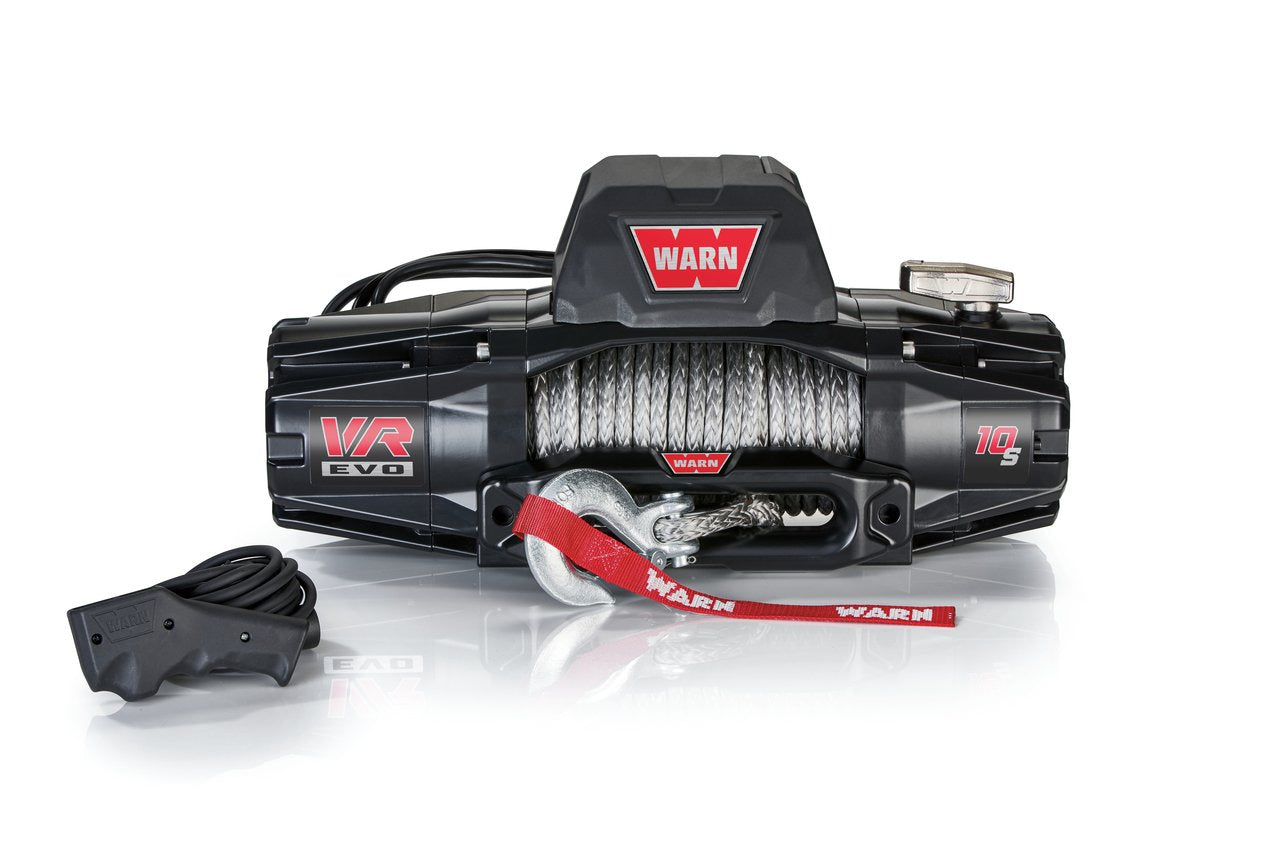

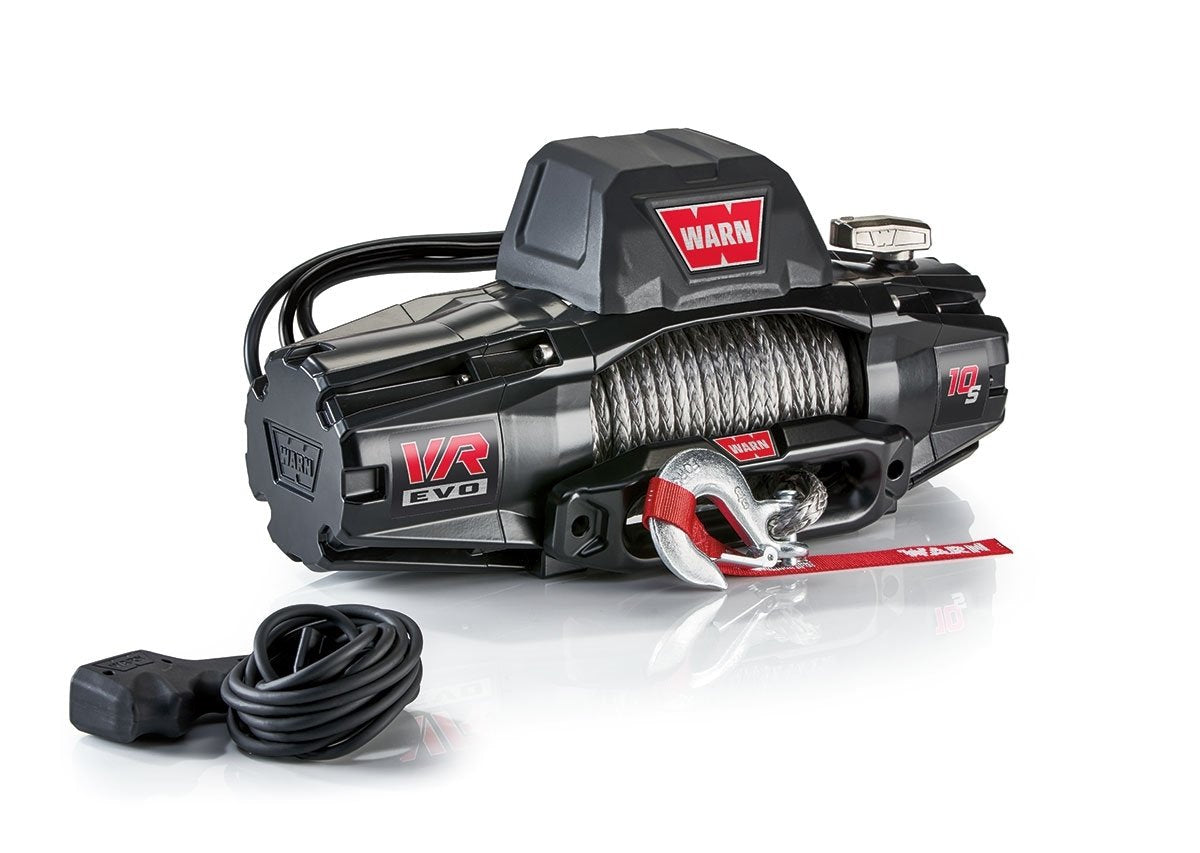

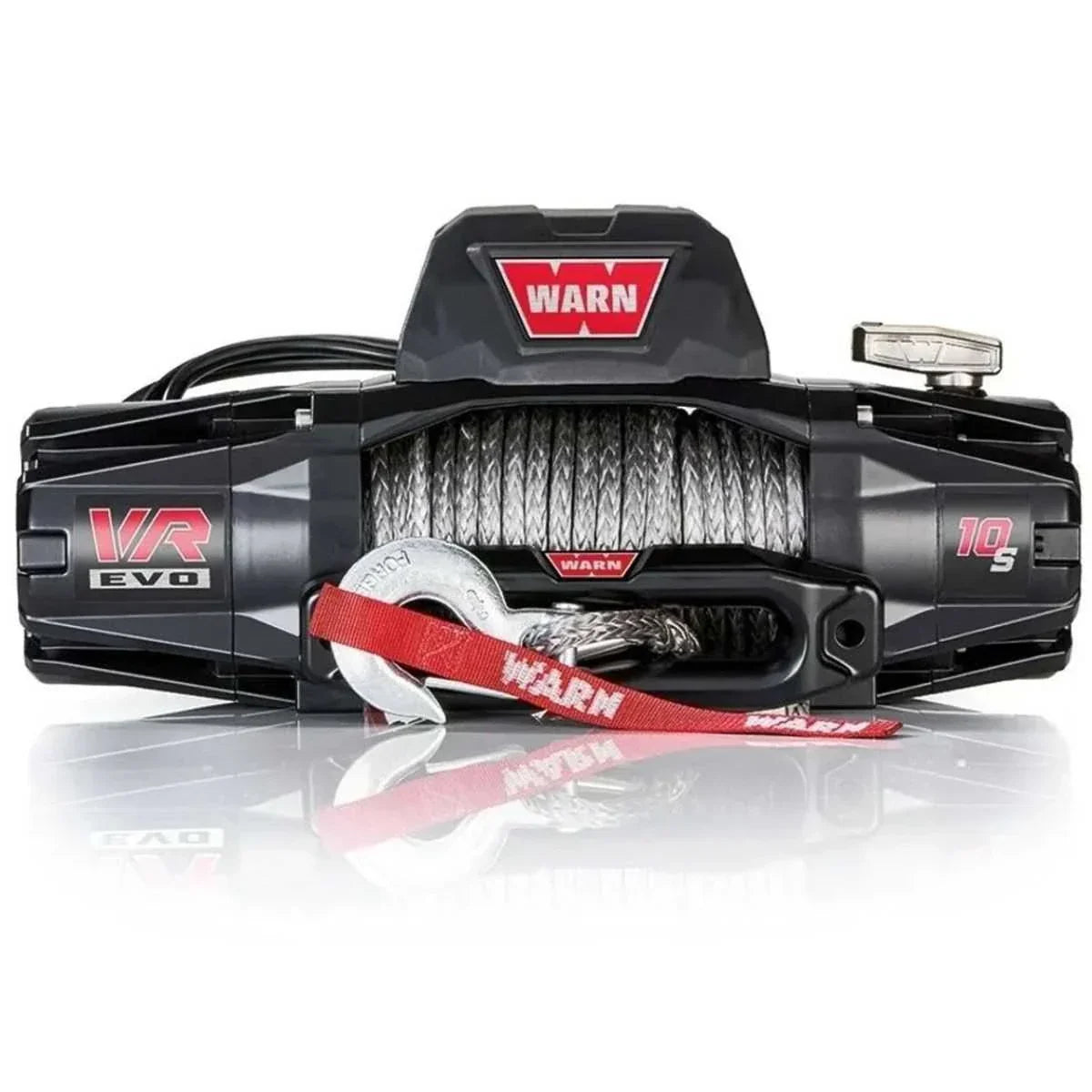

VR Evo 10-S 12v Winch with Synthetic Rope by Warn

The WARN VR EVO 10-S Series Winch sets the standard for what consumers are looking for in a high-quality, strong, and reliable vehicle winch. The Evo 10-S comes with a huge 10,000lb of line pull capacity, providing ample strength to pull most vehicles out of any number of tricky situations.

Offering fast line speeds with lower amp draw at a price that is extremely competitive. Made with a bold tactical look giving your vehicle an aggressive style with premium recovery equipment.

The hardest working standard-duty winch that Warn has ever offered which is built to outlast the competition and your expectations. Made with a powerful series wound motor and a 3-stage planetary gear train for ultimate performance.The IP68-rated waterproof winch keeps the elements out while the high-end Albright contactor delivers maximum reliability.

The re-designed remote included with this Warn 10,000lb winch provides the option to go wireless giving you more versatility and function. Also including a 3.5m lead when needed for backup or for the old school guys that want it hard wired. Making this winch very user-friendly.

Warn VR EVO 10-S Winch Specifications

  • Part Numbers: 103253 (VR EVO 10-S)
  • Rated Line Pull: 10,000 lbs (4536 kgs)
  • Motor: 12V DC, Series Wound™
  • Electrical Controls: Albright Contactor
  • Remote Control: 2-in-1 plug in remote with wireless capability and 11.5' (3.5m) Lead
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 218:1
  • Clutch (freespooling): Rotating Ring Gear Clutch
  • Brake: Spring Brake
  • Drum Diameter/Length: 6.73cm/23cm
  • Weight: Shipping Synthetic - 32.84 kgs
  • Rope: Synthetic - 9.5mm x 27.4m
  • Fairlead: Synthetic - Die Cast Hawse
  • Recommended Battery: 650 CCA min. for winching
  • Battery Leads: 25mm x 2m
  • Standard Mounting Bolt Pattern: 254mm x 114.3mm

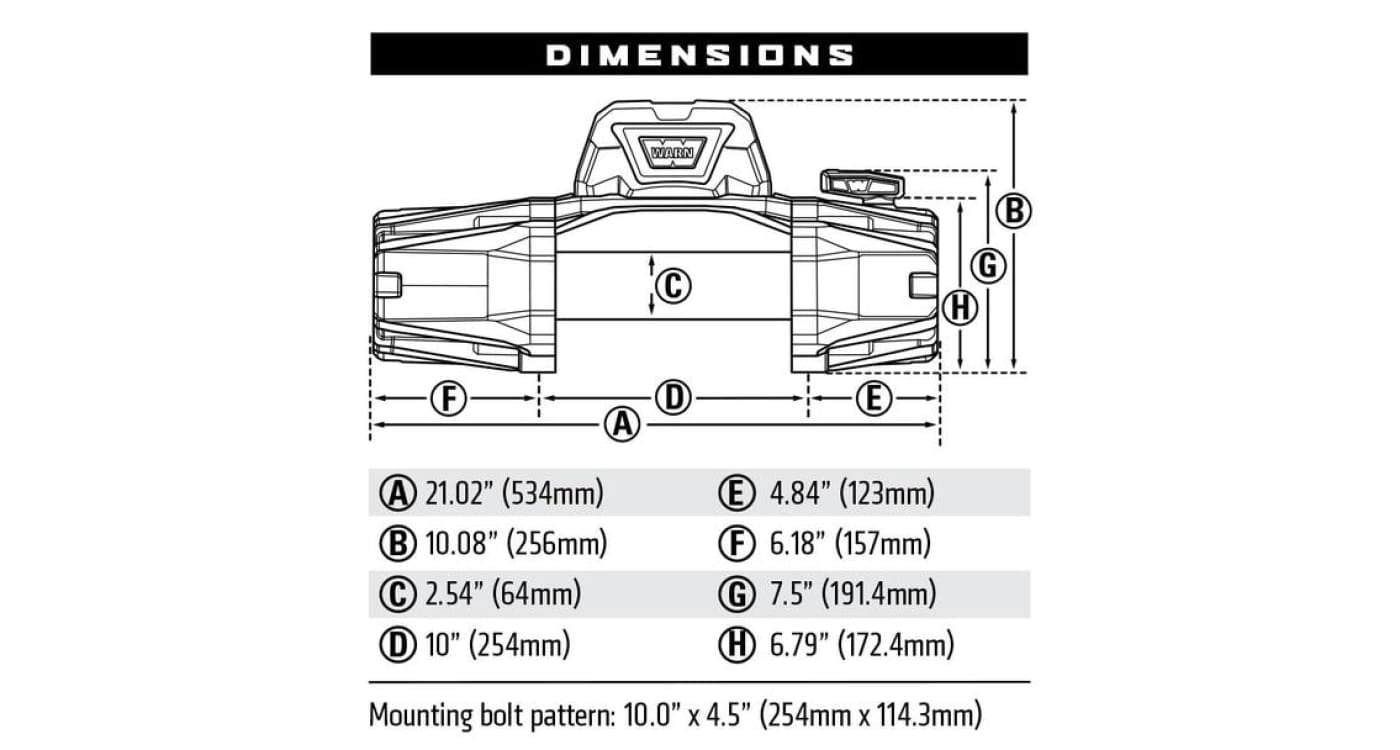

  • Overall Winch Dimensions: 534mm L x 160.5mm D x 256mm H
  • Finish: Powder coat finish over primer undercoat
  • Warranty: Limited Lifetime mechanical & 7 year electrical

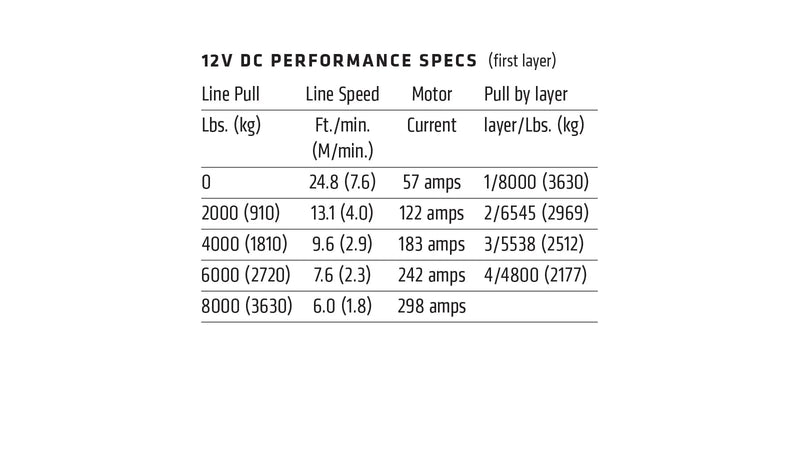

VR EVO 10-S: 12V DC Performance Specs (Based on First Layer of Drum)

Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Motor Current Pull by layer
layer/lbs (kgs)
0 27.1 (8.3) 58 amps 1/10000 (4536)
2000 (910) 13.9 (4.2) 125 amps 2/8226 (3731)
4000 (1810) 9.9 (3.0) 185 amps 3/6987 (3169)
6000 (2720) 8.2 (2.5) 244 amps 4/6072 (2754)
8000 (3630) 6.5 (2.0) 303 amps 5/5370 (2436)
10000 (4536) 5.2 (1.6) 358 amps
