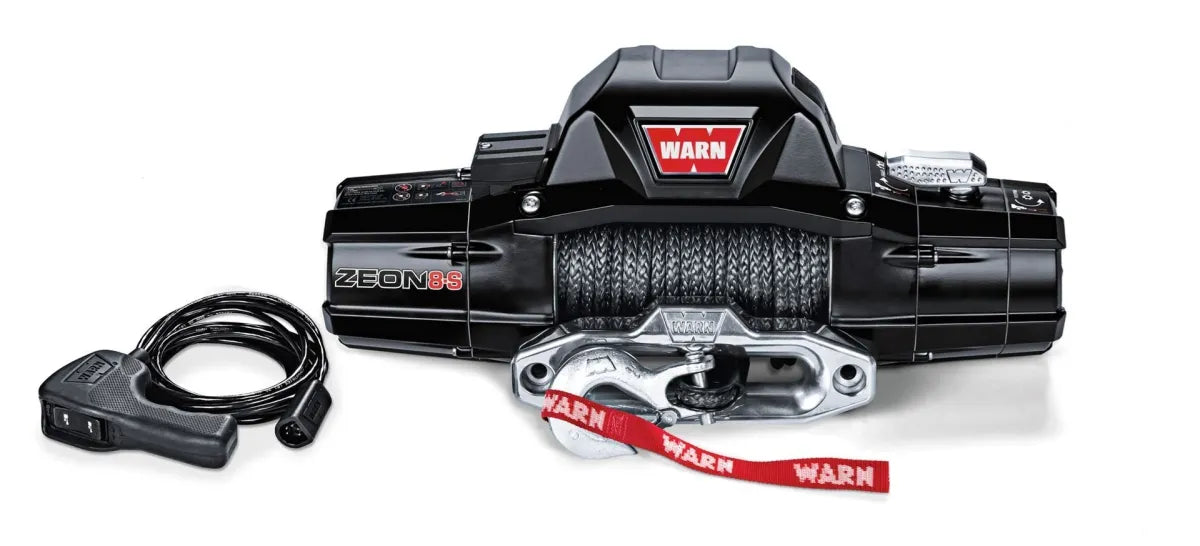

Zeon 8-S 8,000lb 12v Winch with Synthetic Rope by Warn
This Warn Industries ZEON (R) 8-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 8,000 pounds. It has a 100 feet synthetic rope.

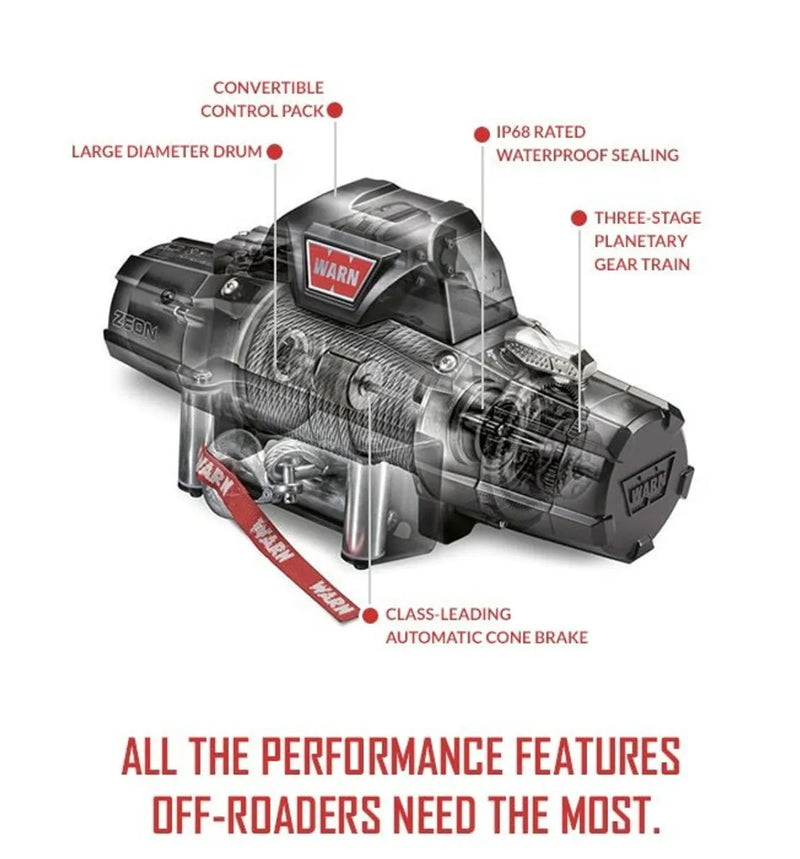

Don't let the good looks fool you. Warn has packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pounds pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
Note: This Winch will require winch mount for proper installation.
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
- Improved Winch Sealing To Keep The Elements Out
- Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
- 8,000 Pounds Single Line Pulling Capacity
- Includes 100 feet of 3/8″ WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead.
- Limited Lifetime Warranty (7 Years Electrical, Lifetime Mechanical)
The relocation kit is required for remote mounting and sold separately (see accessories).
Warn Zeon 8 12v Electric Winch Specifications
- Part number: ZEON-8-S-89670
- Rated line pull: 8000 lbs. (3630 kg) single-line
- Motor: 12V DC, series wound
- Electrical controls: Contactor
- Remote Control: Remote switch, 12′ (3.7m) lead
- Geartrain: 3-stage planetary
- Gear ratio: 162:1
- Clutch (freespooling): Rotating ring gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
- Weight (kit shipping): 75 lbs. (34 kg)
- Rope: 3/8″ x 100′ (9.5mm x 30.5m) Spydura synthetic
- Fairlead: Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 25mm gauge, 72″ (1.83m)
- Finish: Satin-black powder coat
Warn Zeon 8-S 12v Electric Winch Dimensions
|Integrated configuration||24.25″ L x 7.15″ D x 10.52″ H
(615.9mm L x 181.6mm D x 267.1mm H)
|Low-profile configuration||24.25″ L x 7.15″ D x 7.84″ H
(615.9mm L x 181.6mm D x 199.02mm H)
|Mounting Bolt Pattern||10.0″ x 4.5″
(254mm x 114.3mm)
