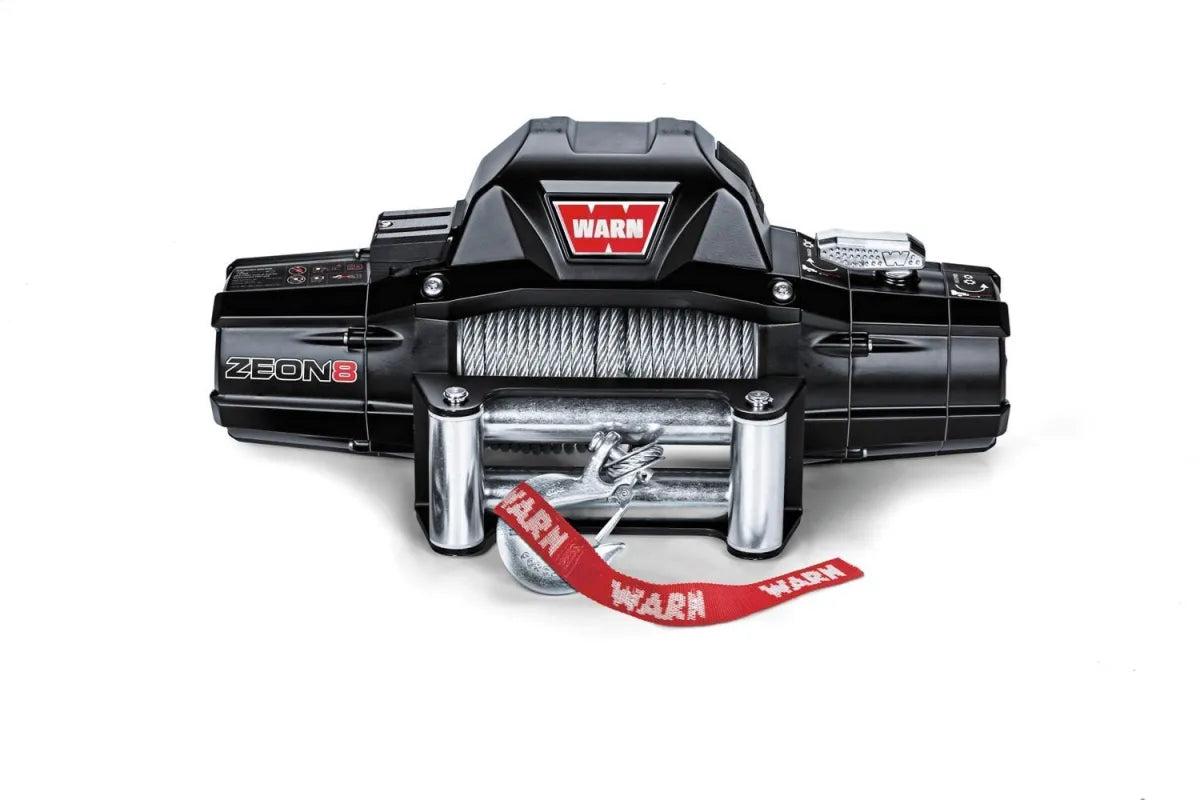

Don't let the good looks fool you. Warn has packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pounds pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
FEATURES
The relocation kit is required for remote mounting and sold separately (see accessories).
Note: This winch will not fit Warn Elite Bumpers.
TYPE | Electric |
MOUNT TYPE | Vehicle Mounted |
RECOMMENDED USE | Vehicle Recovery |
VOLTAGE | 12 Volt |
ELECTRICAL CONTROL TYPE | Contactors |
MOTOR TYPE | Series Wound |
THERMAL SHUTOFF | No |
DRIVE GEAR TYPE | Planetary |
GEAR REDUCTION RATIO | 162:1 |
FREE SPOOLING | Yes |
BRAKE TYPE | Mechanical Cone |
LINE DIAMETER (IN) | 5/16 Inch |
LINE LENGTH (FT) | 100 Feet |
LINE MATERIAL | Steel |
FAIRLEAD TYPE | Roller |
CONFORMS TO J706 STANDARDS | No |
REMOTE TYPE | Handheld Remote Switch |
MOUNTING HOLE QUANTITY | 4 |
OPERATION TYPE | Automatic |
MOUNTING PATTERN LENGTH (IN) | 10 Inch |
MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
INCLUDES MOUNTING HARDWARE | No |
COLOR | Black |
MAX AMP DRAW/ LINE PULL | 413 Amp Draw/ 8000 Pound |
MAX LINE PULL/ LINE SPEED | 8000 Pound/ 6.2 Feet Per Minute |
Integrated configuration | 24.25″ L x 7.15″ D x 10.52″ H (615.9mm L x 181.6mm D x 267.1mm H) |
---|---|
Low-profile configuration | 24.25″ L x 7.15″ D x 7.84″ H (615.9mm L x 181.6mm D x 199.02mm H) |
Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
