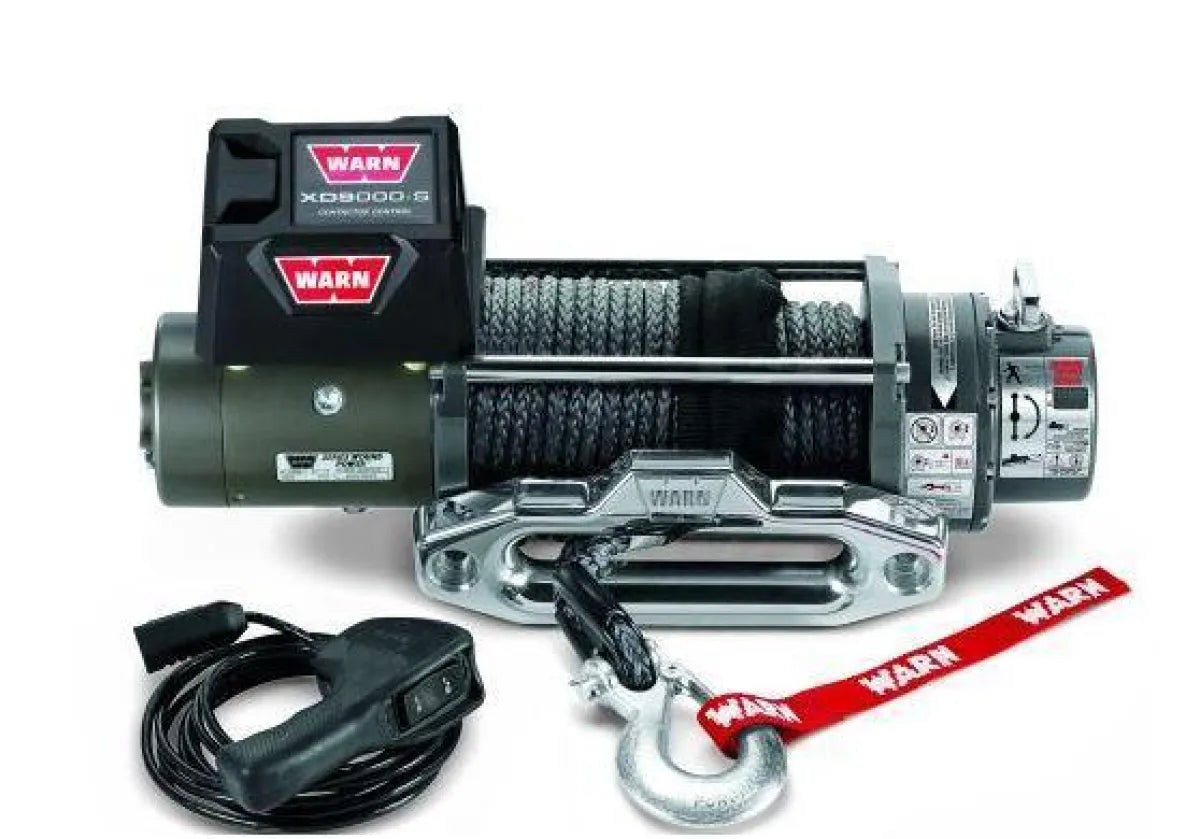

XD9000-S 12V Self Recovery Winch with Synthetic Rope from Warn
Th Warn XD9000 winch is one of Warn's premium winch models, and comes equipped with 24.38 metres of 9.5mm Spydura synthetic rope, ideal for tackling the diverse and challenging terrains of the Australian outback.
The XD9000-S includes a series-wound, high-speed motor, delivering both rapid line speed and a powerful pulling capacity of 9000lb (4082kg). Its innovative low-profile design, coupled with a separate control box, offers versatile mounting options to suit a wide range of 4x4 vehicles.
Warn has a reputation for engineering excellence, and it's evident in the next-generation contactor control pack that's included on the XD9000. This pack ensures extended duty cycles and exceptional durability - critical features for our harsh environment. The winch's 3-stage planetary gear-train provides smooth, reliable operation, while the exclusive brake design offers superior control during use.
Built to withstand Australia's harsh conditions, the XD9000-S features a chip-resistant, powder-coated finish for long-lasting protection. It comes complete with a polished aluminium hawse fairlead and a newly designed hand-held remote control on a 3.7-metre lead, allowing for safe and convenient operation from a distance.
Whether you're traversing the rugged landscapes of the Kimberley or navigating the challenging tracks of the Vic High Country, the XD9000-S 12V Self Recovery Winch is an indispensable tool for serious off-road enthusiasts. Its combination of power, durability, and intelligent design makes it a top choice for those who demand reliability in their off-road equipment.
Features
- Includes 24.38m of 9.5mm WARN Spydura synthetic rope, hook, remote control on 3.7m lead and polished aluminium hawse fairlead.
- Series-wound, high-speed motor provides fast line speed and strong pulls.
- Low-profile design and separate control box allows for a wide range of mounting options.
- Next-generation contactor control pack delivers long duty cycles and exceptional durability.
- Durable 3-stage planetary gear-train for smooth, reliable, operation.
- Exclusive brake design provides superior control while winching.
- Newly designed hand-held remote control.
- Chip-resistant, powder-coated finish.
Warn XD9000-S Specifications
-
Winch model: WARN XD9000-S
-
Part number: CEXD9000-88550
-
Rated line pull: 9,000 lbs., (4080 kg) single-line
-
Motor: Series Wound
-
Electrical controls: Contactor
-
Remote Control: Remote switch 12′ (3.7m) lead
-
Gear train: 3-Stage Planetary
-
Gear ratio: 156:1
-
Clutch (free spooling): Sliding Ring Gear
-
Brake: Automatic Direct Drive Cone
-
Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
-
Weight: 59 lbs. (26.8 kg)
-
Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
-
Fairlead: Polished Aluminium Hawse
-
Recommended Battery: 650 CCA minimum for winching
-
Battery leads: 2 gauge, 72″ (1.83m)
-
Finish: Argent Grey Powder Coat

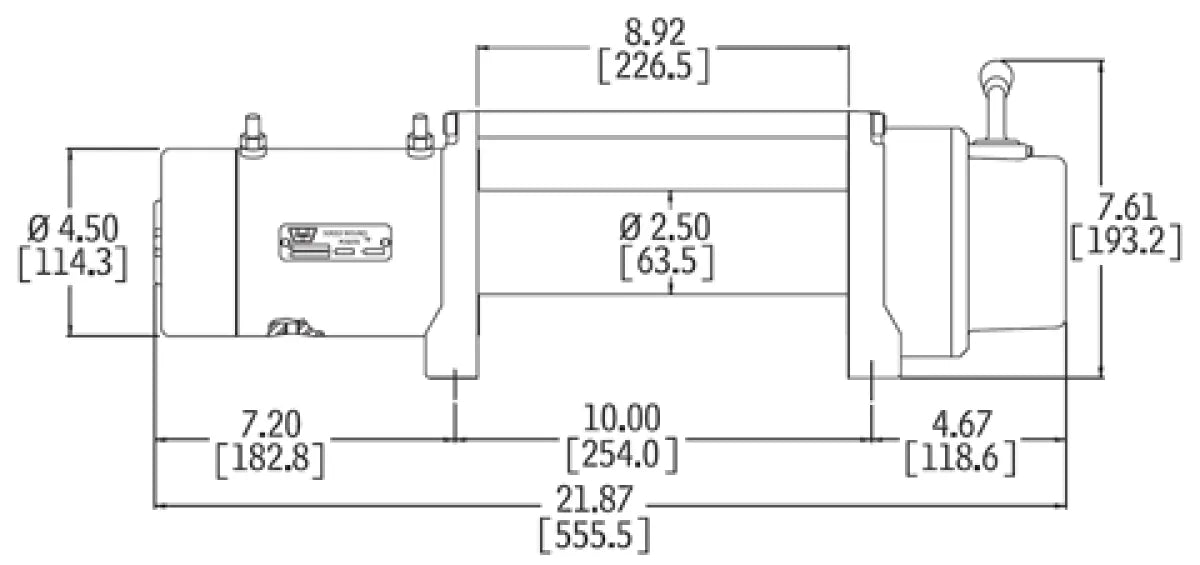

Winch Dimension
-
Dimensions 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.)
-
Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
Frequently Asked Questions
What makes the XD9000-S different from the VR Evo range?
The XD9000-S is a premium-tier model sitting above the VR Evo range. It features a series-wound high-speed motor, a next-generation contactor control pack designed for extended duty cycles, and an automatic direct drive cone brake for superior load control. It is built to handle longer and more intensive recovery sessions.
What vehicles is the 9,000lb rated line pull suited to?
At 9,000lb (4,082kg) single line, the XD9000-S suits most medium to large 4WDs, dual-cab utes, and loaded touring rigs. As a general rule, the winch should be rated for at least 1.5 times your vehicle's GVM.
What does the next-generation contactor control pack offer?
It delivers longer duty cycles and superior durability compared to standard contactors. This matters in situations where you need to make multiple pulls in succession without overheating or degraded performance.
What rope and fairlead are included?
The XD9000-S comes with 24.38m of 9.5mm Warn Spydura synthetic rope, a polished aluminium hawse fairlead, and a hand-held remote on a 3.7m lead.
Does the XD9000-S have a wireless remote?
No. The XD9000-S includes a wired hand-held remote on a 3.7m lead. There is no wireless option on this model.
What type of brake does the XD9000-S use?
It uses an automatic direct drive cone brake, which provides reliable and predictable load holding. This is a different brake design to the spring brake found in the VR Evo range.
What mounting bolt pattern does the XD9000-S use?
The XD9000-S uses the standard 254mm x 114.3mm mounting pattern, compatible with most winch-ready bull bars on the market. Confirm your bar's weight rating before fitting.
What battery is recommended for the XD9000-S?
A minimum of 650 CCA is recommended for winching. Given the XD9000-S is a higher-current draw model, a quality deep-cycle or AGM battery is the best choice for sustained performance.
