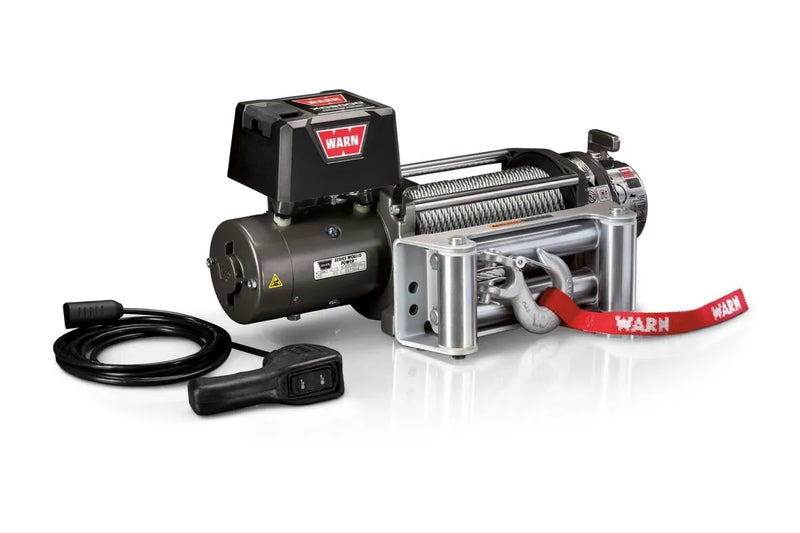

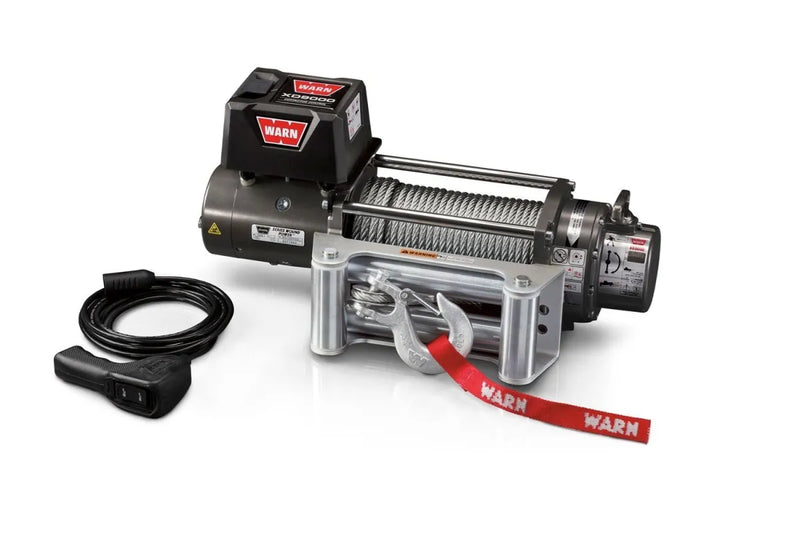

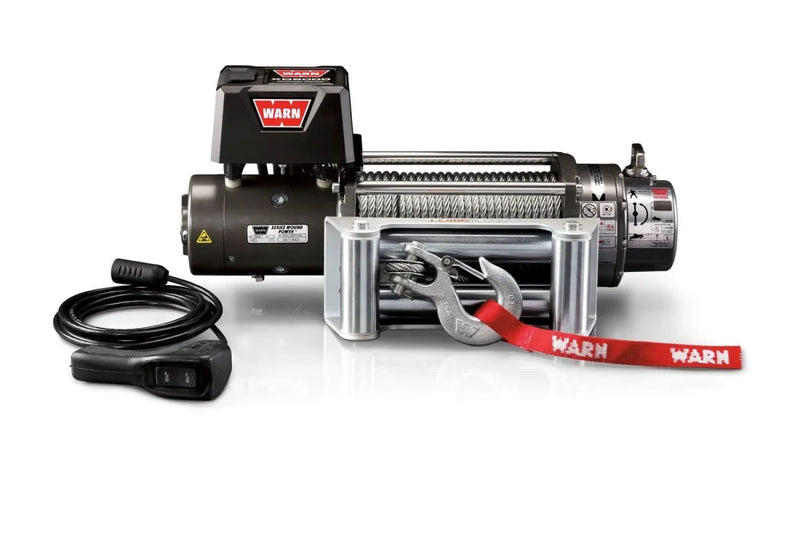

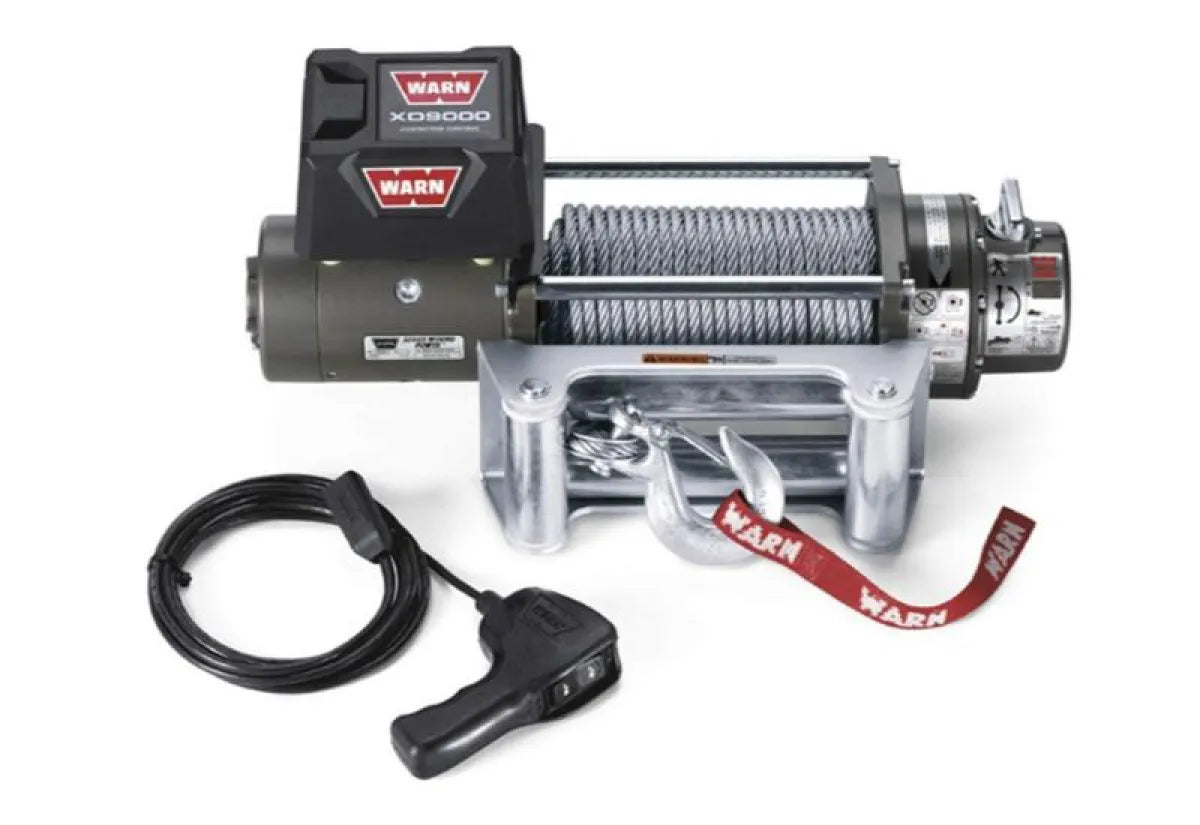

The Warn XD9000 12v winch has earned its reputation worldwide as a top choice among off-roaders, blending tough durability with a compact design that fits neatly into tight spaces.
Whether you're tackling the remote Outback or navigating muddy trails in the mountains, this Warn winch will ensure you're ready for anything. With a massive 9,000 lb (4,082 kg) pulling capacity and 30 metres of galvanised steel wire rope, it’s the trusted companion for tough recovery situations.
Backed by WARN's Limited Lifetime Warranty, it's designed to perform when you need it most.
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 38 (11.58) | 56 amps | 1/9000 (4082) |
2000 (910) | 15 (6.8) | 161 amps | 2/8190 (3715) |
4000 (1810) | 10.3 (3.14) | 252 amps | 3/7500 (3402) |
6000 (2720) | 7.5 (2.29) | 332 amps | 4/7010 (3180) |
8000 (3630) | 5.1 (1.55) | 423 amps | |
9000 (4080) | 3.9 (1.19) |
478 amps |
Dimensions | 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.) |
---|---|
Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
We're Australians, and we like to support our fellow Australians, which is why all our products are sourced locally from the official Australian distributors. Nothing is imported directly and we don't stock any grey imports. This also means that all manufacturer warranties are fully honored by the brands themselves.
