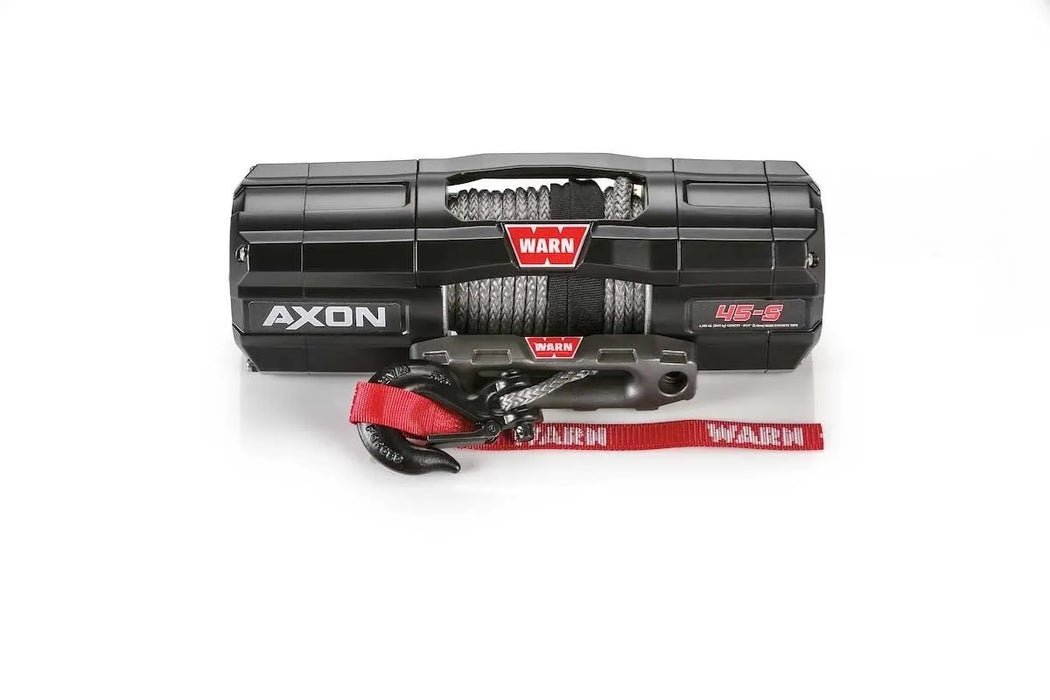

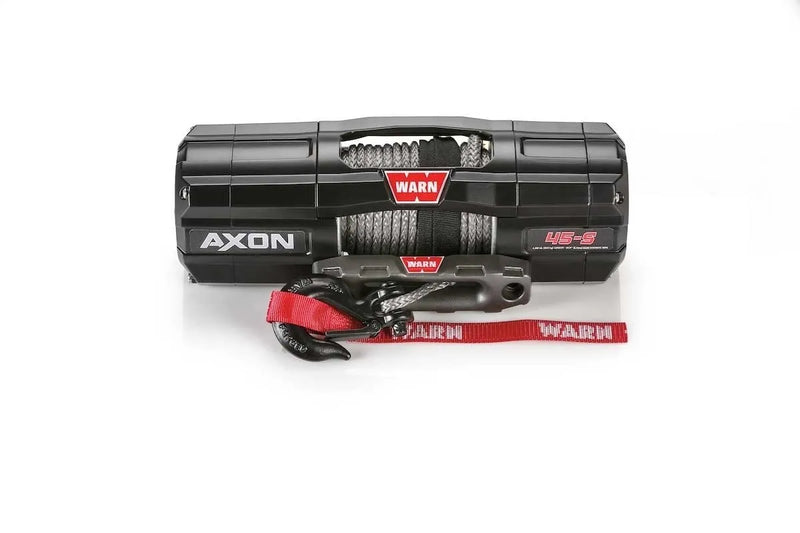

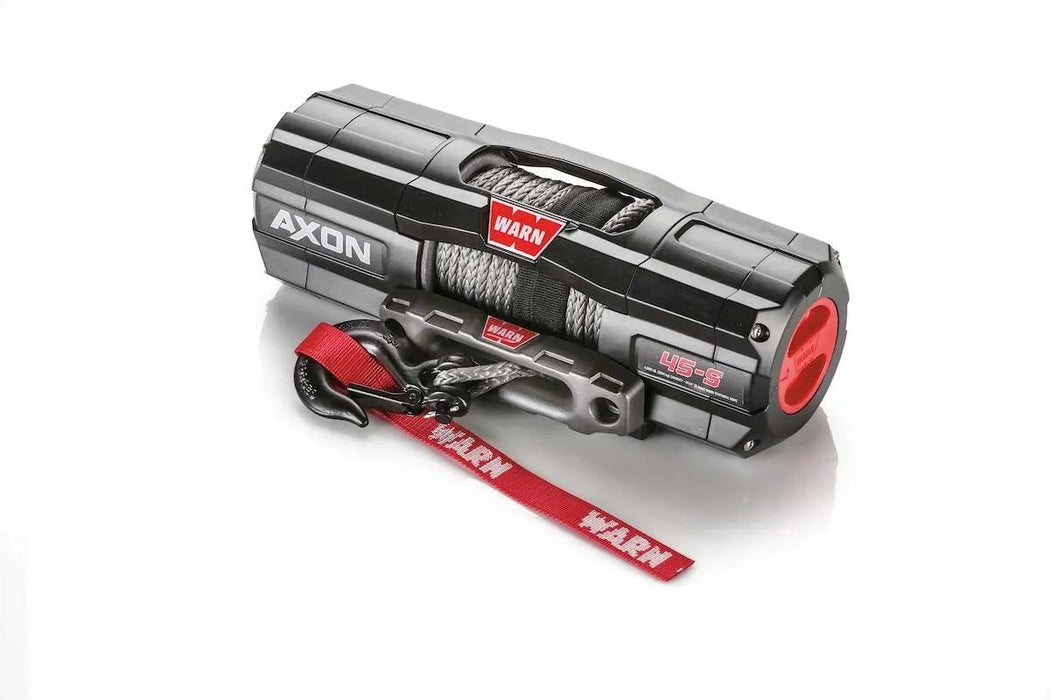

Axon 45-S Powersport ATV Winch with Spydura Synthetic Rope or Steel Cable
The 4500lb (2042kg) AXON 45 series is part of the latest line of state-of-the-art ATV winches from Warn.
The all-new AXON lineup from WARN has taken winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor.
The WARN Motactor increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments.
It also features a sturdy construction, IP68 waterproofing, full metal construction, and 1-piece tie plate design that is more rigid than conventional tie-downs. Combined this makes for a winch that can take on the most extreme of environments.

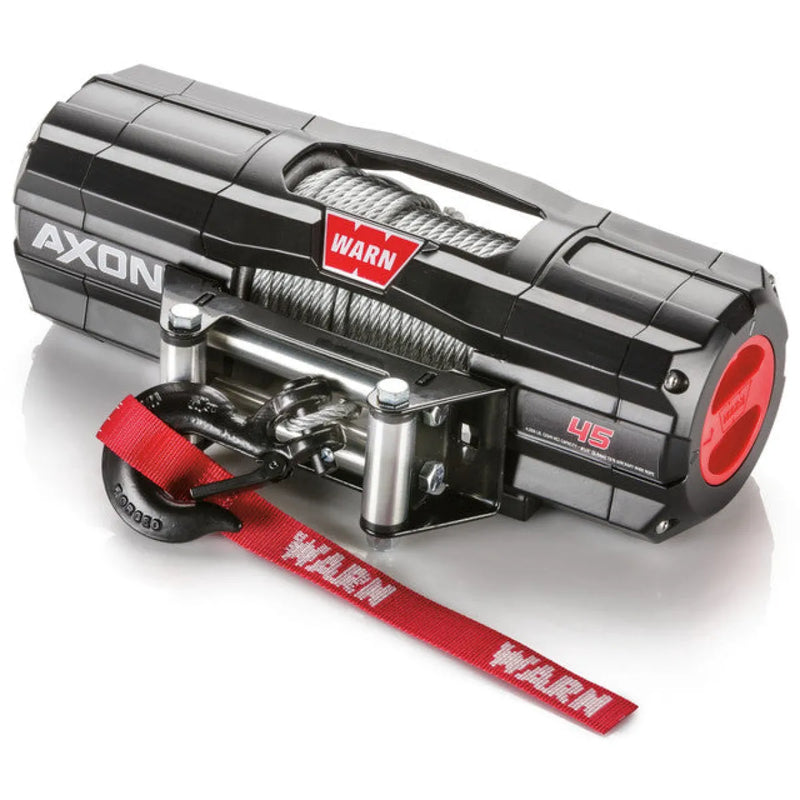

- Includes 15m x 6.3mm synthetic Spydura rope/steel cable, hawse or roller fairlead, and black hook
- Powerful 4,500 lb. pulling capacity is ideal for UTV/Side x Sides
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- Digital control offers never-before seen levels of performance and user feedback including load and temperature info.
- Smooth, reliable all-metal three-stage planetary gear train.
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance.
- New clutch design based on legendary WARN 4WD hub lock know-how
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity.
- IP68 waterproofing keeps water and the elements out.
- Load-holding brake for great control.

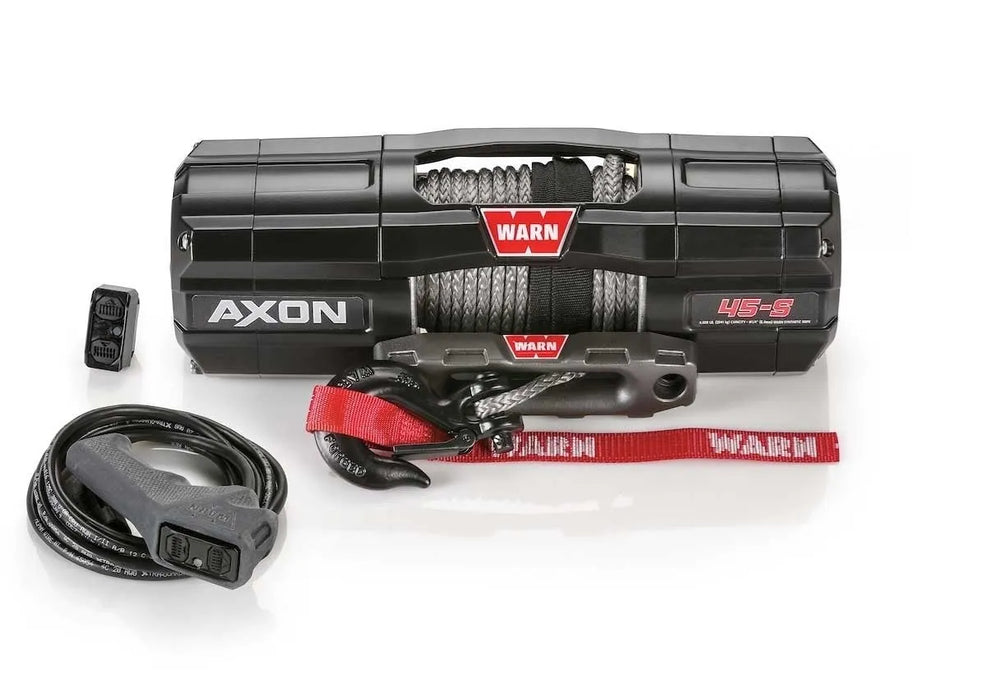

- Rockerbar digital control switch and digital wired remote.

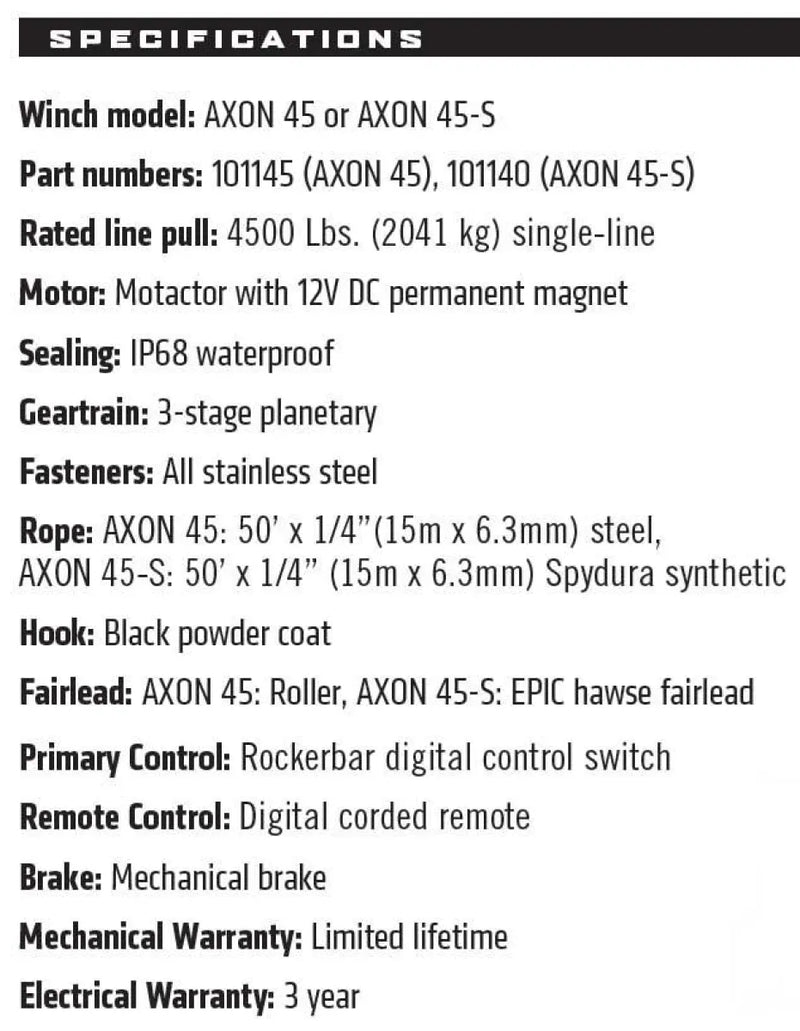

AXON 45-S SPECIFICATIONS
- Winch model: Axon 45-S
- Part Number: 101140
- Rated line Pull: 4500lbs (2041kg) single-line
- Motor: Motactor with 12V DC permanent magnet
- Sealing: IP68 waterproof
- Geartrain: 3-stage planetary
- Fasteners: All stainless steel
- Rope: 15m x 6.3mm Spydura Synthetic Rope or Steel Cable
- Hook: Black Powder Coat
- Fairlead: EPIC hawse fairlead
- Primary Control: Rockerbar digital control switch
- Remote Control: Digital corded remote
- Brake: Mechanical brake
