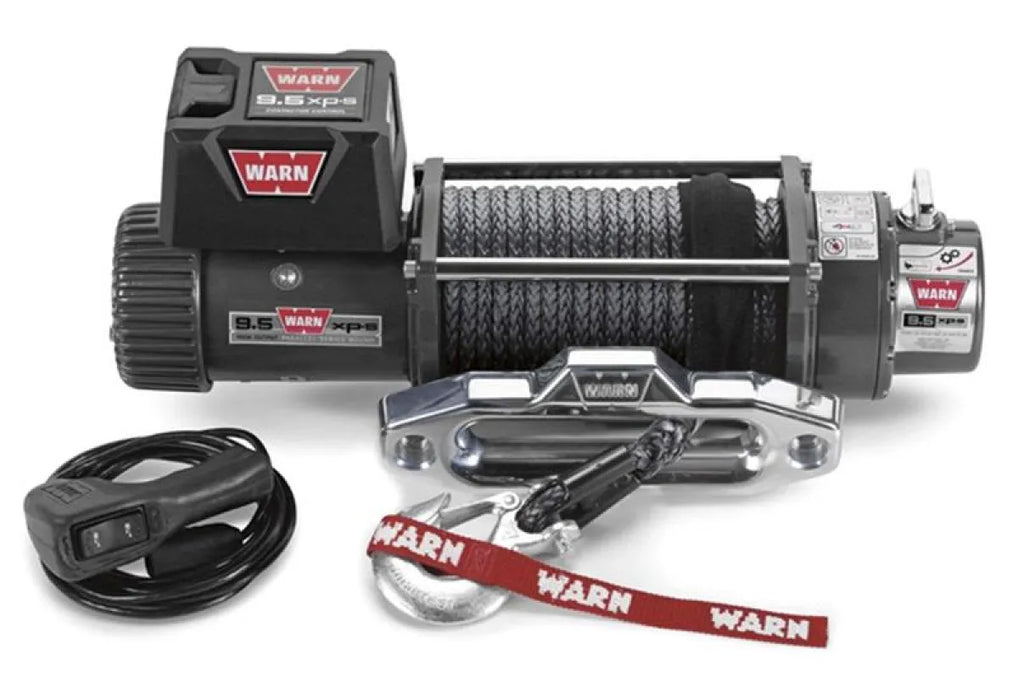

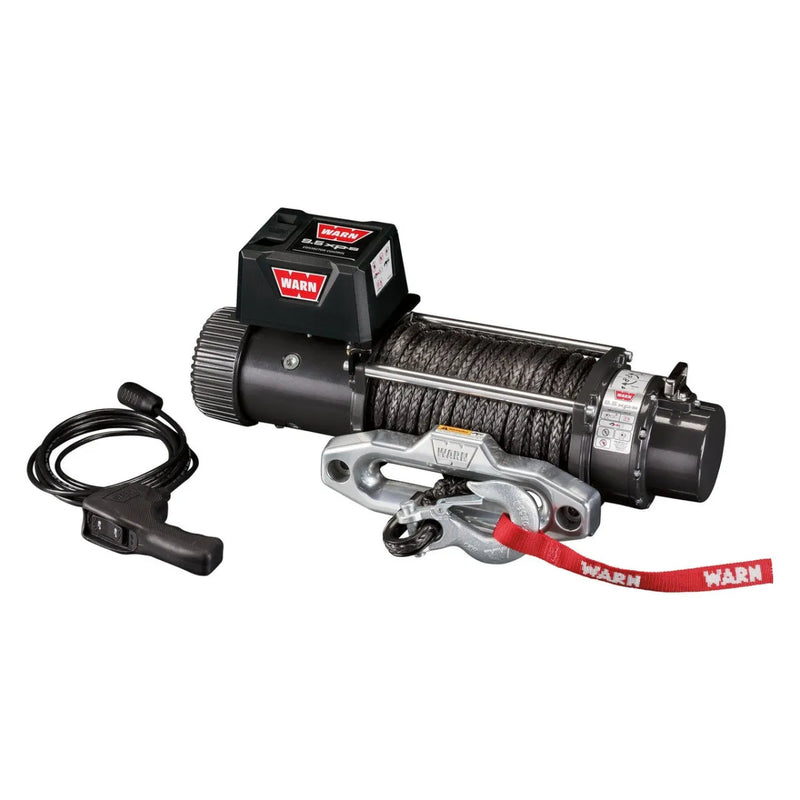

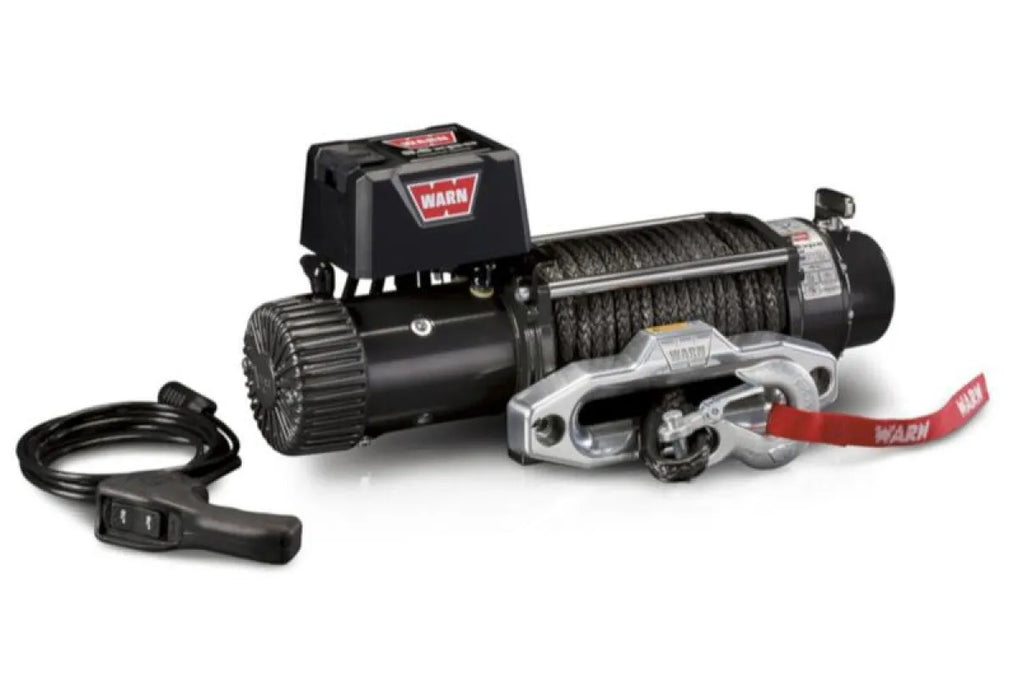

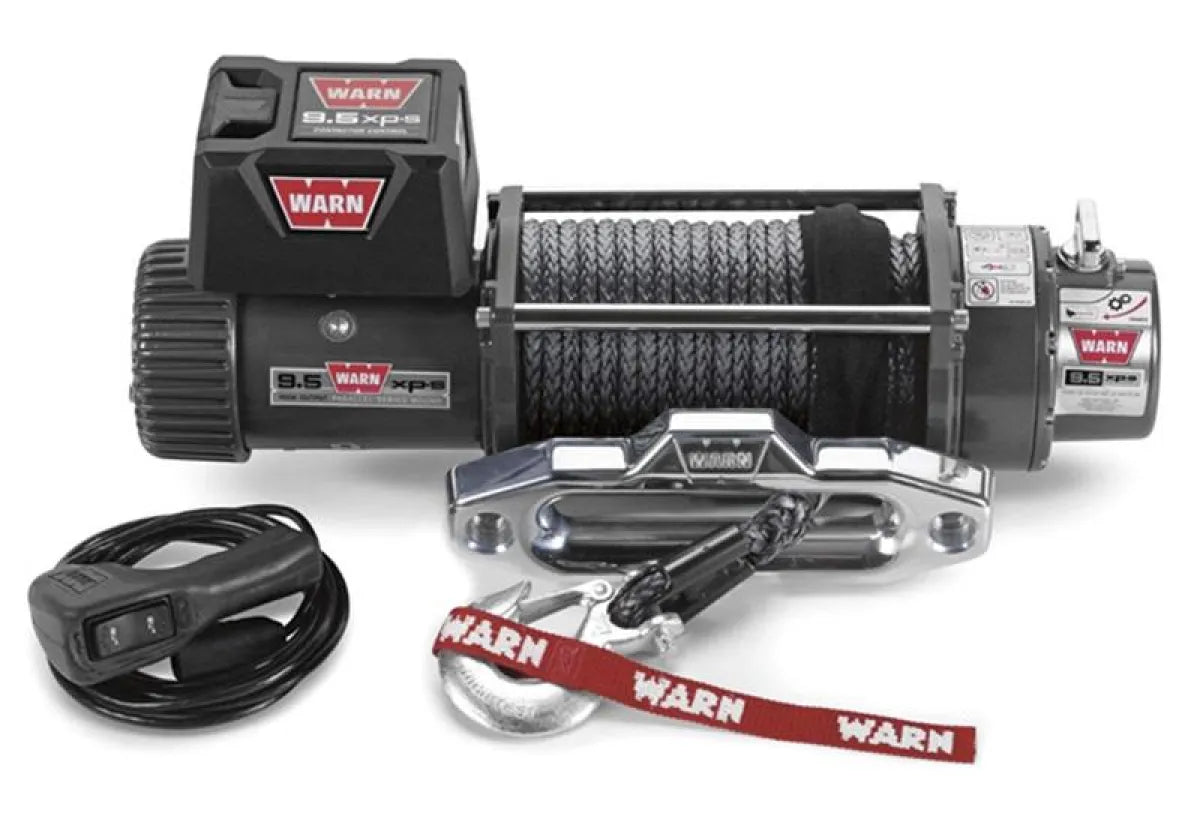

9.5XP-S 12v Self Recovery Winch with Synthetic Rope and Wireless Remote by Warn
The Ultimate Winch Now With Synthetic Rope
Designed to offer extreme performance in the harshest conditions.
-
Comes with 80 ft. of 3/8″ (24.38m of 9.5mm) WARN Spydura
synthetic rope, hook, remote control on 12′ (3.7m) lead, hand-held wireless remote and polished aluminium hawse fairlead - Includes both corded and wireless winch controls
- Extreme-duty winch sealing. Enables superior water resistance
- 3-stage planetary geartrain for fast, smooth, reliable operation
- Series-wound winch motor is powerful and reliable
- Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
- Exclusive brake design. Provides superior operator control when winching
- Remote-mount control box allows for a variety of mounting configurations
- High-gloss, chip-resistant powder-coated finish provides superior corrosion resistance
The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing. This winch also comes with a hand-held wireless remote.
WARN 9.5XP-S WINCH SPECIFICATIONS
- Part number: CE9500XP-88850
- Rated line pull: 9,500 lbs., (4310 kg) single-line
- Motor: 12V 6 hp (4.48kw), High output parallel series wound
- Electrical controls: Contactor
- Remote Control: Remote switch, 12′ (3.7m) lead and
- Geartrain: 3-Stage Planetary
- Gear ratio: 156:1
- Clutch (freespooling): Sliding Ring Gear
- Brake: Automatic Direct Drive Cone
- Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
- Weight: 68 lbs. (30.8 kg)
- Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
- Fairlead: Polished Aluminum Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72″ (1.83m)
- Finish: High-gloss powder coat over primer undercoating

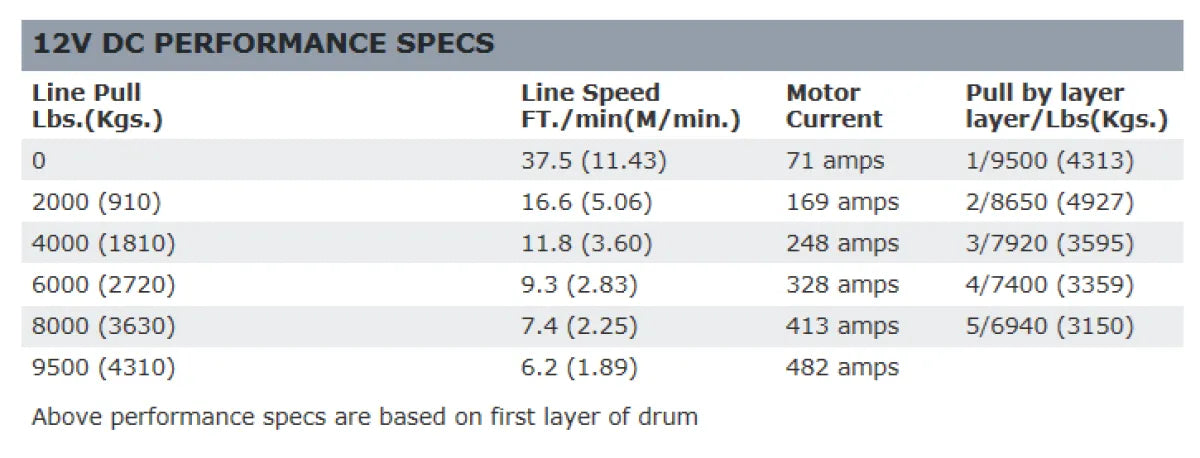

12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 38 (11.6) | 70 amps | 1/9500 (4313) |
| 2000 (910) | 16.8 (5.1) | 175 amps | 2/8650 (4927) |
| 4000 (1810) | 12.8 (3.9) | 262 amps | 3/7920 (3595) |
| 6000 (2720) | 10.1 (3.1) | 335 amps | 4/7400 (3359) |
| 8000 (3630) | 8.8 (2.7) | 425 amps | 5/6940 (3150) |
| 9500 (4310) | 7.6 (2.3) | 480 amps |

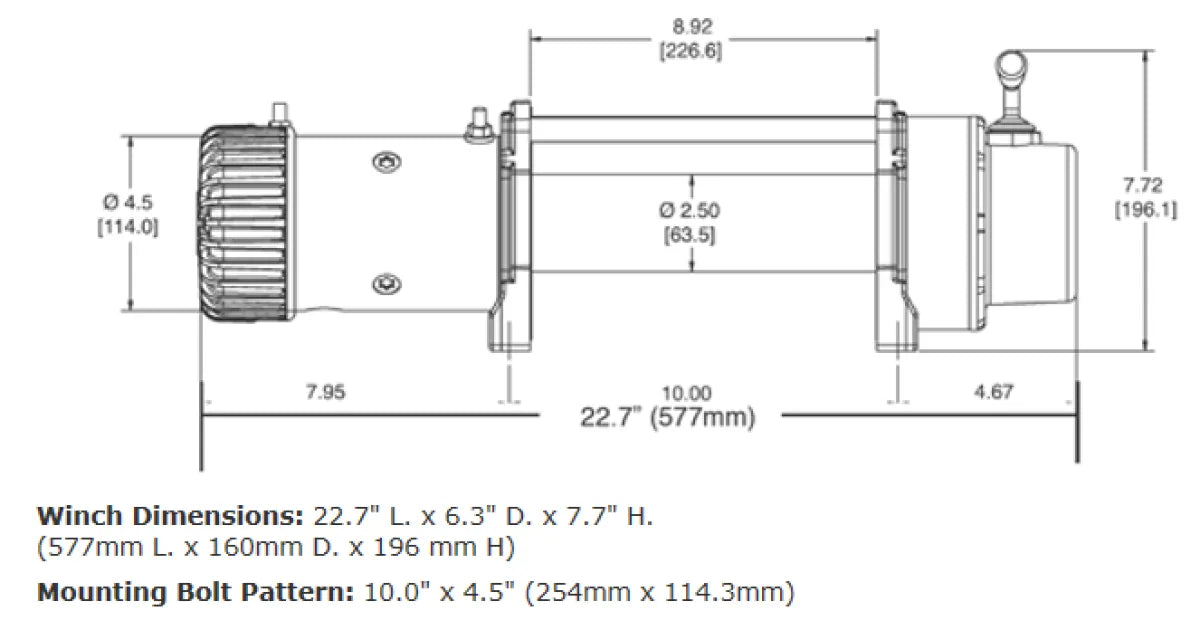

WARN 9.5XP-S WINCH DIMENSIONS
| Dimensions | 22.7″ L. x 6.3″ D. x 7.7″ H. (577mm L. x 160mm D. x 196mm H.) |
|---|---|
| Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
Warn Warranty
4x4 Down Under is happy to assist with all manufacturer warranty claims to the best of our ability. Warn warranty claims are handled in Australia by ATECO Pty Limited.
Product covered by this warranty:
- WARN® Branded Winch for Jeep, Truck and SUV
Warn will, at its option, repair, replace or refund the purchase price of a defective Product or component. The Warranty Period is not extended if Warn repair or replace the Product or its defective electrical component(s).
Items covered by this Warranty:
- Electrical components covered by the seven (7) year Limited Warranty: motor, contactor, solenoid, handheld remote controls, wireless remote controls, wiring.
- All other mechanical components are covered by the Limited Lifetime Warranty except as listed below.
- Items not covered by this Warranty:
- The removal or reinstallation of the Product.
- Wire or synthetic rope.
- Product finish.
- Components damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, or improper service.
- Normal wear and tear or loss of functionality due to the normal ageing of the Product including, bearings, bushings, seals, O-rings, gaskets, brake material, motor brushes, electrical cables.
Actions that void the Warranty:
- The removal or defacement of any WARN serial number or date code that was on the Product when sold.
- Commercial or industrial use or application, or any hoisting application of the Product.
The warranty set forth above is the only express warranty. There are no other express warranties.
Any implied warranty which by law may not be excluded is limited in duration to one (1) year from the date of original retail purchase of the product.
Warn shall not be liable for special,indirect,incidental or consequential damages (including, but not limited to, lost profits,down time or loss of use) under any legal theory, even if warn was advised of the possibility of such damages.
WARN reserves the right to change Product design without notice. In situations in which WARN has changed a Product design, WARN and 4x4 Down Under shall have no obligation to upgrade or otherwise modify previously manufactured Products.
To obtain warranty service:
- Email 4x4 Down Under at orders@4x4downunder.com.au with a detailed description of the warranty claim and original order number.
- Make the claim within the Warranty period.
- Attach your name, address, telephone number, a description of the problem, and a copy of your order to the email.
All return shipping fees are for the customers account.
All our products ship free of charge!
We're incredibly proud to offer free shipping and insurance on almost everything in our store. Unfortunately there are some minor conditions. Australia is a huge continent and depending on your location and the item you're purchasing, we may have to make some additional arrangements to get your item(s) to you, and depending on the distance this may incur some shipping fees.
Please understand we will always do our utmost best to ensure this doesn't happen but for very remote regions we unfortunately will sometimes have no choice. Should this nasty situation arise we will contact you immediately and discuss options. Should you not want to pay any additional fees we'll refund you in full.
Orders are usually dispatched within 1 - 3 business days. Should there be any delays we will let you know immediately.
In order to get your purchase to you as promptly and safely as possible we utilise a number of trusted and reputable courier services, including Australia Post (depending on the item and your location). These delivery services should have your item delivered to your door within 2 - 10 working days depending on your location. In some cases where the address is based in the more rural parts of Australia this may take longer. Should the delivery time take longer than we would like we will let you know.
As soon as the item has been shipped we will provide you with a tracking number. You can then use this number to watch your item move across Australia toward your location. It will also give you a clear idea of exactly when to expect your item.
Depending on the item we may contact you to arrange delivery. In order to ensure your purchase lands in the correct hands we will require a signature from you on delivery. If you are not home on delivery the postman/courier will leave a card with collection details.
Please feel free to contact us should you want to make alternate arrangements for delivery. We’re flexible and here to help.
Please note that unfortunately we're unable to ship to PO Boxes (and/or Parcel Lockers). Please rather use a work address, or that of a friend, colleague or family member.
We are happy to ship overseas too! Please contact us with the item you wish to purchase and your details and we’ll provide a quote.
