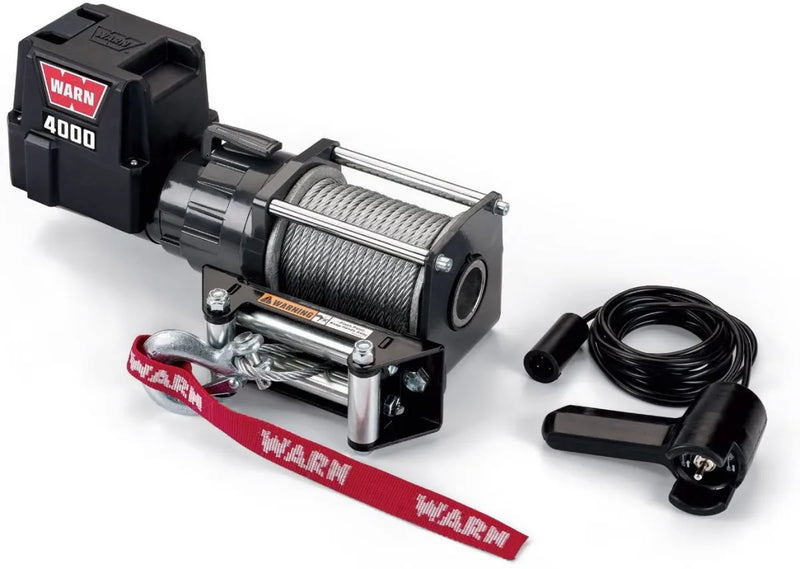

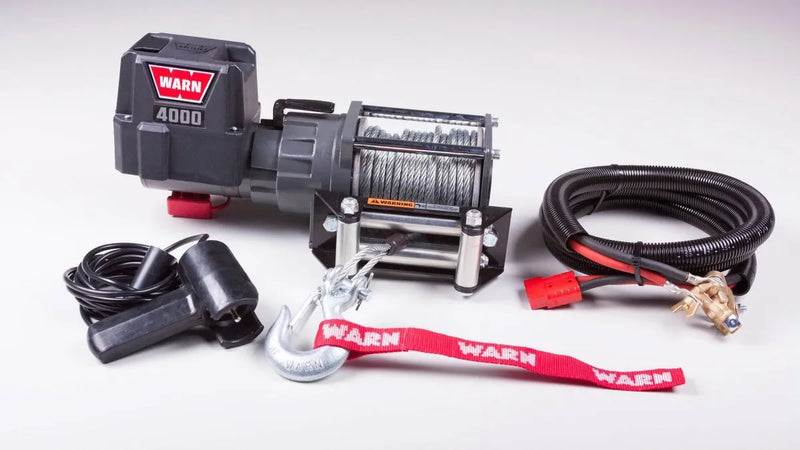

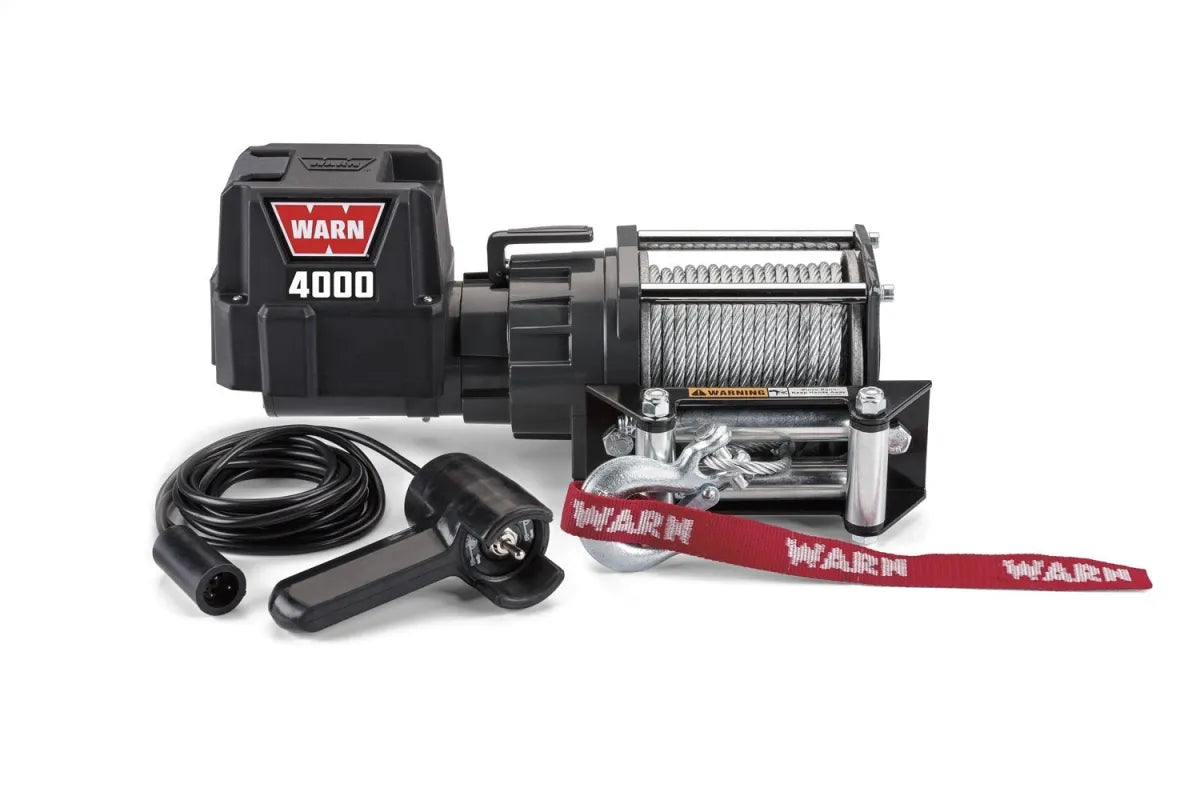

Introducing the Warn 4000 DC 12V Winch: Compact Size, Full-Size Performance!
The Warn 4000 DC winch redefines versatility and power in a compact package. With an impressive 4,000lb (1864kg) pulling capacity and a robust 1.9 hp permanent-magnet DC motor, this winch is designed to handle heavy loads with ease.
Its outstanding duty cycle ensures efficient performance, making your tasks quicker and more effortless.
The Warn 4000 DC winch is your reliable partner, designed to make tough jobs easy. Whether you need to move heavy loads or handle demanding tasks, this winch delivers the power and convenience you need. Upgrade your winching capabilities with the Warn 4000 DC winch today!
TYPE | Electric |
MOUNT TYPE | Vehicle Mounted |
RECOMMENDED USE | Trailer |
VOLTAGE | 12 Volt |
MOTOR HORSEPOWER | 1.9 Horsepower |
MOTOR TYPE | Permanent Magnet |
THERMAL SHUTOFF | No |
DRIVE GEAR TYPE | Planetary |
GEAR REDUCTION RATIO | 176:1 |
FREE SPOOLING | No |
BRAKE TYPE | Mechanical And Dynamic |
LINE DIAMETER (IN) | 7/32 Inch |
LINE LENGTH (FT) | 43 Feet |
LINE MATERIAL | Steel |
FAIRLEAD TYPE | Roller |
CONFORMS TO J706 STANDARDS | No |
REMOTE TYPE | 12 Feet Wired |
MOUNTING HOLE QUANTITY | 3 |
OPERATION TYPE | Automatic |
MOUNTING PATTERN LENGTH (IN) | 2-1/2 Inch |
MOUNTING PATTERN WIDTH (IN) | 3.1 Inch |
INCLUDES MOUNTING HARDWARE | Yes |
COLOUR | Black |
MAX AMP DRAW/ LINE PULL | 240 Amp Draw/ 4000 Pound |
MAX LINE PULL/ LINE SPEED | 4000 Pound/ 6.9 Feet Per Minute |
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 7.2 (2.2) | 6.7 Amps | 1/4000 (1814) |
500 (226.8) | 6.8 (2.0) | 24.1 Amps | 2/3410 (1550) |
1000 (453.6) | 5.7 (1.7) | 44.7 Amps | 3/3170 (1440) |
2000 (907.2) | 10.9 (3.3) | 180 Amps | 4/2950 (1340) |
3000 (1361) | 8.9 (2.7) | 210 Amps | |
4000 (1814) | 6.9 (2.1) | 240 Amps |
Above performance specs are based on first layer of drum.
