Viper Pro S Series Gravity Feed Drum Anchor Winch | 98m or 183m

SKU JPW12851
Original price $2,159.00 - Original price $2,314.00
Original price
$2,159.00 - $2,314.00
Current price $2,314.00
4x4 Down Under Buy Now Pay Later Options

  • Fast Shipping with Tracking and Insurance
  • Australian Owned and Operated
  • 256Bit SSL Website Encryption for Safe and Secure Shopping
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

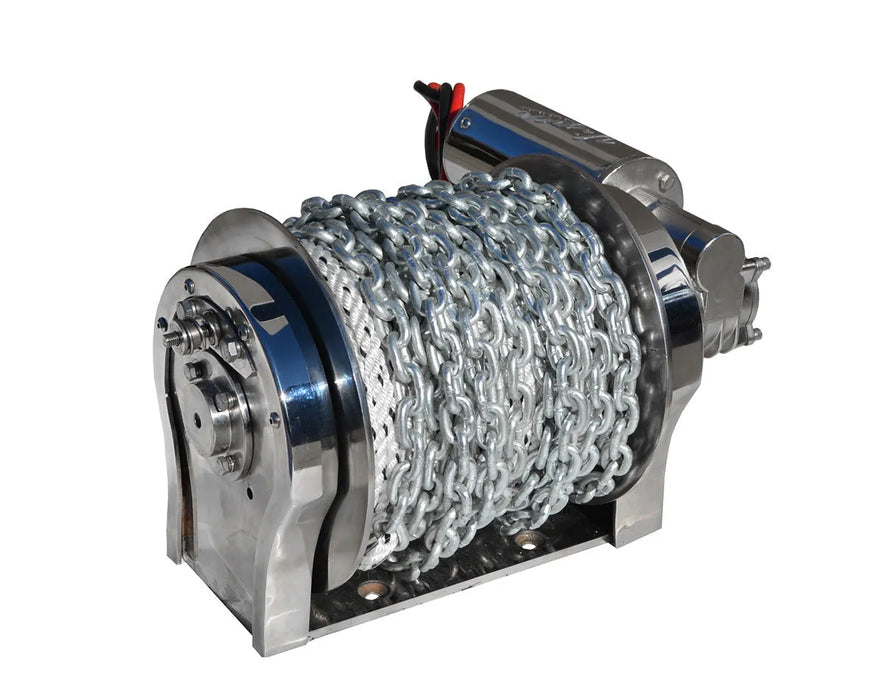

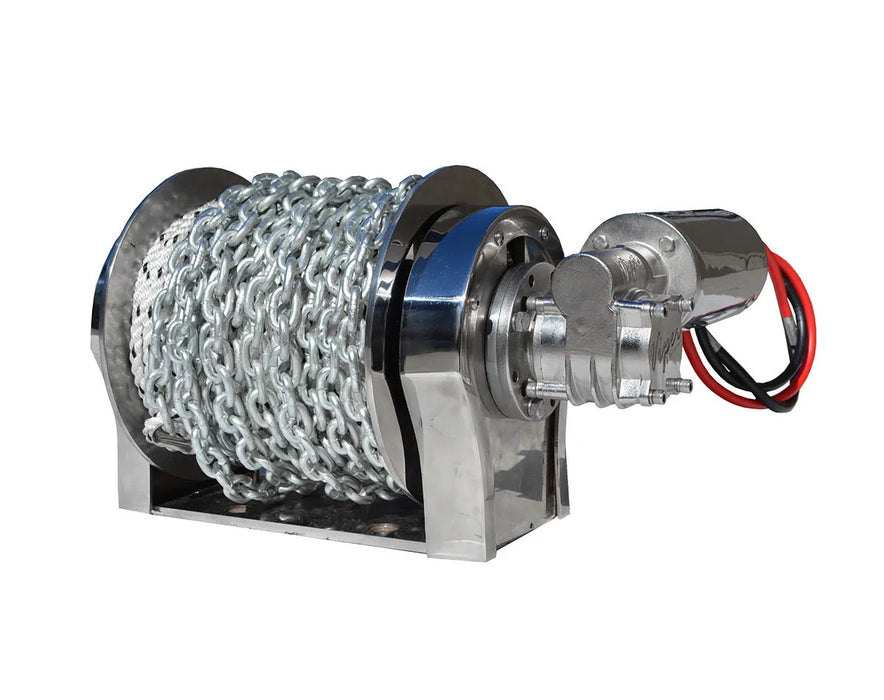

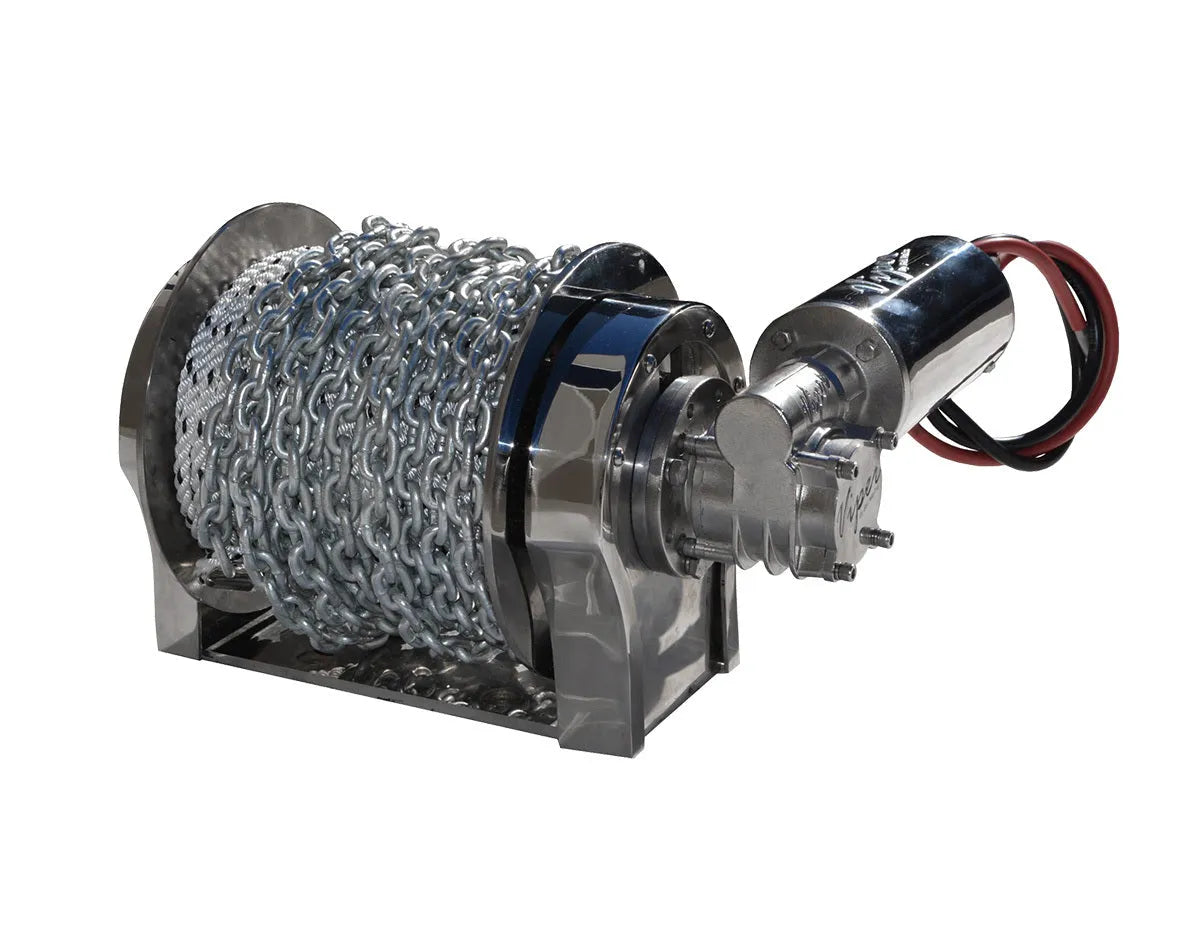

S Series Gravity Feed Drum Anchor Winch with 98m or 183m Rope and Chain from Viper Pro

The Viper Pro Gravity-Fed S-Series Drum Anchor Winch was developed by Bell Marine after three years of research and two years of field testing.

It has now proven itself to be a serious contender in the high performance anchoring arena. The all-stainless steel Gravity Feed was designed without any additional electronics, wiring or solenoids that can be the downfall in harsh boating environments.

The drop speed will ensure your anchor hits the bottom exactly where you want it, when you want it.

At the touch of a switch, the Gravity Feed winch controls the drop speed to ensure no over-spooling (can be set to match the size of your anchor), while giving you ultimate speed.

If you are anchoring in deep water and/or require high performance anchoring, the Gravity Feed winch is the one for you – its quiet and efficient operation also conserves your battery and runs at up to four times faster than some drum winches using our mechanical patented design.

Suit vessel length: 5.7m +

Please note: 1m of 3B&S cables is already attached to the motor and leak tested, so there is no need to remove end caps that are not sealed properly!


  • 1000W submersible stainless steel electric motor
  • 28mm solid stainless steel shaft with 3 support bearings
  • 8mm marine grade 316-grade stainless steel plate, hand polished to a mirror finish
  • 316-grade stainless steel marine worm drive gear box
  • 360 Degree motor rotation with 16 different positions
  • Max fall rate: 138m per minute
  • Max retrieval rate: 45m per minute
  • Suit vessel length: 5.7m +
  • Weight: 23 kgs (winch only)

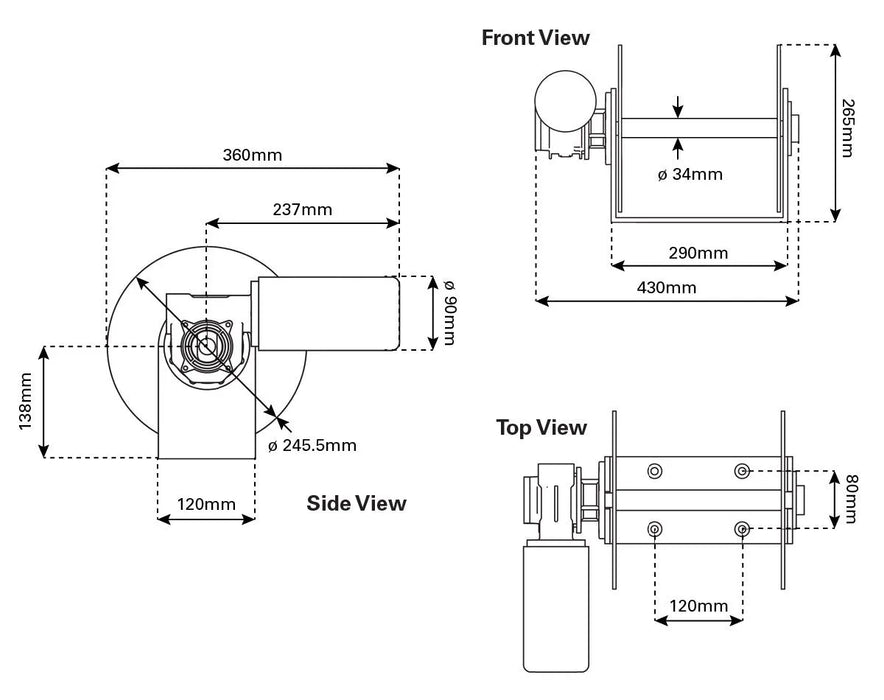

  • Well clearance required: 435mm (W) x 365mm (D) x 266mm (H)
  • Motor water protection rating: IP68
  • 5 Year  Manufacturer Warranty

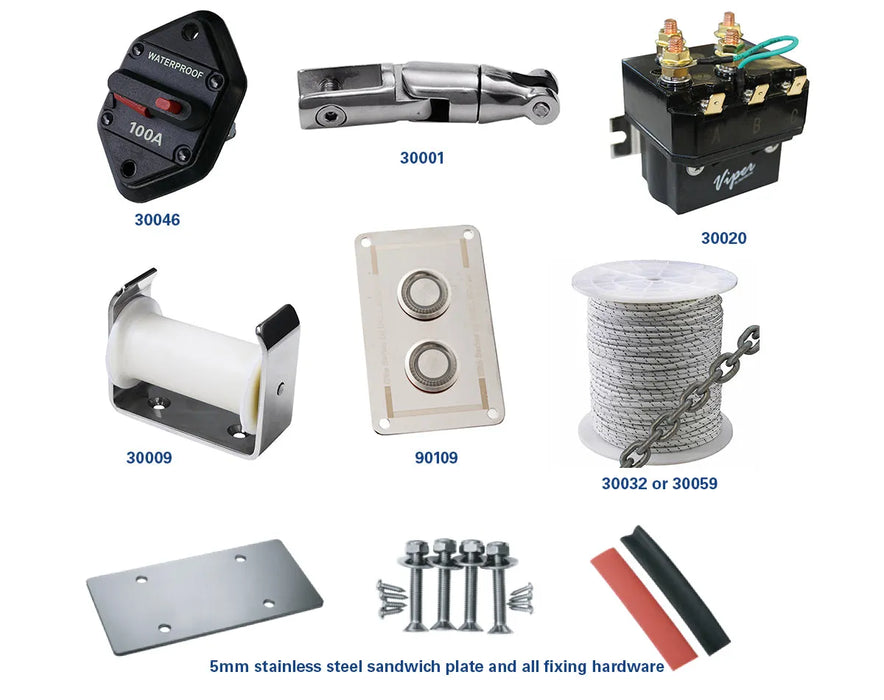

Bundle Inclusion

  • 1x Viper Pro S-Series Gravity Feed 1000 electric drum anchor winch
  • Choice of rope kits:
    • 90m x 6mm Double Braid Premium
    • 165m x 5mm 12 Plait Uhmwpe Hi Spec 3000 rope
      • Hi-Spec rope kit also includes: 10m x 8mm 3 Strand Polyester shock cord spiced at both ends
  • 8m x 6mm Galvanised short link anchor chain
  • 316-grade stainless steel worm drive marine gearbox
  • Viper Pro Series anchor swivel - small
  • Viper deluxe anchor roller - small
  • 200 Amp reversing solenoid
  • Elite Series 2 gang ON/OFF stainless steel switch panel
  • 100 Amp flush-mount circuit breaker with rubber seal
  • All necessary installation hardware


SKU Rope Shock Cord Chain Breaking Strain
JPW12853 90m x 6mm (Double Braid Premium)  - none - 8m x 6mm (Galvanised Short Link) 1,000 kg
JPW12851 165m x 5mm (Hi-Spec 3000) 10m x 8mm (3 Strand Polyester) 8m x 6mm (Galvanised Short Link) 2,050 kg

Viper Pro Gravity Feed Bundle Specs
Viper Pro Gravity Feed Wiring Diagram
Viper Pro Series Winches Operating Instructions
