Lightfox Cygnus 5" LED Work Light | Pair

Cygnus 5inch LED Work Light with 14,106 Lumen by Lightfox

If you’re after a compact light that can do a bit of everything, the Lightfox Cygnus 5 inch LED work light is a solid option. It’s small enough to mount just about anywhere, but still delivers the kind of output you’d expect from a much larger driving light. Ideal for A-pillars, roof racks, bumpers or even overhead setups, it’s a versatile addition to any 4WD.

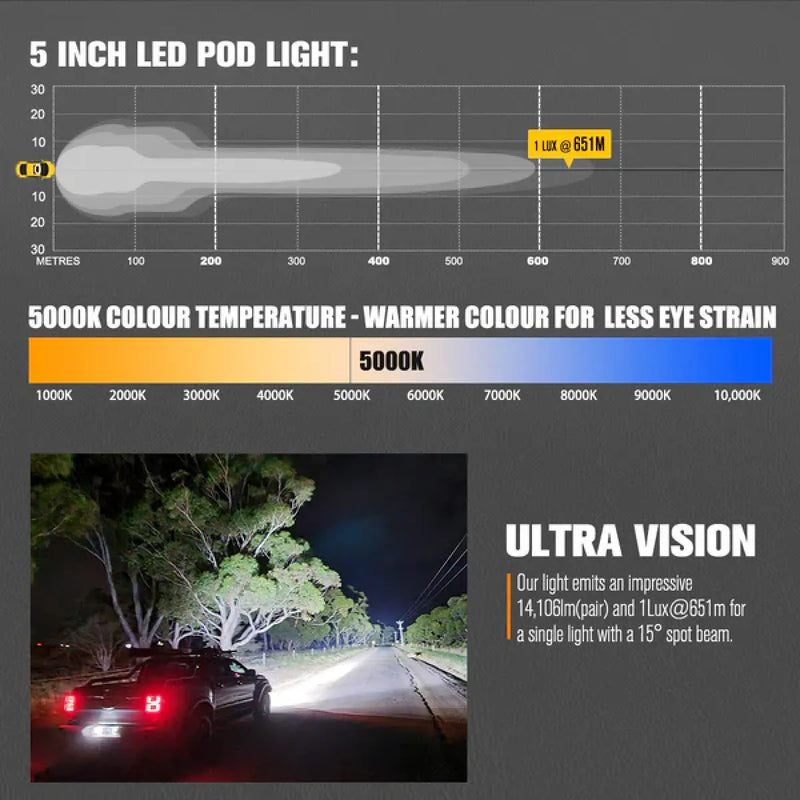

It runs Osram LEDs with Lightfox’s Vision Drive Tech, producing up to 14,106 lumens per pair and reaching 1 lux at 651 metres with a 15° spot beam. That gives you strong forward visibility when you need distance, while still being adaptable for wider coverage depending on how you set it up. The 5000K colour temperature keeps things clear and easy on the eyes for longer drives.

What sets the Cygnus apart is its flexibility. You can switch between spot and combo beam patterns, add amber filters for dust or fog, and customise the look with clear or blackout covers. It also features amber backlighting for a clean, modern finish. Built with a tough aluminium housing, sealed to IP68 and designed for both 12V and 24V systems, it’s ready for real-world use.

Features

• High output Osram LEDs
  Delivers up to 14,106 lumens per pair with strong and consistent performance.

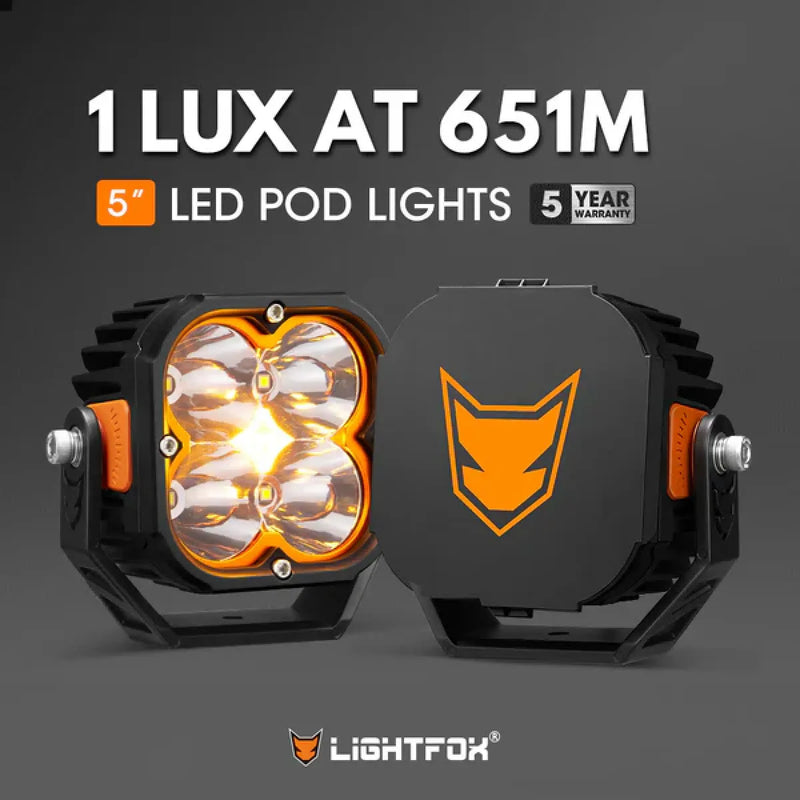

• 1 lux at 651 metres
  15° spot beam provides solid forward visibility in a compact form.

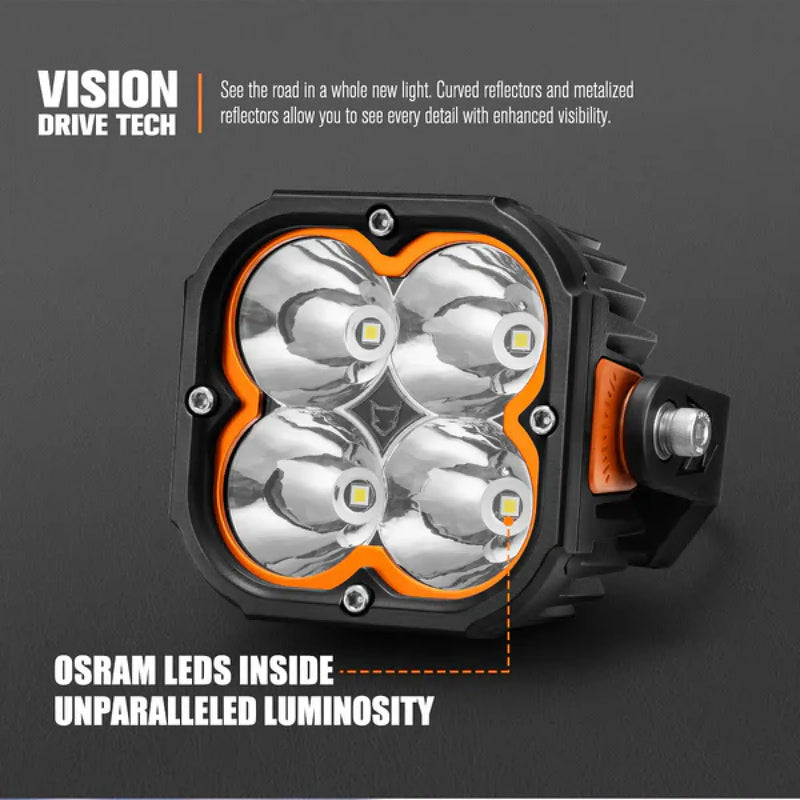

• Vision Drive Tech optics
  Curved and metalised reflectors improve beam clarity and efficiency.

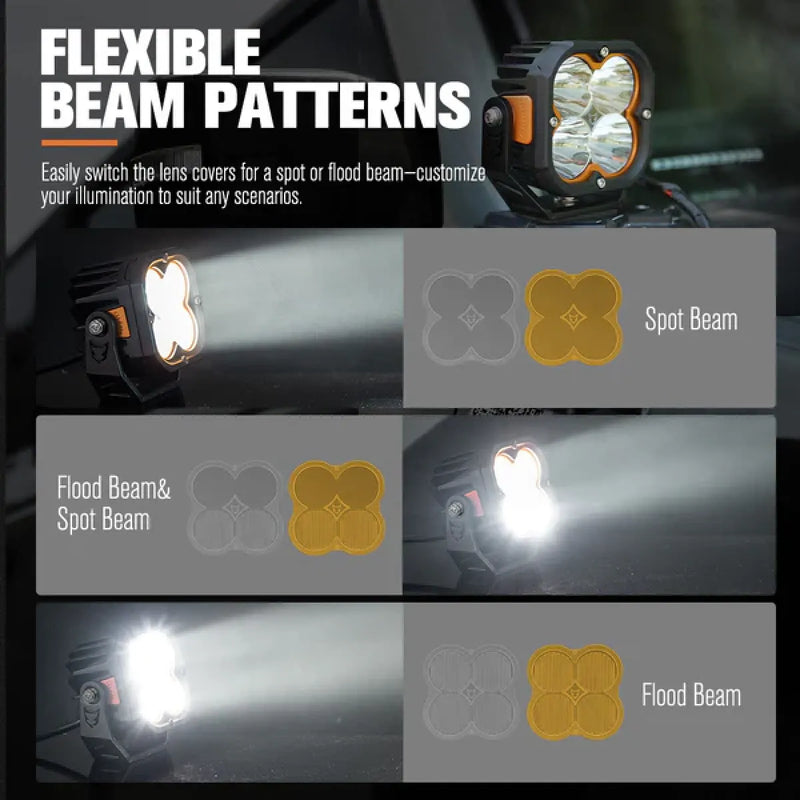

• Switchable beam setup
  Change between spot and combo beam patterns with interchangeable lenses.
• Amber filters available
  Helps improve visibility in dust, fog and poor weather conditions.
• 5000K colour temperature
  Crisp white light that supports clarity and helps reduce eye fatigue.
• Compact 5 inch design
  Easy to mount on A-pillars, bullbars, roof racks or overhead positions.

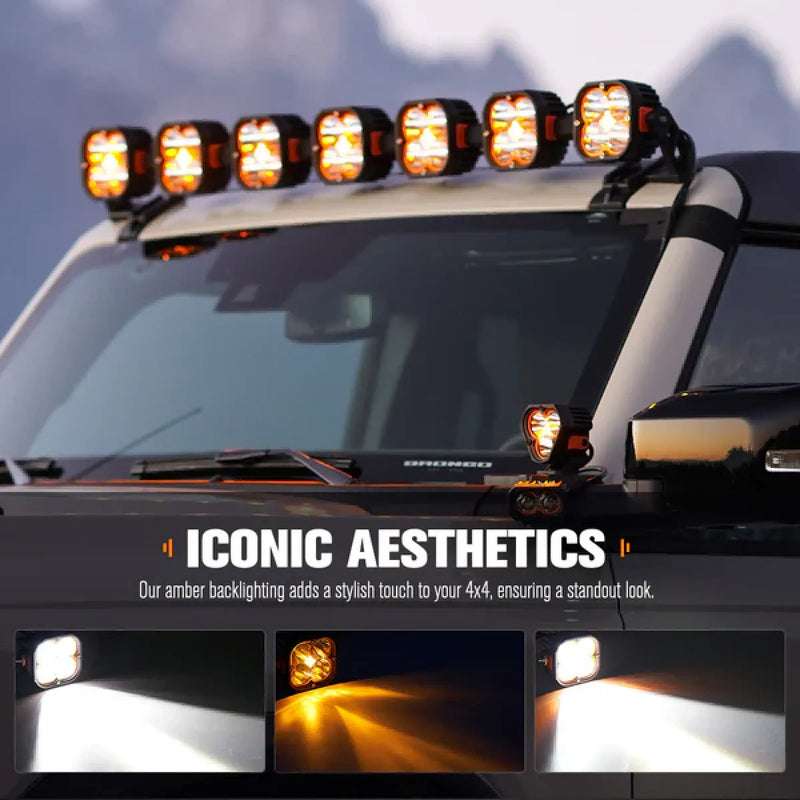

• Amber backlighting
  Adds a subtle styling element without affecting forward output.
• Durable construction
  Aluminium housing with AkzoNobel powder coating and anti-scratch polycarbonate lens.
• IP68 rated
  Sealed against dust and water ingress for dependable outdoor performance.
• Wide mounting flexibility
  Suitable for nudge bars, bullbars, A-pillars, roof racks and more.
• 12V and 24V compatible
  Designed to suit a range of vehicle setups.
• Built-in protection systems
  Includes reverse polarity protection and resistance to condensation.

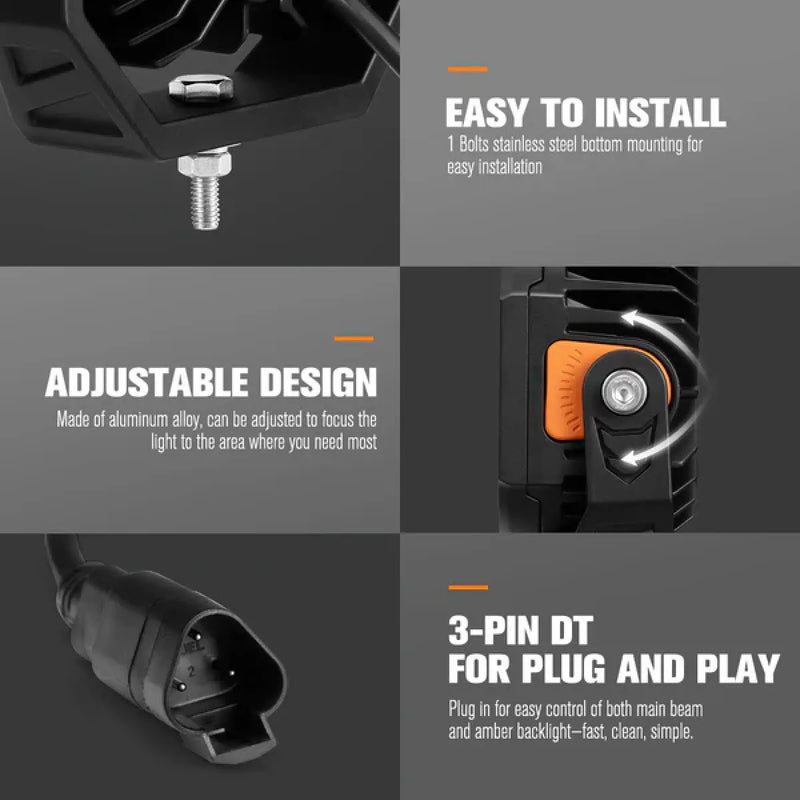

• Easy installation
  Designed for straightforward fitment across multiple mounting positions.

Specifications

• Housing & Heat Sinks: 6063 Aluminium Alloy

• Lens: Strengthened PC

• Lens Cover: PC

• Clear/Blackout Protective Cover: PC

• Coating: AkzoNobel Powder

• Bottom Bracket: 6063 Aluminum Alloy

• Sealing Material: UV Resin

• Voltage Compatibility: 12V & 24V

• Operating Voltage: 10V~30V

• LED Chip: Osram

• Wattage: 46.2W (Single)

• Lumens:    14,106 (pair)

• Lux Rating (Spot): 1Lux@651m (pair)

• Color Temp (CCT): 5,000K

• Spot Beam: 15°

• Connector: 3-pin DT

• Ingress Protection: IP68 Rating

• Expected Lifespan: 50,000 Hours

• Operating Temperature Range: -40°C ~ 150°C

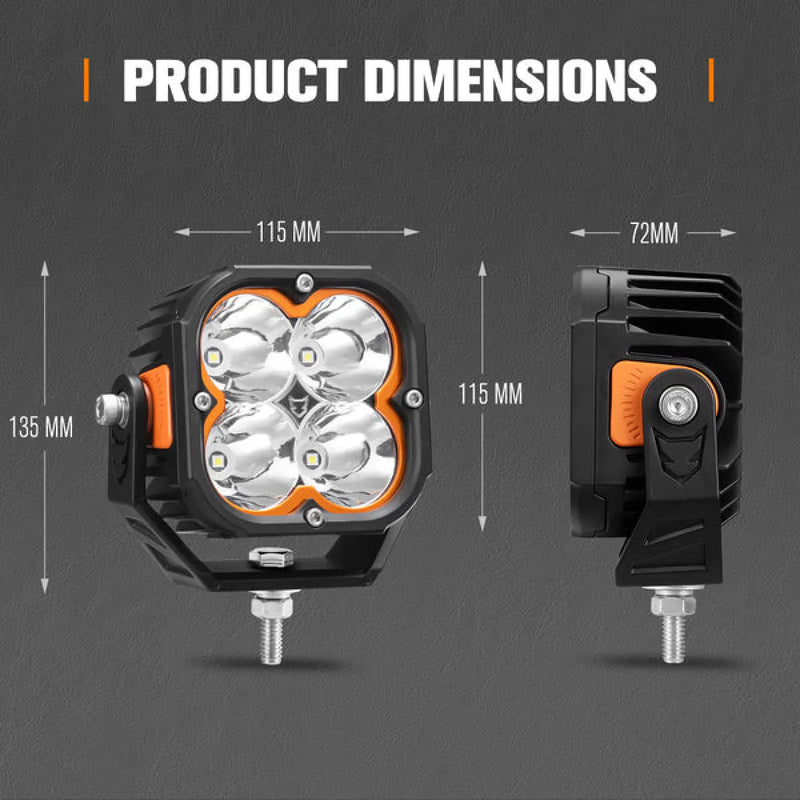

• Product Dimension (With Bottom Mounts):    135 x 115 x 72mm(LxWxH)

• Package Size: 34 x 18.5 x 15.5cm(LxWxH)

• Package Weight: 3KG

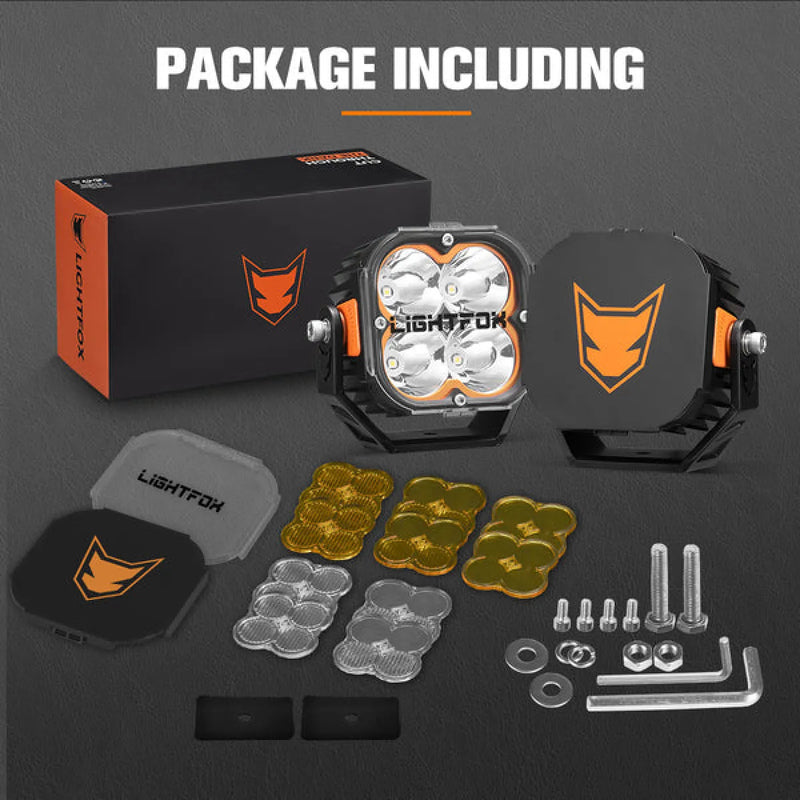

Package Inclusions

• 1 Pair of Lightfox Cygnus LED Pod Lights

• 2 x Clear Protective Caps, 2 x Blackout Protective Caps

• 2 x Combo Lens Covers, 2 x Amber Spot Lens Covers

• 2 x Amber Flood Lens Covers

• 2 x Amber Combo Lens Covers

• 2 x Rubber Pads

• 1 x M4 Hex Key & 1 x M6 Hex Key

• Set Of Mounting Kit

• 1 x User Manual
