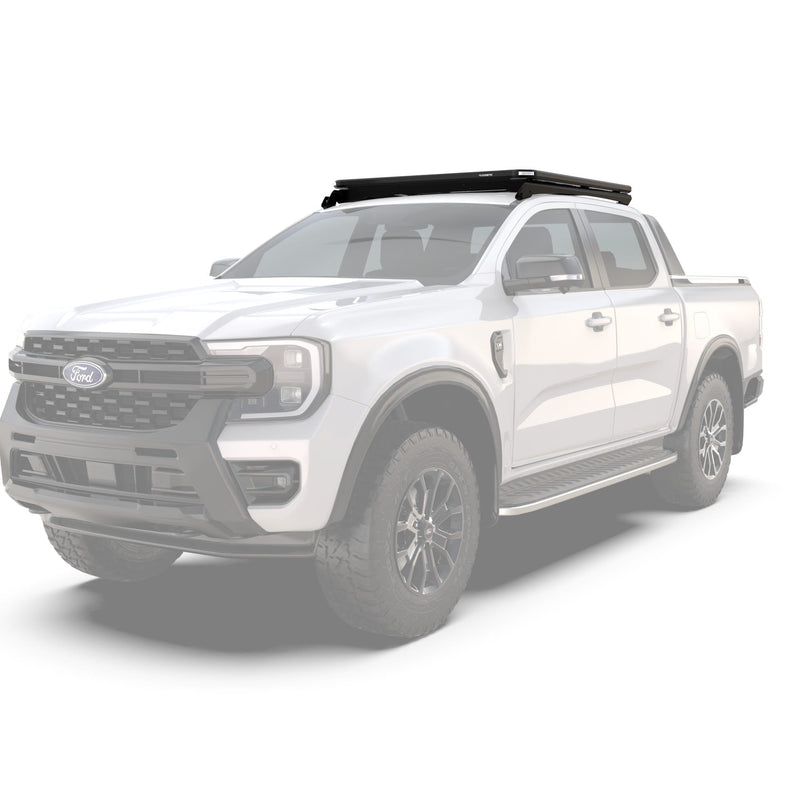

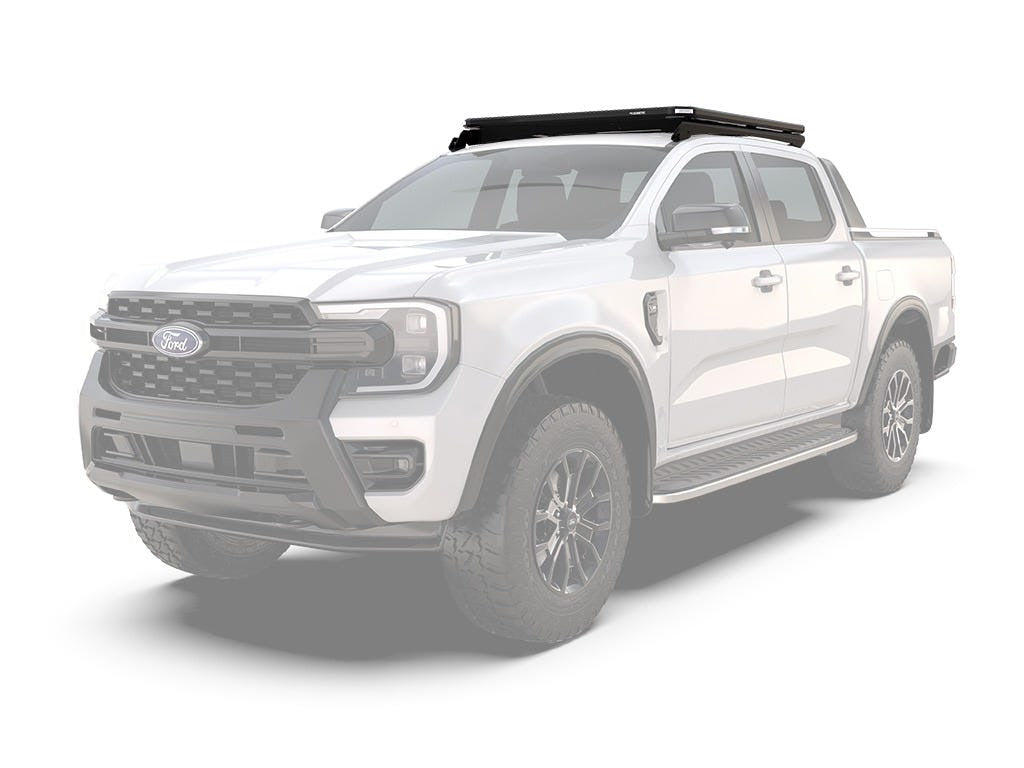

Ford Ranger T6.2 Double Cab Slimline 3 Roof Rack Kit by Front Runner
If you've been running gear on the tray and hoping for the best, this is the fix. The Slimline 3 turns the roof of your Ford Ranger T6.2 Double Cab into proper, usable load space, and it does it without turning your ute into a wind tunnel.

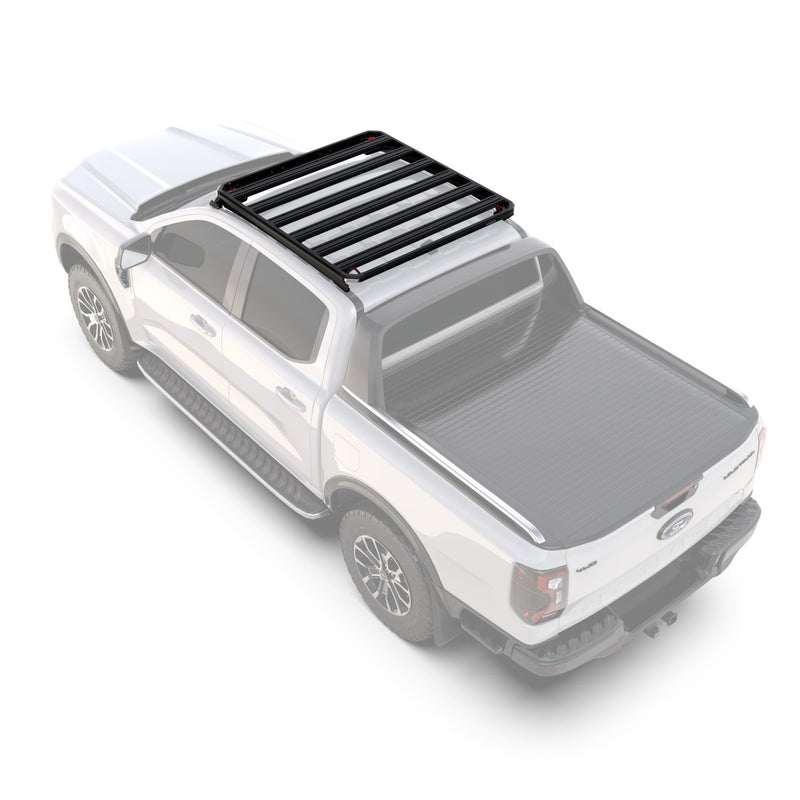

It's a flat 1330mm x 1240mm platform that sits just 70mm above the highest point of the roof, so it stays out of the airflow and out of the way in car parks. Heat-treated aluminium, high-strength 3CR12 stainless steel and a black powder-coated finish, with stainless fasteners throughout. Built to sit up there through wet season touring and corrugations and still come off cleanly when you want it off.
What makes this generation worth the upgrade is that you can reconfigure it in the driveway. Slats move, come out, and go back at a different pitch, without pulling the rack down. Dual T-slots top and bottom, tie-down points in all four corners, and hidden channels for your light wiring.
Features
- Flat platform measuring 1330 mm (52.7") L x 1240 mm (48.8") W x 70 mm (2.8") H, with an easy-release mounting system and a streamlined look on the Ranger T6.2 Double Cab
- Add, remove or shift individual slats without dismantling the rack

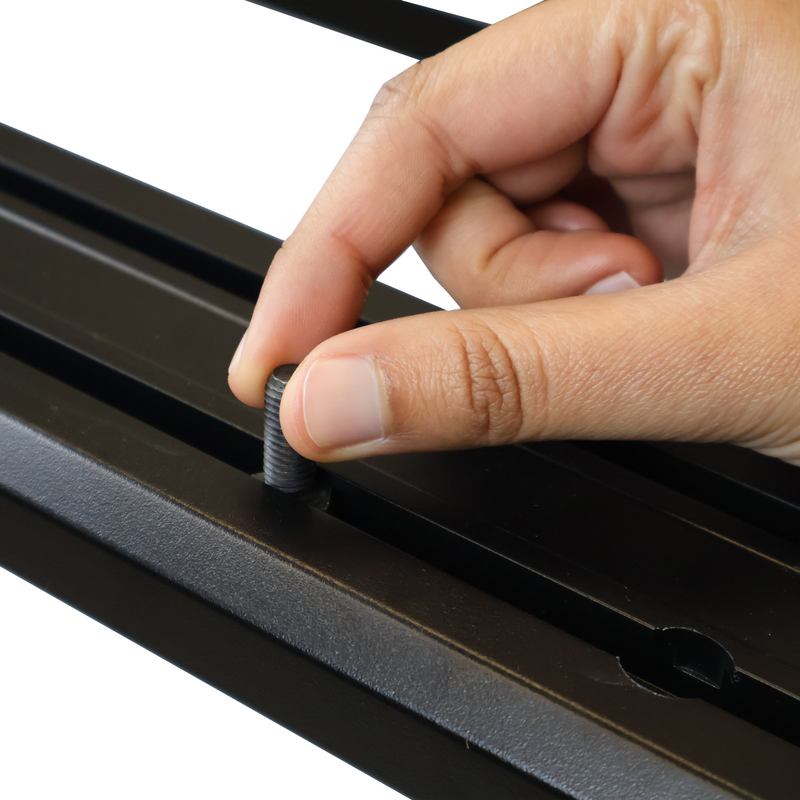

- Dual T-slot channels with multiple staggered insertion points along each slat, settable to different mounting pitches
- Low-profile tray sits 20% lower than the Slimline II, reducing drag, wind noise and fuel consumption

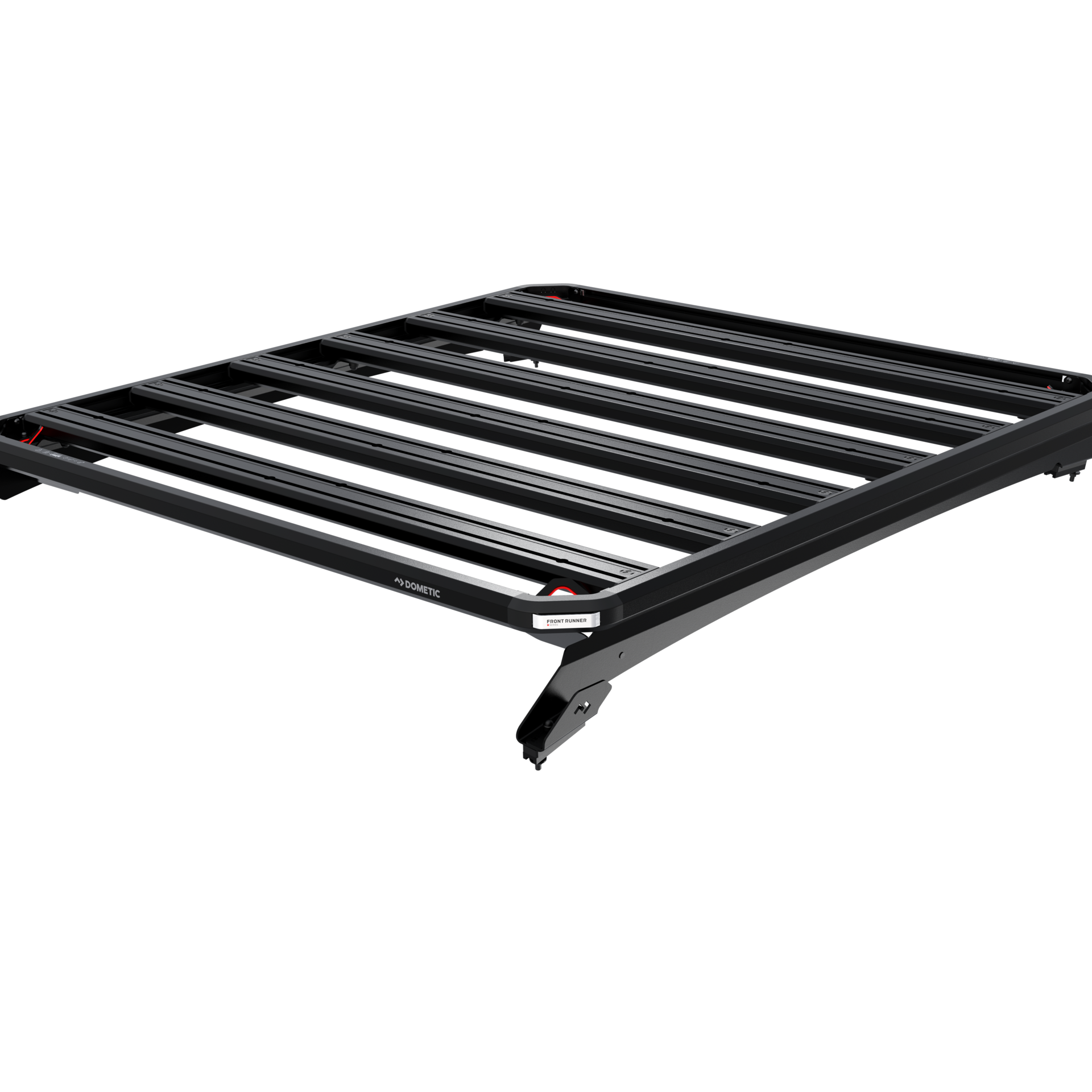

- Integrated tie-down points at all four corners, compatible with Stratchits, Stratchit shorties and other lightweight securing straps
- Dedicated channels in the side profiles for concealed wiring, with built-in pass-throughs and breakout tabs in the corner sections

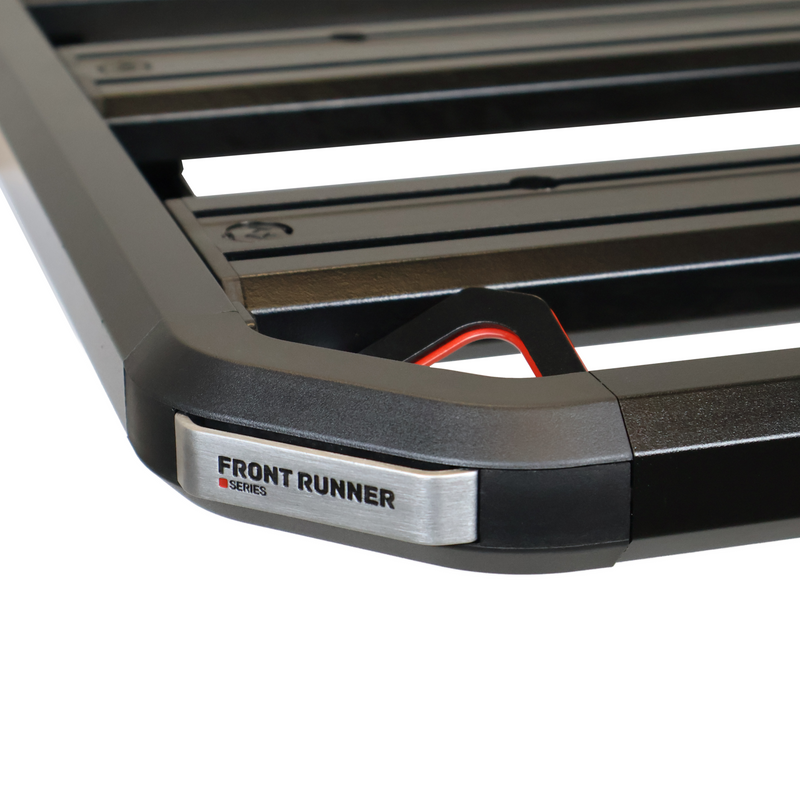

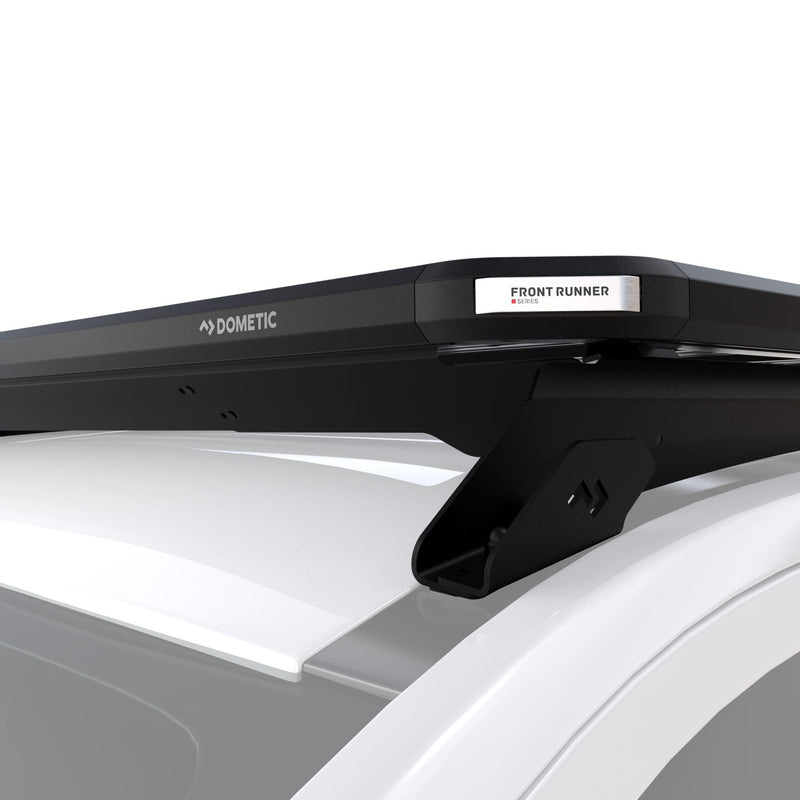

- Easy-release mounting extrusion lets you remove the rack without disturbing any roof seals
- Heat-treated aluminium and high-strength 3CR12 stainless steel, weather-resistant black powder-coated finish, standard stainless steel fasteners
- Designed to accept top-mount accessories
Specifications

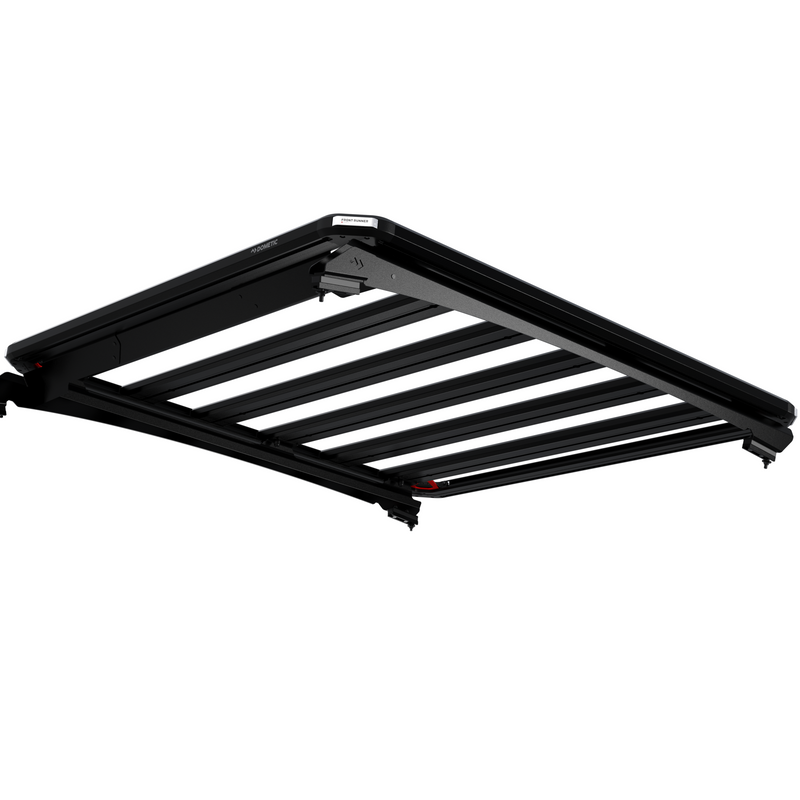

KRFR100T - Ford Ranger T6.2 (P703) Slimline 3 Roof Rack Kit
Consisting of:
- 1x MRSTE06 - Slimline 3 Tray - 1240mm(W) X 1330mm(L)
- 1x MSFR001 - Ford Ranger T6.2 (P703) Mounting System
Material Used:
- Black epoxy powder - coated T6 aluminium
- High strength steel
Assembled Kit Dimensions:
1330mm (52.4'') L x 1240mm (48.8'') W x 170mm (6.7'') H
Approximate Installed Weight: 31.19kg (68.76lbs)
T-Slot Bolt Size: The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
Height Above Roof: The top of the Dometic Front Runner Series Slimline 3 Roof Rack kit is only 70mm (2.8'') above the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 440mm (17'')
Length: 1725mm (68'')
Height: 250mm (10'')
Shipping Weight:
Weight: 31.19kg (69lbs)
Frequently Asked Questions
What's included in the KRFR100T Slimline 3 kit?
One MRSTE06 Slimline 3 tray measuring 1240mm wide by 1330mm long, and one MSFR001 mounting system specific to the Ford Ranger T6.2 (P703). Assembled, the kit measures 1330mm L x 1240mm W x 170mm H.
How high does the Slimline 3 sit above the roof?
The top of the rack sits 70mm (2.8") above the crown, the highest point, of the vehicle's roof. That's 20% lower than the Slimline II tray, which is where the reduction in drag and wind noise comes from.
How much does the Front Runner Slimline 3 Ranger kit weigh?
Approximately 31.19kg (68.76lbs) installed. Worth factoring in when you're working out what's left for cargo against your vehicle's roof load limit.
How much weight can I carry on the roof?
Front Runner does not publish a load figure in the information supplied with this kit, and in practice the limiting number is usually the roof load rating in your Ranger's owner's manual rather than the rack itself. Check that rating, remember the rack's own 31.19kg counts toward it, and note that the dynamic (driving) limit is typically well below the static (parked) one.
What bolt size do the Slimline 3 T-slots take?
The T-slots on the tops and bottoms of the tray slats and edge profiles accommodate standard 8mm bolts.
Can I move the slats around after it's installed?
Yes. Individual slats can be added, removed or shifted without dismantling the rack, and the dual T-slot channels have staggered insertion points along the slat so you can set different mounting pitches as your setup changes.
Can I run wiring for light bars through the rack?
The side profiles have dedicated channels for concealed wiring, and the corner sections include built-in pass-throughs and breakout tabs for entry and exit. For anything drawing power from the vehicle, we recommend the install is done by a qualified auto electrician.
Do I have to disturb the roof seals to fit or remove it?
The easy-release mounting system uses an exclusive mounting extrusion, designed so the rack can be removed without disturbing roof seals. Follow the manufacturer's installation instructions for your specific vehicle, and check the mounting hardware periodically, particularly after corrugated roads.
Limited Lifetime Warranty
Every Dometic Front Runner Series Slimline 3 roof rack is backed by a Limited Lifetime Warranty. Coverage is limited to the original owner and requires proof of purchase. Refer to the manufacturer's warranty terms and conditions for full details.
