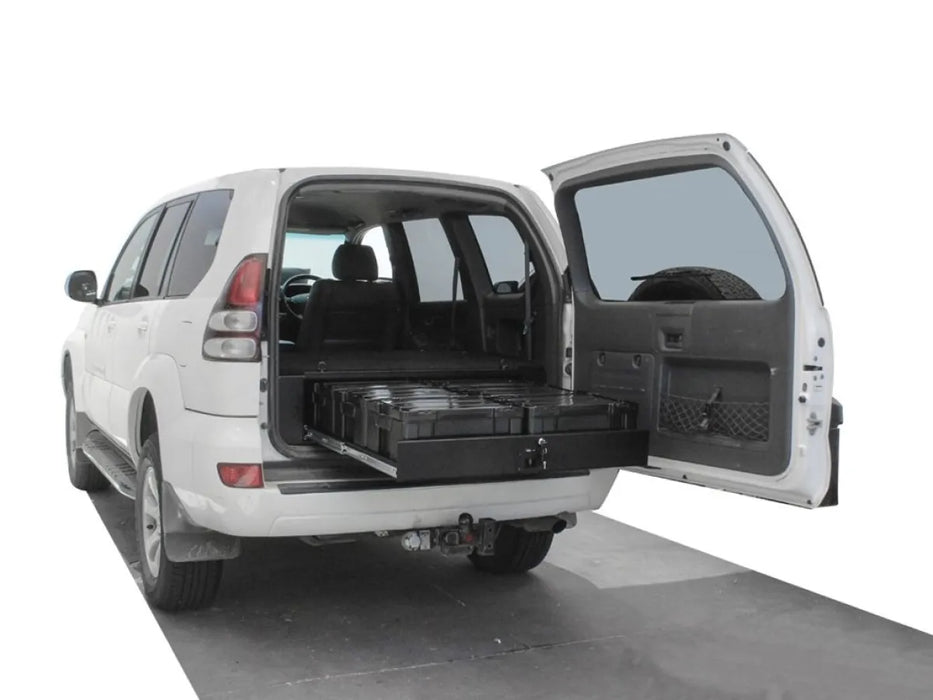

Front Runner 6 Cub Pack Drawer Kit for Toyota Prado 120/Lexus GX470

Toyota Prado 120/Lexus GX470 6 Cub Pack Drawer Kit by Front Runner

Storing, organising, and moving gear in the Toyota Prado/Lexus GX 470 just got easier. This Cub Pack based lockable drawer system provides a comprehensive and practical storage solution for easily transporting stored items between a vehicle and the campsite, garage, store, etc. Designed specifically to fit the contours of the Toyota Prado/Lexus GX470. Engineered tough for both on and off-road conditions.

This removable box drawer kit includes 1 drawer slides, 6 Front Runner Cub Packs, locks and keys, 3 tie down rails, 6 tie down rings, brackets, all necessary installation hardware, and detailed fitment instructions.

Front Runner Cub Packs, the heart of this modular storage system, are perfectly sized for kitchen supplies, dried goods, tools, camera gear, toiletries, even clothes.

These stackable and durable Cub Pack storage containers are made from black, high strength plastic and have integrated grips for easy carrying.

• 113kg per drawer load carrying capacity.
• Hold open feature: drawers “lock” open while parked on uneven surfaces.
• High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
• The push-to-latch mechanism is lockable when closed.
• Provide peace of mind and security by locking away important support gear.
• The flat deck incorporates three cargo attachment channels and 6 Black Tie Down Rings / Eye Nuts.
• Customise your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminium boxes and other storage containers to the top deck using Stratchits.
• The deck above the drawer can also be used to mount Front Runner Cargo/Fridge Slides.
• The left and right-side Faceplates have 4, pre-cut, knock-outs each for adding electrical panel socket inserts (sold separately).
• The side decks are easily removable creating storage pockets between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, snorkels, masks, fins, kindling, barbeque skewers, etc.
• The deck is covered with a durable, UV resistant nylon pile carpet.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• Finished with the same durable black powder coating as the Front Runner Slimline Rack and other Front Runner products.
• This Front Runner Removable Box Drawer Kit can be easily installed in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points. Removing the drawers is just as easy.
• This storage system is designed for interior use.

Specifications

Consists of:

• 1 x Drawer unit with 1 Opening Drawer
• 1 x Push to close latch with 2 keys
• 1 x Deck Completion Set
• 3 x Accessory Channels
• 6 x Tie Down Rings
• 6 x Cub Packs
• Installation Hardware
• Fitting Instruction

Materials used:

• Black powder coated steel - Frame
• Carpet and Laminated Plywood - Top and Side Decks

Product Dimensions:

Overall Dimensions:

• 1000mm L x 1425mm W x 338mm H

Open Drawer Dimensions:

• 1915mm L x 950mm W x 285mm H

Inner Drawer Dimensions:

• 946mm L x 890mm W x 222mm H

Weight:

• 72.1kg

Load Rating:

• 113kg

Special Notes:

• Items can be secured to the top deck using the 6 supplied tie down rings and fitting them accordingly to the 3 accessory channels on the top deck.
• Drawer has a hold open feature.
