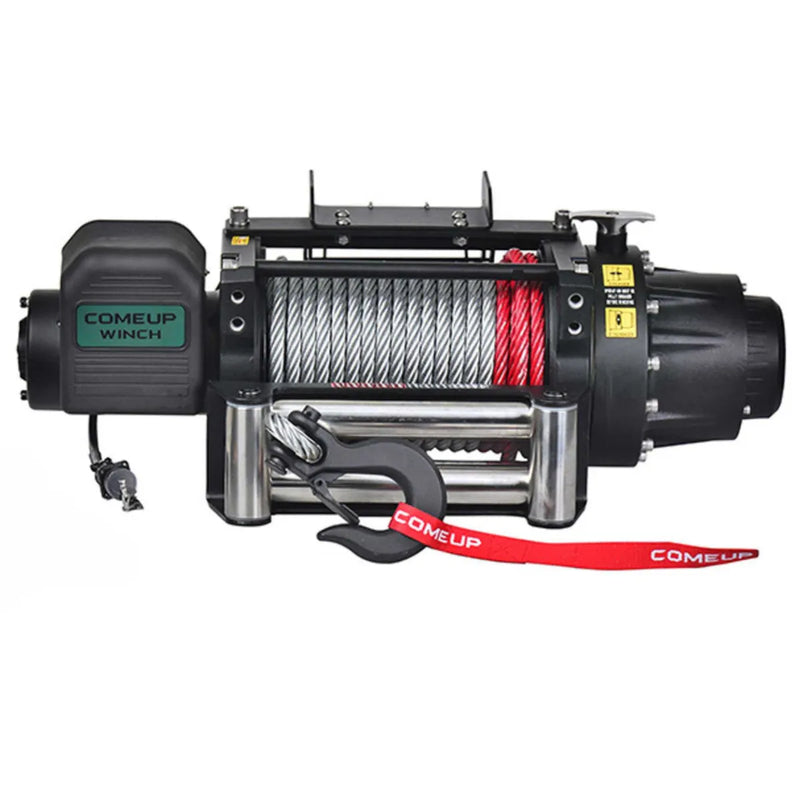

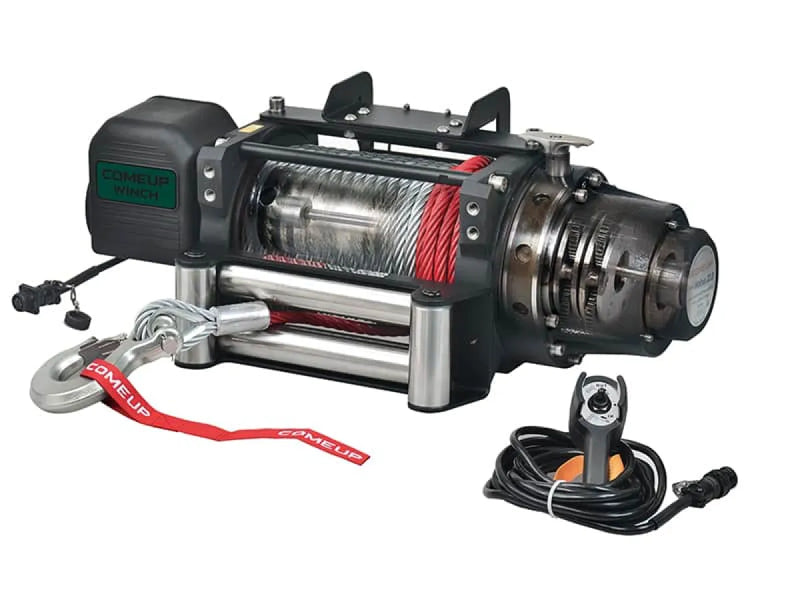

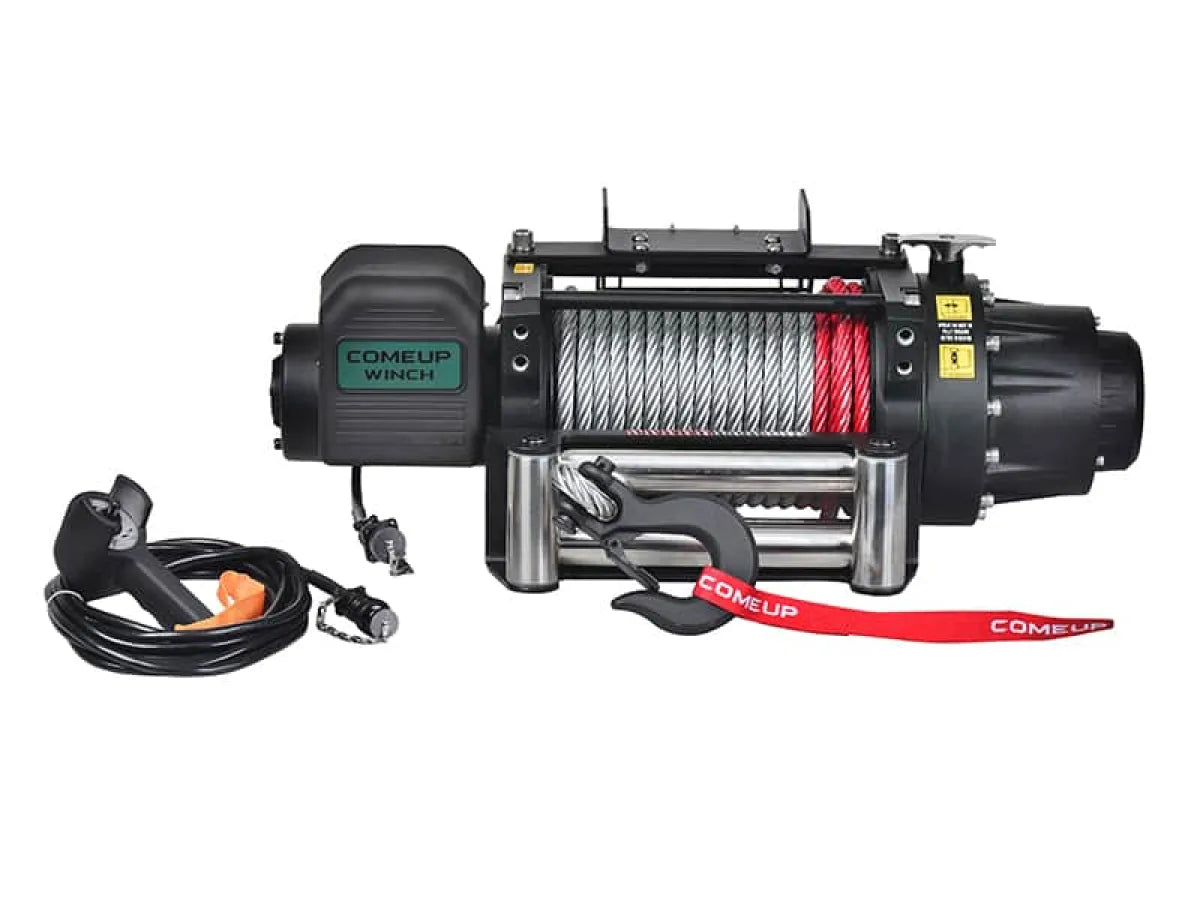

Walrus 22.0 (10.0 Tonne / 22,000 lb) Severe Duty Electric Winch by COMEUP

The Walrus 22.0 is made for tough recoveries, with a large 10 tonne (22,000 lb) line pull powered by a tough-as-nails 24V DC heavy-duty motor. It’s strong enough to move loaded trucks, pull out heavy gear, or handle rough off-road conditions with ease.

Fully waterproof and dustproof, the Walrus 22.0 keeps running even after full submersion to 1.8 metres. Its potted motor and contactor, plus heavy-duty rubber and double-lip seals, provide complete environmental protection for dependable performance year after year.

Operation is simple and safe thanks to the industrial-grade waterproof remote control, equipped with a thermometric LED warning to alert you if the motor temperature rises. A die-cast aluminium housing provides exceptional strength. It has been tested to withstand twice the winch’s rated line pull. The patented mechanical cone brake locks your load securely in place on every descent.

Tested for 720 hours in salt spray and certified to CE and SAE standards, the Walrus 22.0 is built to last. It’s ready for hard work and rough Australian conditions.

Specifications

  • Part Number: PN 282210 (24V)
  • Rated line pull: 9,980 kg / 22,000 lb (single line)
  • Line speed ( 1st layer): 9.0 mpm / 29.5 fpm 30 A at 24V no load
                                        1.4 mpm / 4.6 fpm 330 A at 24V full load
  • Motor: 5,220 w / 7.0 hp 24V series wound
  • Gear train: 3-stage planetary 343:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load  CBS (Cone Brake Structure)
  • Winch construction: Aluminium die cast housings with steel drum

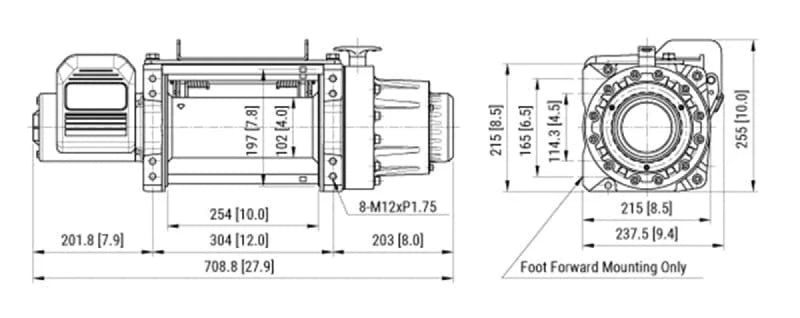

  • Drum size:102 mm x 254L mm (4” x 10”L)
  • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
  • Rope type: 6 × 29 - IWRC. (Breaking strength 126.4 kN)
  • Rope size: 12.7 mm x 25 m (1/2” x 82’)
  • Mounting bolt pattern: 304 mm x 114.3 mm (12” x 4.5”)
                                        304 mm x 165 mm (12" x 6.5")
  • Mounting: Foot forward mounting only
    * Remark: Only foot forward mounting can meet SAE J706

Performance

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw,  A
24V
No load 9.0 / 29.5 30
2,268 / 5,000 3.2 / 10.5 100
4,536 / 10,000 2.5 / 8.2 160
6,804 / 15,000 2.0 / 6.6 240
9,980 / 22,000 1.4 / 4.6 330

Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 9,980 / 22,000 7.0 / 23.0
2nd 8,171 / 18,014 15.5 / 50.9
3rd 6,917 / 15,249 25.0 / 82.0



⚠️ Warning

  • This winch is not designed for lifting or moving people under any circumstances.
  • The rated line pull is based on the first layer of rope on the drum.
  • Always ensure there are at least five full wraps of rope remaining on the drum during use for safe operation.

Warranty

  • Limited lifetime warranty on mechanical components and 1-year warranty on electrical parts.
  • Wire and synthetic ropes are not covered.

Accessories

  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • Cable tensioner
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

Package Dimensions:

  • Winch weight (including rope) : 80 kg / 176.4 lb
  • Gross weight : 86.1 kg / 189.8 lb
  • Box dimension : 745 x 275 x 430 mm (29.3" x 10.8" x 16.9")
