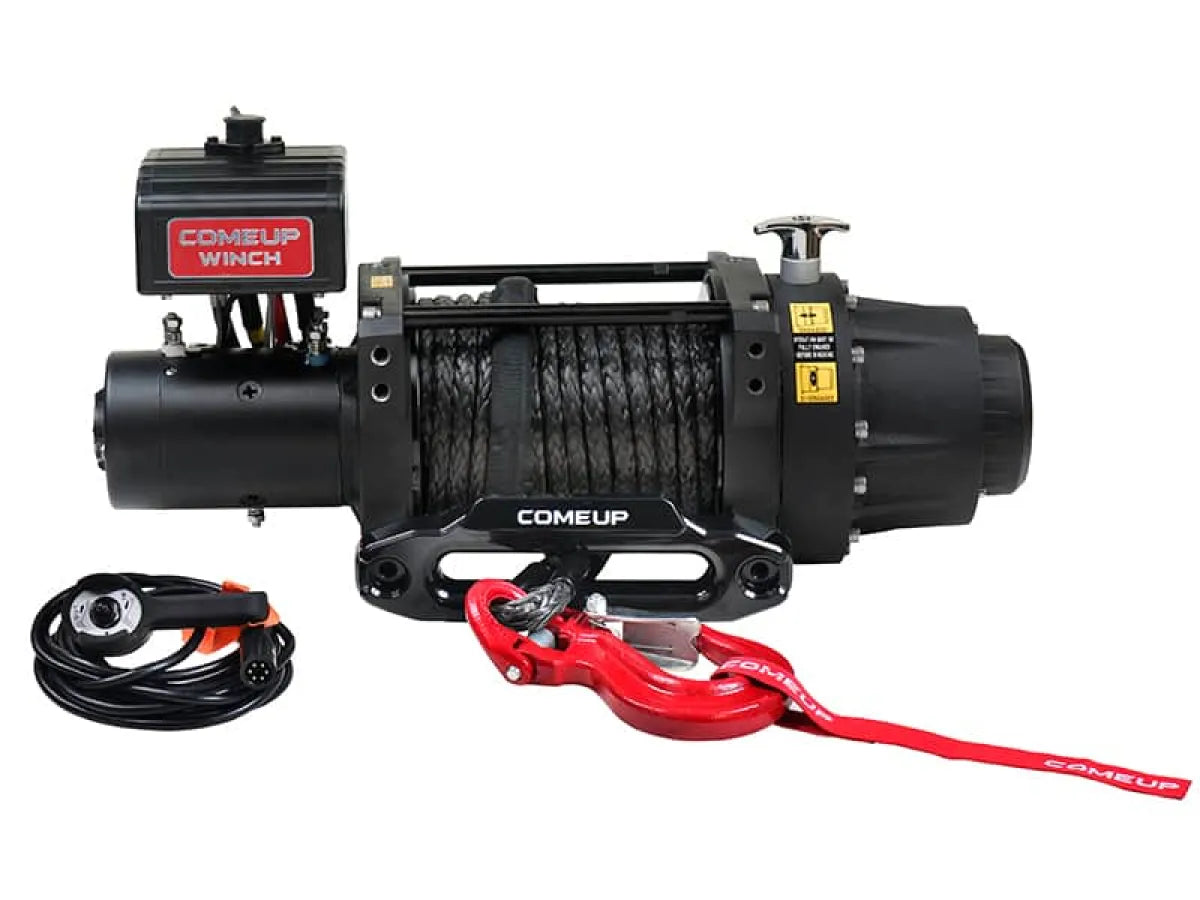

Seal Gen2 16.5s (7.5 Tonne) Severe Duty Recovery Winch by ComeUp
Engineered for demanding recoveries, the ComeUp Seal Gen2 16.5s combines raw pulling strength with refined control. Its 12V DC severe-duty motor delivers a dependable 16,500lb (7.5-tonne) line pull and includes an integrated thermal switch that warns you if temperatures rise too high.
The ergonomic T-handle and 4-pin mounting system make it easy to rotate the gearbox in 90-degree steps, helping you achieve a clean fit no matter your setup. A waterproof remote with a 5-metre lead and thermometric LED indicator gives you full control from a safe distance, even in wet or muddy conditions.
Every component is built for endurance and safety. The 12-strand synthetic rope is abrasion-resistant and doesn’t absorb water, making it ideal for use in Australia’s harsh, variable environments. The heavy-duty aluminium die-cast housing withstands up to twice the winch’s rated load, while the patented mechanical cone brake system (mounted externally for better cooling) ensures smooth, reliable braking under pressure.
Certified to global standards including CE and SAE J706, the Seal Gen2 16.5s is a proven performer trusted by professionals and off-roaders alike.
Features
-
Serious pulling power: 16,500 lb (7.5 tonne) rated capacity from a severe-duty 12V DC series-wound motor with thermal overheat alert.
-

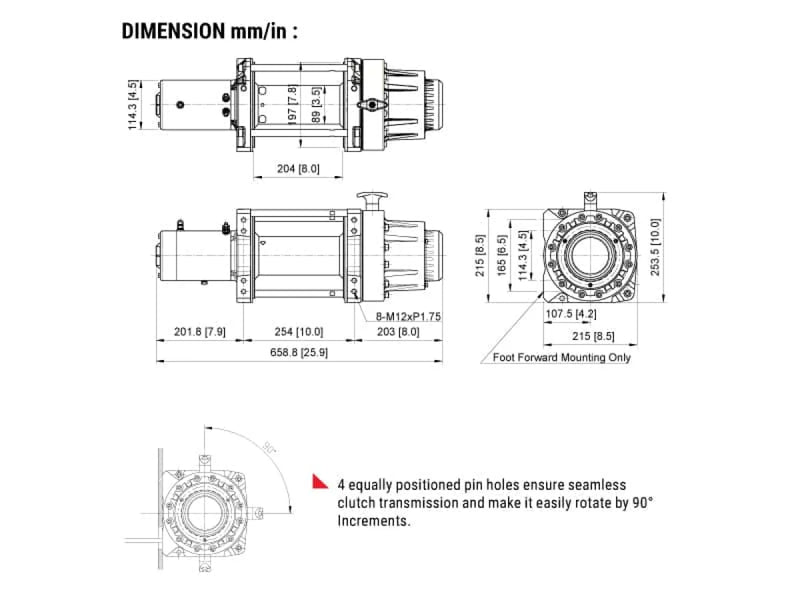

Easy positioning: 4-pin mounting and an ergonomic T-handle let you rotate the gearbox in 90° increments for clean installs.
-
Rugged control: Waterproof remote with thermometric LED indicator and a 5 m cord for safe, simple operation.
-
Top-grade rope: 12-strand synthetic rope with abrasion-resistant coating and zero water absorption.
-
Built to last: Heavy-duty aluminium die-cast housing engineered to handle up to 2× the rated load.
-
Smart braking: Patented mechanical cone brake mounted outside the drum for better heat dispersion — ideal for synthetic rope.
-
Globally certified: Meets CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, and SAE J706.
Specifications
| Model |
Seal Gen2 16.5s |
| Rated Line Pull |
16,500 lb (7,500 kg) |
| Voltage |
12V DC |
| Motor |
Series-wound, severe-duty with thermal alert |
| Gearbox Indexing |
Rotatable in 90° increments via T-handle |
| Remote |
Waterproof, thermometric LED, 5 m lead |
| Rope |
12-strand synthetic, abrasion-resistant, zero water absorption |
| Brake |
Patented mechanical cone brake (external to drum) |
| Housing |
Heavy-duty aluminium die-cast (tested to 2× rated load) |
| Compliance |
CE 2006/42/EC, CE 2014/30/EU, SAE J706 |
Performance
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull,
kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| 12V |
24V |
12V |
24V |
| No load |
5.6 / 18.4 |
7.6 / 24.9 |
50 |
25 |
| 1,814 / 4,000 |
3.0 / 9.8 |
3.1 / 10.3 |
90 |
90 |
| 3,629 / 8,000 |
2.5 / 8.2 |
1.9 / 6.4 |
180 |
150 |
| 4,536 / 10,000 |
1.9 / 6.2 |
1.6 / 5.2 |
230 |
200 |
| 7,484 / 16,500 |
1.4 / 4.6 |
1.4 / 4.6 |
355 |
245 |
Line Pull and Rope Capacity:
| Layer of Rope |
Pull by layer, kg / lb |
Total Rope on the Drum, m / ft |
| 1st
|
7,484 / 16,500 |
5.2 / 17.1 |
| 2nd
|
6,125 / 13,503 |
11.6 / 38.1 |
| 3rd
|
5,184 / 11,429 |
19.2 / 63.0 |
| 4rd
|
4,494 / 9,908 |
25.0 / 82.0 |
Package Includes
Standard Accessories
- Hawse fairlead
- Remote control w/5 m (17’) cord
- Detachable control box
- Synthetic rope w/sling hook
- 1.8 m (6’) 2 gauge battery lead
- Handsaver strap
Package Dimensions
- Winch weight (including rope): 48 kg / 106 lb
- Gross weight: 60.8 kg / 134 lb
- Box dimension (L x D x H) : 690 x 270 x 405 mm (27.2” x 10.6” x 15.9”)
Why Choose This Winch
If you need dependable pulling power for large 4x4s, commercial rigs or worksite recovery, the Seal Gen2 16.5s offers strength, smart thermal protection, flexible mounting and a braking system designed to manage heat, all key advantages when running synthetic rope in harsh Australian conditions.
⚠️ Warning: This winch is not designed or approved for lifting or moving people under any circumstances.
The rated line pull is calculated based on the first layer of rope on the drum.
Always ensure there are at least five full wraps of rope remaining on the drum during use to maintain safe operation.
Warranty
- The Seal Gen2 16.5s comes with a limited lifetime warranty on mechanical components and a three (3) year warranty on electrical parts from the date of purchase.
- Please note that wire and synthetic ropes are not covered under warranty.
