COMEUP GTD-650 650lb / 295kg Heavy Duty Hoist | 12v/24V

by Comeup
SKU 750265
Original price $769.00 - Original price $869.00
Original price
$769.00
$769.00 - $869.00
Current price $769.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

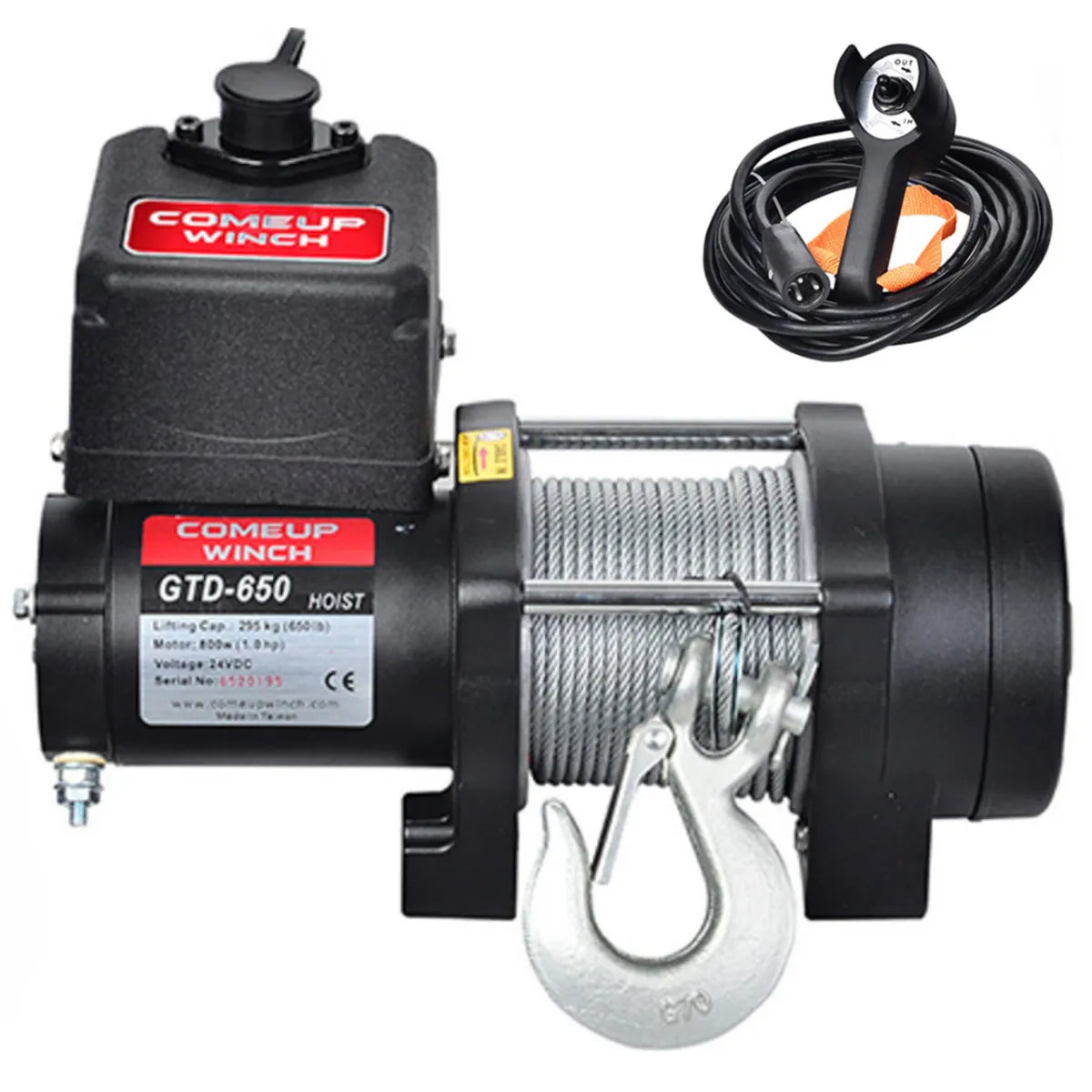

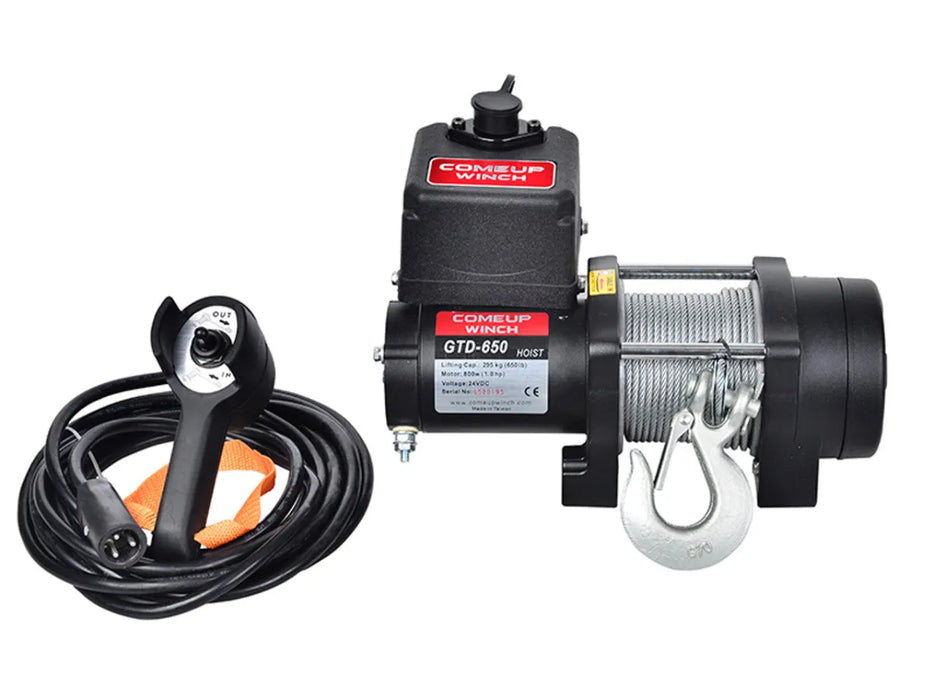

650lb / 295kg Heavy Duty Hoist by COMEUP (available in 12v or 24v)

Looking for a reliable hoist to handle heavy lifting safely and efficiently? The COMEUP 650lb (295kg) Heavy Duty Hoist is designed with safety, performance, and convenience in mind. Whether you're working in a workshop, warehouse, or industrial setting, this hoist offers a smart solution to meet health and safety recommendations for manual lifting, minimising strain and reducing the risk of injuries.

Features

  • Powerful Motor with Low Amp Draw
    The high-efficiency, sealed permanent magnet motor delivers exceptional performance while keeping power consumption low—great for extended use.

  • Compact, Lightweight Design
    Its sleek and lightweight build makes installation quick and easy, even in tight spaces.

  • Dual Braking System for Maximum Safety
    Equipped with both mechanical spring-applied brakes and permanent motor dynamic brakes, ensuring safe and controlled load handling at all times.

  • Durable Waterproof Remote Control
    Includes an industrial-grade remote control with a 5-meter lead, giving you the freedom to operate the hoist from a safe distance, even in harsh environments.

  • Heavy-Duty Gear System for Greater Pulling Power
    Featuring a full metal 3-stage planetary gear train, this hoist delivers outstanding pulling force for heavy-duty tasks.

  • Submersible Sealed Contactor
    The hoist’s sealed contactor handles high amperage with ease, improving duty cycles and reliability, even in challenging conditions.

  • Built to Industry Standards
    Designed to comply with ASME B30.5 standards, ensuring a rope safety factor of ≥3.5 and D/d ≥18, providing peace of mind with every lift.

    Specifications

    • Part number: PN 750280 (24V)
    • Rated line lift: 295 kg / 650 lb
    • Line speed (at 1st layer of rope):
      24V : 7.0 mpm / 23.0 fpm 15A at no load
               5.3 mpm / 17.4 fpm 30A at full load
      12V : 6.1 mpm / 20.0 fpm 20A at no load
               4.4 mpm / 14.4 fpm 55A at full load
    • Motor: 800 w / 1.0 hp 12v/24V permanent magnet
    • Gear ratio: 3-stage planetary gear 138.5:1
    • Brake: Mechanical spring applied and permanent motor dynamic brakes together
    • Hoist construction: Aluminium die housings and drum

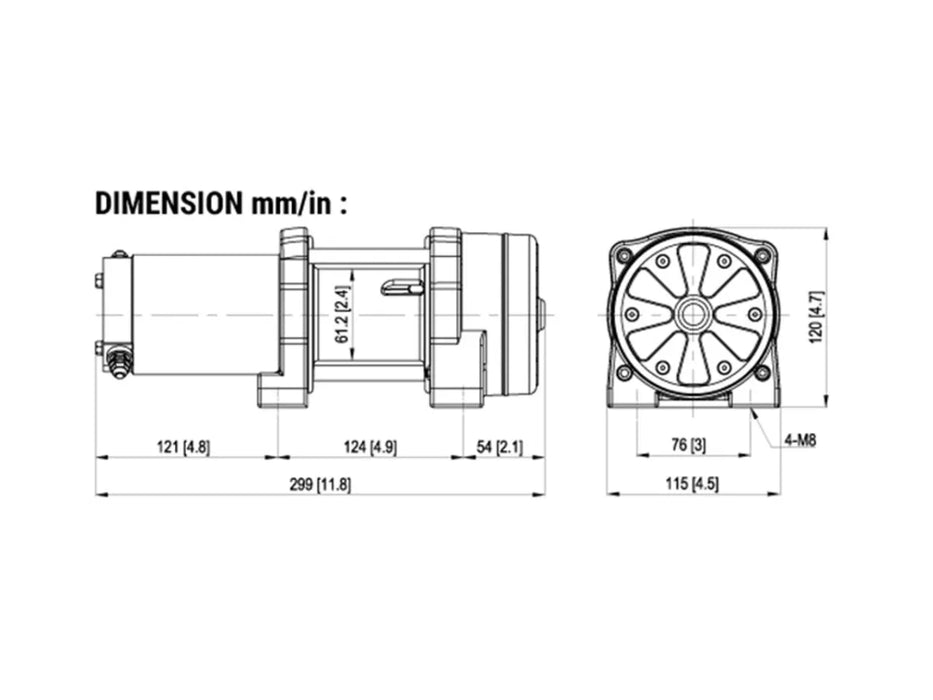

    • Drum size: 61.2 x 75 mm (2.4” x 3.0")
    • Control: Remote control with 5 m (17') lead
    • Rope type: Galvanized aircraft A7 x 19
    • Rope size: 3.6 mm x 18.3 m (9/64" x 60')
    • Mounting bolt pattern: 124 x 76 mm (4.9” x 3”)

      Standard Compliance:
      - CE Machinery Directive 2006/42/EC
      - CE EMC Directive 2014/30/EU
      -ASME B30.5

    Performance

    COMEUP GTD-650 650lb / 295kg Heavy Duty Hoist | 12v/24V

    Warning

    • The hoist is not intended to be used in any manner for the movement or lifting of  personnel.
    • The rated load shown is based on the first layer of rope on the drum.
    • The rope winding on the drum shall remain 5 wraps from the drum.

    Warranty

    • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

    Accessories Included

    • Wire rope 3.6 mm x 18.3 m w/clevis hook
    • Remote control with 5 m lead
    • Control pack

    Package

    • Hoist weight: 7.7 kg / 17 lb
    • Gross weight: 11.6 kg / 25.6 lb
    • Box dimension (L x D x H): 390 x 170 x 300 mm (15.4” x 6.7” x11.8”)
