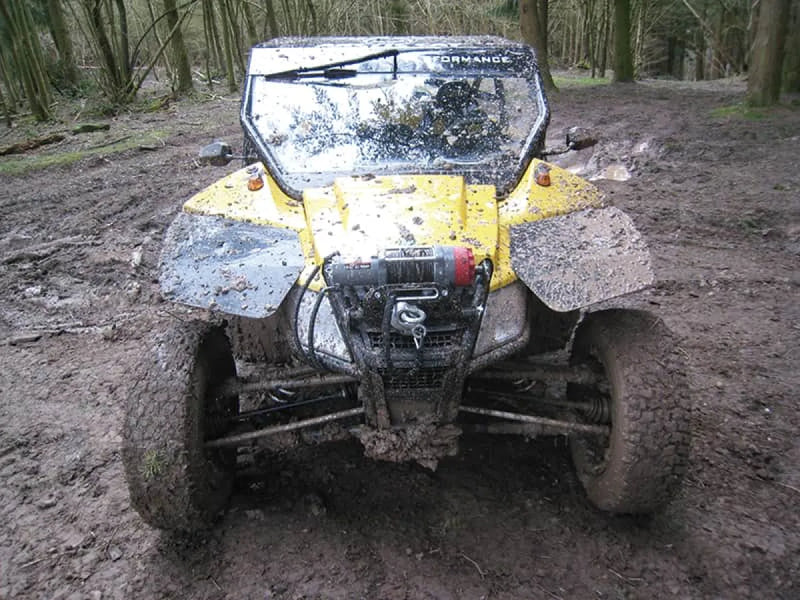

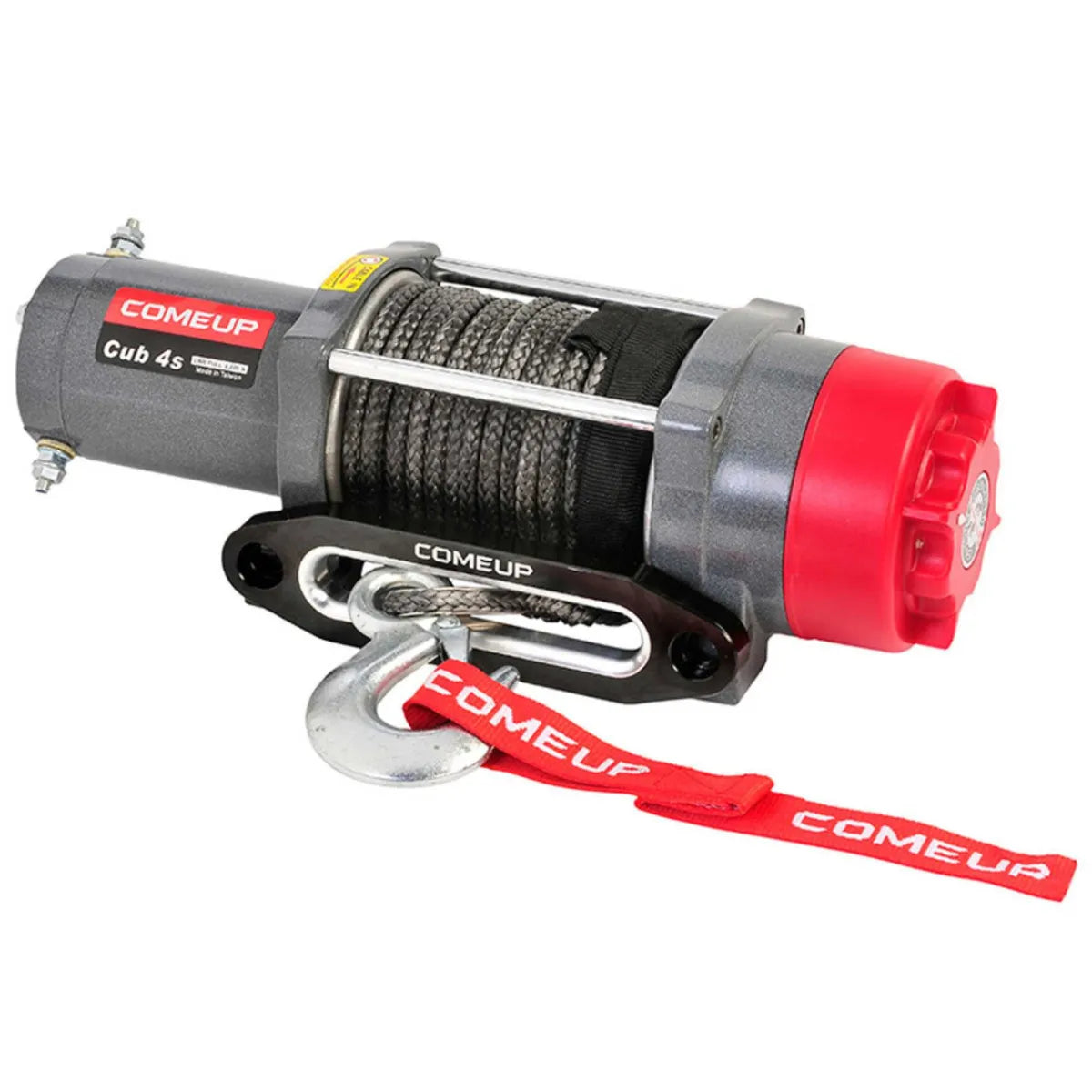

COMEUP Cub 4s Powersports Electric Winch | 4,000lb

Cub 4s ATV and Powersports Electric 4x4 Winch by COMEUP

Compact, strong, and built for serious off-road work, the COMEUP Cub 4s winch delivers a solid 4,000 lb (1.8 tonne) of pulling power in a lightweight, easy-to-fit package. It’s designed for ATVs, UTVs, and smaller 4x4s where space is tight but reliability can’t be compromised. Whether you’re hauling gear, clearing obstacles, or recovering a bogged vehicle, this winch gives you the strength and control to handle it all with confidence.

Power comes from a sealed permanent magnet motor that delivers high efficiency with minimal current draw — meaning it won’t drain your battery while still providing consistent pulling torque. Because it’s fully sealed, the motor keeps out mud, dust, and water, giving you dependable performance through creek crossings, rain, or red dust.

COMEUP’s proven 3-stage all-metal planetary gear train transforms that motor power into smooth, strong pulling force. It’s built to last, providing steady control even under load without the rough engagement you get from cheaper gear systems. The centrally mounted drum keeps the synthetic rope aligned and clear of tyres, ensuring a clean and balanced fit on your front end.

Control and safety come standard thanks to a dual braking system combining a mechanical spring-applied brake with a dynamic motor brake — keeping your load steady and secure on steep inclines or during precise recoveries. The cam-activated clutch makes rope payout quick and effortless, so you can set up fast when every second counts.

Finally, a sealed submersible contactor safely handles high current and longer duty cycles, making the Cub 4s ideal for frequent or extended use. Together, these features make it a compact, reliable, and hardworking winch built to thrive in tough Aussie conditions, not just for weekend rides, but for anyone who demands lasting performance from their gear.

Features

• High-efficiency, low-amp draw motor delivers reliable pulling power while keeping battery use to a minimum.
• Sealed permanent magnet motor built to resist mud, dust, and water for dependable performance in harsh Aussie conditions.
• Compact, lightweight design makes installation quick and simple, even in tight spots.
• Centrally mounted drum prevents rope interference with tyres and provides a neat, balanced look.
• Dual braking system combines a mechanical spring-applied brake with a dynamic motor brake for secure load holding.
• Cam-activated clutch enables fast, easy rope payout when you need it most.
• Full metal 3-stage planetary gear train ensures maximum torque and long-term durability.
• Sealed submersible contactor handles high current safely and supports extended duty cycles for consistent performance.

Specifications

• Part number:  PN 129410

• Rated line pull: 1,814 kg (4,000 lb) single line

• Motor:  800 w / 1.0 hp 12V permanent magnet

• Gear train: 3-stage planetary 191:1

• Clutch (freespooling): Sliding pin and ring gear

• Brake: Mechanical spring applied and permanent magnet motor dynamic brakes together

• Winch construction: Aluminum die cast housings and drum

• Drum size: 55 x 119 mm

• Control: Handlebar rocker switch

• Rope type: Synthetic rope

• Rope size: 5.5 mm x 15.2 m

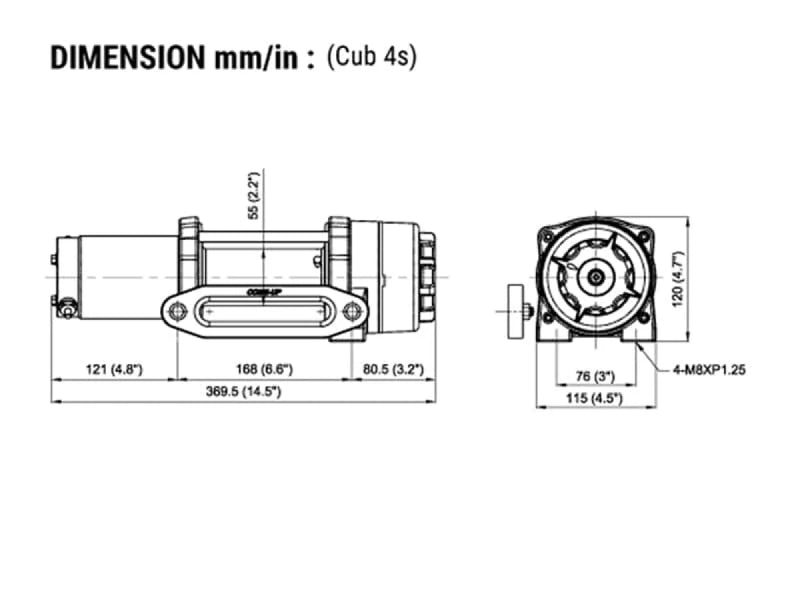

• Mounting bolt pattern: 76 x 168 mm
• Winch weight (including rope) : 8 kg
• Gross weight : 12 kg
• Box dimension, (L x D x H) : 380 x 362 x 144 mm
• Standard Compliance:

  • CE Machinery Directive 2006/42/EC

  • CE EMC Directive 2014/30/EU

Performance

Line Speed and Amp. Draw (1^st layer of wire rope on the drum)

Line Pull and Rope Capacity

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.

• The rated line pull shown is based on the first layer of wire rope on the drum.

• The wire rope winding on the drum shall remain 10 wraps from the drum.

Accessories

• Synthetic rope 5.5 mm x 15.2 m w/safety hook

• Handlebar rocker switch kit

• Hawse fairlead

• Mounting hardware

• Handlebar hardware

• Contactor pack

Warranty

• Limited lifetime manufacturer warranty for mechanical components
• 12 Months manufacturer warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Cub 4s Operation Manual
