COMEUP Cub 3s ATV Powersports Electric Winch | 3,000lb

by Comeup
SKU
Original price $748.00 - Original price $748.00
Original price
$748.00
$748.00 - $748.00
Current price $748.00
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

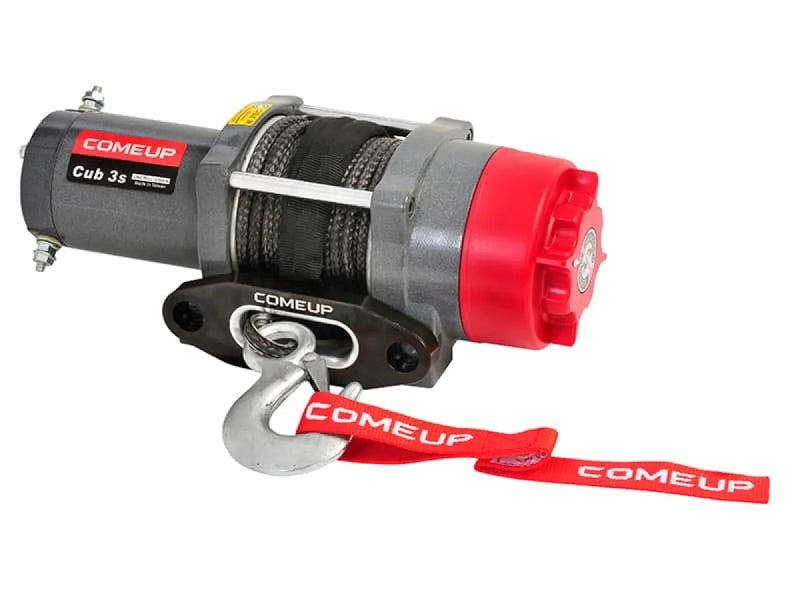

Cub 3s ATV and Powersports Electric Winch by COMEUP

Built tough for serious ATV and powersports use, the COMEUP Cub 3 Winch delivers a powerful 3,000lb (1.36 tonne) pulling capacity in a compact, lightweight design. Its sealed permanent magnet motor offers high efficiency with low current draw, ensuring reliable performance when you need it most.

The centered winch drum keeps the rope clear of tyres for a clean, streamlined fit, while the cam-activated clutch makes rope payout quick and easy. A mechanical spring-applied and dynamic braking system provides solid control and safety during recovery operations.

Featuring a full-metal 3-stage planetary gear train for superior pulling strength and a submersible sealed contactor that handles high amps and longer duty cycles, the Cub 3 is built for dependable performance on every off-road adventure.

Specifications

  • Part number:  PN 129300
  • Rated line pull: 1,361 kg (3,000 lb) single line
  • Motor:  800 w / 1.0 hp 12V permanent magnet
  • Gebar train: 3-stage planetary 138.5:1
  • Clutch (freespooling): Sliding pin and ring gear
  • Brake: Mechanical spring applied and permanent magnet motor dynamic brakes together
  • Winch construction: Aluminum die cast housings and drum

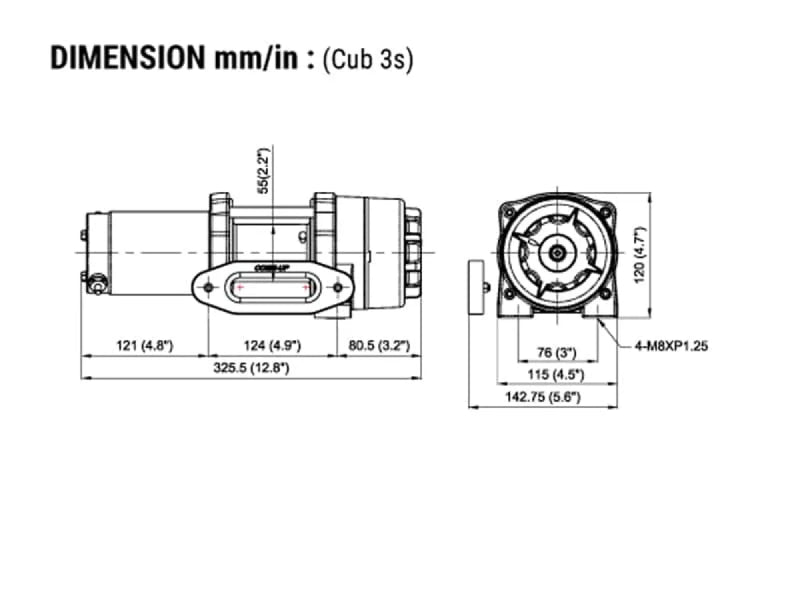

  • Drum size: 55 x 75 mm (2.2” x 3”)
  • Control: Handlebar rocker switch
  • Rope type: Synthetic rope
  • Rope size: 4.8 mm x 15.2 m (3/16” x 50’)
  • Mounting bolt pattern: 76 x 124 mm (3” x 4.9”)
  • Winch weight (including rope) : 7.2 kg
  • Gross weight : 11.5 kg
  • Box dimension, (L x D x H) : 349 x 331 x 144 mm
  • Standard Compliance:
    • CE Machinery Directive 2006/42/EC
    • CE EMC Directive 2014/30/EU

Performance

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw,  A
12V 48V 12V 48V
No load 5.7 / 18.7 4.6 / 15.1 25 5
454 / 1,000 4.0 / 13.1 4.0 / 13.1 80 15
907 / 2,000 3.0 / 9.8 2.6 / 8.5 140 30
1,361 / 3,000 2.0 / 6.6 2.0 / 6.6 230 55



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 1,361 / 3,000 2.8 / 9.3
2nd 1,173  / 2,585 6.1 / 20.1
3rd 1,030 / 2,271 9.9 / 32.5
4th 918 / 2,025 14.1 / 46.3
5th 829 / 1,827 15.2 / 50



Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of wire rope on the drum.
  • The wire rope winding on the drum shall remain 10 wraps from the drum.

Accessories

  • Synthetic rope 4 mm x 15.2 m w/safety hook
  • Handlebar rocker switch kit
  • Hawse fairlead
  • Mounting hardware
  • Handlebar hardware
  • Contactor pack

Warranty

  • Limited lifetime manufacturer warranty for mechanical components and Twelve months manufacturer warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
