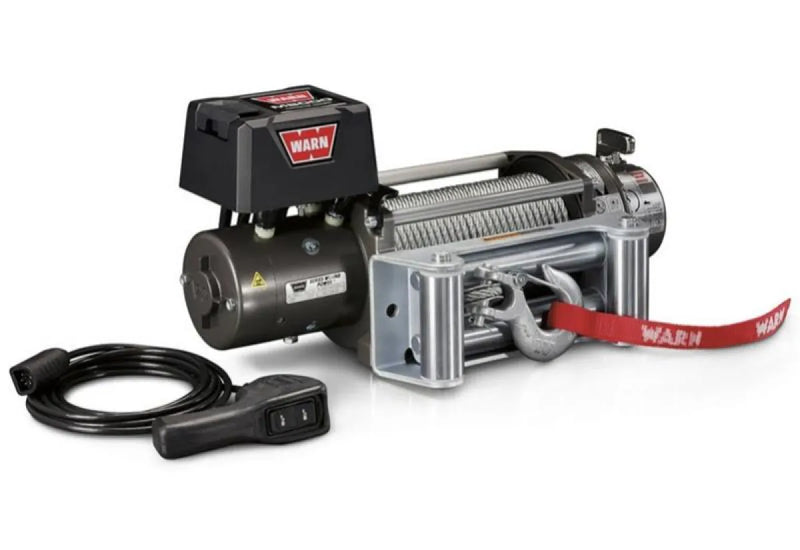

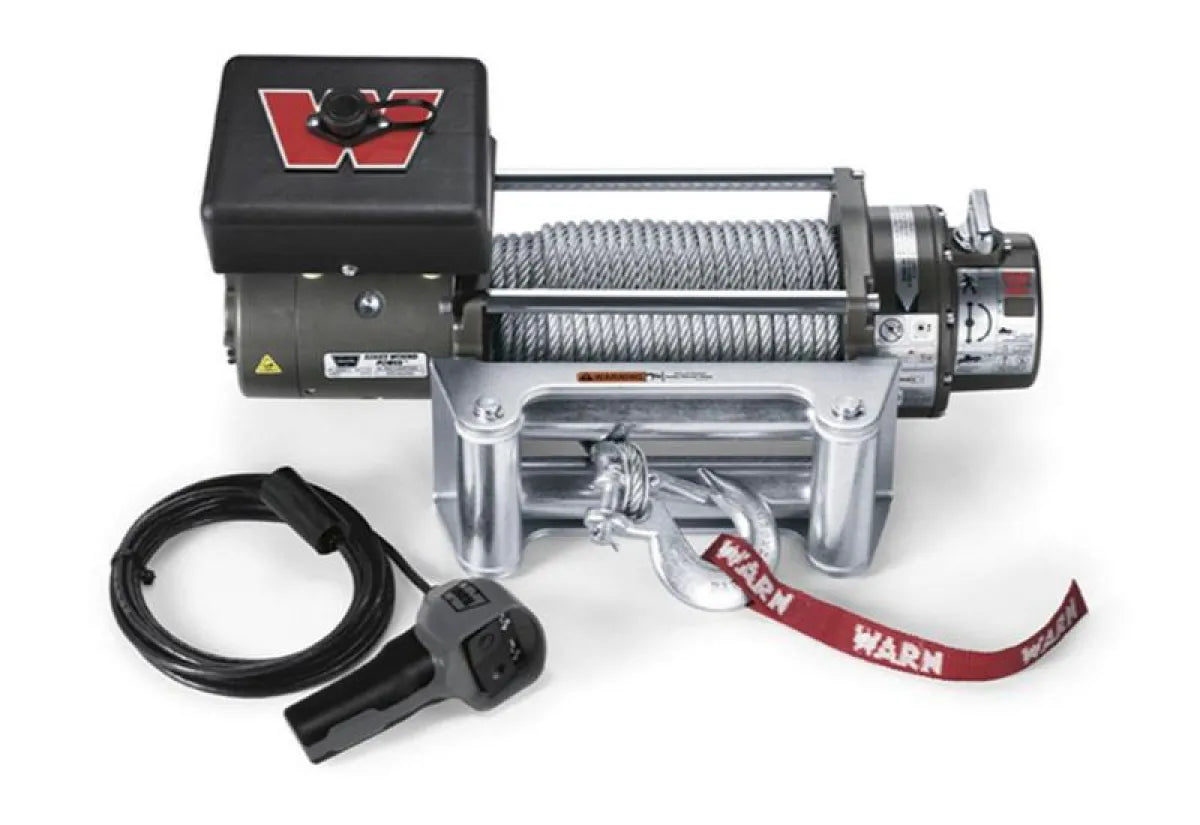

M8000 12v Self Recovery Winch with 30m Steel Cable by Warn

Compact, tough and reliable

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.

FEATURES

  • Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
  • Contactor control box and hand-held, corded remote control
  • Low-profile design and separate control box allows for a wide range of mounting options
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong
  • pulls
  • Chip-resistant powder-coated finish
  • 30m of steel rope

WARN M8000 WINCH SPECIFICATIONS

  • Model number: M8000
  • Part number: CEM8000-88502
  • Rated line pull: 8,000 lbs., (3630 kgs.) single-line
  • Motor: Series Wound, 12V 4.8 hp
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12′ (3.7m) lead
  • Gear train: 3-Stage Planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Sliding ring gear
  • Brake: Automatic mechanical cone
  • Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
  • Weight: 74 lbs. (34 kgs)
  • Rope: Steel — 100′, 5/16″ diam. (30m, 8mm diam.)
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72″ (1.83m) Included
  • Finish: Argent gray powder coat

12V DC Performance Specifications (1st Layer of Drum)

Line Pull
Lbs.(Kgs.) 		Line Speed
FT./min(M/min.) 		Motor
Current 		Pull by layer
layer/Lbs(Kgs.)
0 30.2 (9.20) 80 amps 1/8000 (3629)
2000 (910) 14.2 (4.33) 200 amps 2/7280 (3302)
4000 (1810) 9.9 (3.02) 285 amps 3/6670 (3026)
6000 (2720) 7.3 (2.22) 350 amps 4/6230 (2826)
8000 (3630) 4.8 (1.46) 435 amps


M8000 WINCH DIMENSIONS

Dimensions 21.04″ L. x 6.3″ D. x 7.6″ H.
(534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern 10.0″ x 4.5″
(254mm x 114.3mm)
