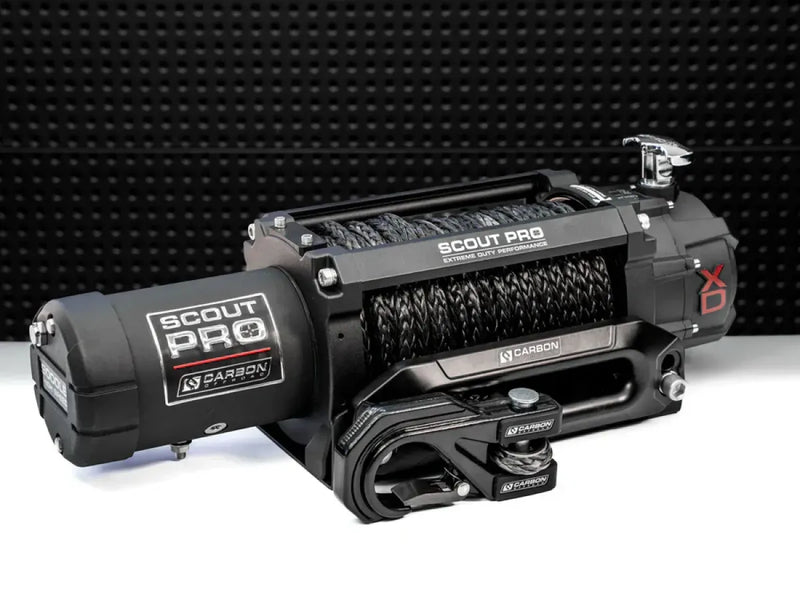

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch detail photo

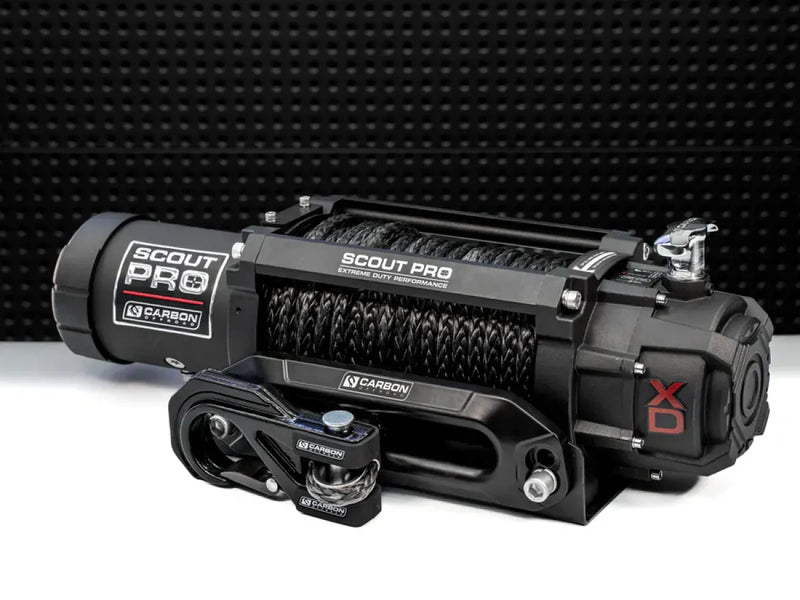

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - black recovery hook

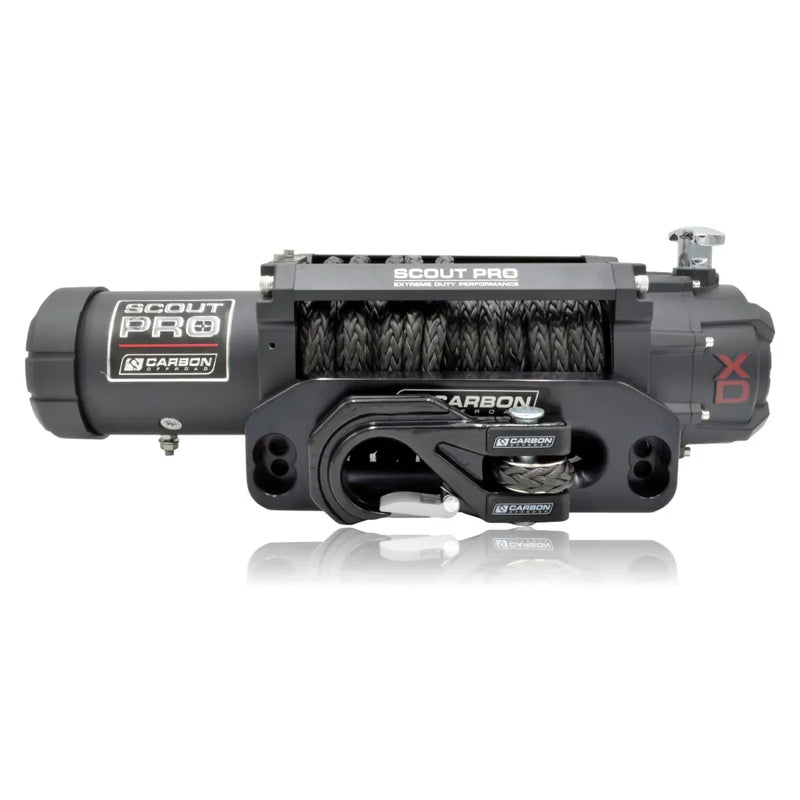

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch product photo

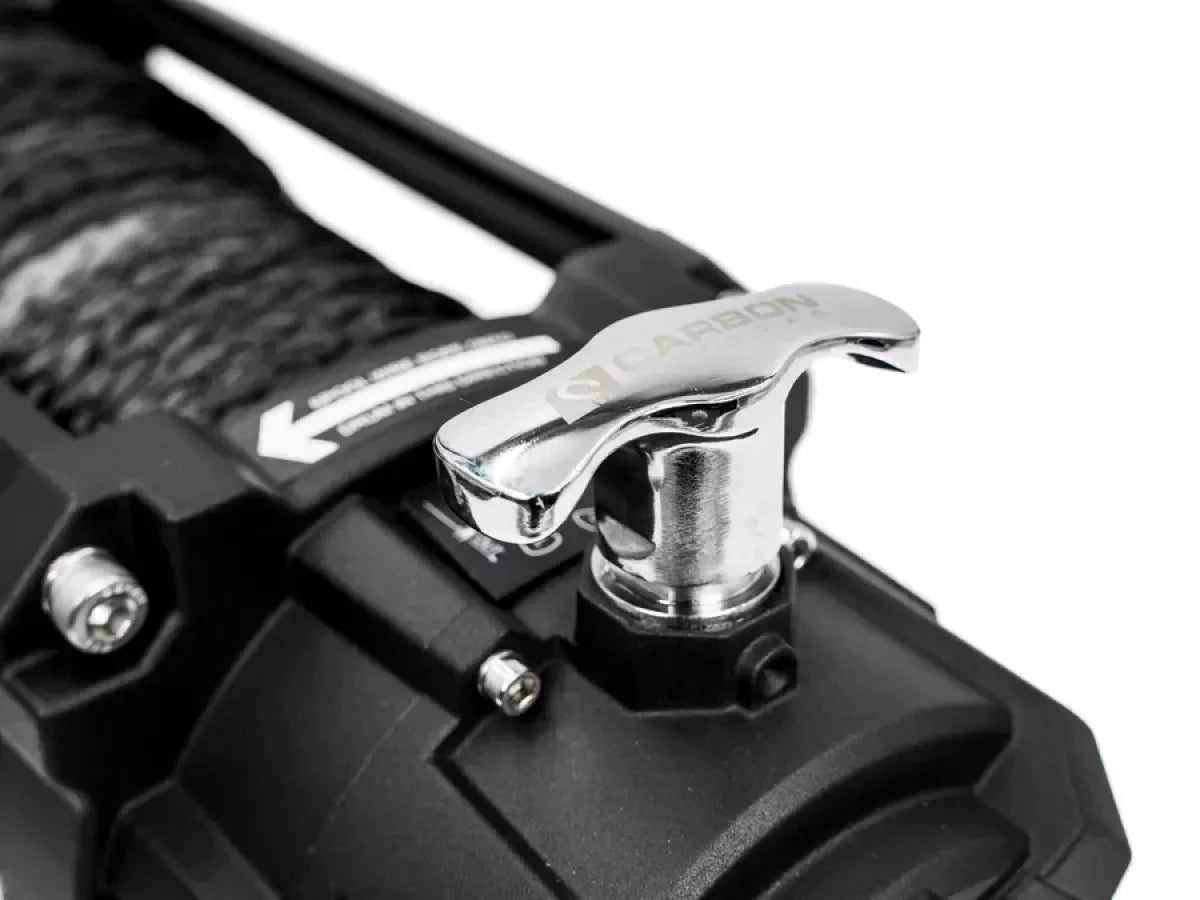

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch and control box

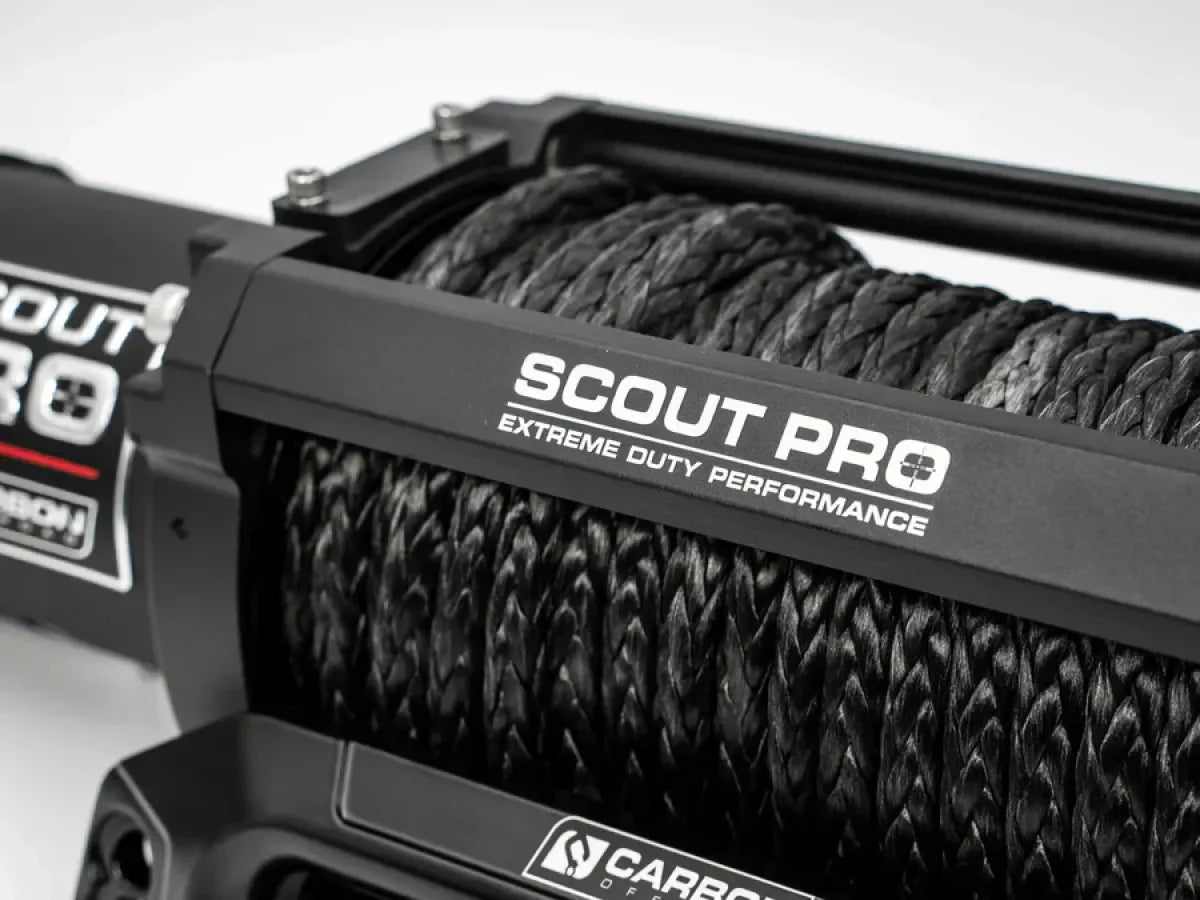

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch mounted on a bullbar

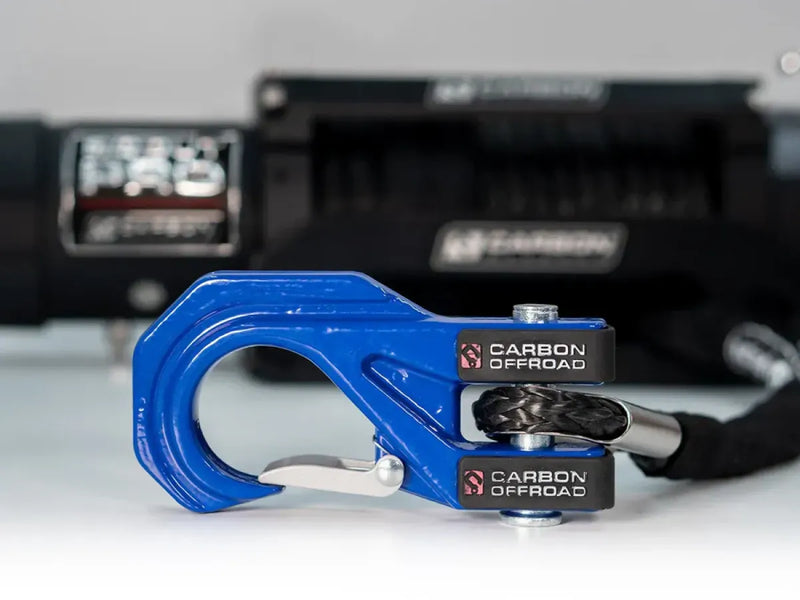

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - blue recovery hook

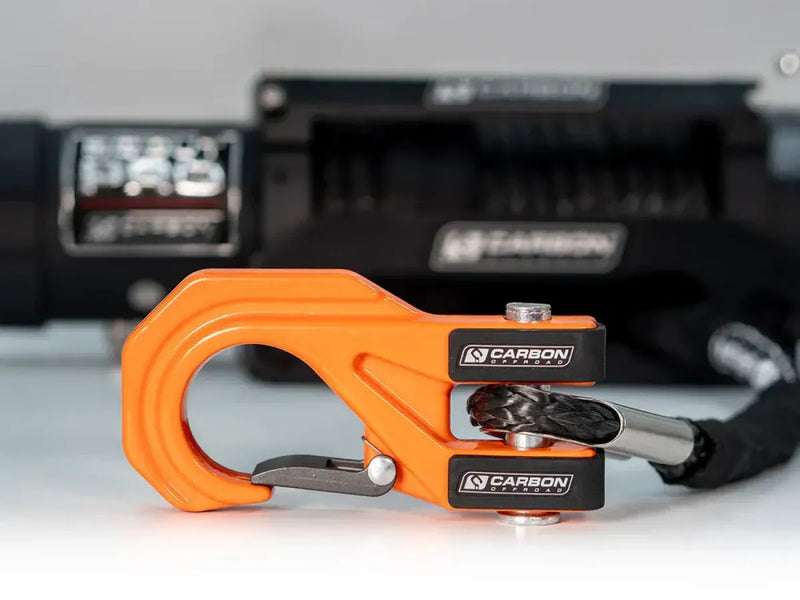

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - orange recovery hook

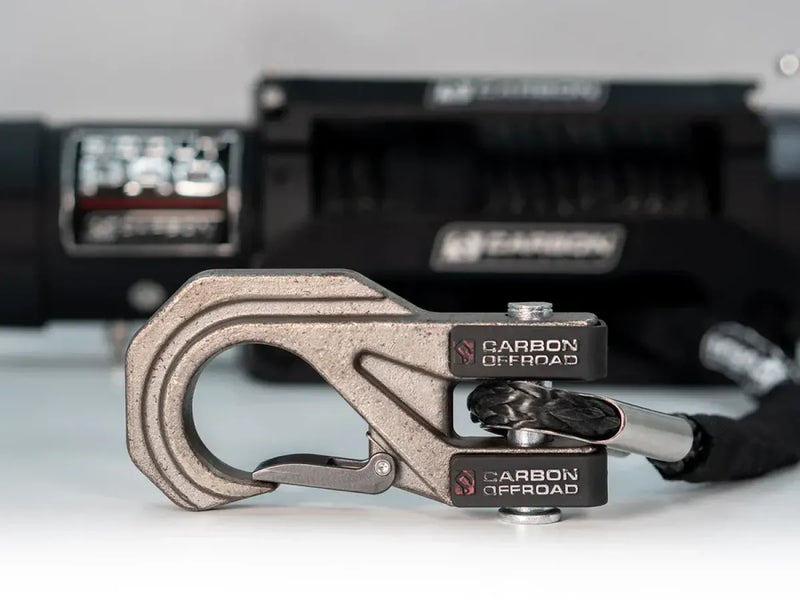

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch with hook detail

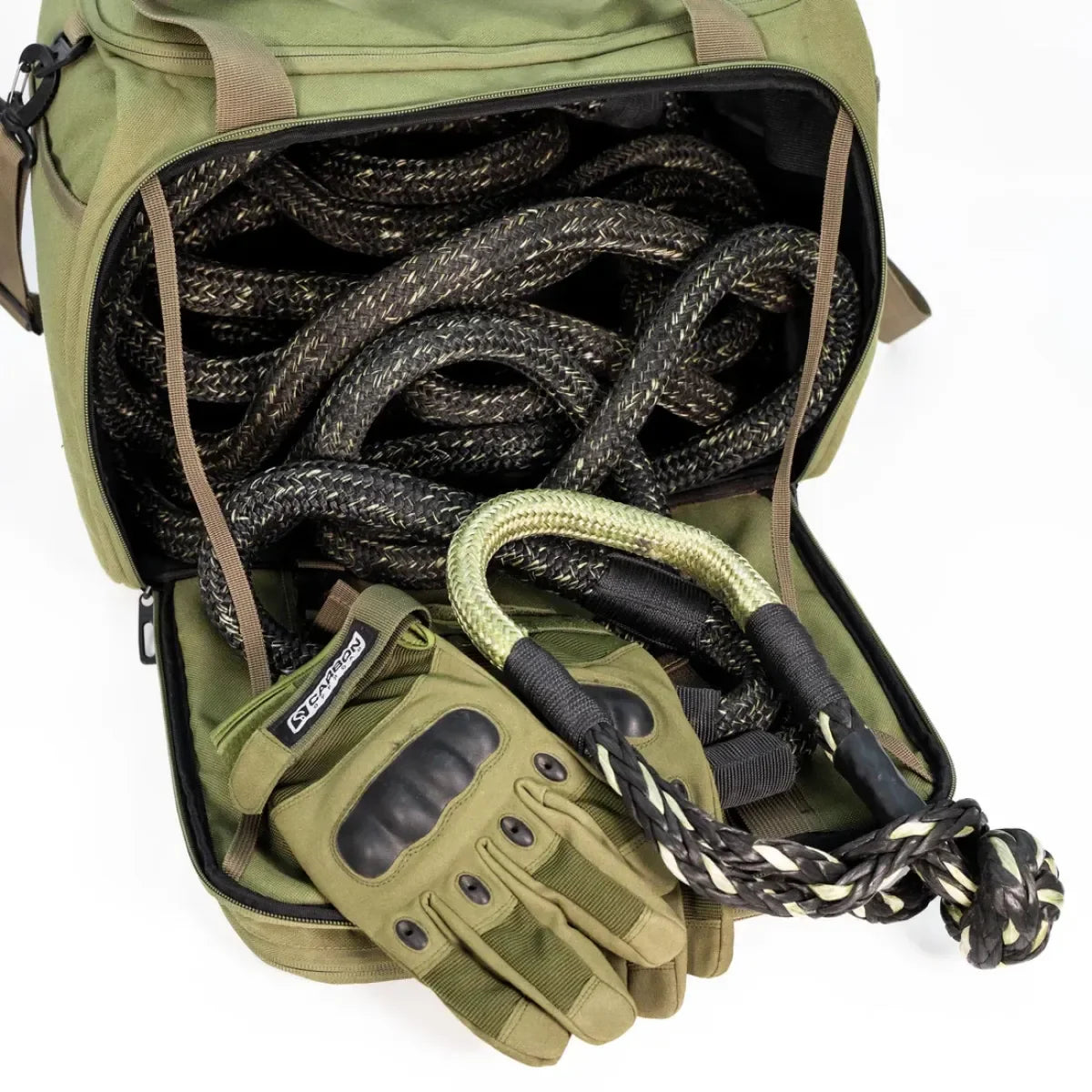

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - Tactical Response Kit contents

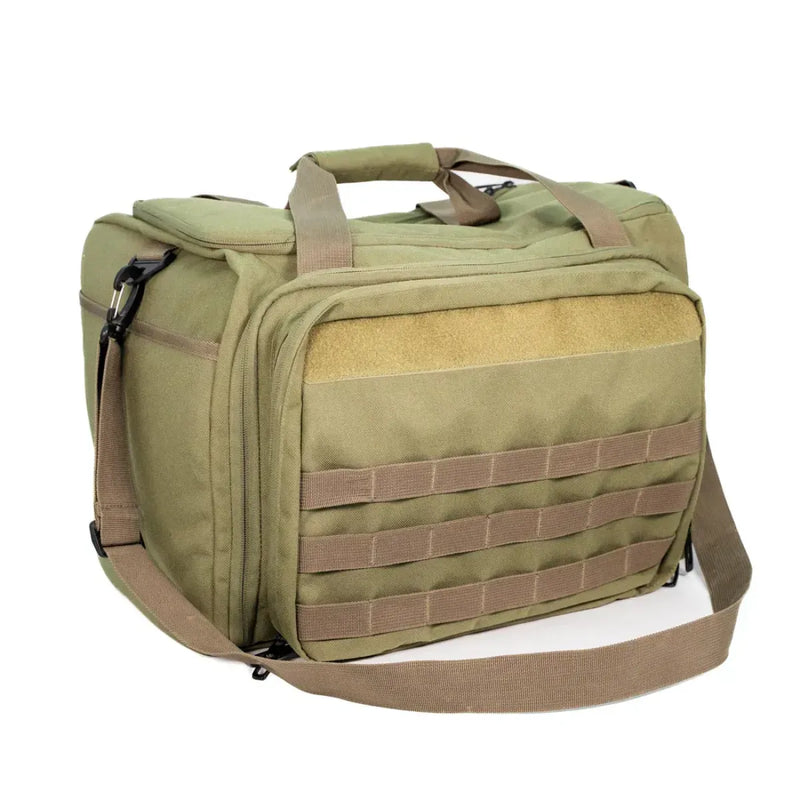

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case, front

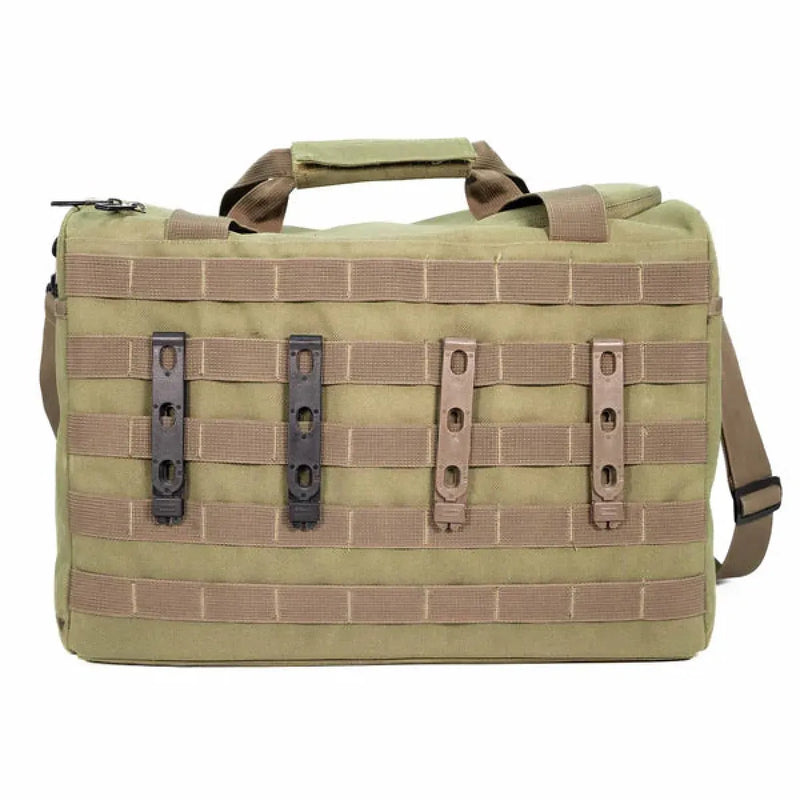

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case, back

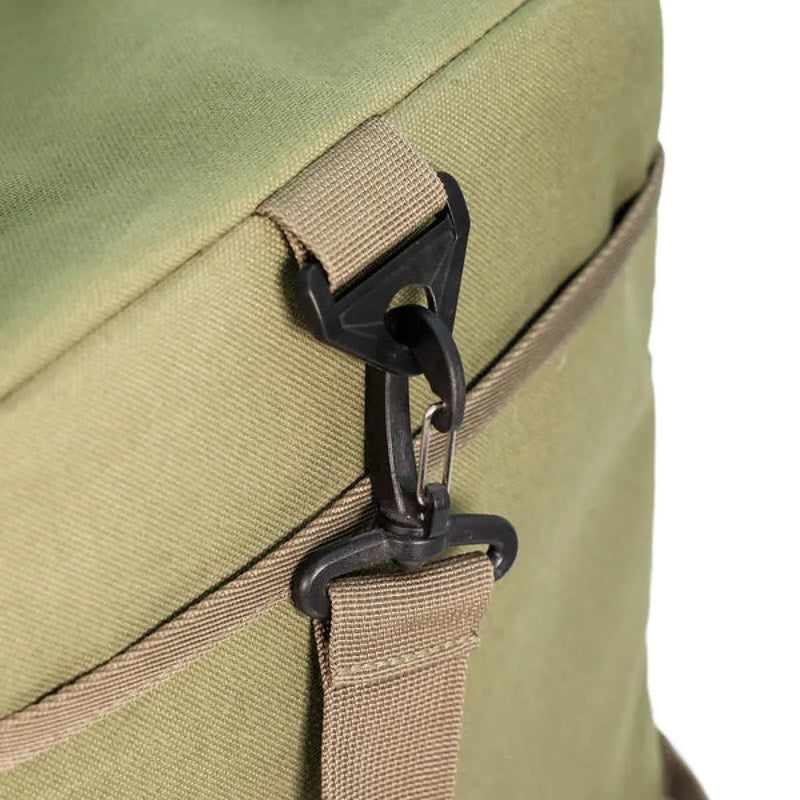

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case strap

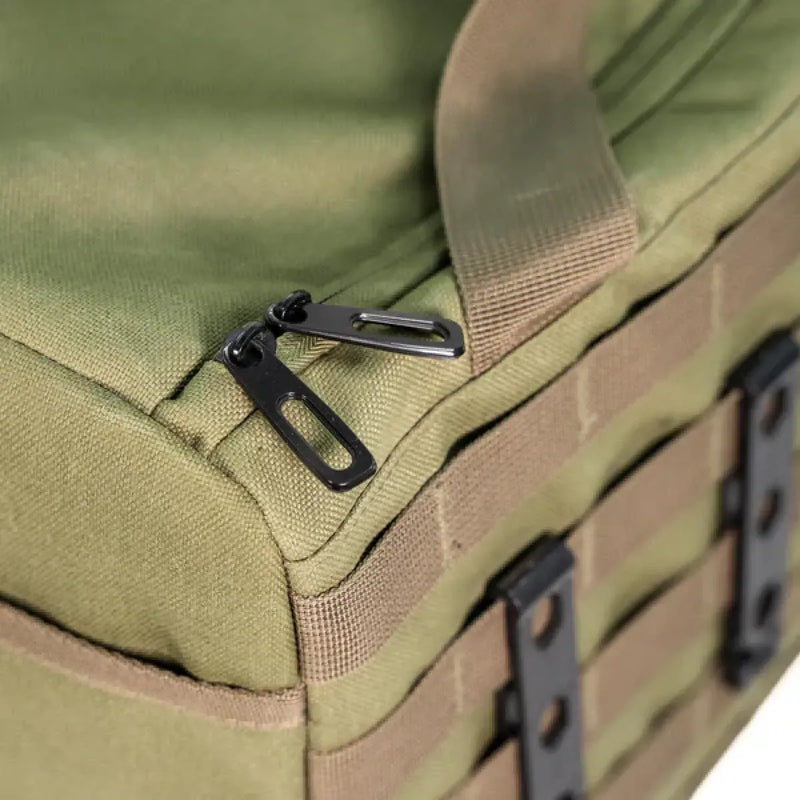

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case zip detail

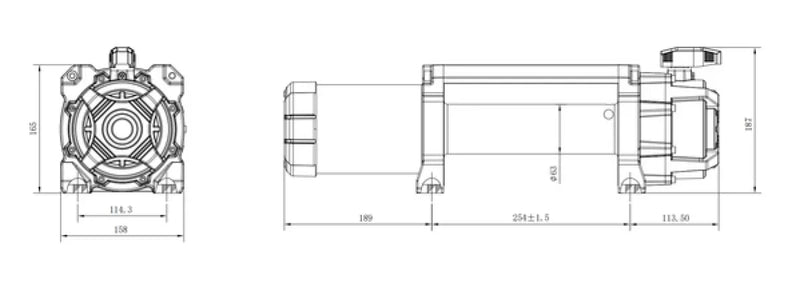

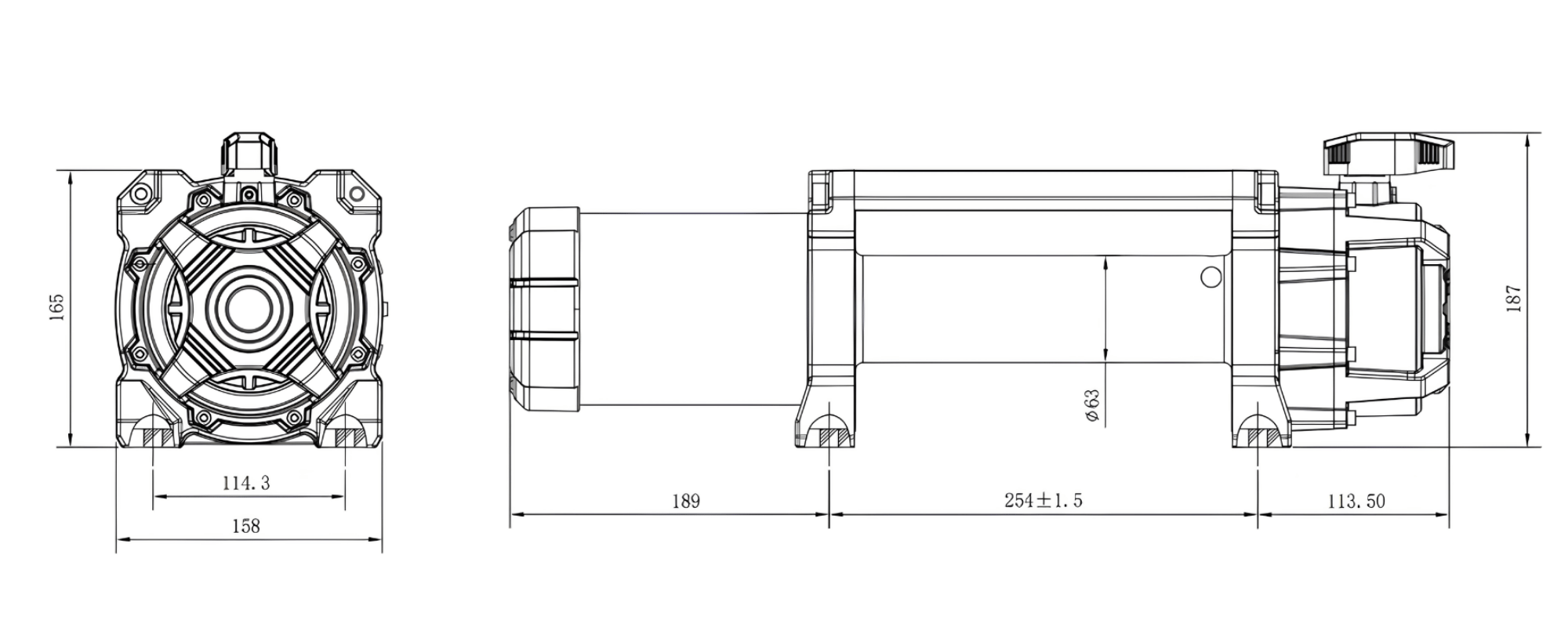

Carbon Scout Pro 15K Winch and Recovery Kit Bundle - technical dimension diagram
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch detail photo
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - black recovery hook
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch product photo
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch and control box
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch mounted on a bullbar
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - blue recovery hook
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - orange recovery hook
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - winch with hook detail
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - Tactical Response Kit contents
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case, front
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case, back
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case strap
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - recovery kit carry case zip detail
Carbon Scout Pro 15K Winch and Recovery Kit Bundle - technical dimension diagram

Carbon Scout Pro 15.0K V3 Electric Winch + Tactical Response Recovery Kit Bundle

by Carbon Offroad
SKU
$1,529.00 - $1,529.00
$1,529.00
$1,529.00 - $1,529.00
$1,529.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

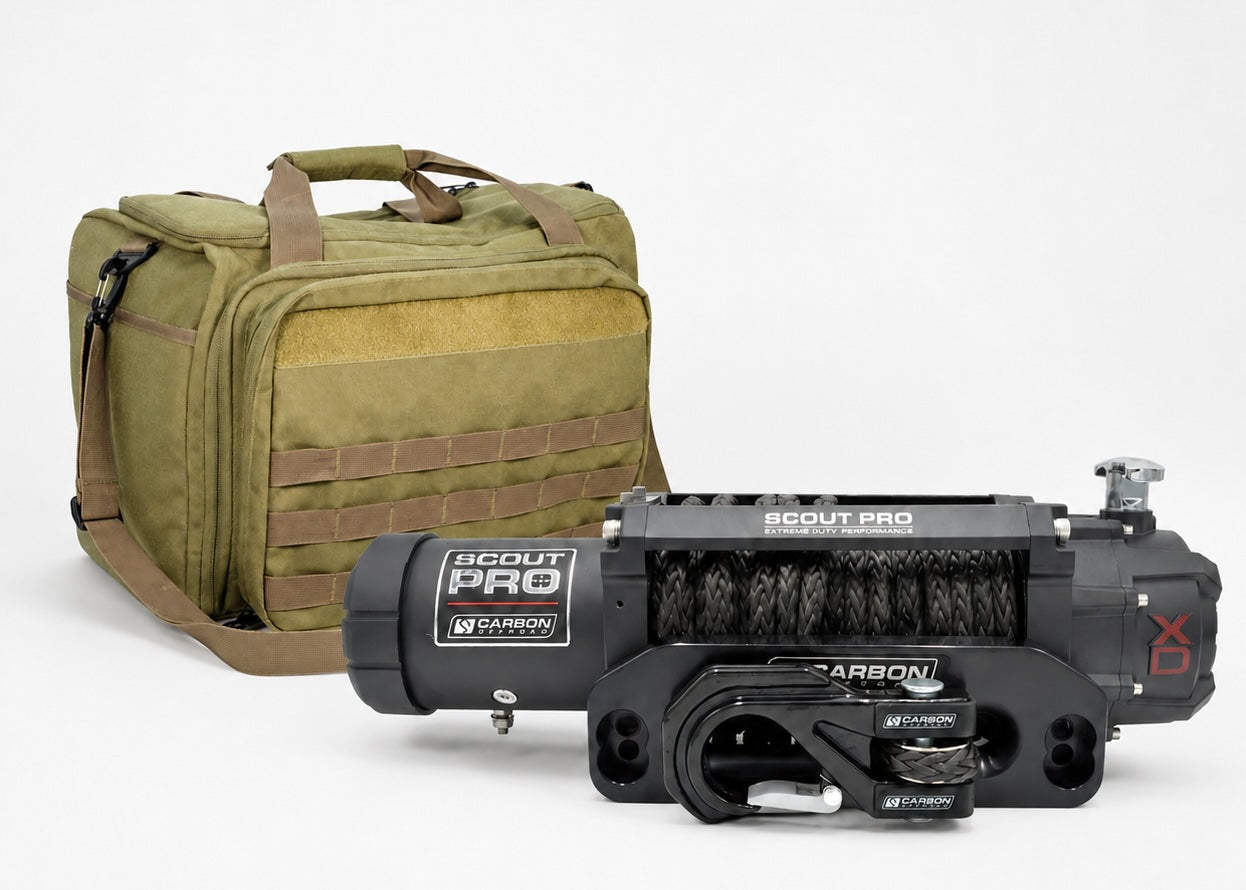

Scout Pro 15.0K V3 Electric Winch + Tactical Response Recovery Kit Bundle by Carbon Offroad

The Carbon Scout Pro 15K Winch and Tactical Response Recovery Kit Bundle is built for rigs that have outgrown a standard 12,000lb winch. The Scout Pro 15K pulls 15,000lb (6803kg) single-line from a 7.0HP motor, enough headroom for a loaded 79 Series, a RAM 1500, or a LandCruiser wagon towing through sand or carrying a slide-on camper. Paired with the Tactical Response Kit's 9,000kg kinetic rope, winch ring and four 18,000kg soft shackles, you've got the pulling power and the rigging to back it up.

Buying the two separately at full price costs more: the winch alone is $1,299 RRP, the Tactical Response Kit $455 RRP, for $1,754 combined. This bundle is $1,529, saving you $225, or 12.8% off RRP. Shipping is also free nationwide on the bundle, so there's nothing extra to add at checkout regardless of where in Australia you are.

The winch's hook comes in ten colours, so you can still colour-match the front of your rig while stepping up to the extra pulling power. Everything ships together: the winch, control box and mounting hardware, and the full Tactical Response Kit ready to rig.

Features

  • 15,000lb (6803kg) single-line pull from a 7.0HP 12V motor through a 218:1 three-stage planetary gearbox
  • Built for rigs that have outgrown a 12,000lb winch: loaded 79 Series, RAM 1500 and LandCruiser wagons, slide-on campers and heavy towing setups
  • Rotating ring gear geartrain with an automatic brake in the motor bracket
  • CNC billet, hard anodised multi-position fairlead
  • 24m x 11mm UHMWPE synthetic rope rated to 9,000kg minimum breaking strength
  • Wired and wireless remote control included
  • 9,000kg kinetic recovery rope in the Tactical Response Kit for smoother, lower-shock extractions
  • Four 18,000kg soft shackles plus a winch ring and a 5m all-purpose rope for flexible rigging
  • Choice of ten hook colours on the winch
  • Free nationwide shipping on this bundle, no extra cost at checkout

Winch Specifications

  • Part number: CW-XD15
  • Rated line pull: 15,000lb (6803kg), single-line
  • Motor: 12V DC, 7.0HP series wound (24V option available)
  • Gear ratio: 218:1, 3-stage planetary with rotating ring gear
  • Brake: Automatic, in the motor bracket
  • Fairlead: CNC billet, hard anodised, multi-position
  • Synthetic rope: 24m x 11mm UHMWPE (9,000kg minimum breaking strength)
  • Drum size: 63.5mm diameter x 224mm length
  • Mounting bolt pattern: 254mm x 114.3mm
  • Winch dimensions (L x W x H): 535 x 158 x 187mm
  • Packed dimensions: 580 x 200 x 220mm
  • Weight (with rope, control box, cables, bolts, fairlead): 26.7kg
  • Recommended battery: 650 CCA minimum
  • Remote control: Wired (3.6m lead) and wireless

Tactical Response Kit Specifications

  • Kinetic recovery rope: 9,000kg
  • All-purpose recovery rope: 5m
  • Winch ring: 1x
  • Soft shackles: 4 x 18,000kg

Winch Performance by Layer

Line Pull lbs (kg) Line Speed ft/min (m/min) Motor Current Rated Line Pull, layer/lbs (kg)
0 27.9 (8.5) 65 amps 1 / 15,000 (6803)
2000 (910) 11.8 (3.6) 120 amps 2 / 12,700 (5765)
6000 (2720) 9.5 (2.9) 160 amps 3 / 10,770 (4890)
10000 (4540) 6.6 (2.0) 215 amps 4 / 9,130 (4145)
13000 (5900) 4.6 (1.4) 265 amps –
15000 (6803) 3.6 (1.1) 380 amps –

What's Included

Winch

  • 1 x Carbon Offroad CW-XD15-V3 Winch
  • 1 x Synthetic Rope (11mm x 24m)
  • 1 x Carbon Offroad MegaPro Fairlead
  • 1 x Control Box Complete with Cables
  • 1 x Wired Remote Control (3.6m lead)
  • 1 x Wireless Remote Control
  • 1 x Mounting Bolts Kit

4x4 Tactical Response Kit

  • 1 x 9,000kg Kinetic Recovery Rope
  • 1 x 5m All-Purpose Recovery Rope
  • 1 x Winch Ring
  • 4 x 18,000kg Soft Shackles

Frequently Asked Questions

What's the rated line pull on the Scout Pro 15K winch in this bundle?

The Scout Pro 15K pulls 15,000lb (6803kg) in a single line, from a 7.0HP 12V motor through a 218:1 three-stage planetary gearbox with a rotating ring gear and an automatic brake in the motor bracket.

How many amps does the Scout Pro 15K draw, and what battery do I need?

Motor current climbs with load, from 65 amps at no load up to 380 amps at the full 15,000lb rated pull. Carbon recommends a minimum of 650 CCA (cold cranking amps) for reliable performance, and if you're planning regular heavy pulls, a dedicated starting battery or an auxiliary battery is worth considering.

What comes in the box with the Scout Pro 15K winch?

The winch component includes the CW-XD15-V3 winch itself, 24m of 11mm synthetic rope, a CNC billet hard anodised fairlead, a control box complete with cables, a wired remote (3.6m lead), a wireless remote, and a mounting bolts kit.

What's included in the Tactical Response Kit component of this bundle?

The Tactical Response Kit includes a 9,000kg kinetic recovery rope, a 5-metre all-purpose recovery rope, a winch ring, and four 18,000kg soft shackles, giving you gear for both kinetic and winch-assisted recoveries.

What's the 5-metre all-purpose rope in the kit used for?

The kit pairs the 9,000kg kinetic rope with a shorter 5-metre all-purpose rope for extra flexibility, useful for tasks like extending a connection or rigging an anchor point where you don't need the kinetic rope's stretch.

Can I buy the winch and the Tactical Response Kit separately, and is the bundle cheaper?

Both are stocked as separate products. At full price, the Scout Pro 15K winch and the Tactical Response Kit combined come to $1,754 ($1,299 plus $455), so this bundle at $1,529 saves you $225, or 12.8% off RRP. Shipping is also free nationwide on the bundle, so there's no freight cost to add on top.

What hook colour comes with this bundle?

The winch's hook is available in ten colours, selected as the product variant when you order. The Tactical Response Kit is the same regardless of which colour you pick.

Is the Scout Pro 15K a step up from a standard 12,000lb winch?

Yes. It's built to sit between standard ute-sized winches and heavyweight truck winches, aimed at vehicles that have outgrown a 12,000lb rating, loaded 79 Series, RAM 1500 and LandCruiser wagons, or rigs regularly towing or carrying a slide-on camper off-road. It shares the same V3 chassis as Carbon's 12K winch, so fitment is similar, though the longer motor means it pays to check clearance on tighter dual-cab or 70/200 Series installs before fitting.
