Carbon Offroad 10,000lb Scout Pro Extreme Winch | V3

SKU CW-XD10BLK
Save $100.00 Save $100.00
Original price $1,249.00
Original price $1,249.00 - Original price $1,249.00
Original price $1,249.00
Current price $1,149.00
$1,149.00 - $1,149.00
Current price $1,149.00
Free Metro Shipping! 🚚
4x4 Down Under Buy Now Pay Later Options
    WHY SHOP WITH US?
  • Fast Shipping with Free Insurance
  • Australian Owned and Operated
  • Expert Before & After Sales Service
  • Easy Returns & Full Warranty Support

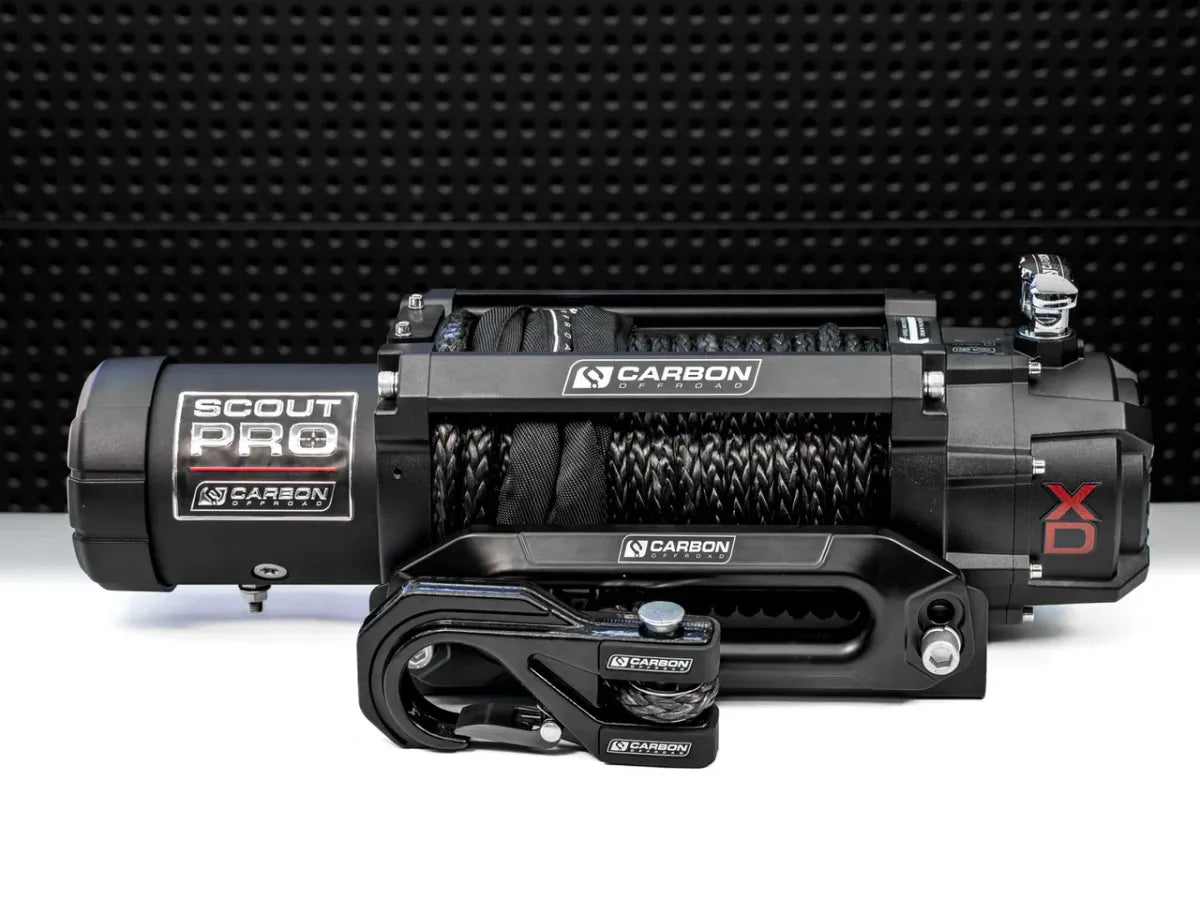

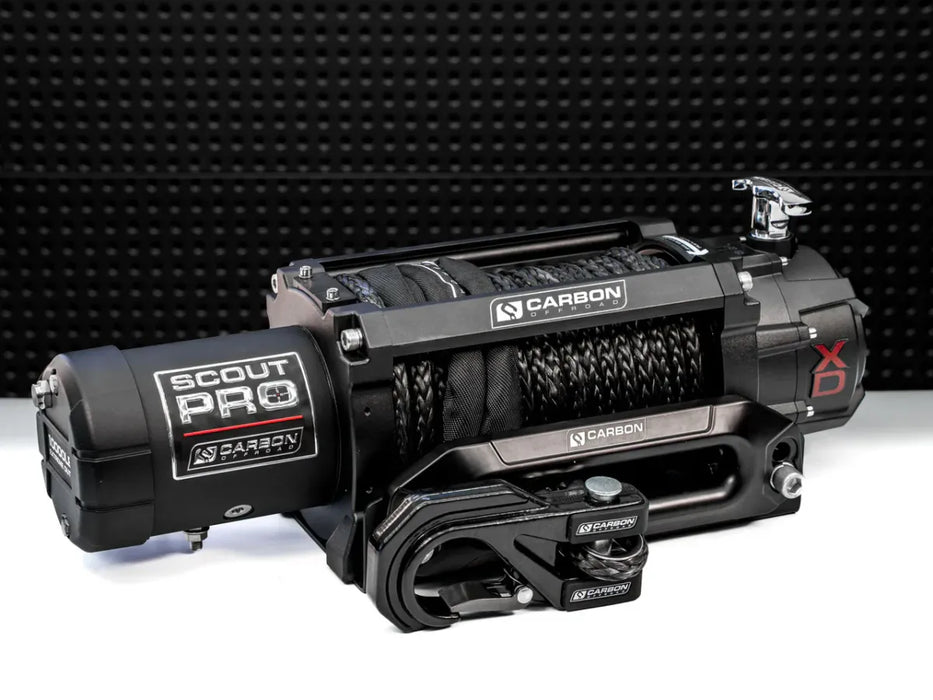

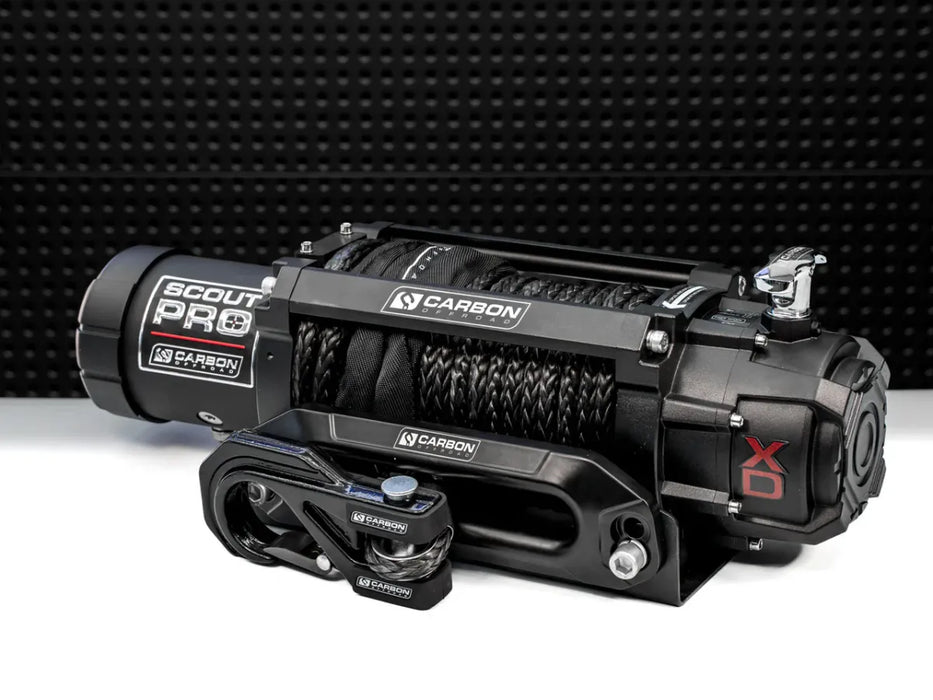

Introducing the 3rd Generation Scout Pro Extreme Duty Performance 10,000lb Winch from Carbon Offroad

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are engineered for frequent, heavy-duty use in tough off-road conditions. Whether you're tackling challenging terrain regularly or driving a heavily kitted-out vehicle—especially when towing—this winch is built to handle the demands.

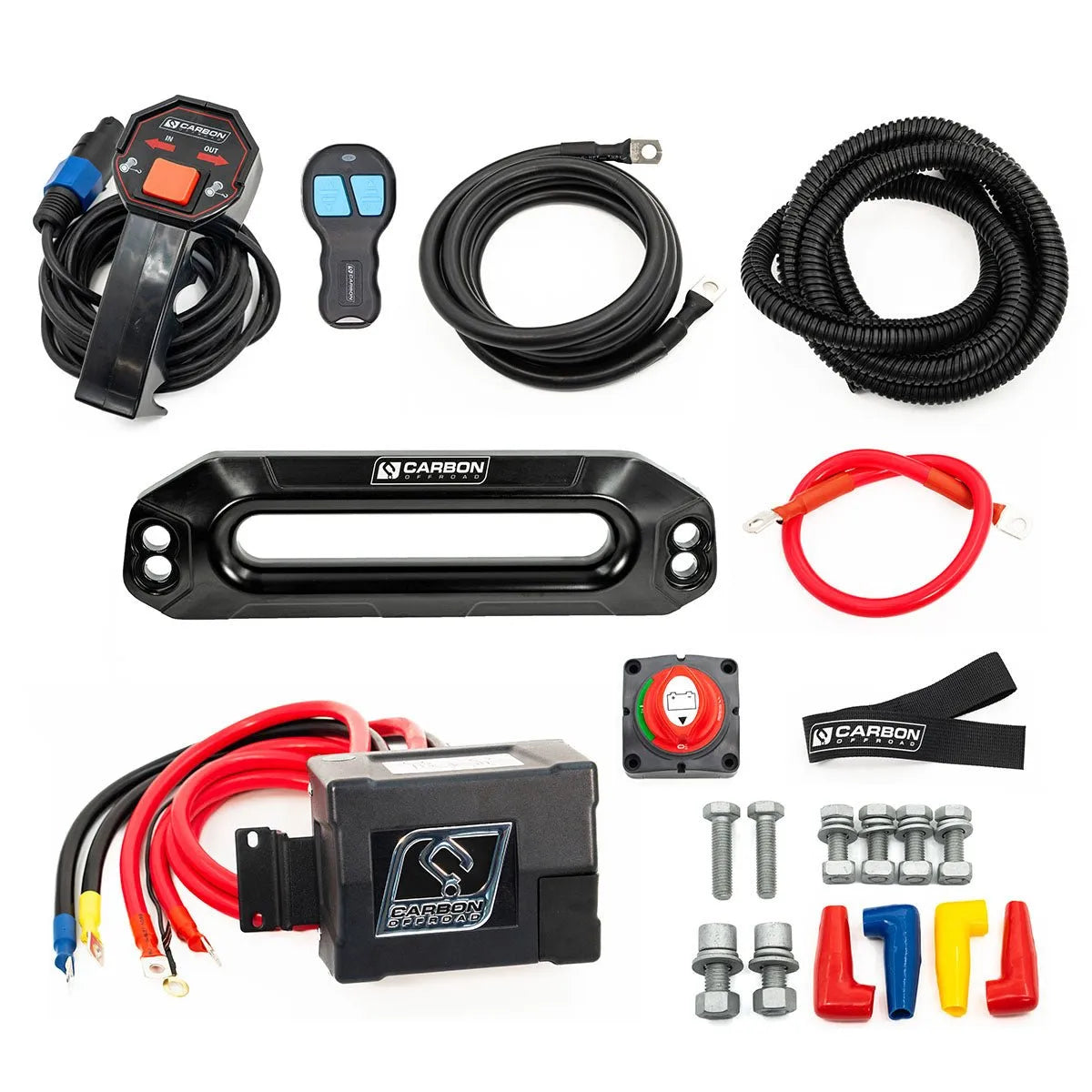

Featuring larger modulus gearsets compared to our CW-12K model, increased motor horsepower, and premium accessories like the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, this winch delivers top-tier performance straight out of the box.

Specifications

  • Part number: CW-XD10
  • Rated line pull: 10,000 lbs, (4536kg) single-line
  • Motor: 12V DC 6 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.7m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 179:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead

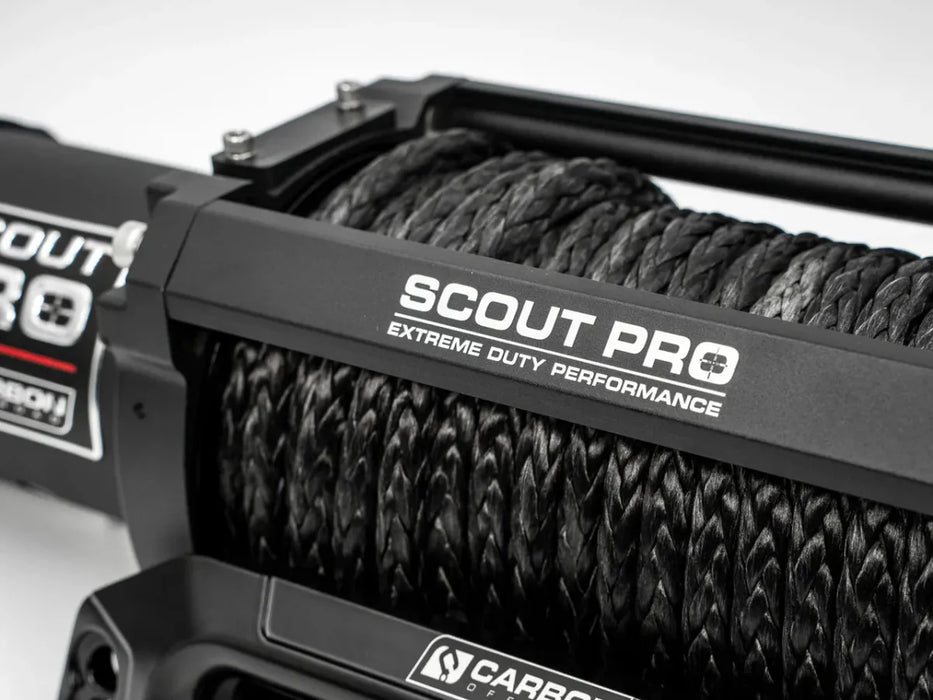

  • Synthetic Rope: 24m x 9mm diameter
  • Drum Diameter/Length: 63.5mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 535 x 158 x 187mm
  • Packing Dimensions (L x W x H): 580 x 200 x 220mm
  • Winch weight with synthetic rope attached: 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg

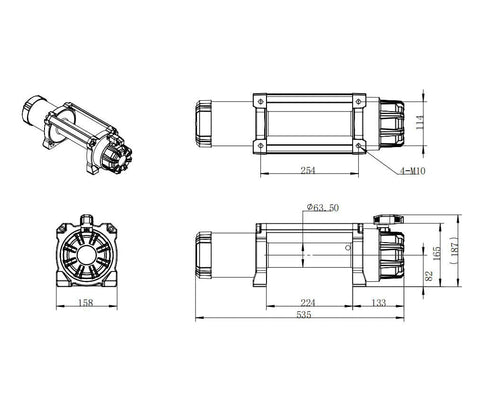

Dimensions

cwxd10.jpg__PID:a1228c05-8583-4f36-a82f-2dca8808ae33

Performance Specifications

Performance Specs (First Layer of Drum)
Line Pull (lbs (kg)) Line Speed (ft/min (m/min)) Motor Current (amps) Pull By Layer (layer/lbs (kg))
0 31.8 (12.8) 60 amps 1/10000 (4536)
2000 (1907) 15.1 (4.6) 120 amps 2/8200 (3720)
4000 (1814) 12.8 (3.9) 190 amps 3/6840 (3103)
6000 (2722) 10.8 (3.3) 255 amps 4/5820 (2640)
8000 (3630) 9.2 (2.8) 320 amps
10000 (4536) 7.9 (2.4) 380 amps

Warranty

  • Lifetime Manufacturer Mechanical Warranty
  • 5 Year Electrical Manufacturer Warranty
  • 5 Year Water Ingress Protection Manufacturer Warranty
