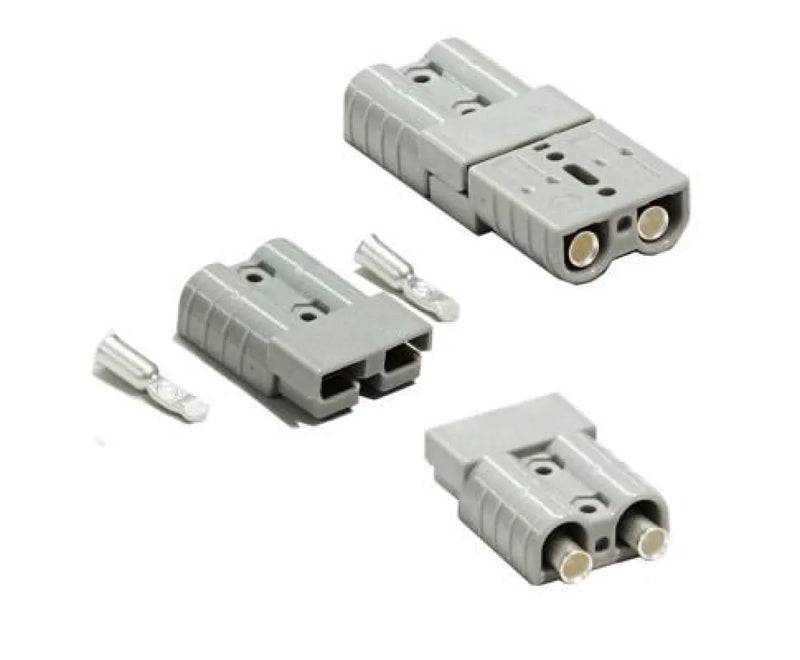

Anderson Plug Set | 175AMP
Superior quality and engineered for tough outdoor conditions, these plugs are impact resistant polycarbonate while connectors are silver plated solid copper terminals.
Ideal for environments where a durable, rugged connector, capable of low voltage, high current applications from 12-24 volts up to 175 Amps is required.
The silver plated solid copper terminals offer low resistance for superior conductivity, as silver plated copper contacts inside housings that strongly force the contacts together.
Suitable for solar panels, dual battery systems, caravans, 4WD, fridges etc
These plugs form a reliable weather and vibration resistant connection, can not be cross connected, and are most commonly used to connect auxiliary power from a vehicle to a trailer
These plugs are compatible with other grey Anderson Style 175A connectors.
- Amperage Rating: 175A
- Voltage: Max 600V
- Operating Voltage: For 12v or 24v Use
- Colour: Grey
- Operating Temperature:-20C to 105C
- Cable Size: 6B&S / 6AWG (up to 13.3 sq mm)
- Dimension: 180x180x40mm
- Weight 550g
- 1 Year Warranty

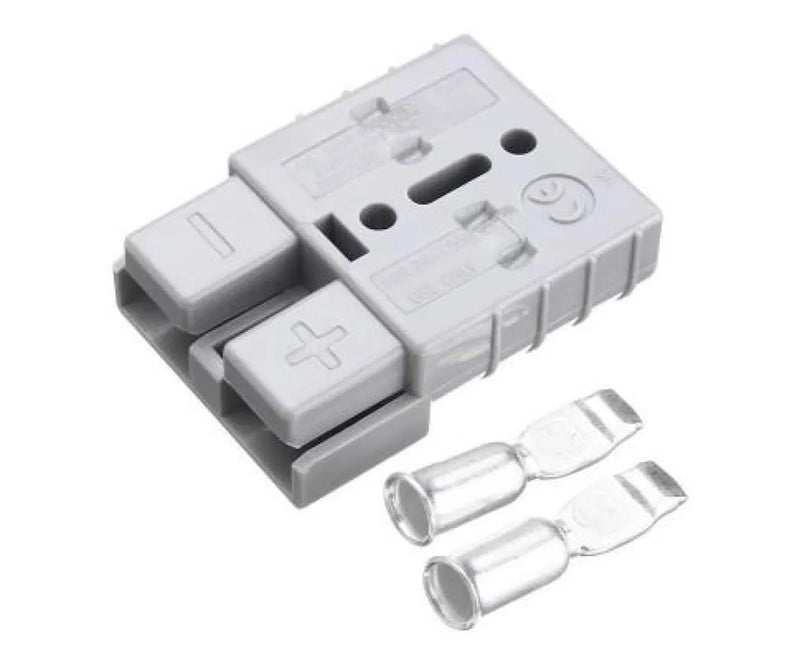

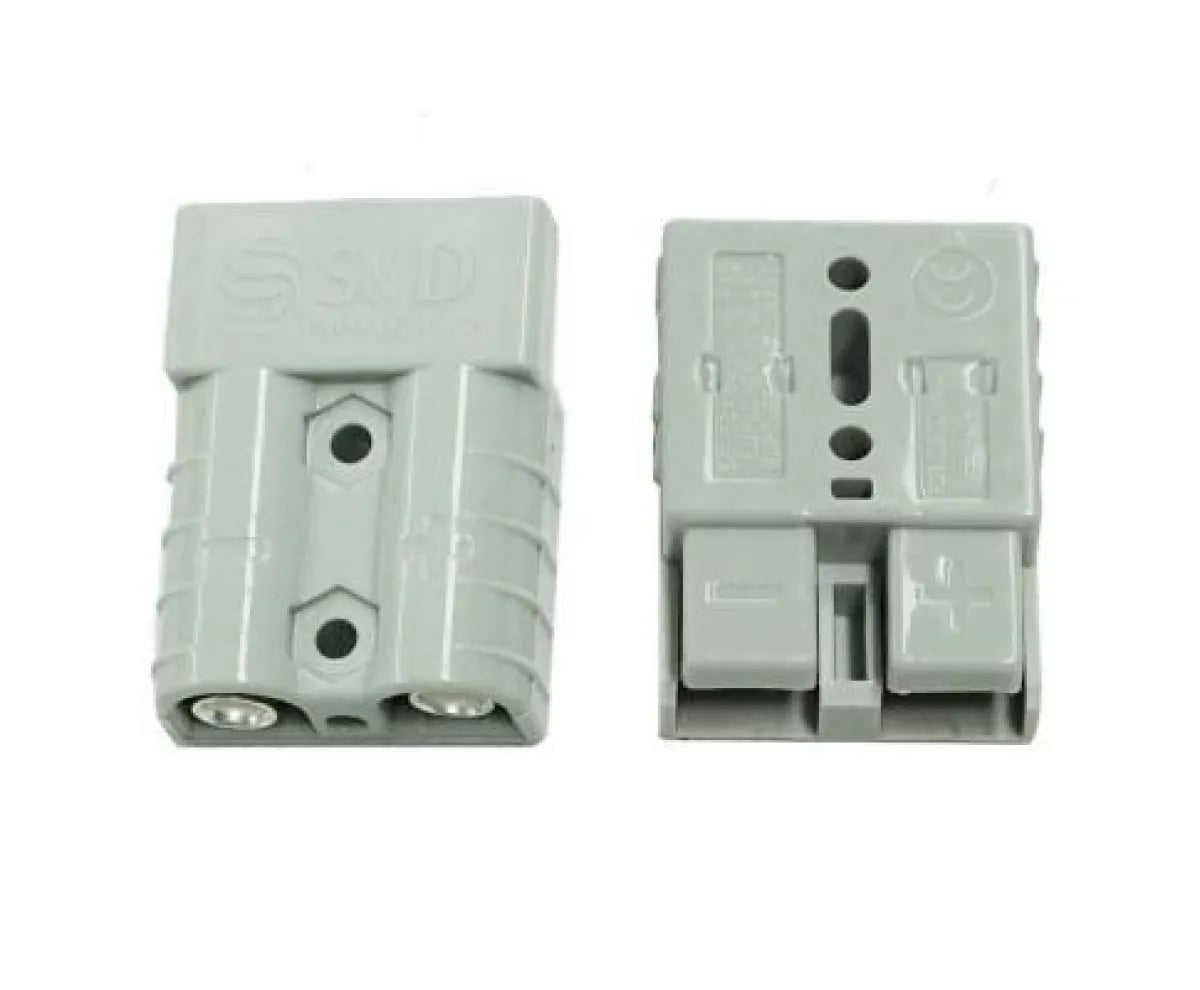

- 2x Anderson Style Plug
- 4x Anderson Style Terminals
