Runva EWL vs XP Series Winches

We compare the differences between Runva's two most popular winch ranges, the EWL Series vs the XP Premium

The Runva EWL Series and Runva XP Series winches are both great options and cater to the same weight classes of 9,500lb - 13,000lb line pull. There are however some differences that are worth considering when trying to decide which winch is best for you.

Both series serve slightly different purposes and come with distinct features. To summarise, the EWL winch range are aimed at the more entry level offroader. Someone who's looking for a winch that's more for insurance on the very remote chance that he or she might get stuck. They're still excellent winches, but they're not designed for consistent heavy use.

The XP series on the other hand are designed for the seasoned offroad enthusiast. The type of driver who knows that where they're going they will almost certainly need a winch, and that winch will need to work hard.

We dig into the specific differences below:

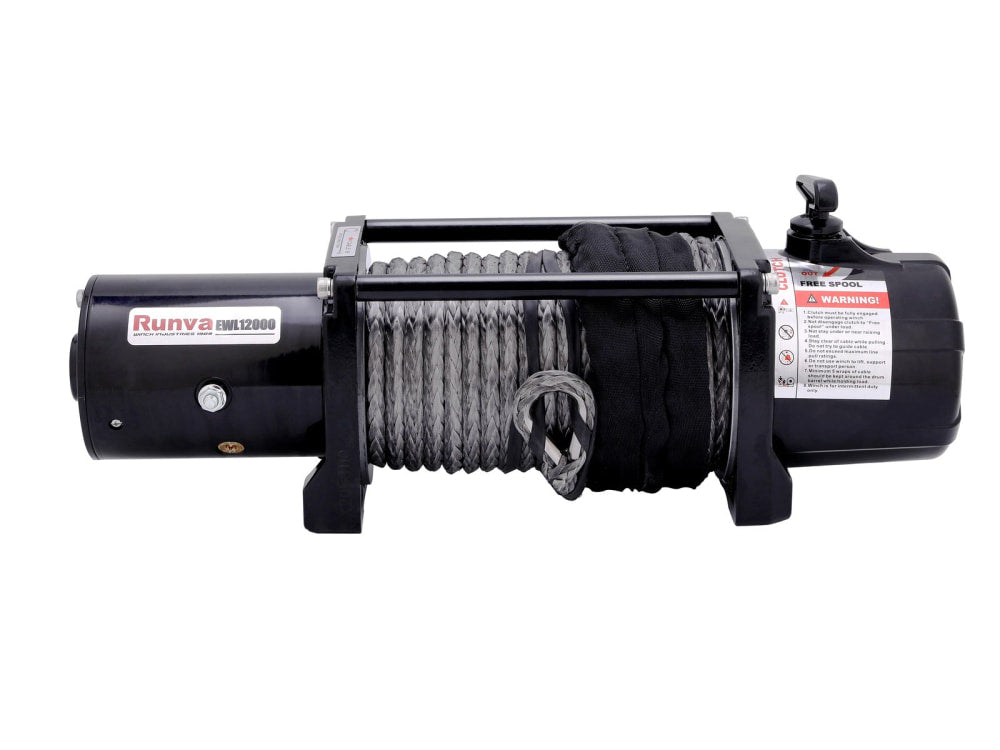

Runva EWL Winch Series

• Designed for: General-purpose winching (suitable for 4x4 vehicles, light recovery tasks, and occasional use).
• Motor Type: Series wound motor – reliable for intermittent use with good power and efficiency.
• Line Speed: Typically slower compared to the XP series.
• Control Options: Includes both wired and wireless remotes.
• Waterproofing: Good level of waterproofing ( same sealing process as XP series, but not officially IP rated).
• Rope Options: Available with synthetic rope or steel cable.
• Duty Cycle: Moderate – built for occasional heavy use, but not as intense or frequent as the XP series.
• Affordability: Generally more affordable than the XP series, making it a great entry-level option for everyday 4WD enthusiasts.

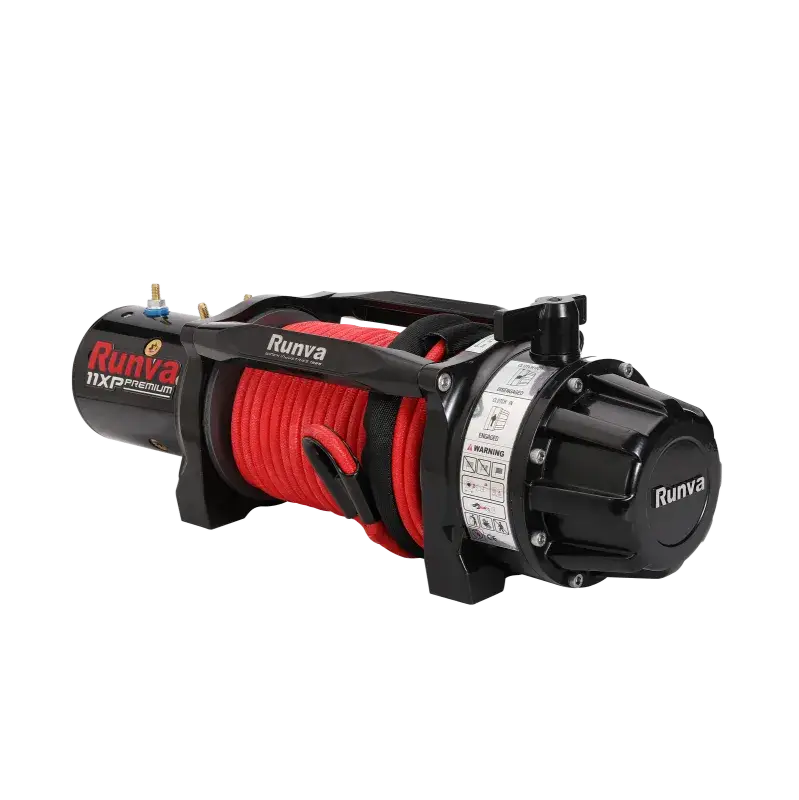

Runva XP Series

• Designed for: Heavy-duty, frequent winching (ideal for serious off-roaders and extreme recovery situations).
• Motor Type: High-performance series wound motor – delivers more torque and power under load.
• Line Speed: Faster, even under heavy load, compared to the EWL series.
• Control Options: Premium control box with dual remote (wired and wireless options).
• Waterproofing: Excellent waterproofing (IP67 or higher on most models), built to withstand harsh off-road conditions.
• Rope Options: Available in both synthetic and steel cable versions.
• Duty Cycle: Built for frequent and prolonged use – handles extreme conditions with ease.
• Price: More expensive due to the higher performance and durability.

Braking System

EWL Series

• Uses a drum-mounted brake (inside the drum).
• This system applies braking directly to the winch drum, which can cause heat buildup on the rope during prolonged or heavy winching.
• Particularly a concern with synthetic rope, as heat can degrade or damage it.
• Suitable for general-purpose winching but not ideal for long or intense recoveries.

XP Series

• Features a patented Ratchet Braking System (RBS).
• The brake is located outside the drum, eliminating heat transfer to the rope.
• Safer for synthetic ropes and ensures more consistent, reliable braking performance.
• Designed for heavy-duty and continuous use without risking rope damage.

Gear System

EWL Series

• Utilises a 3-stage planetary gear system.
• Offers good strength and efficiency for standard winching tasks.
• Gear ratio is generally higher, meaning more pulling power but slower line speed.

XP Series

• Also uses a 3-stage planetary gear system, but with stronger and more durable components.
• Lower gear ratios provide faster line speeds and higher efficiency under load.
• The gears are more refined to handle higher torque and repeated heavy use.

Which One Should You Choose?

EWL Series: Best for casual 4x4 enthusiasts or those needing a reliable winch for occasional recoveries.

XP Series: Ideal for serious off-roaders, tourers, or those who regularly encounter challenging recovery situations.
