Runva 11 Expedition 12v 4x4 Winch Full Size

Runva 11 EXPEDITION Winch | 11,000lb | 12V / 24V

Runva 11Expedition Winch with Synthetic Rope

Runva 11Expedition Winch with Synthetic Rope

by Runva

SKU 11EXPEDITION12V

$1,295.00 - $1,295.00

$1,295.00

$1,295.00 - $1,295.00

$1,295.00

Quantity

4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

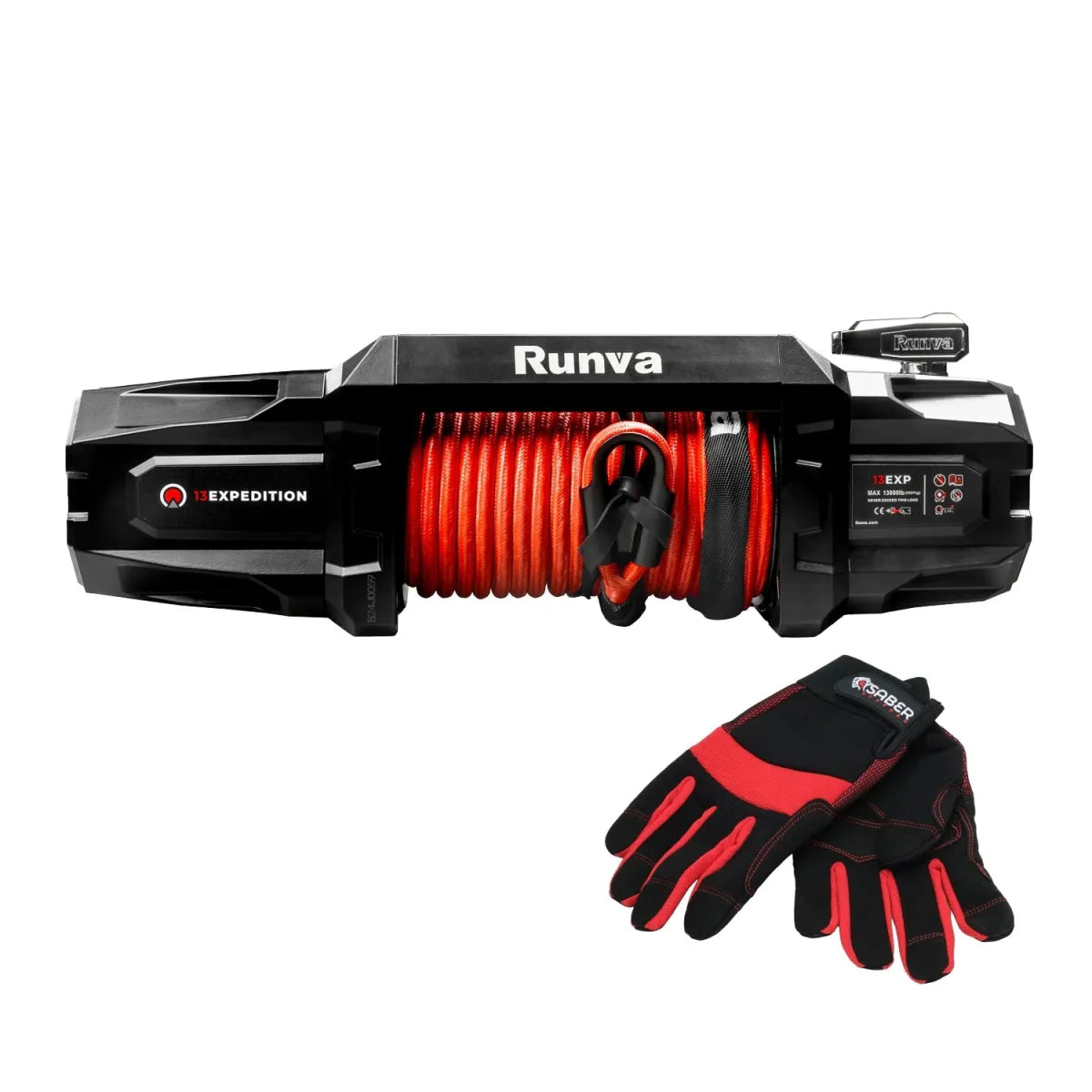

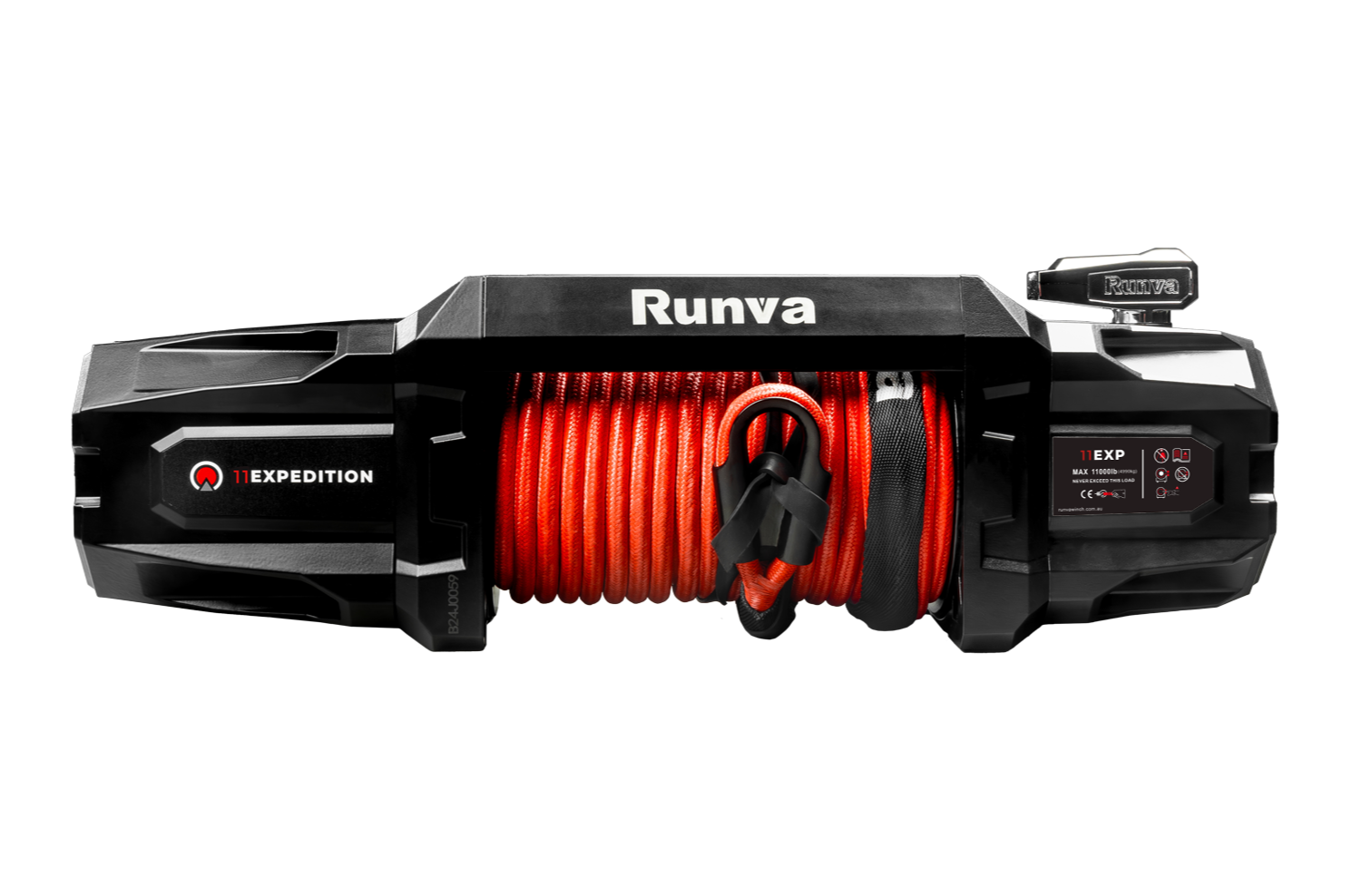

11EXPEDITION Winch with Synthetic Rope by Runva

When it comes to 4WD recovery, reliability and strength are non-negotiable, and the Runva 11EXPEDITION delivers both in a compact, high-performing package.

Designed by the same trusted team behind the 11XP Premium, this next-generation model combines a newly engineered chassis and upgraded clutch system with an 11,000lb (4,990kg) rated line pull. It gives most off-roaders serious pulling power without unnecessary weight on the front end.

Its compact body, standard 254mm x 114.3mm mounting pattern and stainless steel rotary clutch are built for demanding recoveries. A rechargeable wireless remote with an LED torch and battery indicator, a heavy-duty wired remote and an in-cab rocker switch provide flexible control when conditions get difficult.

11,000lbRated line pull

4,990kgRated line pull

191:1Gear ratio

IP67Waterproof rating

Features

11,000lb (4,990kg) rated line pullSuited to dual cabs, touring rigs and lighter 4WD builds.

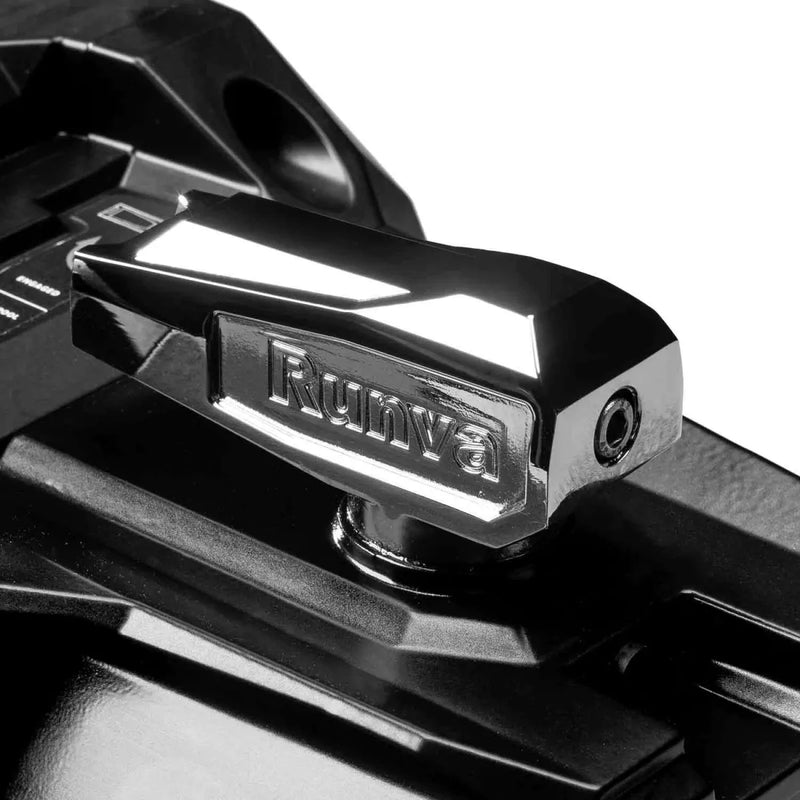

Stainless steel rotary clutchSmooth, reliable engagement under load.

High line speedUp to 5.9ft/min under full load on 24V.

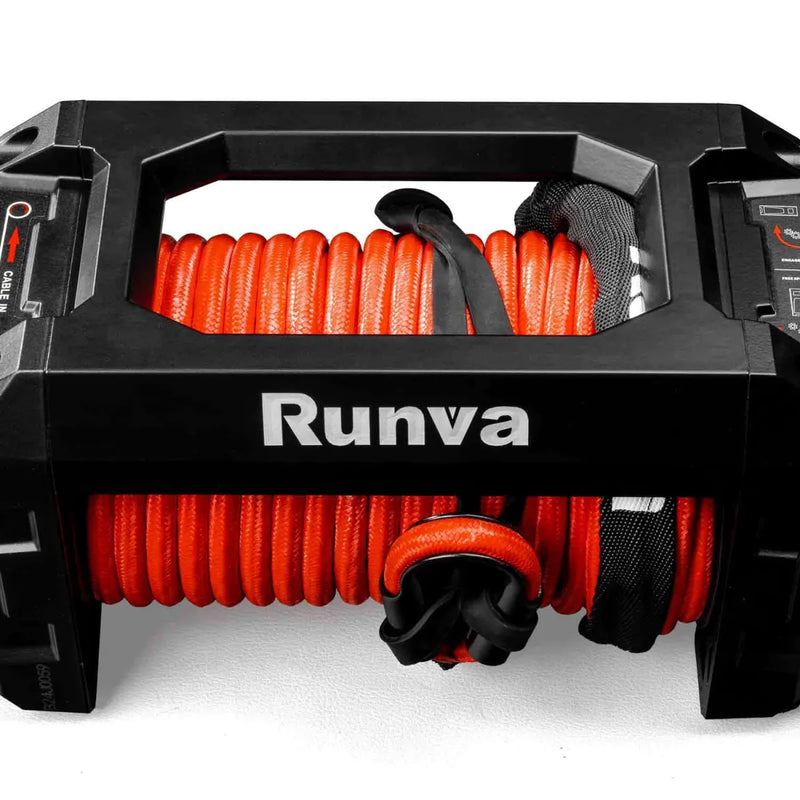

11mm synthetic ropeLightweight and easier to handle than steel cable, with a 25,250lb rating.

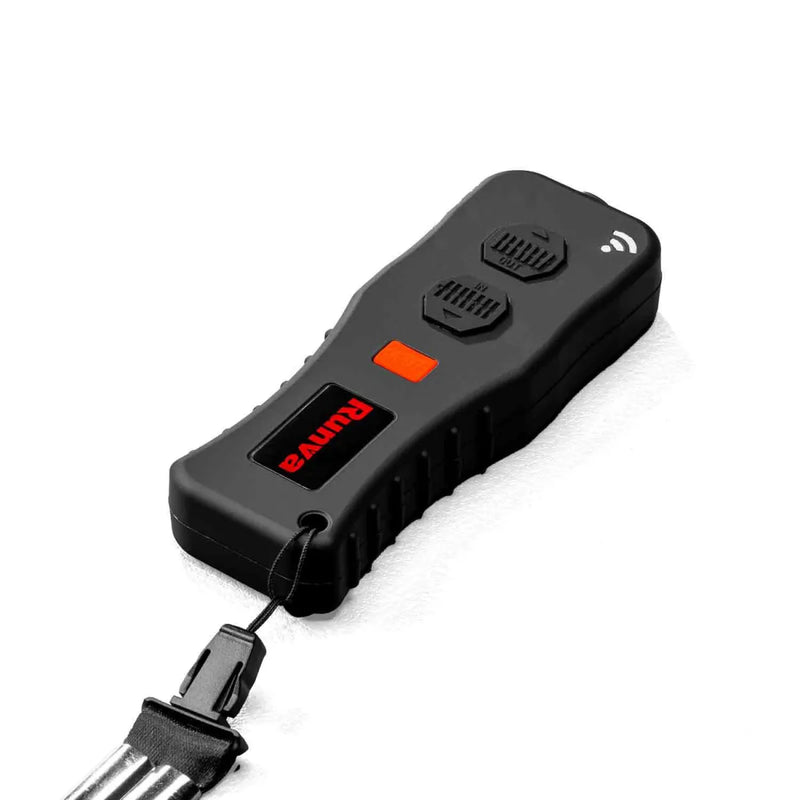

Rechargeable wireless remoteIncludes an LED torch and battery level indicator.

Heavy-duty wired remoteProvides dependable backup control.

In-cab rocker switch and line kitOperate the winch from the driver’s seat.

Full steel three-stage planetary gearboxDelivers strong and consistent pulling performance.

IP67 waterproof ratingHelps keep out water, dust and grime.

Standard mounting footprint254mm x 114.3mm bolt pattern for most compatible bull bars.

A closer look at the EXPEDITION winch, its controls and recovery-ready construction.

Specifications

Rated line pull11,000lb (4,990kg)
Motor5.0kW / 6.0kW (12V / 24V)
Gear trainFull steel three-stage planetary
Gear ratio191:1
ClutchStainless steel rotary
BrakeAutomatic ratchet load holding in gearbox
Rope11mm x 25m synthetic rope, rated to 25,250lb
Drum63mm x 217mm
Mounting pattern254mm x 114.3mm
Overall dimensions574mm x 160mm x 190mm
Weight31kg
Shipping weight39kg

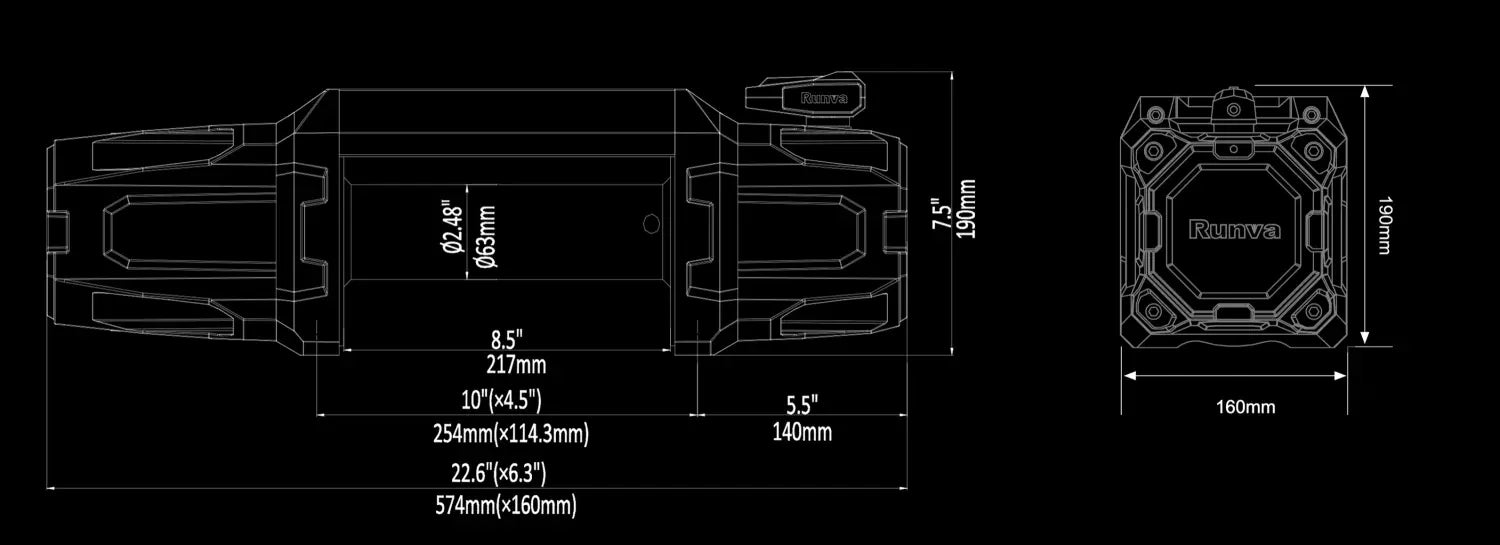

11EXPEDITION Winch with Synthetic Rope by Runva dimension drawing

Controls and finish

Remote controlEXPEDITION rechargeable wireless remote.

Battery leads2 x 1.8m heavy-duty leads.

FinishBlack powder coat.

Clutch handle positionGearbox can be rotated.

Performance

Line pull lb (kg)	12V speed ft/min (m/min)	24V speed ft/min (m/min)	12V current (A)	24V current (A)	Layer	Rated pull lb (kg)	Rope on drum ft (m)
0 (0)	36.1 (11.0)	38 (11.6)	55	40	1	11,000 (4,990)	17.4 (5.3)
4,000 (1,814)	11.5 (3.5)	13.1 (4.0)	215	120	2	8,766 (3,976)	39.4 (12.0)
8,000 (3,629)	6.6 (2.0)	6.6 (2.5)	340	200	3	7,286 (3,305)	65.0 (19.8)
11,000 (4,990)	4.0 (1.2)	5.9 (1.8)	440	250	4	6,233 (2,827)	85.3 (26.0)

Performance note: Maximum line pull capacity is based on the first layer of rope.

What is included with the 11EXPEDITION Winch with Synthetic Rope by Runva

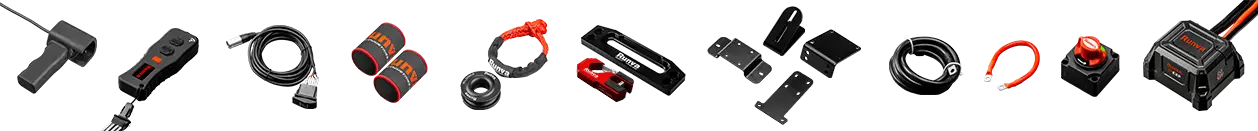

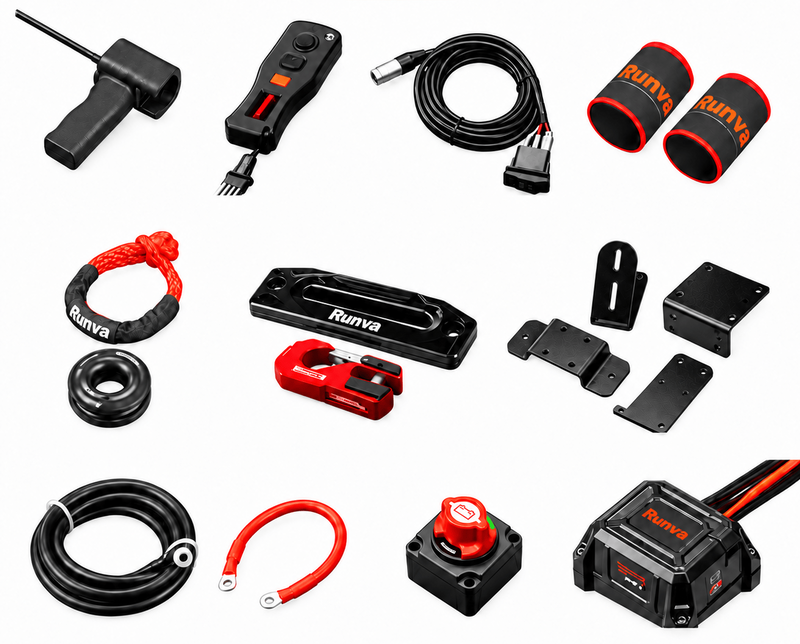

What's in the box

Runva 11EXPEDITION winch, 12V or 24V
11mm x 25m synthetic rope, rated to 25,250lb

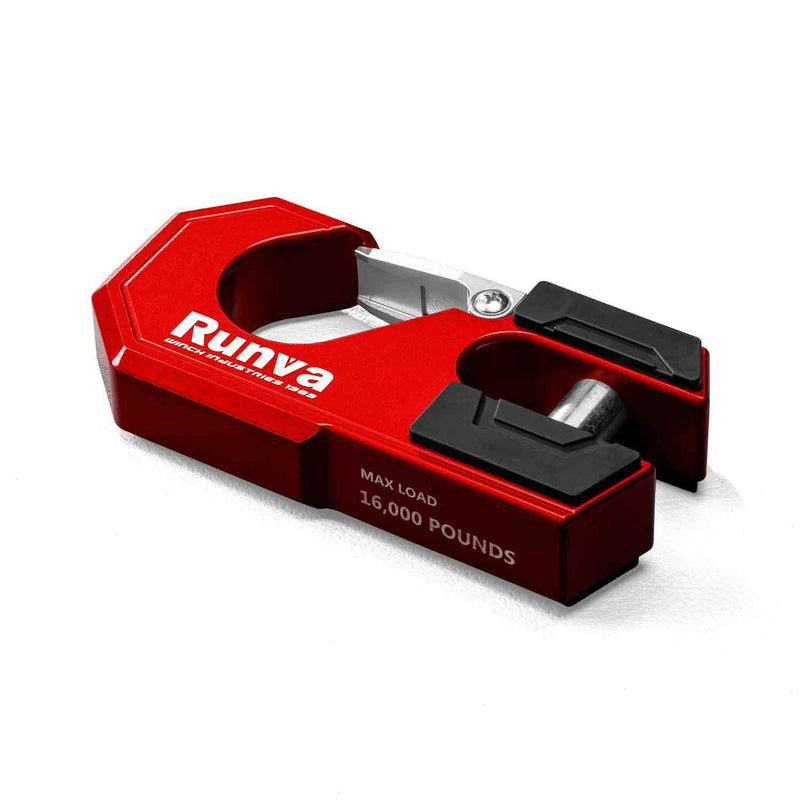

Stainless steel EXPEDITION hook with safety latch

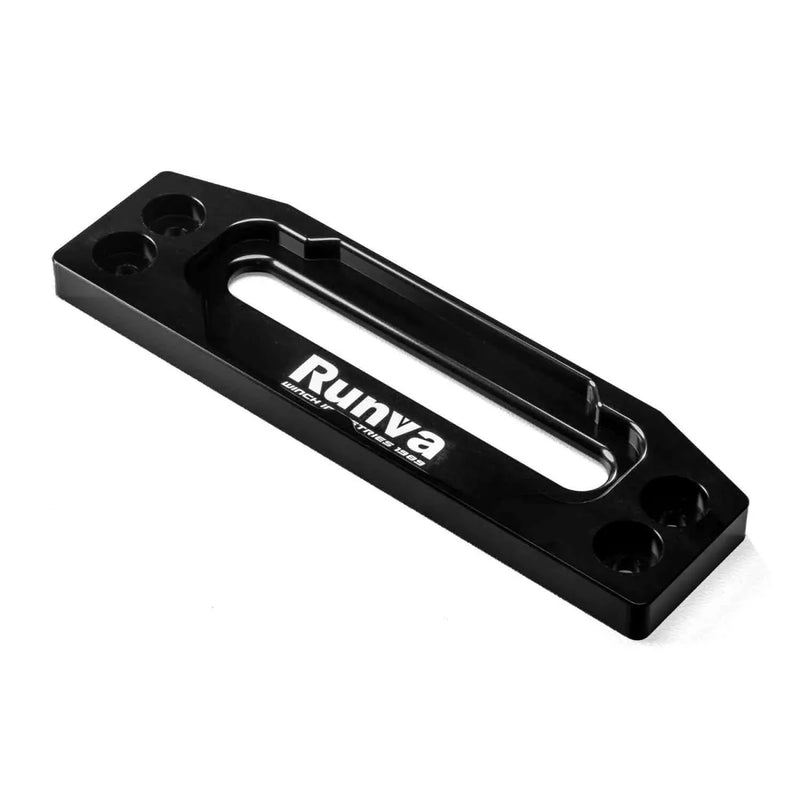

Hybrid alloy and stainless EXPEDITION fairlead
Rechargeable wireless remote with torch and battery indicator
Heavy-duty wired remote
In-cab rocker switch and wiring kit
Soft shackle
Recovery ring
Power isolator switch
Protective winch cover
All required nuts, bolts, wiring and connectors

Warranty

Limited five-year manufacturer warranty for electrical components and lifetime manufacturer warranty for mechanical components.

Frequently Asked Questions

How does the 11EXPEDITION compare to the 11XP Premium?

Both share an 11,000lb (4,990kg) rated line pull, IP67 protection and the standard 254mm x 114.3mm mounting pattern. The 11EXPEDITION adds a newly engineered chassis with a 191:1 gear ratio, stainless steel rotary clutch, rechargeable wireless remote with LED torch and battery level indicator, and an in-cab rocker switch with wiring kit.

Will the 11EXPEDITION fit my bull bar?

It uses a 254mm x 114.3mm bolt pattern with four M10 bolts and measures 574mm x 160mm x 190mm. The source states compatibility with 99% of winch-compatible bull bars. Confirm the available space and mounting pattern before ordering.

What rope is included?

The winch includes 11mm x 25m synthetic rope rated to 25,250lb.

Is there a 24V option?

Yes. Choose the 12V or 24V model to suit the vehicle electrical system. The 12V motor is 5.0kW and the 24V motor is 6.0kW.

What warranty applies?

A limited five-year manufacturer warranty applies to electrical components, with a lifetime manufacturer warranty on mechanical components.
