Warn VR Evo 8-S 12V 8000lb Winch with Synthetic Rope - Winch

Warn VR Evo 10-S winch mounted on an off-road vehicle during a recovery

Warn VR Evo 8-S Winch with Synthetic Rope

Name: Warn VR Evo 8-S Winch with Synthetic Rope
Brand: Warn
SKU: 103251
Price: 1249 AUD
Availability: InStock

by Warn

SKU 103251

Save $100.00

$1,349.00

$1,349.00 - $1,349.00

$1,349.00

$1,249.00

$1,249.00 - $1,249.00

$1,249.00

4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

VR Evo 8-S 12V Winch by Warn

The Warn VR Evo 8-S 12V Winch is purpose-built for lighter 4WDs, Jeeps and SUVs, providing dependable recovery power when mud, rocks, ice or deep ruts stop progress.

Its IP68-rated construction, series-wound motor and three-stage planetary gear train are engineered for harsh conditions. The synthetic rope keeps weight down and is easier to handle than steel cable.

A two-in-one wired and wireless remote provides flexible operation, while the relocatable control pack supports low-profile installations. The result is a practical recovery winch for smaller rigs.

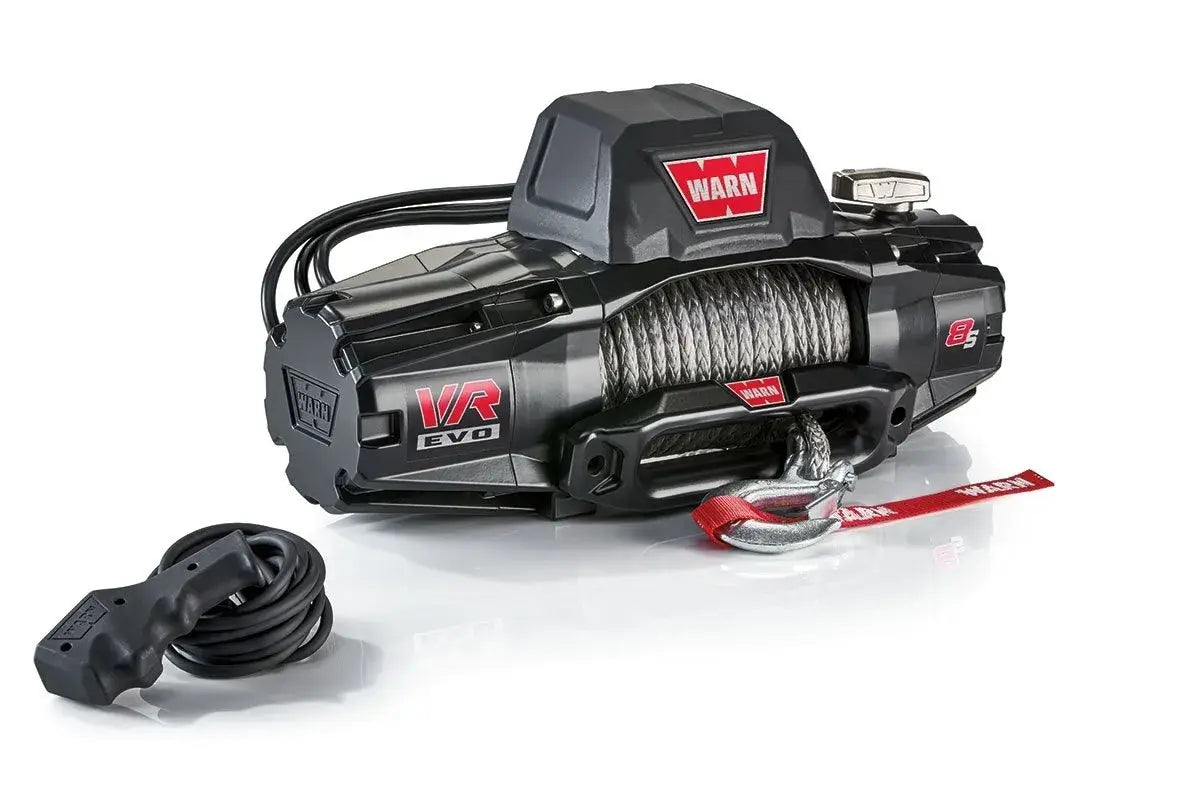

Warn VR Evo 8-S winch with synthetic rope and wired remote

8,000lbRated line pull

IP68Water and dust rating

27.4mSynthetic rope length

25.1kgWinch weight

Features

IP68 protectionWaterproof construction helps protect the winch from water and dust.

Reliable pulling powerA series-wound motor and three-stage planetary gear train support recovery performance.

Albright contactorThe high-performance contactor supports dependable operation.

Flexible installationThe control pack can be relocated for low-profile installations.

Durable constructionA one-piece cast-aluminium tie-plate adds strength.

Two-in-one remoteWired and wireless functions provide flexible control.

Synthetic ropeThe lightweight rope supports safer, easier handling than steel cable.

Specifications

Part numberEVO-8-S-103251
Rated line pull8,000lb (3,629kg), single line
MotorSeries wound
Gear trainThree-stage planetary
Gear ratio218:1
BrakeSpring brake
ClutchRotating ring gear
Weight25.1kg
Overall dimensions534mm L x 160.5mm W x 256mm H
Drum size64mm x 230mm

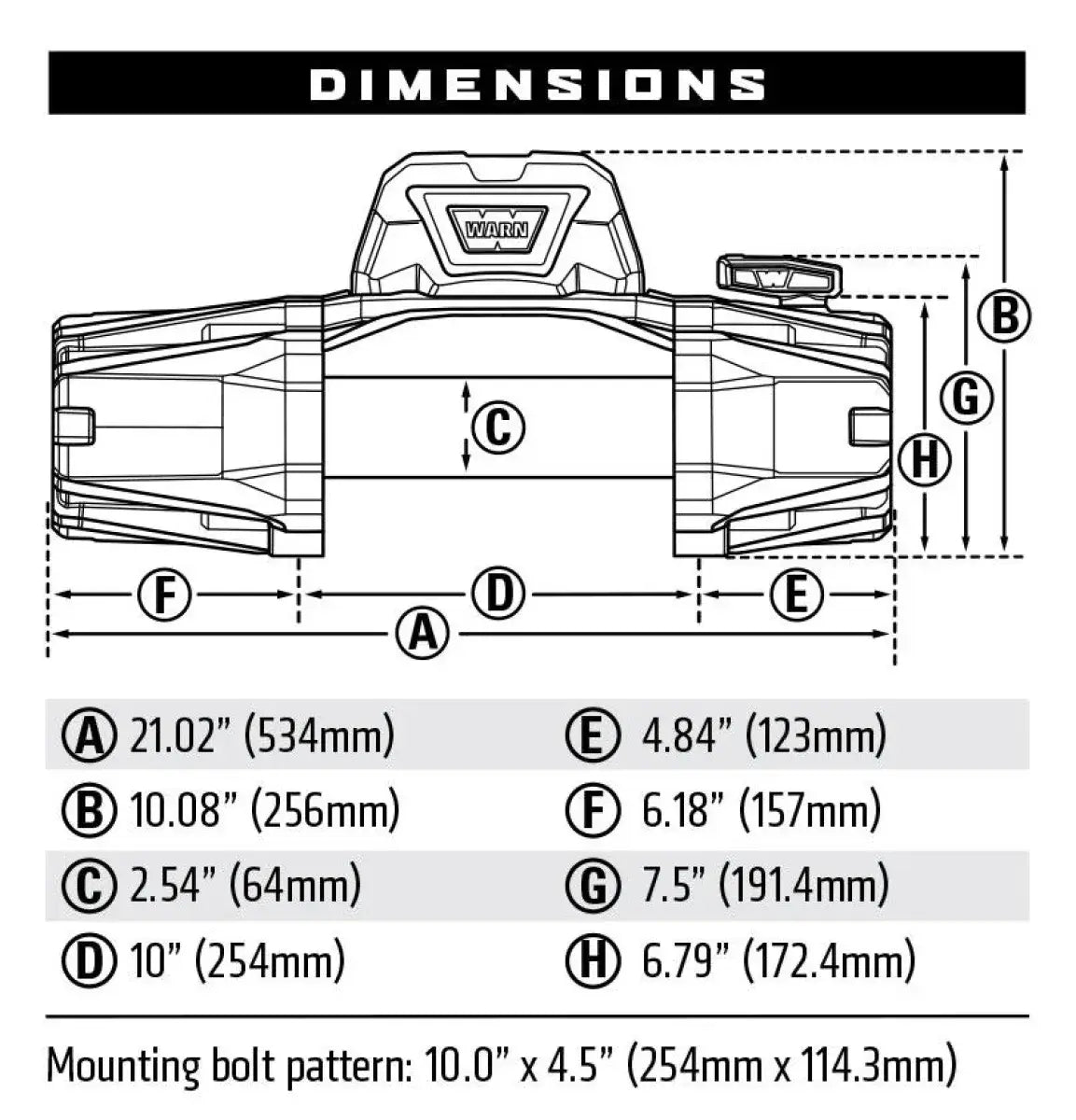

Warn VR Evo 8-S winch dimensions and mounting pattern

Rope, controls and installation

Dust and water ratingIP68.

Control3.5m pendant lead and wireless operation.

FairleadHawse fairlead.

Battery leads25mm x 2m.

Recommended batteryMinimum 650 CCA.

Bolt pattern254mm x 114.3mm.

FinishPowder coated over primer.

Synthetic rope9.5mm x 27.4m.

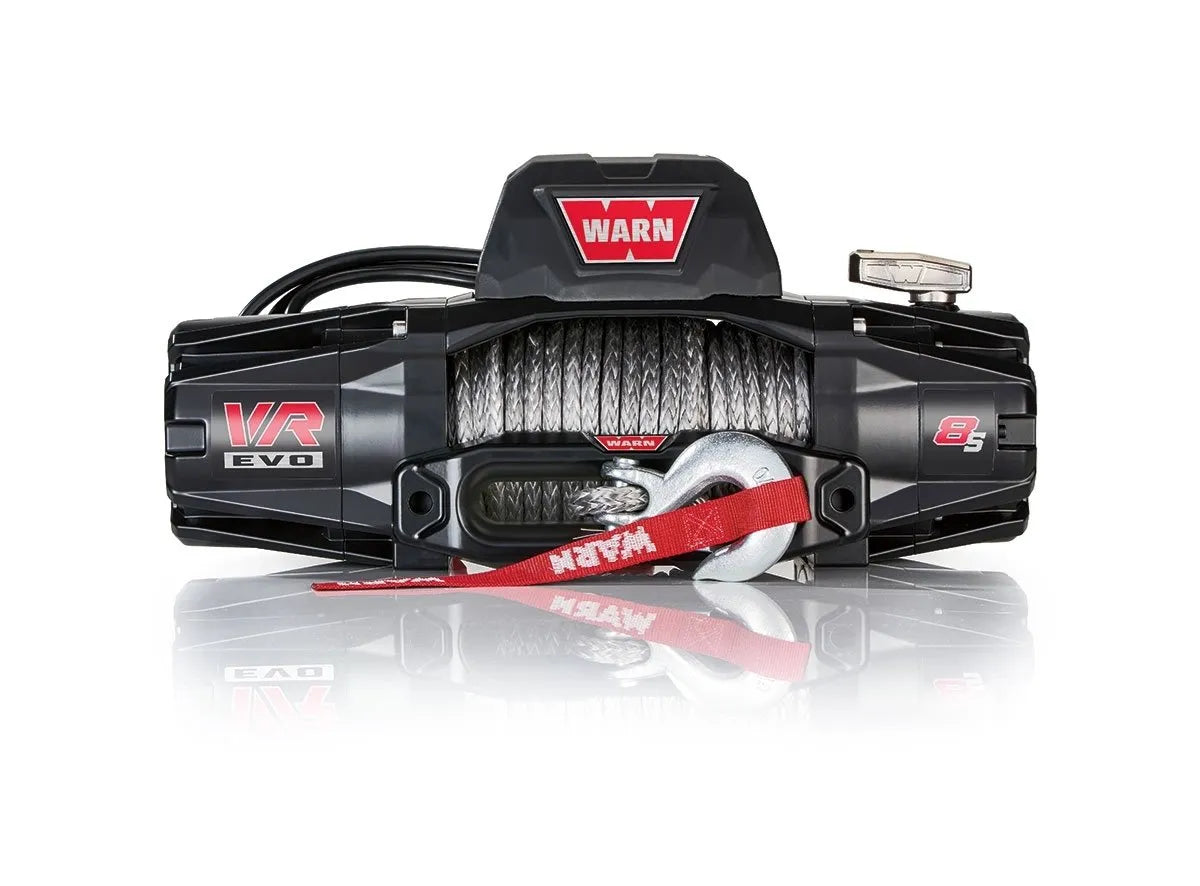

Front view of Warn VR Evo 8-S winch with synthetic rope

What's in the box

Warn VR Evo 8-S 12V winch
9.5mm x 27.4m synthetic rope
Hawse fairlead
Two-in-one wired and wireless remote
Battery leads
Mounting hardware

See it in action

Warranty

Limited lifetime mechanical warranty and 7-year electrical warranty.

Frequently Asked Questions

What size vehicles is the VR Evo 8-S suited to?

The VR Evo 8-S is engineered for lighter 4WDs, Jeeps and SUVs. With a rated line pull of 8,000lb (3,629kg), it has capacity for most smaller rigs running standard accessories. For a full-size ute or heavily loaded wagon, consider the 10-S or 12-S.

Will it fit my bull bar?

The VR Evo 8-S uses the standard 254mm x 114.3mm mounting bolt pattern, which is compatible with the majority of winch-ready bull bars on the Australian market. Always confirm your bar's load rating supports an 8,000lb winch before fitting.

What comes in the box?

The winch comes with the VR Evo 8-S unit, 9.5mm x 27.4m synthetic rope pre-spooled on the drum, a hawse fairlead, a two-in-one wired and wireless remote, battery leads, and mounting hardware.

Does it have a wireless remote?

Yes. The included two-in-one remote works both wired with a 3.5m lead and wirelessly, so you can operate the winch from inside the cab or from a safe distance during recovery.

How waterproof is the VR Evo 8-S?

The entire winch construction is rated IP68, meaning it is sealed against continuous water immersion and dust ingress. It is built for muddy, wet and creek-crossing conditions.

What battery does this winch need?

Warn recommends a minimum 650 CCA battery for winching. If your vehicle has a smaller battery or runs many accessories, adding a dual battery system is worth considering.

What warranty does the VR Evo 8-S come with?

The Warn VR Evo range is backed by a limited lifetime mechanical warranty and a 7-year electrical warranty.

Can the control pack be relocated?

Yes. The control pack can be repositioned for low-profile installations where the standard position would foul the bonnet or other accessories.
