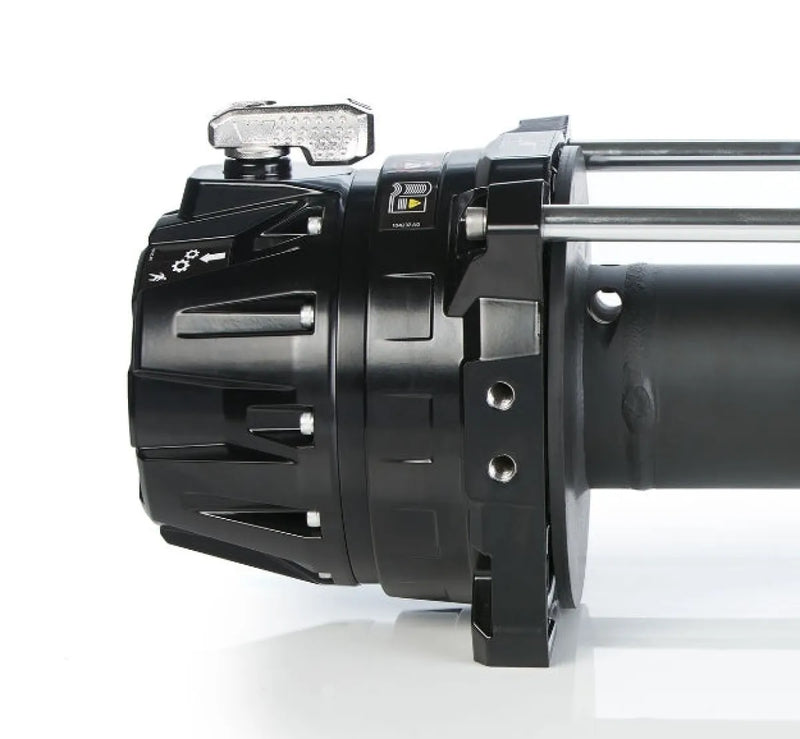

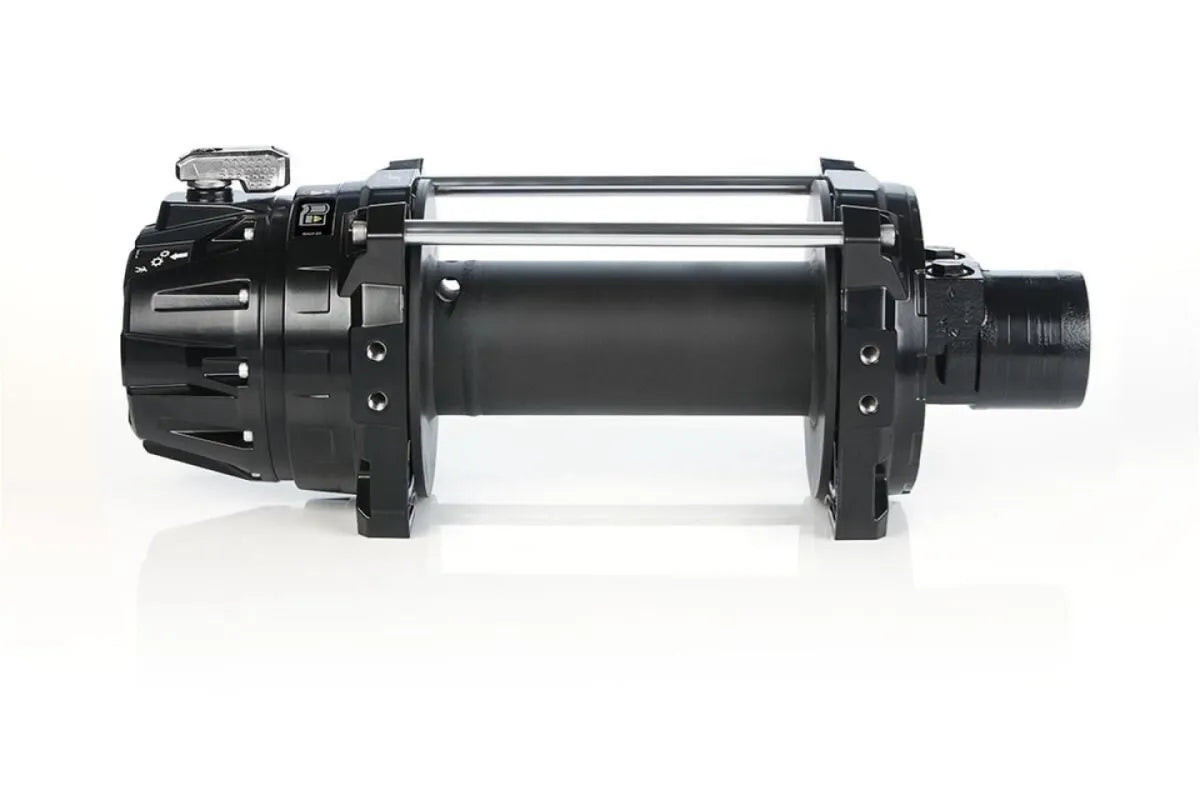

Warn Series 12 G2 Hydraulic Winch | Manual Clutch | 105440

by Warn

SKU 105440

$4,894.00 - $4,894.00

$4,894.00

$4,894.00 - $4,894.00

$4,894.00

4x4 Down Under Buy Now Pay Later Options

WHY SHOP WITH US?

✔ Fast Shipping with Free Insurance
✔ Australian Owned and Operated
✔ Expert Before & After Sales Service
✔ Easy Returns & Full Warranty Support

Description
Reviews
Why Shop With Us

Description

Series G2 12 Hydraulic Winch 4.0ci Motor CCW Manual Clutch by WARN

The WARN Series G2 12 Hydraulic Winch is built for commercial and heavy-duty applications where reliability matters. This model runs a 4.0 cubic inch hydraulic motor with counter-clockwise (CCW) rotation and a manual clutch, giving you consistent pulling power with straightforward free-spool control.

The Series G2 platform is designed to improve efficiency and durability, with modular configuration options to suit a wide range of installations. As with any hydraulic winch, correct flow and pressure setup are critical, so it’s best to confirm your hydraulic system specs before ordering.

Features

Part of the latest WARN Series G2 industrial planetary winch range
4.0ci hydraulic motor with counter-clockwise (CCW) rotation
Manual clutch for simple free-spool control
Modular configuration options to suit different installations
Improved efficiency and durability for demanding commercial use
Designed to meet SAE J706 and EN 14492-1 standards
Backed by WARN’s industry-leading warranty

Specifications

Brand	Warn
Manufacturer's Part Number	105440
Part Type	Winches
Product Line	Warn Series G2 12 Hydraulic 4.0 c.i. Winches
Winch Style	Hydraulic
Pull Rating (lbs.)	12,000 lbs.
Volts	12 V
Winch Fairlead Type	None
Remote Included	No
Free-Spooling	Yes
Brake	Yes
Power Out	Yes
Drive Gear	Planetary
Winch Line Included	No
Conforms to J706 Standards	Yes
Mounting Hole Quantity	8 holes
Weight	85.000 lbs.
Speed	Variable
Gear Reduction Ratio	36:1

Frequently Asked Questions

What is the Series G2 12 and how does it differ from the older Series 12 (30285)?

The Series G2 12 is the updated generation of Warn's 12,000lb industrial hydraulic winch. The G2 platform delivers improved efficiency, modular configuration options, and updated durability for demanding commercial use. It also adds EN 14492-1 European certification on top of SAE J706 compliance, which the original Series 12 does not specifically list.

What does CCW rotation mean and why does it matter for installation?

CCW stands for counter-clockwise, referring to the direction the drum rotates when spooling in. This determines how the winch integrates with your hydraulic circuit. Fitting a CCW winch where a CW unit is required will result in reverse drum operation. Confirm your hydraulic system's required rotation direction before ordering.

What does the manual clutch do on the Series G2 12?

The manual clutch allows you to disengage the drum from the gear train, enabling the rope to be pulled out by hand in free spool mode. On this model, clutch operation requires physical access to the winch body, which is standard for hydraulic industrial winches.

Does the G2 12 include rope, a fairlead, or a remote?

No. The G2 12 ships without rope, fairlead, or remote control. You will need to source appropriate wire rope and a control system separately to suit your application and hydraulic setup.

What are the hydraulic requirements for the G2 12?

The G2 12 runs a 4.0 cubic inch hydraulic motor. Correct flow and pressure must be confirmed against your vehicle or equipment's hydraulic circuit before installation. Contact us if you need help confirming compatibility with your existing system.

What is the mounting configuration?

The G2 12 has 8 mounting holes. The Series G2 uses modular configuration options to suit a range of installations. Exact mounting dimensions should be confirmed before ordering if fitment clearances are tight.

What standards does the G2 12 comply with?

The G2 12 is designed to meet SAE J706 and EN 14492-1 standards, making it compliant for markets requiring either American or European industrial winch certification.

What warranty does the Series G2 12 carry?

The G2 12 is backed by Warn's industry-leading warranty. Contact us to confirm specific warranty terms for the G2 series before purchasing.
