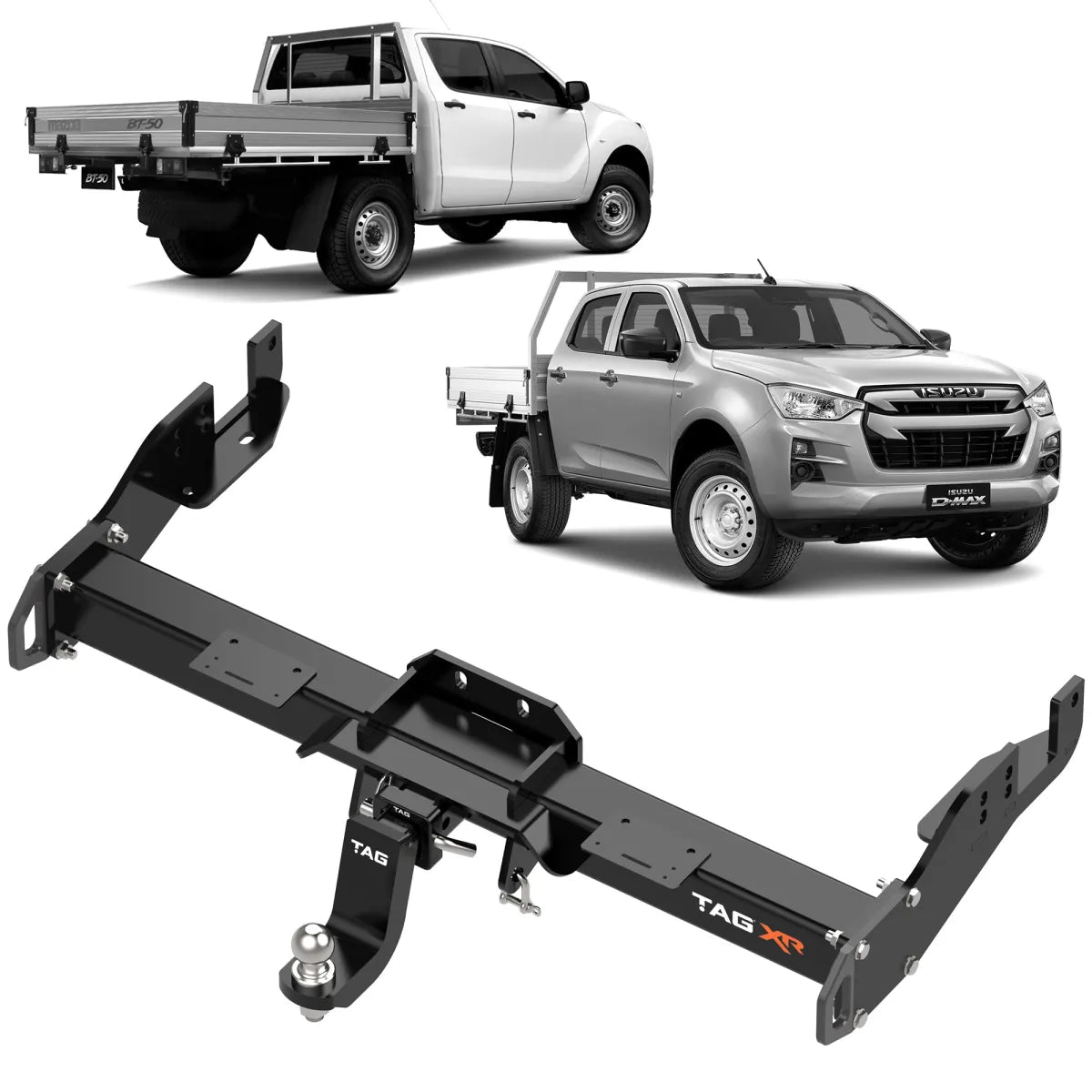

TAG Extreme Recovery Towbar & Direct Fit Wiring for Mazda BT-50 & Isuzu D-MAX (07/2020 - on) - Cab Chassis Without Step

TAG Extreme Recovery Towbar & Direct Fit Wiring for Mazda BT-50 & Isuzu D-MAX (07/2020 - on) - Cab Chassis Without Step

by TAG
SKU TXR800-K201
$1,765.00 - $1,765.00
$1,765.00
$1,765.00 - $1,765.00
$1,765.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

Extreme Recovery Towbar & Direct Fit Wiring for Mazda BT-50 & Isuzu D-MAX (07/2020 - on) - Cab Chassis Without Step by TAG

The TAG Extreme Recovery Towbar & Direct Fit Wiring Kit for Mazda BT-50 & Isuzu D-MAX (07/2020 - on) - Cab Chassis Without Step pairs the same heavy-duty towbar used across the TAG XR range with a direct-fit trailer wiring harness, built for tray-back cab chassis models without a factory rear bumper step. It's rated to 3500kg towing capacity with a 350kg ball weight. If your vehicle has a rear bumper fitted, it will need to come off to fit this towbar, with the factory reverse sensors relocated as part of the job.

Two integrated recovery points carry a 4500kg working load limit, so the same unit that tows your trailer also gives you a properly rated point for a snatch recovery. The unit wears a textured, extreme-duty powder coat and mounts via tow ball mount L4171TXR.

The included harness is a direct-fit design with an automatic reverse sensor cut-off and a normally open reed switch, and it doesn't need CAN bus support or diagnostic coding to install.

Features

  • 89mm x 89mm Extreme Duty Reinforced Crossbar
  • Two 4500kg WLL-rated recovery points integrated into the 3-piece side-arm design, bevelled to suit soft shackles
  • Flush chassis-mounted profile for improved off-road departure angle
  • Highly durable, textured Extreme Duty Powder Coated finish
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar with 50mm Square Hitch Receiver
  • TAG Limited Lifetime Warranty
  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
  • Includes TAG Direct Fit Wiring Harness and 7 Pin Flat Socket (Vehicle Side)

A towbar is a safety critical item and fitment isn't always straightforward due to vehicle manufacturing variation. We strongly recommend having your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Towbar Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Ball Weight [kg]: 350
  • Recovery Load-tested: 4500kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4171TXR
  • Coating: Textured Powder Coated
  • Exposure: Exposed
  • Fitting Time [min.]: 60

Wiring Specifications

  • Wiring Type: Direct Fit
  • Includes Trailer Plug: Yes
  • Diagnostic Coding: Not Required
  • CAN Bus Support: No
  • Reverse Sensor Cut-Off: Automatic
  • Reed Switch: Normally Open Circuit

What's Included

  • TAG 4x4 Recovery Towbar
  • TAG Direct Fit Wiring Harness
  • TAG 7 Pin Flat Socket - Vehicle Side

Already have a compatible wiring harness fitted? The towbar-only TAG Extreme Recovery Towbar for Mazda BT-50 & Isuzu D-MAX Cab Chassis uses the same TXR800 towbar without the wiring kit.

Vehicle Applications

This towbar is listed against the following 18 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
MAZDA BT-50 11/2021 - Cab Chassis TF RZ4E-TC | 1.9L | Diesel – AWD
MAZDA BT-50 11/2021 - Cab Chassis TF RZ4E-TC | 1.9L | Diesel – RWD
MAZDA BT-50 11/2021 - Cab Chassis 819C RZ4E-TC | 2.0L | Diesel XS Automatic RWD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic RWD
MAZDA BT-50 07/2020 - Cab Chassis TF 4JJ3-TCX | 3.0L | Diesel – 4WD
MAZDA BT-50 07/2020 - Cab Chassis TF 4JJ3-TCX | 3.0L | Diesel – RWD
ISUZU D-MAX 10/2021 - Cab Chassis TFR, TFS RZ4E-TC | 1.9L | Diesel – RWD
ISUZU D-MAX 07/2020 - Cab Chassis – 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 07/2020 - Cab Chassis – 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS 3.0L | Diesel DDI 4WD
ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI AWD
ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS 4JJ3-TCX | 3.0L | Diesel DDI RWD
ISUZU D-MAX 06/2020 - Cab Chassis TFR, TFS (TFR40J) 4JJ3-TCX | 3.0L | Diesel DDI RWD

Frequently Asked Questions

Does this wiring harness need CAN bus support or diagnostic coding?

No. This harness doesn't require CAN bus support or diagnostic coding to install.

How does the reverse sensor cut-off work?

It's an automatic cut-off using a normally open reed switch, designed to work with the vehicle's factory reverse sensors once relocated.

Does this kit require removing the rear bumper?

If your vehicle has a rear bumper fitted, yes, it needs to come off to fit this towbar, and the factory reverse sensors need to be relocated as part of the job.

What's included in this kit?

You get the TAG 4x4 Recovery Towbar, the TAG Direct Fit Wiring Harness, and the TAG 7 Pin Flat Socket on the vehicle side.

What's the towing capacity of this towbar?

It's rated to 3500kg towing capacity with a 350kg ball weight. Always confirm your vehicle's own GCM and compliance plate figures aren't the limiting factor before loading up to that rating.

What's the recovery point rating?

The two integrated recovery points are each rated to a 4500kg working load limit.

Already have a wiring harness fitted, do I need this kit?

No. If your vehicle already has compatible trailer wiring, the towbar-only version above uses the same TXR800 towbar without the wiring kit.

Which BT-50 and D-MAX models does this kit suit?

It's listed against Mazda BT-50 and Isuzu D-MAX cab chassis models from June 2020 through to November 2021 builds, across several series and drivetrains. Check the fitment table below against your exact model, series and build date before ordering.
