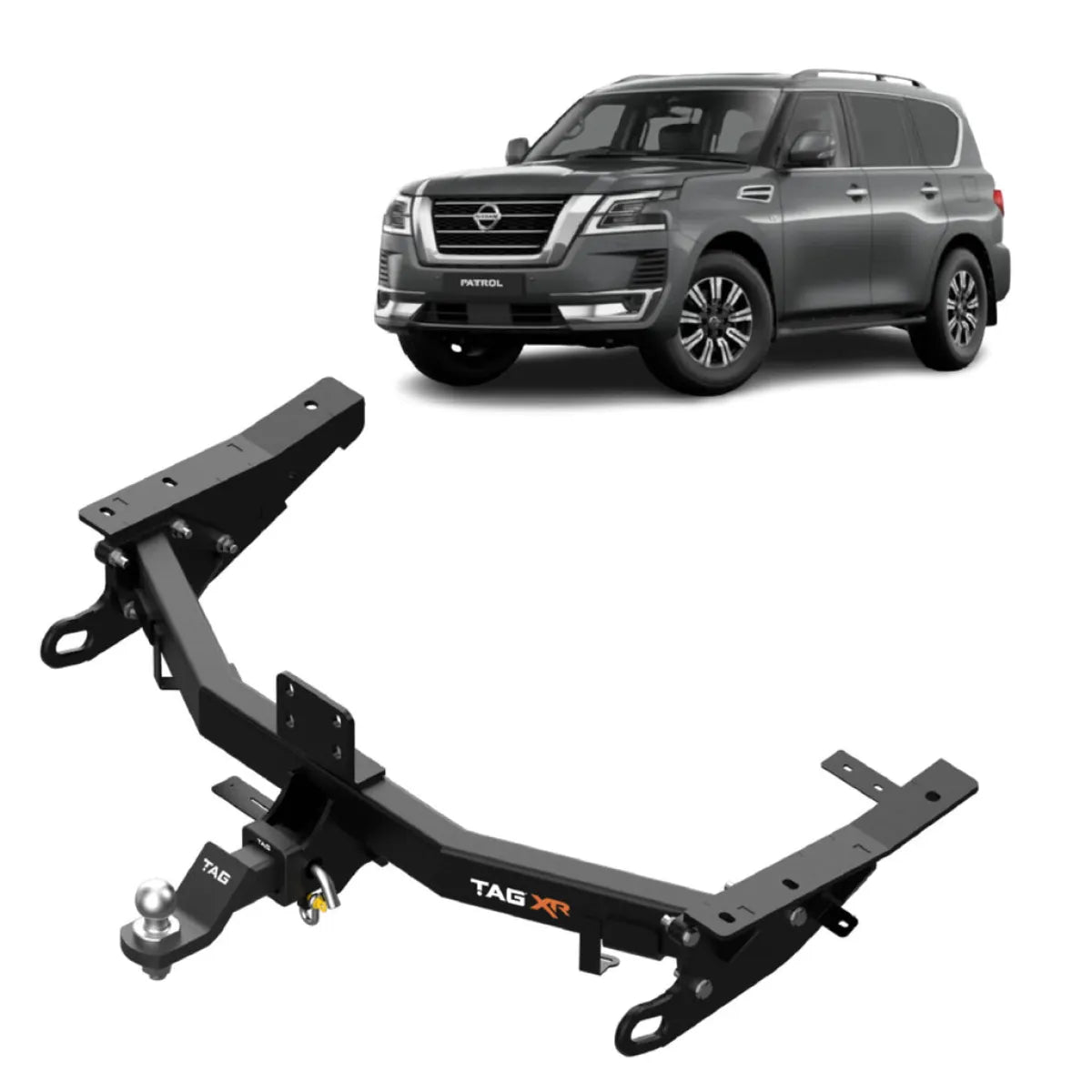

TAG Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 - TXR852

TAG Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 (12/2012 - on)

by TAG
SKU TXR852
$1,429.00 - $1,429.00
$1,429.00
$1,429.00 - $1,429.00
$1,429.00
Shipping Calculator
4x4 Down Under Buy Now Pay Later Options

Why Shop With Us?

  • Fast Shipping with Free Insurance i Dispatched quickly from Australian warehouses, with every order covered by free transit insurance until it reaches your door.
  • Australian Owned and Operated i A family run Aussie business since 2016, based on the Sunshine Coast QLD. Local knowledge, local support.
  • Expert Before & After Sales Service i Not sure what fits your rig? Call, SMS or email us. Real 4WDers who know the gear, before and after you buy.
  • Easy Returns & Full Warranty Support i Quick and simple returns with no mess and no fuss, plus full manufacturer warranty support handled locally.

Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 (12/2012 - on) by TAG

The TAG Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 is engineered for the standard factory Y62 wagon body, covering Series 1 through 5 built from December 2012 onward. It's rated to 3500kg towing capacity with a 350kg ball weight, and it fits concealed behind the bumper for a factory-look finish once installed.

Two recovery points are integrated into the 3-piece side-arm design and carry a 4000kg working load limit, giving you a genuine rated snatch point alongside the towing capacity. The unit is finished in a textured, extreme-duty powder coat and mounts using tow ball mount L4045TXR.

Because this towbar sits concealed behind the bumper, fitment involves removing the factory bumper and cutting it to clear the hitch receiver, so it's best left to an experienced installer.

Features

  • Two WLL 4000kg Load-Rated Recovery Points integrated into the 3-Piece Design side-arms, bevelled to suit soft shackles
  • Flush chassis-mounted profile for improved off-road departure angle
  • Textured Powder Coated finish
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar with 50mm Square Hitch Receiver
  • TAG Limited Lifetime Warranty
  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

A towbar is a safety critical item and fitment isn't always straightforward due to vehicle manufacturing variation. We strongly recommend having your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity: 3500kg
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: Yes
  • Exposure: Concealed
  • Fitting Time: 90 min
  • Ball Weight: 350kg

Need trailer or caravan wiring at the same time? The TAG Extreme Recovery Towbar & Direct Fit Wiring Harness for Nissan Y62 Patrol Series 1-5 bundles this same towbar with a direct-fit harness.

Vehicle Applications

This towbar is listed against the following 2 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
NISSAN PATROL 02/2013 - Wagon Y62 VK56VD | 5.6L | Petrol ST-L| Ti| Ti-L Automatic 4WD
NISSAN PATROL 12/2012 - Wagon Y62 VK56VD | 5.6L | Petrol – AWD

Documentation

Installation Manual (PDF)

Frequently Asked Questions

Does fitting this towbar require removing the bumper?

Yes. This towbar mounts concealed behind the bumper, so fitment involves removing the factory bumper and cutting it to clear the hitch receiver.

What's the towing capacity of this towbar?

It's rated to 3500kg towing capacity with a 350kg ball weight. Always confirm your vehicle's own GCM and compliance plate figures aren't the limiting factor before loading up to that rating.

What's the recovery point rating?

The two integrated recovery points are each rated to a 4000kg working load limit.

Does this towbar suit every Y62 Patrol wagon?

It's listed against Y62 wagons from Series 1 through Series 5, including ST-L, Ti and Ti-L variants from December 2012 onward. Always check the fitment table against your exact variant and build date before ordering.

Can I fit this towbar myself?

Fitment involves removing and cutting the factory bumper, so this isn't a straightforward DIY job for most owners. We recommend professional installation by a qualified towbar or vehicle accessory fitting workshop.

How much can a Y62 Patrol tow?

This towbar itself is rated to 3500kg. Your vehicle's actual towing limit also depends on its GCM and compliance plate figures, so check those against the load you're planning to tow.

Is a towbar the same as a recovery point?

Not automatically, but this one is. Both recovery points are rated to a 4000kg working load limit, so it doubles as a genuine rated snatch point.

Does this towbar come with a wiring harness?

No, this listing is the towbar only. The matching kit above bundles the same towbar with a direct-fit wiring harness if you need trailer lighting sorted at the same time.

Buy now

Product Bundles

If you'd like a discount price on a bundle of items not displayed below please contact us here and we'll give you our best price.
Description

Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 (12/2012 - on) by TAG

The TAG Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 is engineered for the standard factory Y62 wagon body, covering Series 1 through 5 built from December 2012 onward. It's rated to 3500kg towing capacity with a 350kg ball weight, and it fits concealed behind the bumper for a factory-look finish once installed.

Two recovery points are integrated into the 3-piece side-arm design and carry a 4000kg working load limit, giving you a genuine rated snatch point alongside the towing capacity. The unit is finished in a textured, extreme-duty powder coat and mounts using tow ball mount L4045TXR.

Because this towbar sits concealed behind the bumper, fitment involves removing the factory bumper and cutting it to clear the hitch receiver, so it's best left to an experienced installer.

Features

  • Two WLL 4000kg Load-Rated Recovery Points integrated into the 3-Piece Design side-arms, bevelled to suit soft shackles
  • Flush chassis-mounted profile for improved off-road departure angle
  • Textured Powder Coated finish
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar with 50mm Square Hitch Receiver
  • TAG Limited Lifetime Warranty
  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

A towbar is a safety critical item and fitment isn't always straightforward due to vehicle manufacturing variation. We strongly recommend having your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity: 3500kg
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: Yes
  • Exposure: Concealed
  • Fitting Time: 90 min
  • Ball Weight: 350kg

Need trailer or caravan wiring at the same time? The TAG Extreme Recovery Towbar & Direct Fit Wiring Harness for Nissan Y62 Patrol Series 1-5 bundles this same towbar with a direct-fit harness.

Vehicle Applications

This towbar is listed against the following 2 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.

Make Model From To Body Series Engine Variant Drivetrain
NISSAN PATROL 02/2013 - Wagon Y62 VK56VD | 5.6L | Petrol ST-L| Ti| Ti-L Automatic 4WD
NISSAN PATROL 12/2012 - Wagon Y62 VK56VD | 5.6L | Petrol – AWD

Documentation

Installation Manual (PDF)

Frequently Asked Questions

Does fitting this towbar require removing the bumper?

Yes. This towbar mounts concealed behind the bumper, so fitment involves removing the factory bumper and cutting it to clear the hitch receiver.

What's the towing capacity of this towbar?

It's rated to 3500kg towing capacity with a 350kg ball weight. Always confirm your vehicle's own GCM and compliance plate figures aren't the limiting factor before loading up to that rating.

What's the recovery point rating?

The two integrated recovery points are each rated to a 4000kg working load limit.

Does this towbar suit every Y62 Patrol wagon?

It's listed against Y62 wagons from Series 1 through Series 5, including ST-L, Ti and Ti-L variants from December 2012 onward. Always check the fitment table against your exact variant and build date before ordering.

Can I fit this towbar myself?

Fitment involves removing and cutting the factory bumper, so this isn't a straightforward DIY job for most owners. We recommend professional installation by a qualified towbar or vehicle accessory fitting workshop.

How much can a Y62 Patrol tow?

This towbar itself is rated to 3500kg. Your vehicle's actual towing limit also depends on its GCM and compliance plate figures, so check those against the load you're planning to tow.

Is a towbar the same as a recovery point?

Not automatically, but this one is. Both recovery points are rated to a 4000kg working load limit, so it doubles as a genuine rated snatch point.

Does this towbar come with a wiring harness?

No, this listing is the towbar only. The matching kit above bundles the same towbar with a direct-fit wiring harness if you need trailer lighting sorted at the same time.
