Extreme Recovery Towbar & Direct Fit Wiring Harness For Nissan Y62 Patrol Series 1-5 (12/2012 - on) by TAG
The TAG Extreme Recovery Towbar & Direct Fit Wiring Harness for Nissan Y62 Patrol Series 1-5 bundles the same heavy-duty towbar used across the TAG XR range with a direct-fit trailer wiring harness, covering the standard factory Y62 wagon body from Series 1 through 5. It's rated to 3500kg towing capacity with a 350kg ball weight, and the towbar fits concealed behind the bumper for a factory-look finish.
Two recovery points are integrated into the 3-piece side-arm design and carry a 4000kg working load limit, giving you a genuine rated snatch point alongside the towing capacity. The unit mounts using tow ball mount L4045TXR and wears a textured, extreme-duty powder coat.
The included harness is a plug-and-play design, bench tested and rated to ADR standards, so it powers your trailer or caravan lights without adversely affecting the vehicle's safety systems. No soldering or special tools are needed, it's compatible with Trailer Stability Programming, Lane Collision Avoidance and Park Distance Control, and it won't interfere with brake lights, turn signals or live wire connections.
Because the towbar sits concealed behind the bumper, fitment involves removing the factory bumper and cutting it to clear the hitch receiver, so it's best left to an experienced installer.
Features
- Two WLL 4000kg Load-Rated Recovery Points integrated into the 3-Piece Design side-arms, bevelled to suit soft shackles
- Flush chassis-mounted profile for improved off-road departure angle
- Textured Powder Coated finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar with 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
- Direct-fit wiring harness bench tested and rated to ADR standards, with no soldering or special tools required
- Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems and Park Distance Control (PDC), without interfering with brake lights, turn signals or live wire connections
A towbar is a safety critical item and fitment isn't always straightforward due to vehicle manufacturing variation. We strongly recommend having your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Towbar Specifications
- Fitting Time: 90 min (TXR852)
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity: 3500kg
- Recovery Load-tested: 4000kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045TXR
- Coating: Textured Powder Coated
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
- Exposure: Concealed
- Ball Weight: 350kg
Wiring Specifications
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Wiring Option: Direct Fit ECU
- Fitting Time: 45 min (UNT353)
What's Included

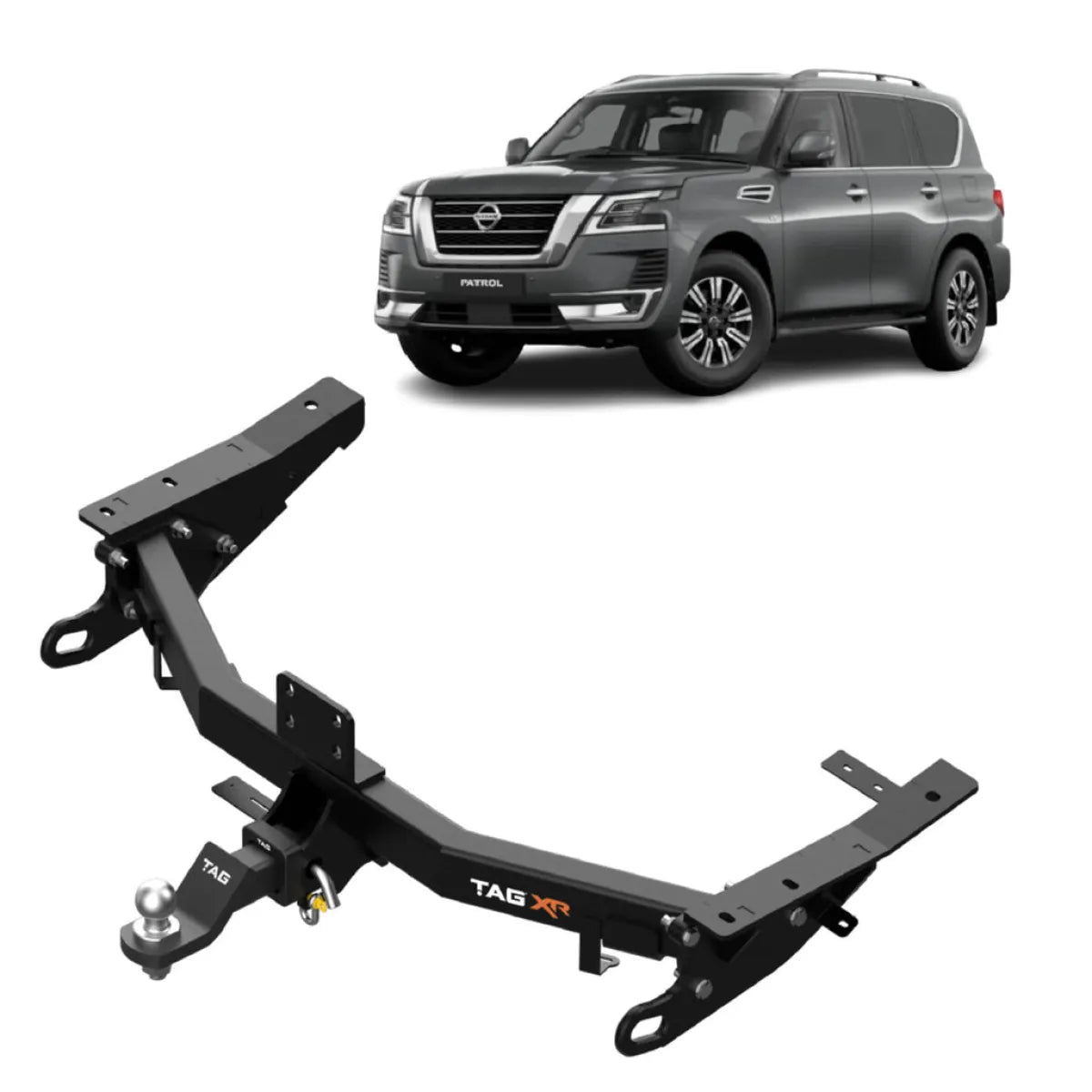

- TXR852 Recovery Towbar

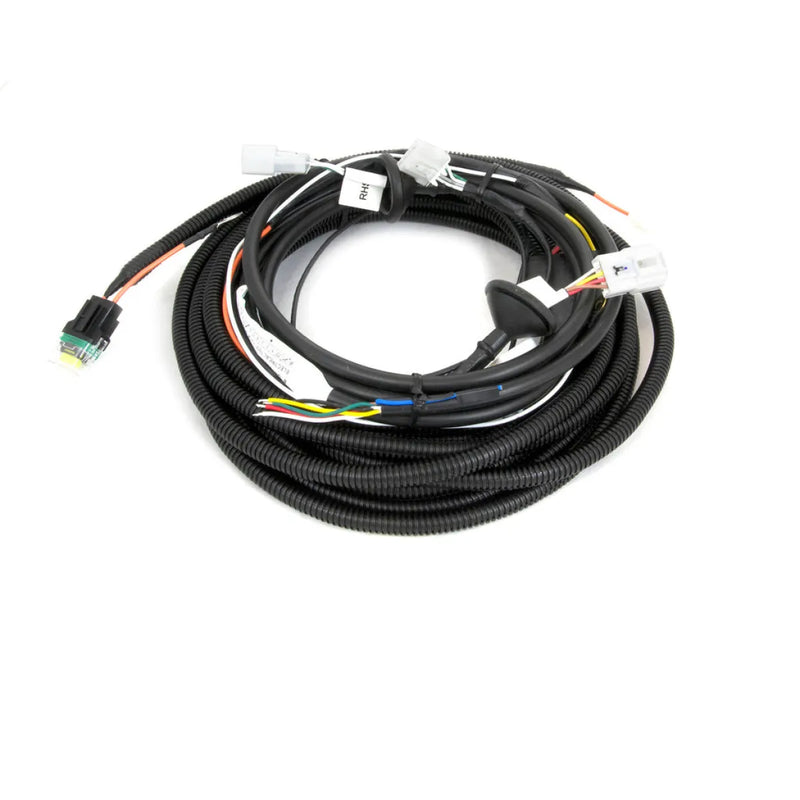

- UNT353 Direct Fit Wiring Harness

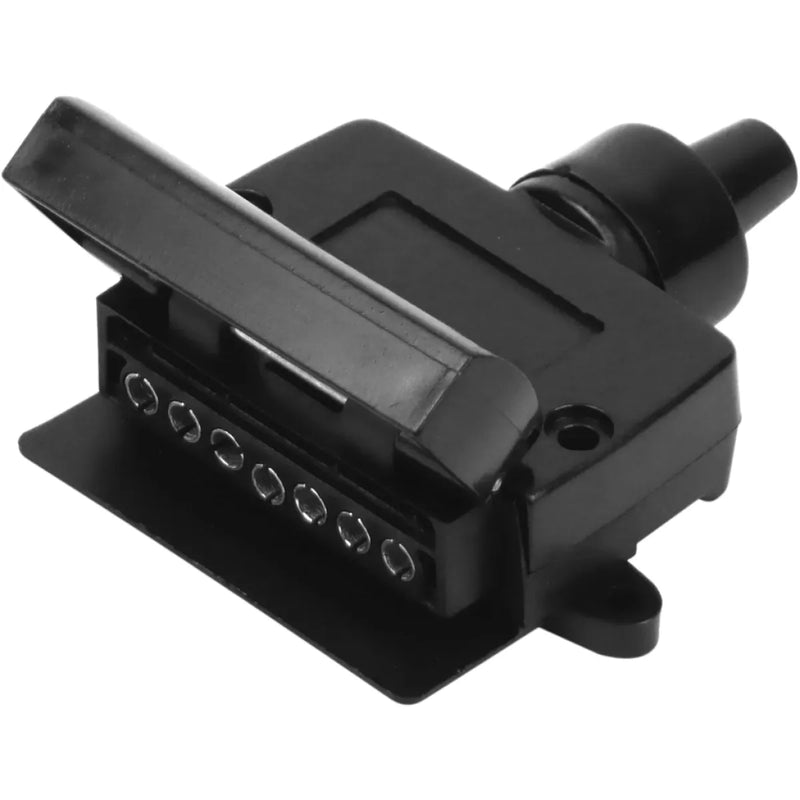

- UNT032 7 Pin Flat Plug (Vehicle Side)
Already have a compatible wiring harness fitted? The towbar-only TAG Extreme Recovery Towbar for Nissan Patrol Y62 Wagon Series 1-5 uses the same TXR852 towbar without the wiring kit.
Vehicle Applications
This towbar is listed against the following 2 vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.
| Make |
Model |
From |
To |
Body |
Series |
Engine |
Variant |
Drivetrain |
| NISSAN |
PATROL |
02/2013 |
- |
Wagon |
Y62 |
VK56VD | 5.6L | Petrol |
ST-L| Ti| Ti-L |
Automatic 4WD |
| NISSAN |
PATROL |
12/2012 |
- |
Wagon |
Y62 |
VK56VD | 5.6L | Petrol |
– |
AWD |
Documentation
Frequently Asked Questions
Does this wiring harness affect systems like lane assist or parking sensors?
No. It's compatible with Trailer Stability Programming, Lane Collision Avoidance systems and Park Distance Control, and it won't interfere with brake lights, turn signals or live wire connections.
Does the wiring harness need soldering?
No. It's a plug-and-play design that's bench tested and rated to ADR standards, and no special tools or soldering are required to fit it.
Does fitting this kit require removing the bumper?
Yes. The towbar mounts concealed behind the bumper, so fitment involves removing the factory bumper and cutting it to clear the hitch receiver.
What's included in this kit?
You get the TXR852 recovery towbar, the UNT353 direct fit wiring harness, and the UNT032 7 pin flat plug on the vehicle side.
What's the towing capacity of this towbar?
It's rated to 3500kg towing capacity with a 350kg ball weight. Always confirm your vehicle's own GCM and compliance plate figures aren't the limiting factor before loading up to that rating.
What's the recovery point rating?
The two integrated recovery points are each rated to a 4000kg working load limit.
Already have a wiring harness fitted, do I need this kit?
No. If your vehicle already has compatible trailer wiring, the towbar-only version above uses the same TXR852 towbar without the wiring kit.
Can I fit this kit myself?
Fitment involves removing and cutting the factory bumper, so this isn't a straightforward DIY job for most owners. We recommend professional installation by a qualified towbar or vehicle accessory fitting workshop.
