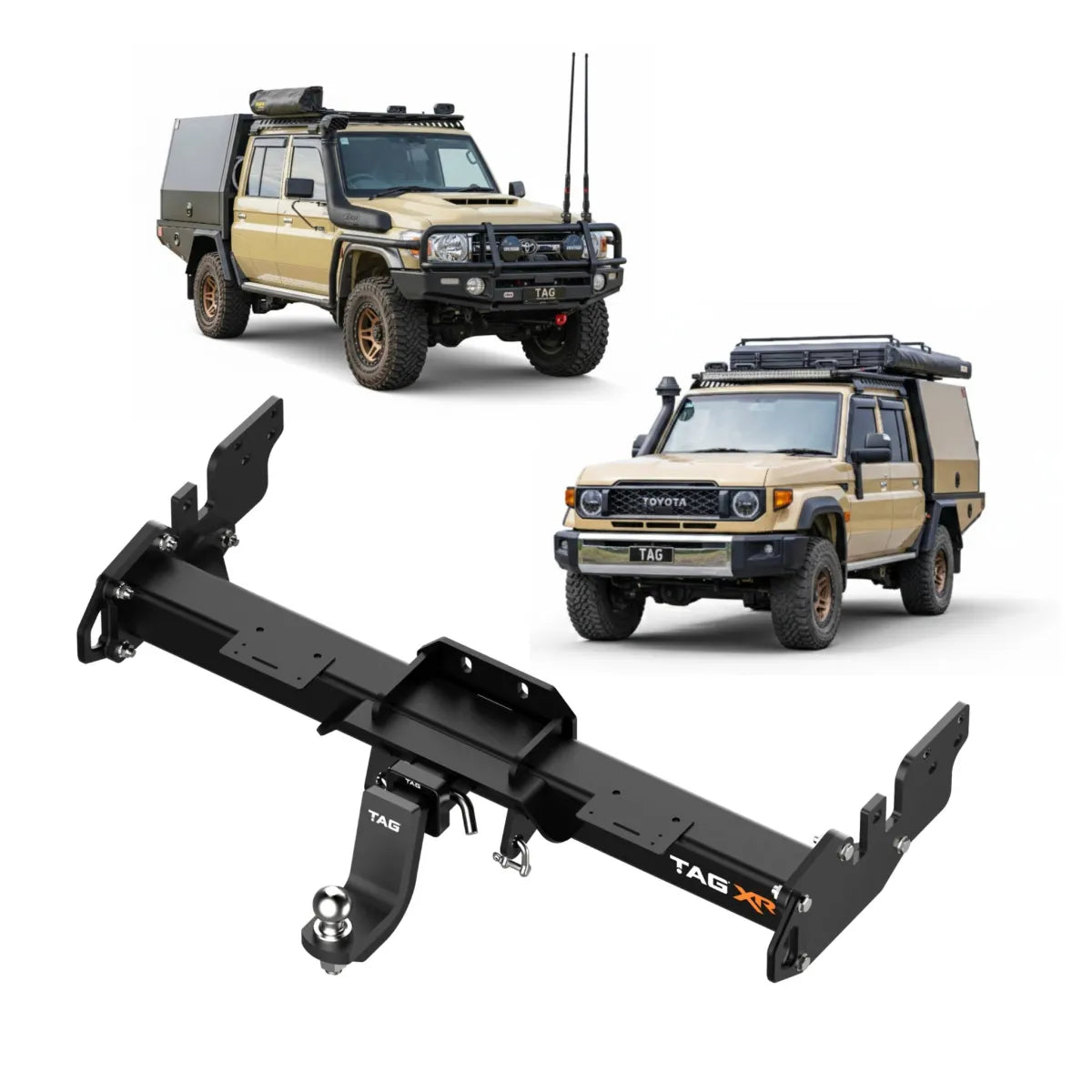

TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 75/79 Series

Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 75/79 Series by TAG

The 75 and 79 Series Landcruiser is a workhorse, and this TAG Extreme Recovery (XR) kit is built for it rather than adapted to it. It suits single and double cab models, including the face lifted versions, and pairs a Class 4, 50mm square hitch receiver with a direct fit wiring harness in a single kit.

As supplied, the kit is rated to 3500kg towing and 350kg ball weight. Owners of a 79 Series built from 2012 on can step this up to the vehicle's full 4500kg/450kg towing capacity by fitting a higher-rated hitch and tow ball (such as a 70mm tow ball), though narrow nose 75 and 79 Series models are limited to 3500kg/350kg regardless of hitch, due to chassis differences.

Two WLL 4500kg load-rated recovery points are built into the 89mm x 89mm reinforced crossbar, shaped with bevelled edges to suit soft shackles, so the same mounting point handles both trailer towing and off-road recovery duty.

Fitment: Suits Toyota Landcruiser 75/79 Series, single and double cab (including facelift models).

Please note: 79 Series 2012 on: to reach the full 4500kg/450kg towing capacity, a higher rated hitch and tow ball (for example a 70mm tow ball) is required, and additional pre-registration modifications may be needed to legally tow 4500kg. Check your vehicle owner's manual. Narrow nose 75 and 79 Series models are rated to 3500kg/350kg only, due to chassis differences.

Features

• Suits Landcruiser 75/79 Series single and double cab, including face lifted models
• Class 4, 50mm square hitch receiver, rated 3500kg towing / 350kg ball weight as supplied
• 79 Series (2012 on) can reach 4500kg/450kg towing capacity with a higher-rated hitch and tow ball (buyer supplied)
• Two WLL 4500kg load-rated recovery points in a 3-piece side-arm design with bevelled edges for soft shackles
• 89mm x 89mm extreme duty reinforced crossbar
• Flush, chassis-mounted profile for maximum off-road clearance
• Textured extreme duty powder coated finish
• Dual top-mounted trailer and Anderson plug mounts
• TAG direct fit wiring harness and 7 pin flat vehicle-side socket included
• Zinc tow ball, extreme duty drop hitch, pin and clip, and D-shackles included
• TAG limited lifetime warranty. Built in Australia

Towbar Specifications

• Towbar Class: Heavy Duty (4x4 Recovery)
• Towbar Capacity (kg): 4500 (3500kg as supplied; see note)
• Ball Weight (kg): 450 (350kg as supplied; see note)
• Recovery Load-tested: 4500kg WLL
• Recovery Points: 2
• Hitch Type: 50mm Square Hitch Receiver
• Tow Ball Mount: L4171TXR
• Bumper Removed During Fitment: No
• Bumper Cut Out Required: No
• Coating: Textured Powder Coated
• Exposure: Exposed
• Weight: 46.9 kg

Wiring Specifications

• Wiring Option: Direct Fit Wiring Harness
• Style: 7 Pin Flat
• Type: Plugs & Sockets
• Reverse Sensor Cut Off: Not Applicable
• Fog Cut Off: Not Applicable
• Diagnostic Coding: Not Required
• Fitting Time (min): 120

What's Included

• TAG 4x4 Recovery Towbar

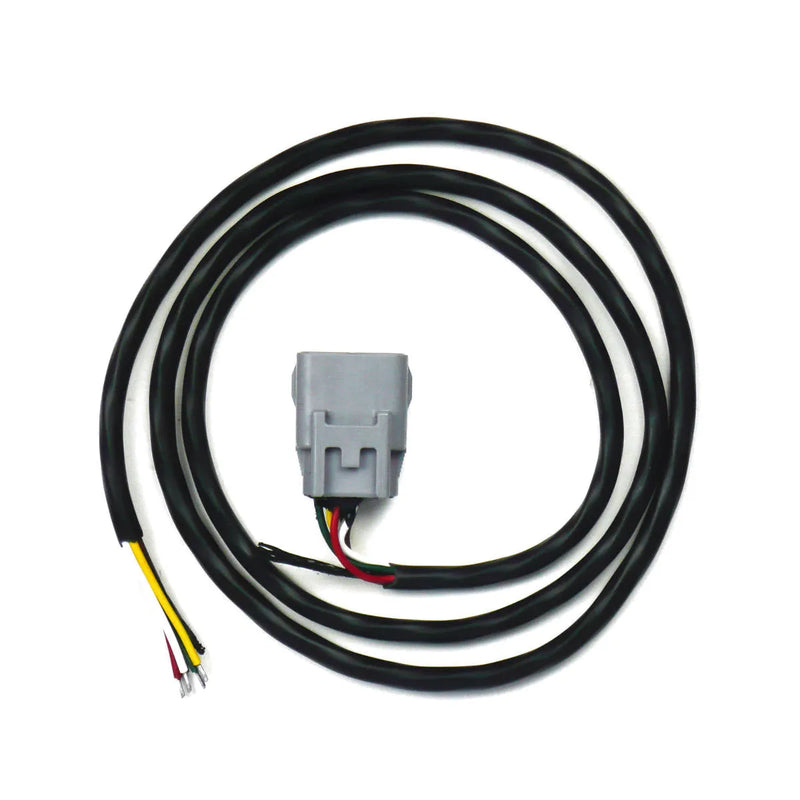

• TAG Direct Fit Wiring Harness

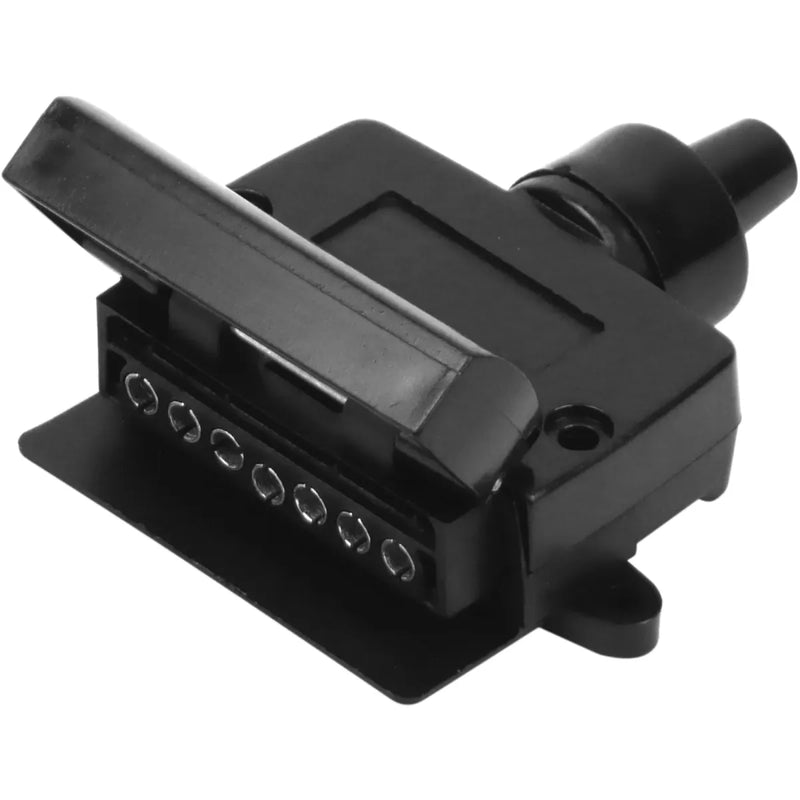

• TAG 7 Pin Flat Socket - Vehicle Side
• Zinc Tow Ball
• Extreme Duty Drop Hitch
• Pin & Clip
• D-Shackles

This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited.

Vehicle Applications

This kit is listed against the following Toyota Landcruiser (11/1984 - on) vehicle records on the supplier's fitment guide. Always confirm exact fitment for your specific vehicle before ordering.
