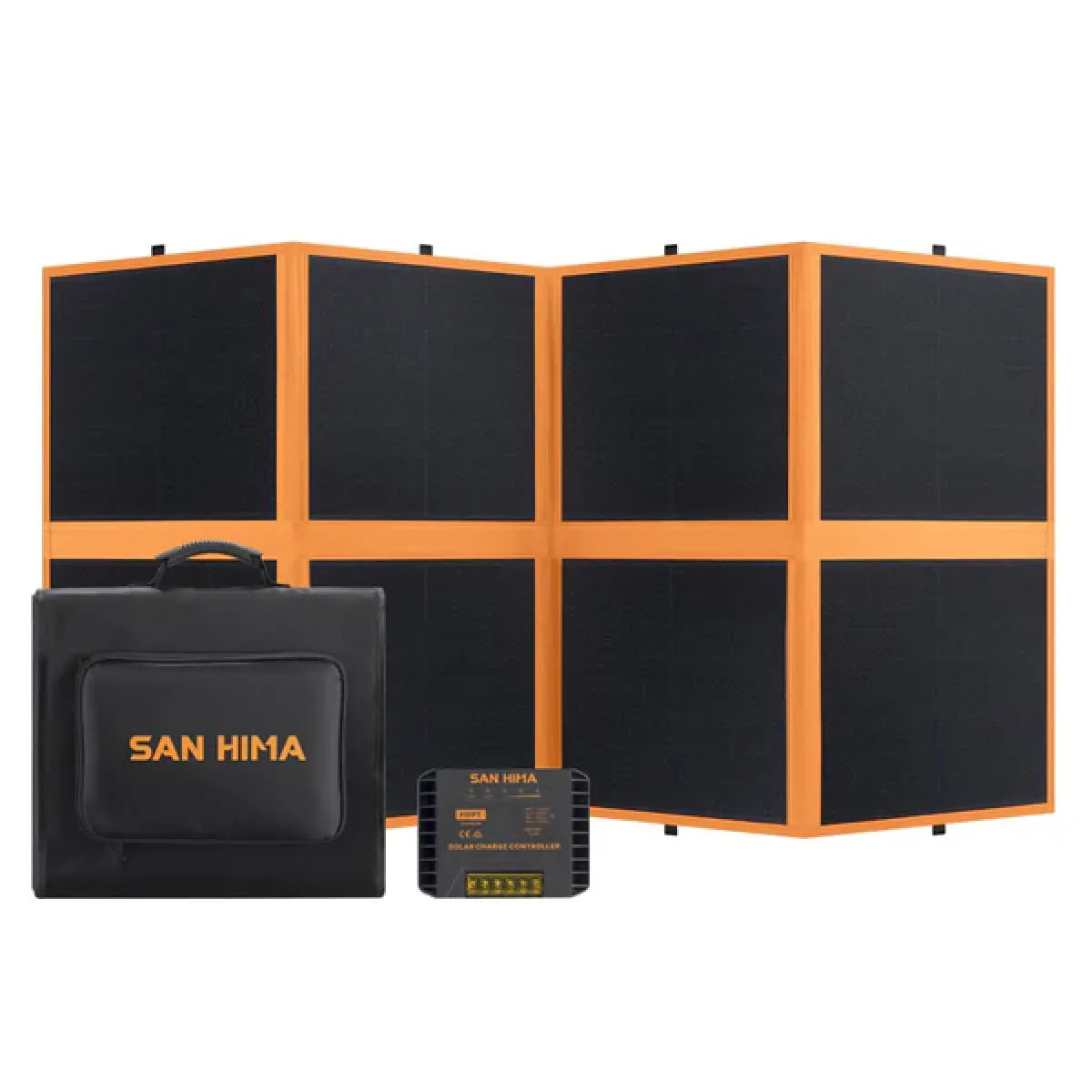

San Hima 12V 260W Foldable Solar Blanket Kit

12V 260W Folding Solar Blanket Kit from San Hima

When you’re out in the bush, every bit of power counts, and lugging around a rigid solar panel isn’t always practical. That’s where the San Hima solar blanket comes in. Lightweight, flexible, and tough enough to handle the outdoors, it gives you reliable energy without weighing you down. Whether you’re charging your batteries at camp or keeping your devices topped up on the road, this blanket makes it easy.

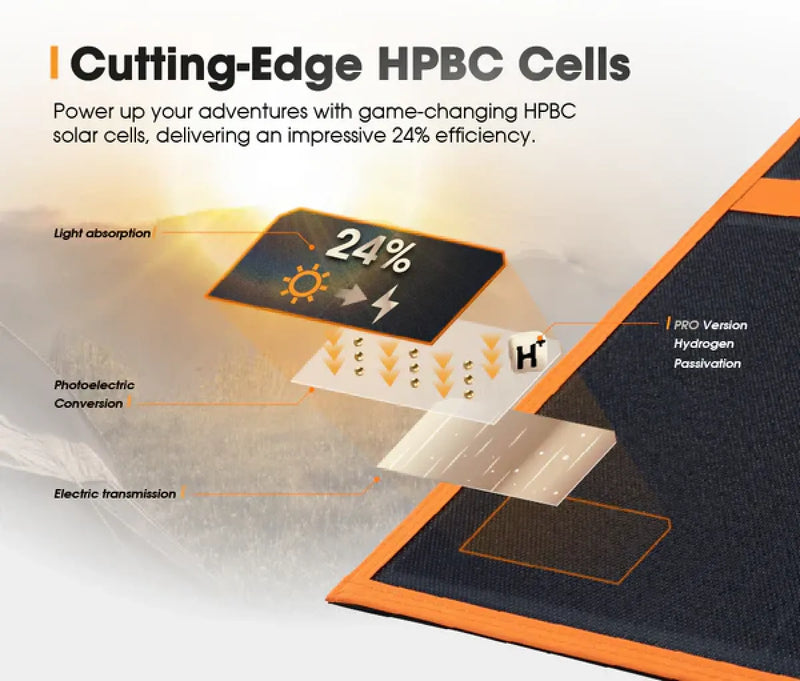

These aren’t your standard solar blankets. Using Hybrid Passivated Back Contact (HPBC) technology, the cells are designed with back-mounted contacts that capture more sunlight and hit an impressive 24% conversion efficiency. That means more power when the sun’s out—even on hot days—without worrying about performance fading over time. The ETFE coating keeps the surface clean and corrosion-free, while the anti-crack flexible film ensures it can take a bit of rough handling without breaking.

Pair it with the included MPPT controller, and you can safely charge Lead Acid, AGM, GEL, Calcium, and LiFePO4 batteries, plus keep your USB-powered devices running. Compact and portable, it folds down neatly into a carry bag so you can take it anywhere, hassle-free.

Features

• High-Efficiency HPBC Cells: Back-mounted contacts capture more sunlight and reach 24% conversion efficiency.

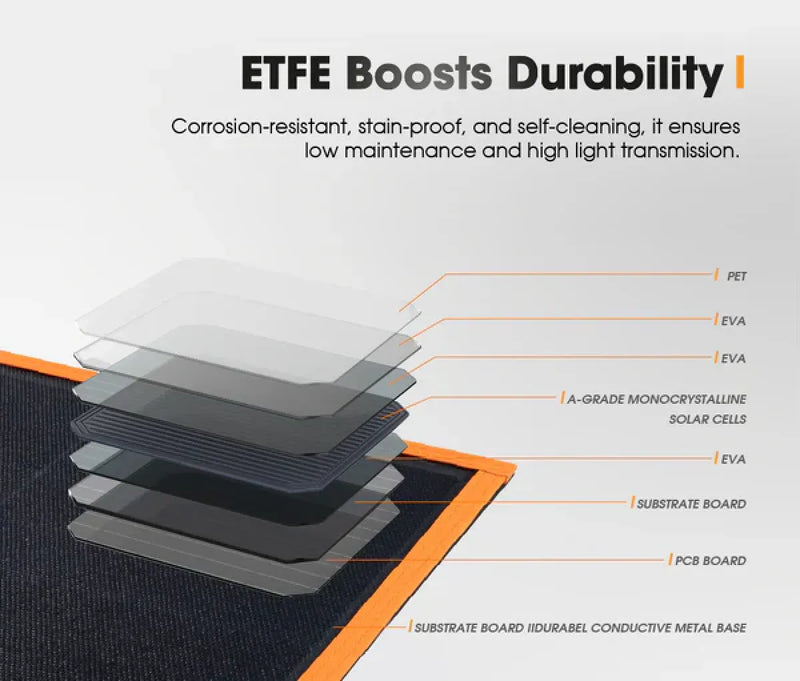

• Durable ETFE Surface: Repels stains and corrosion with a self-cleaning, non-stick finish.

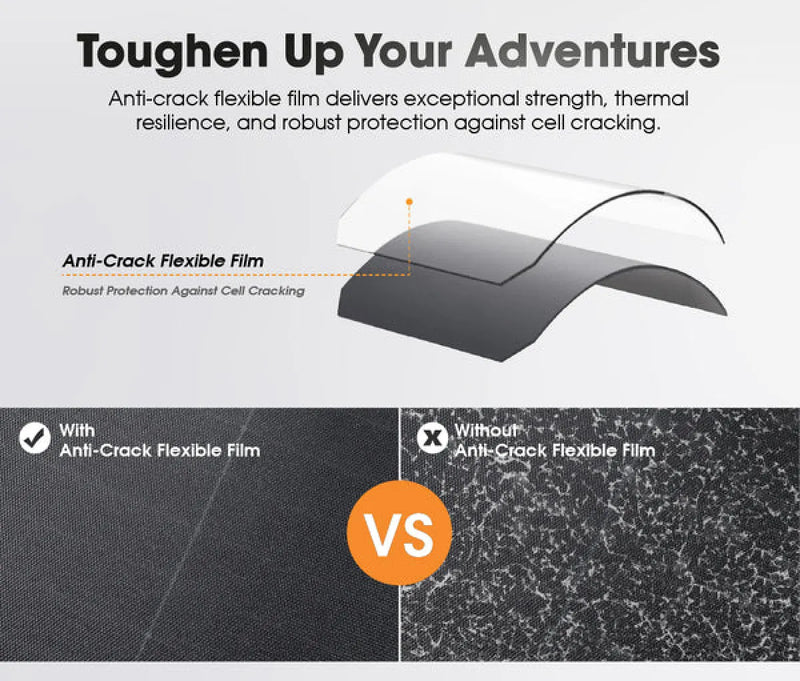

• Anti-Crack Film: Flexible and tough, resistant to physical stress and temperature swings.
• Smart MPPT Controller: Efficiently charges batteries and powers 12V accessories.
• Portable Design: Weighs 7.3kg and folds down to 490x430x75mm with a carry bag.
• Built-In Protection: Reverse polarity, overcurrent, undervoltage, overvoltage, and short-circuit safeguards.
• Battery Compatibility: Works with Lead Acid, AGM, GEL, Calcium, and LiFePO4 batteries.
• USB Charging: Keep phones, tablets, and other devices powered on the go.

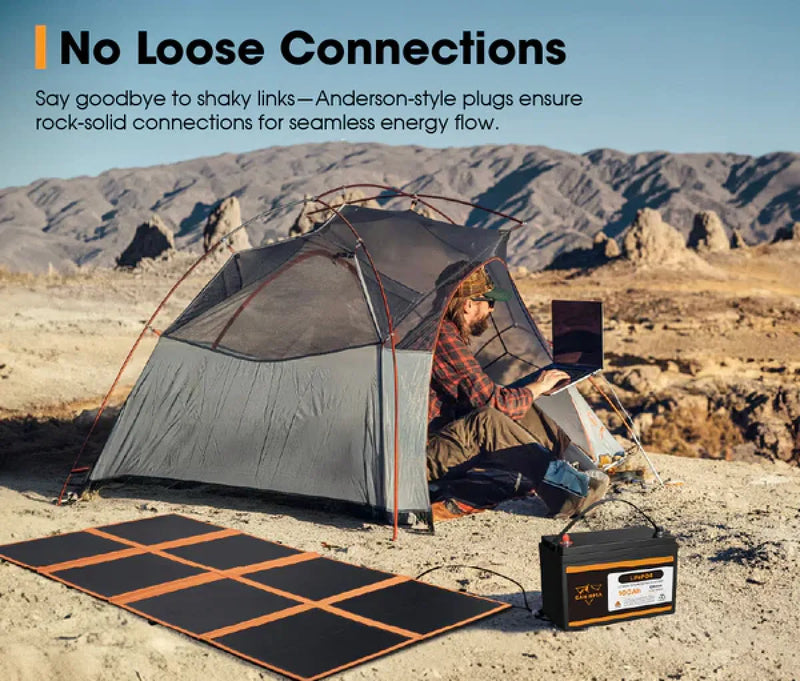

• Secure Connections: Anderson-style plugs provide reliable, plug-and-play setup.
• User-Friendly Extras: Carry handle, front pocket for small essentials, and hanging loops for easy setup.

Specifications

Solar Panel

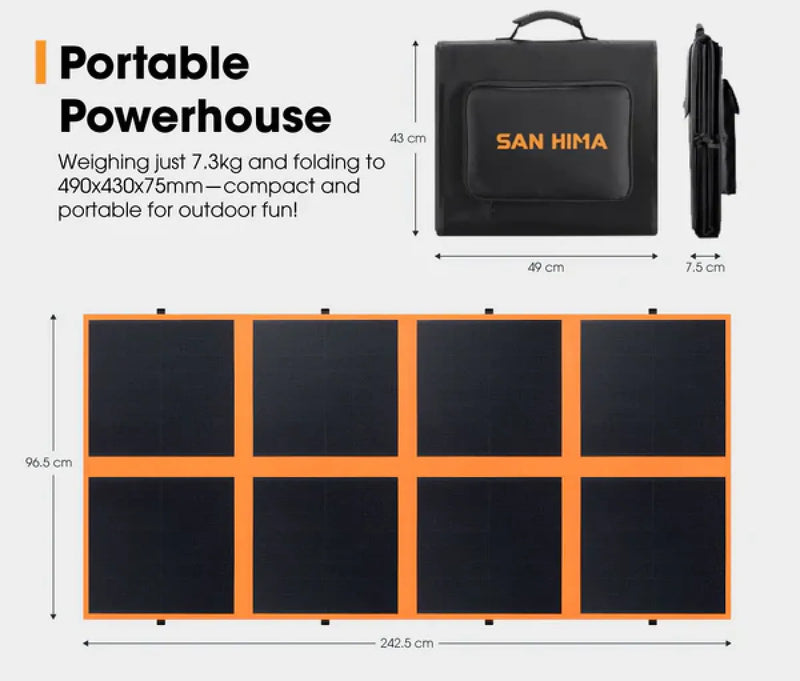

• Product Dimensions (Open): 2,425 x 965 x 5 mm

• Product Dimensions (Closed): 490 x 430 x 75mm

• Cell Type: HPBC (Hybrid Passivated Back Contact)

• Cell Coating: ETFE

• Backing Material: Nylon

• Conversion Effieiency: 24%

• Max. Power (PM): 260W

• Open Circuit Voltage (VOC): 28.2V

• Short Circuit Current (ISC): 13.2A

• Max. Power Voltage (VMP): 21.1V

• Max. Power Current (IMP): 12.3A

• Max. System Voltage: 42V

• Power Tolerance: ±5%

• Operating Temperature: -40℃~85℃

• Connector Type: Anderson-style Plug

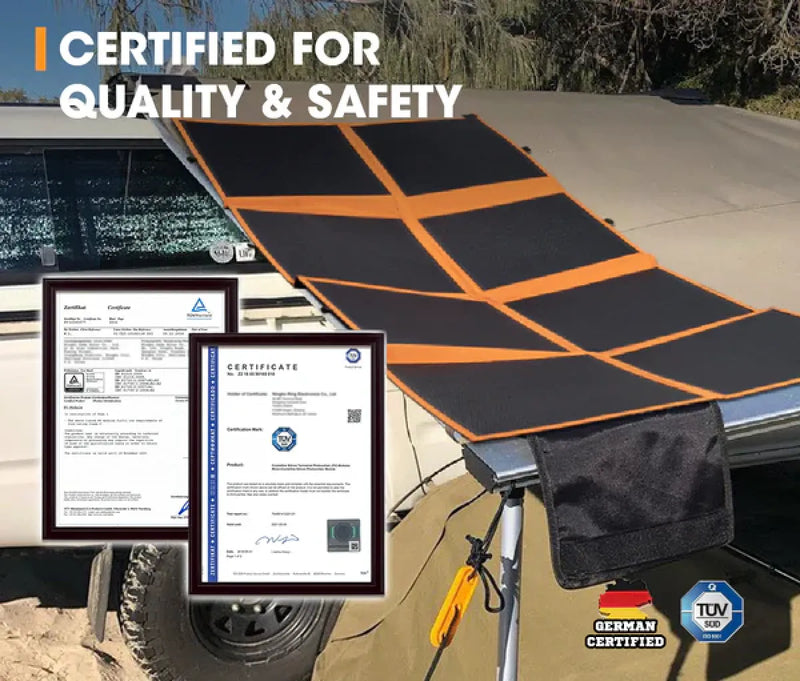

• Certifications: CE

• Product Weight: 7.9kg

MPPT Controller

• Battery Voltage Range: 12V/24V

• Max. PV Open Circuit Voltage:50V

• Max. Solar Input Voltage:50V

• Rated Charge Current:20A

• Rated Discharge Current:20A

• Max. PV Input Power:500W

• Discharge Circuit Voltage Drop:≤0.3V

• Self Consumption:≤8ma

• No Load Current:＜10ma

• Standby Current Draw:≤4ma

• Nominal Current Draw:≤10ma

• USB Output:Type A+Type C; 5V/2.4A

• Operation Temperature:-20℃~50℃

• Storage Temperature:-30℃~70℃

• Relative Humidity:≤90%

• Package Size:45.6cm(L) x 44.7cm(W) x 11.7cm(H)

• Package Weight:7.9kg

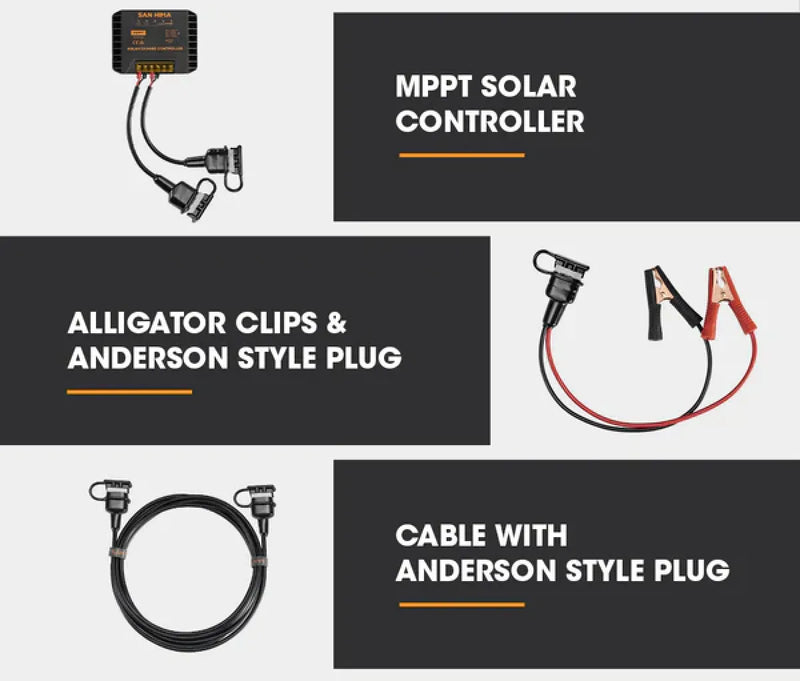

Package Includes

• 1 x San Hima 260W Solar Blanket

• 1 x San Hima 20A MPPT Solar Charge Controller with Anderson Style Plugs

• 1 x 4.5m Extension Cable with Anderson Style Plugs

• 1 x Cable with Alligator Clips and Anderson Style Plug

• 1 x User Manual
