13XP Premium 12V/24V Winch with Synthetic Rope by Runva

The Runva 13XP Premium is a 13,000lb (5,897kg) electric 4WD winch designed for demanding recovery work in bogs, sand and other difficult conditions.

Its automatic ratchet brake is integrated into the gearbox rather than the drum. This separates braking heat from the synthetic rope and provides positive load holding without relying on a friction brake.

Available in 12V and 24V versions, the 13XP Premium combines full IP67 protection with flexible control-box mounting and both wired and wireless remote operation.

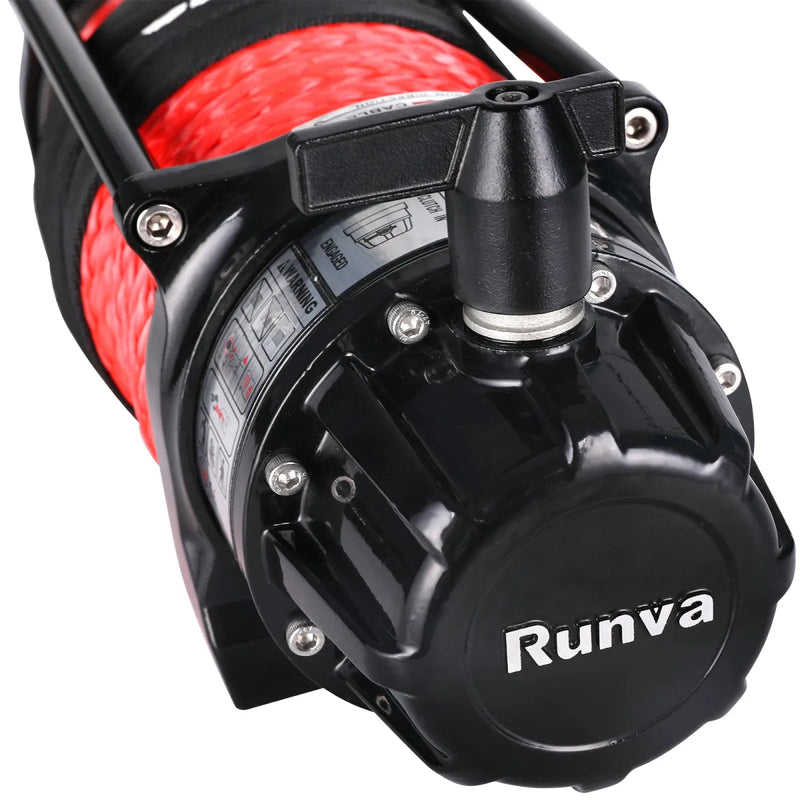

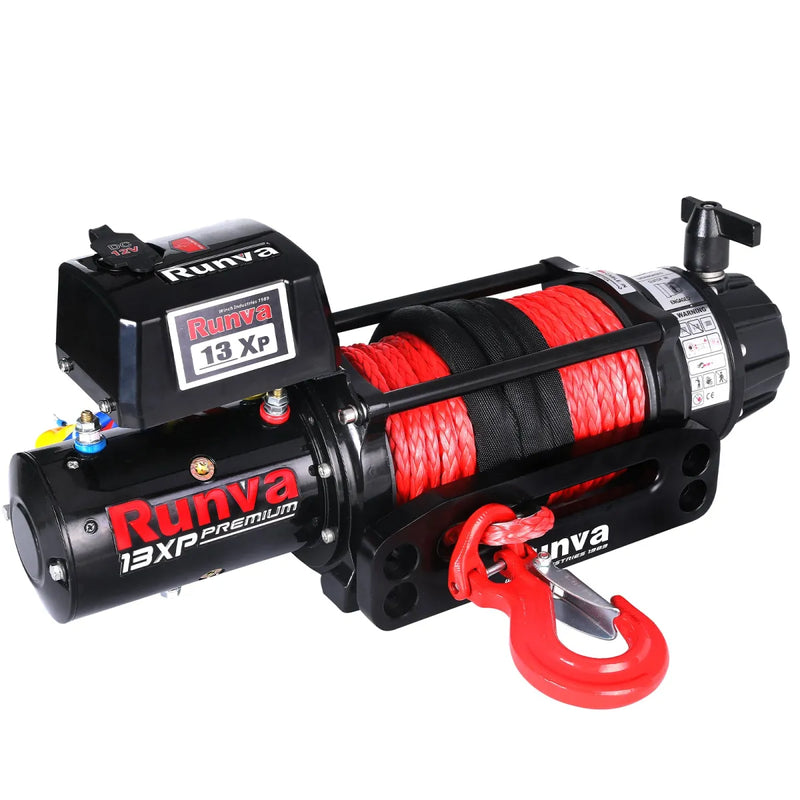

Runva 13XP Premium winch with red synthetic rope
13,000lbRated line pull
5,897kgRated line pull
228:1Gear ratio
IP67Ingress protection

Features

Gearbox-mounted ratchet brakeSeparates braking heat from the synthetic rope and provides automatic load holding.
13,000lb rated line pullDesigned for heavier 4WD builds and demanding recovery situations.
Full IP67 protectionThe motor and winch assembly are protected against dust, dirt and water ingress.
Three control-box positionsMount over the motor, over the drum or on the winch bar with the supplied brackets.
Wired and wireless operationIncludes a 3.7m heavy-duty handheld remote and an IP67 wireless remote.
Full steel planetary gearboxThree-stage gearing delivers a 228:1 ratio.
Synthetic recovery ropeSupplied with 11mm red Dyneema synthetic rope.
Australian supportSupported locally for technical and warranty assistance.

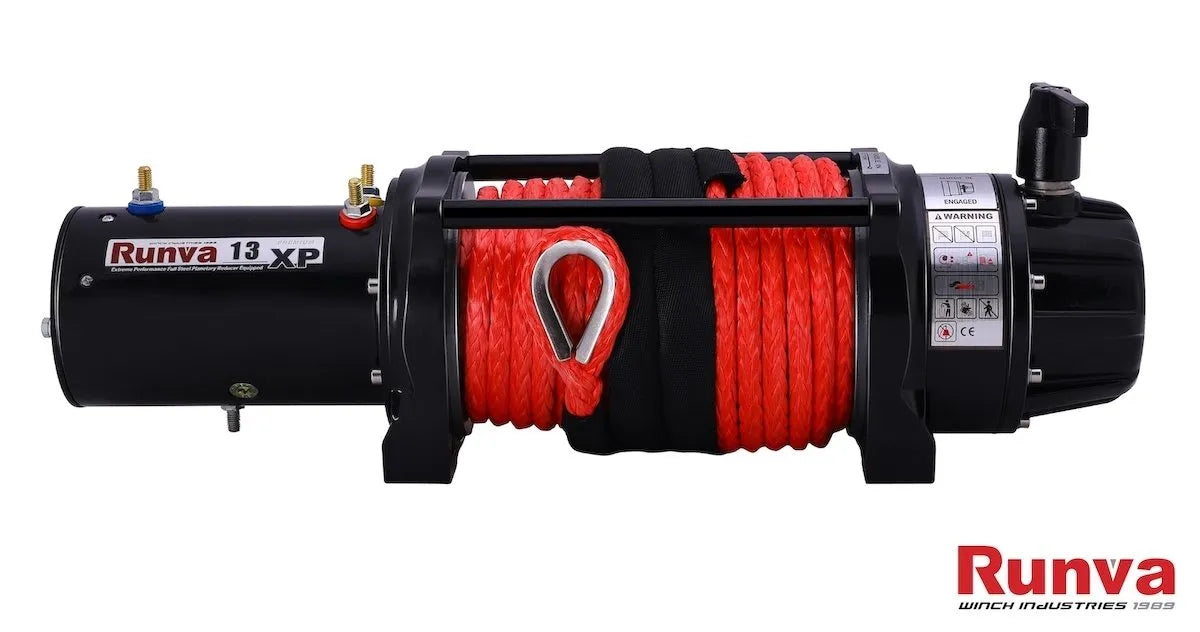

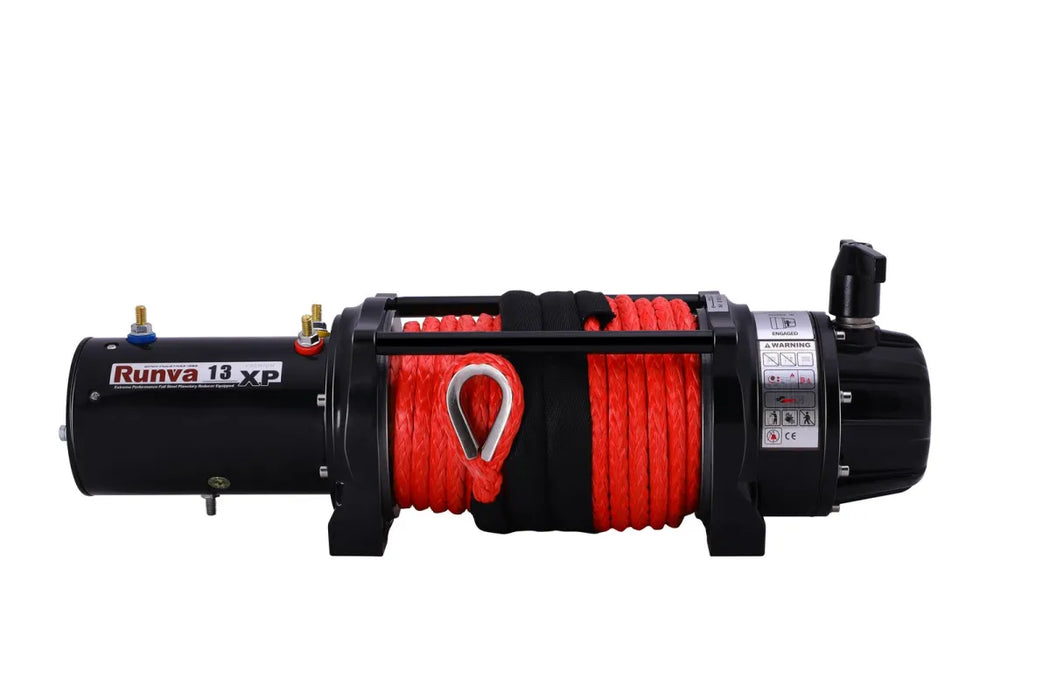

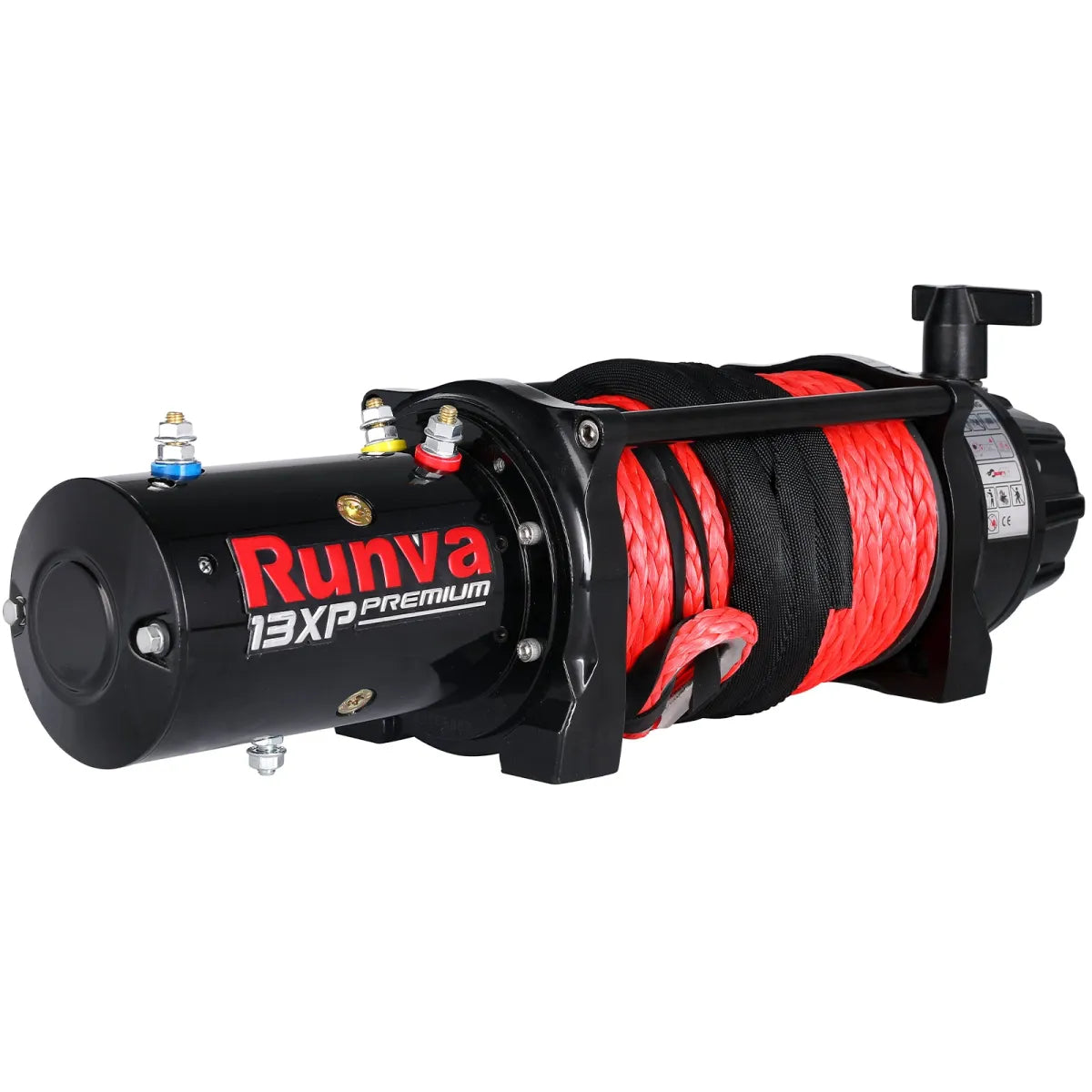

Runva 13XP Premium winch side profile

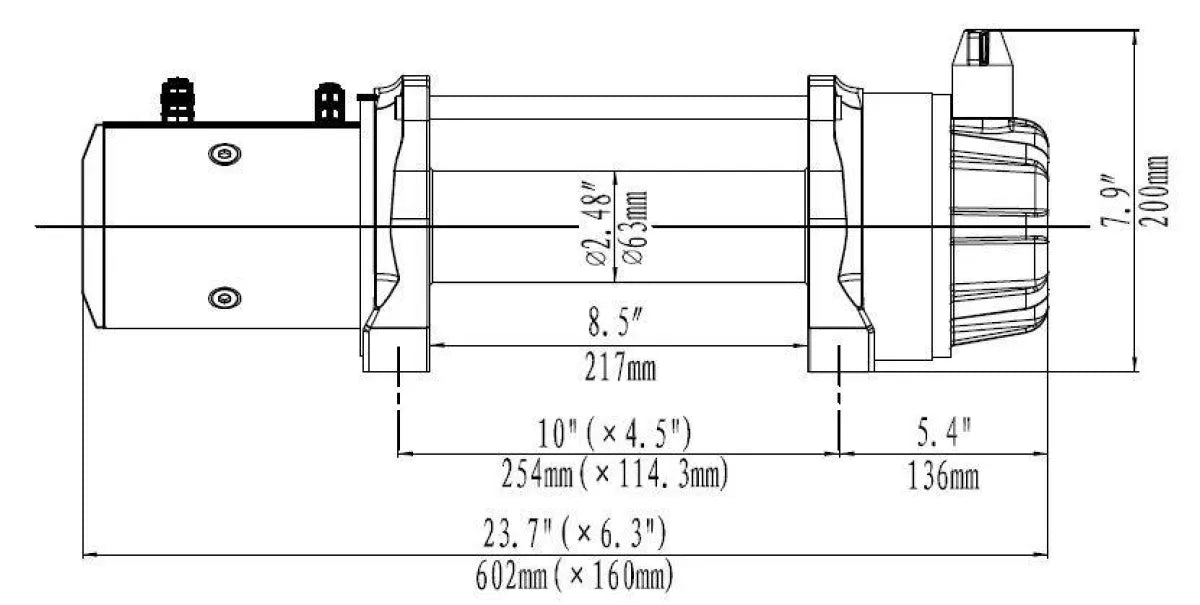

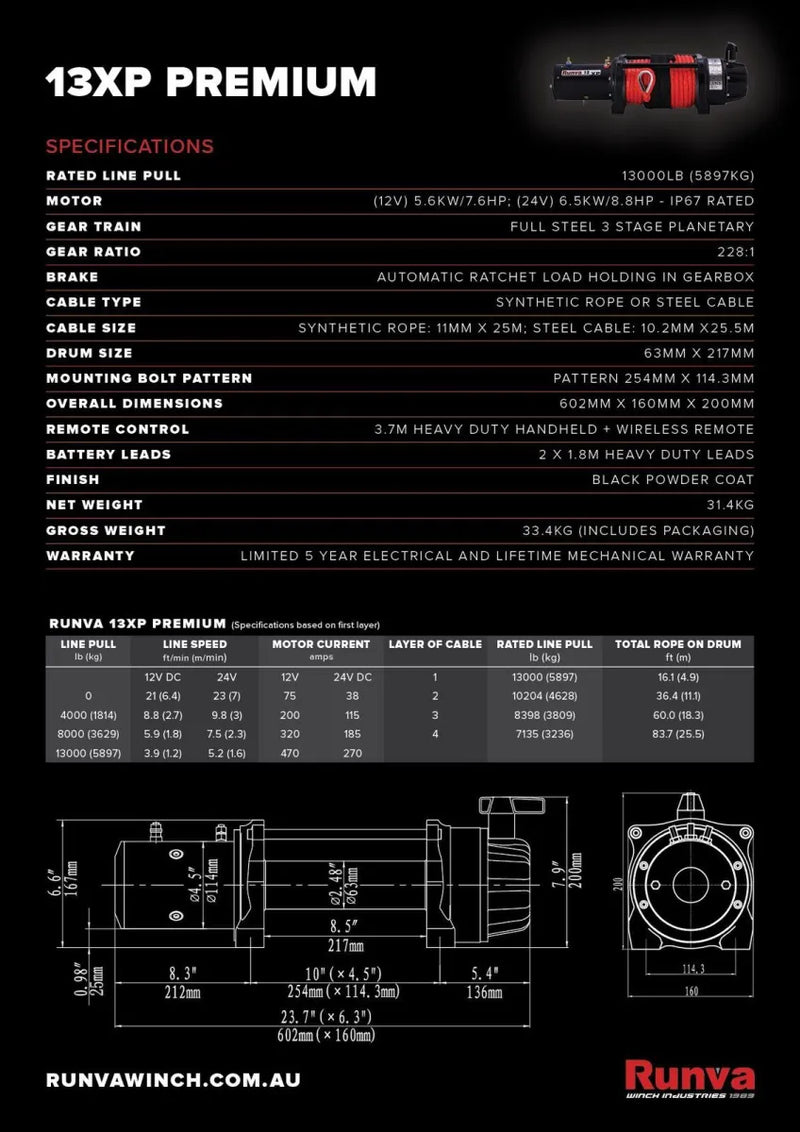

Runva 13XP Premium dimensions drawing

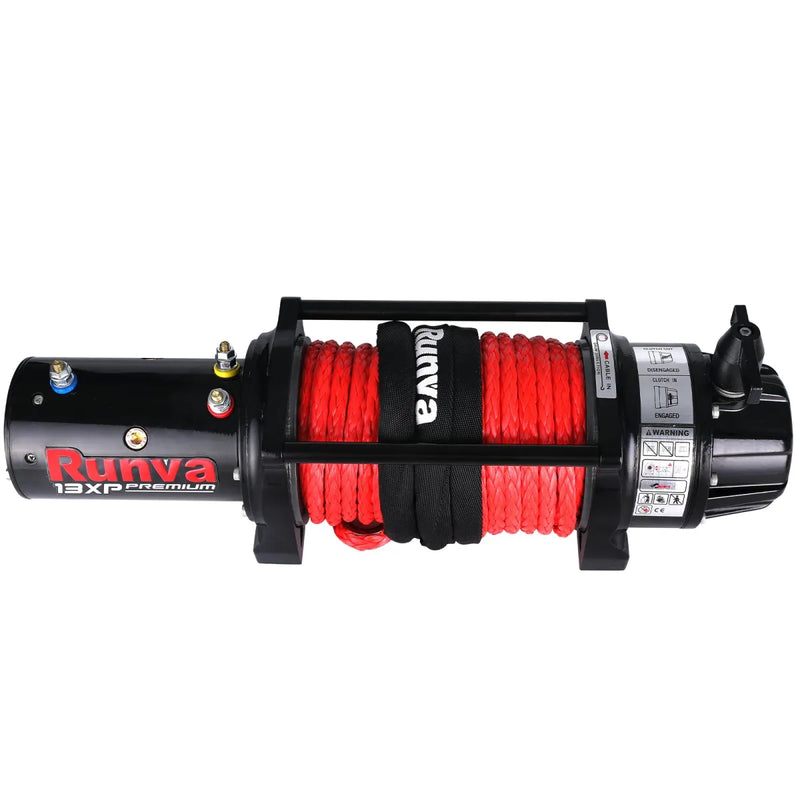

Closer views of the 13XP Premium’s winch body, synthetic rope and recovery-ready construction.

Specifications

  • Rated line pull13,000lb (5,897kg)
  • Motor, 12VSeries wound, 5.6kW / 7.6HP
  • Motor, 24VSeries wound, 6.5kW / 8.8HP
  • Gear trainFull steel three-stage planetary
  • Gear ratio228:1
  • BrakeAutomatic ratchet load holding in gearbox
  • Synthetic rope11mm x 25m
  • Mounting bolt pattern254mm x 114.3mm, 4 x M10 bolts
  • Overall dimensions602mm x 160mm x 200mm
  • Winch weight with control box31kg
  • Gross shipping weight41kg

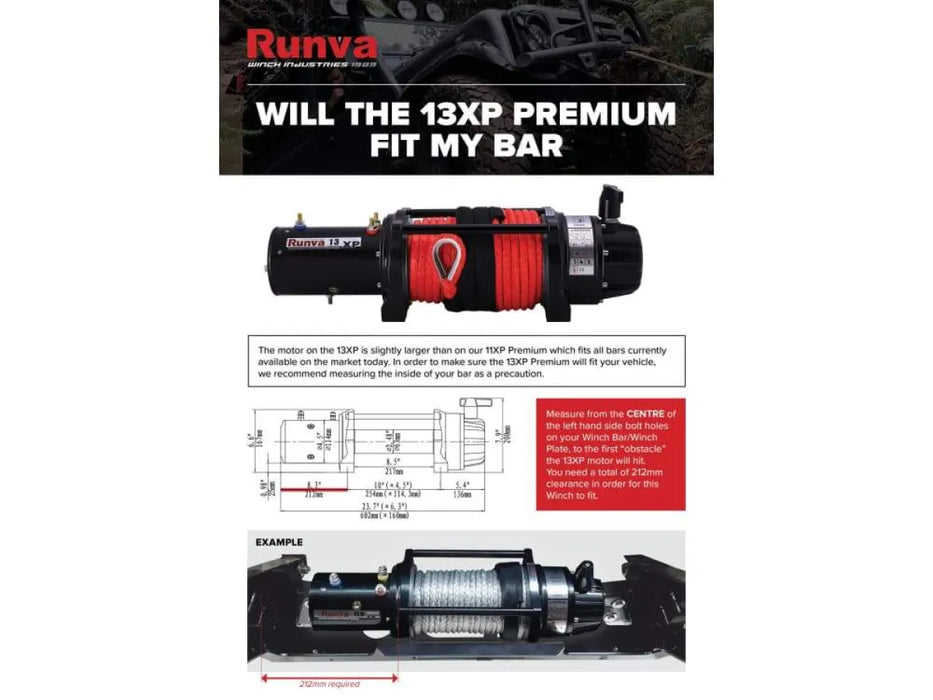

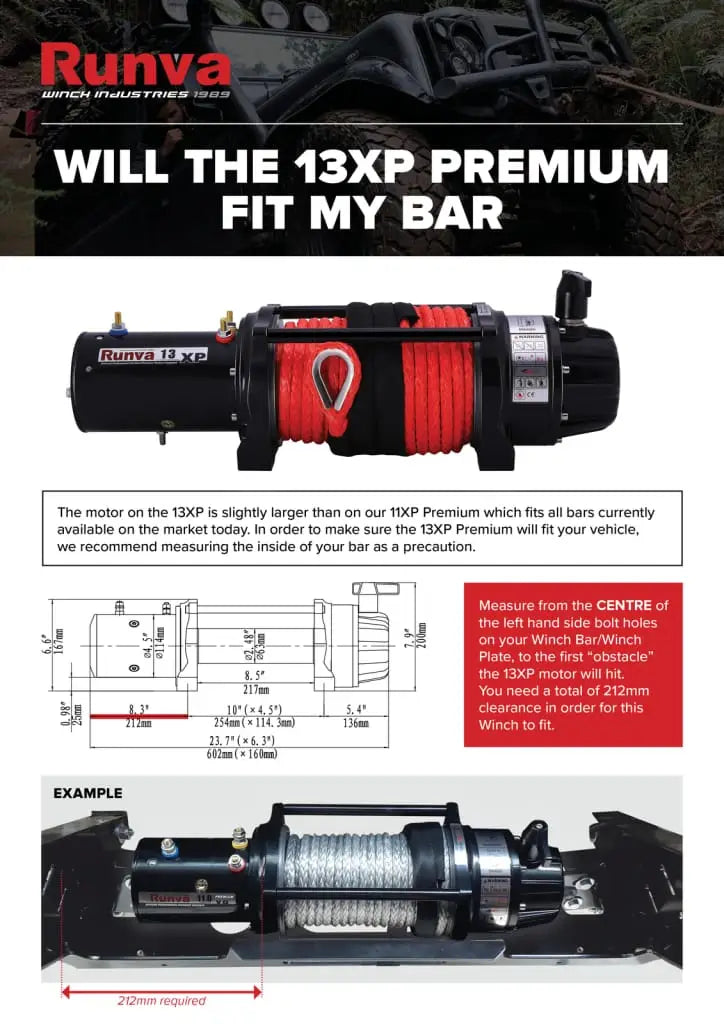

Will the Runva 13XP Premium fit my bar guide

Controls, installation and finish

Remote control3.7m heavy-duty handheld remote and wireless remote.
Battery leads2 x 1.8m heavy-duty leads included.
Control-box mountingOver the motor, over the drum or on the winch bar.
FinishBlack powder coat.
WarrantyFive years electrical and lifetime mechanical.
Protection12V and 24V motors are fully IP67 rated.

Performance

Line pull lb (kg) 12V speed ft/min (m/min) 24V speed ft/min (m/min) 12V current (A) 24V current (A) Layer Rated pull lb (kg) Rope on drum ft (m)
0 (0) 32.8 (10.0) 35.1 (10.7) 75 60 1 13,000 (5,897) 16.1 (4.9)
4,000 (1,814) 13.8 (4.2) 14.7 (4.5) 200 120 2 10,204 (4,628) 36.4 (11.1)
8,000 (3,629) 10.5 (3.2) 11.5 (3.5) 320 190 3 8,398 (3,809) 60.0 (18.3)
13,000 (5,897) 4.6 (1.4) 5.9 (1.8) 470 280 4 7,135 (3,236) 83.7 (25.5)

Fitment note: Check the overall dimensions and 254mm x 114.3mm mounting pattern against the bull bar before installation. Maximum line pull is measured on the first layer of rope.

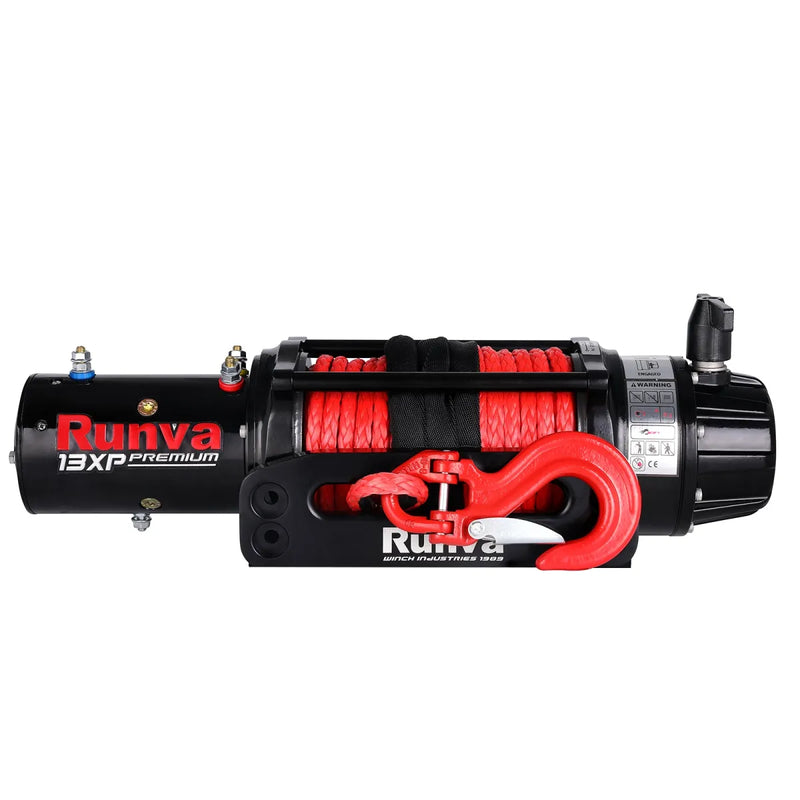

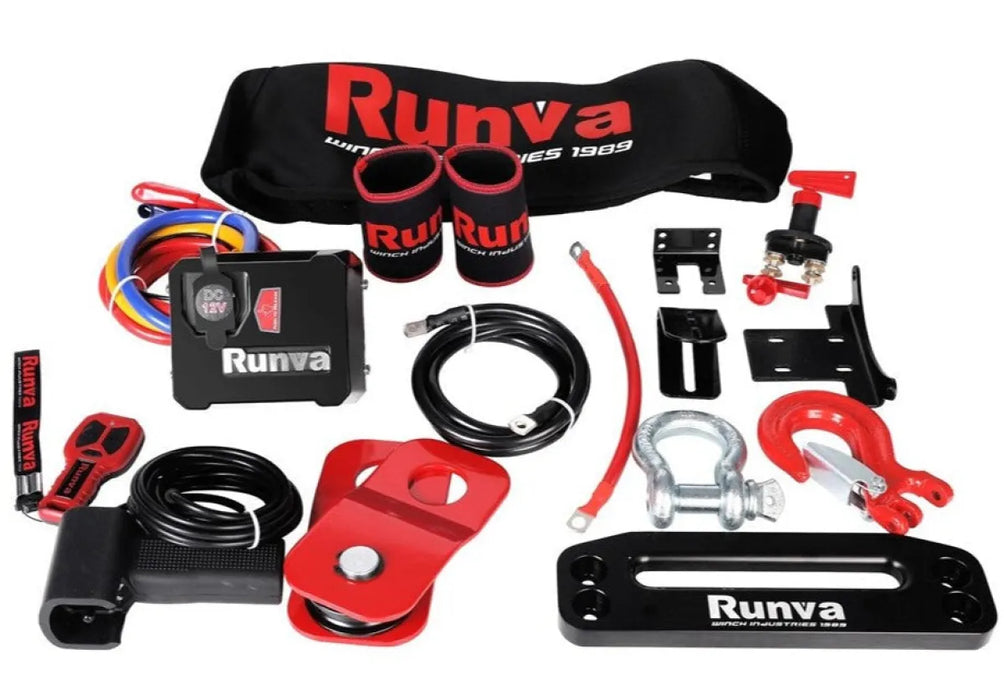

Runva 13XP Premium winch kit and included recovery equipment

What's in the box

  • Runva 13XP Premium winch with synthetic rope
  • Control box with power cables and multiple mounting brackets

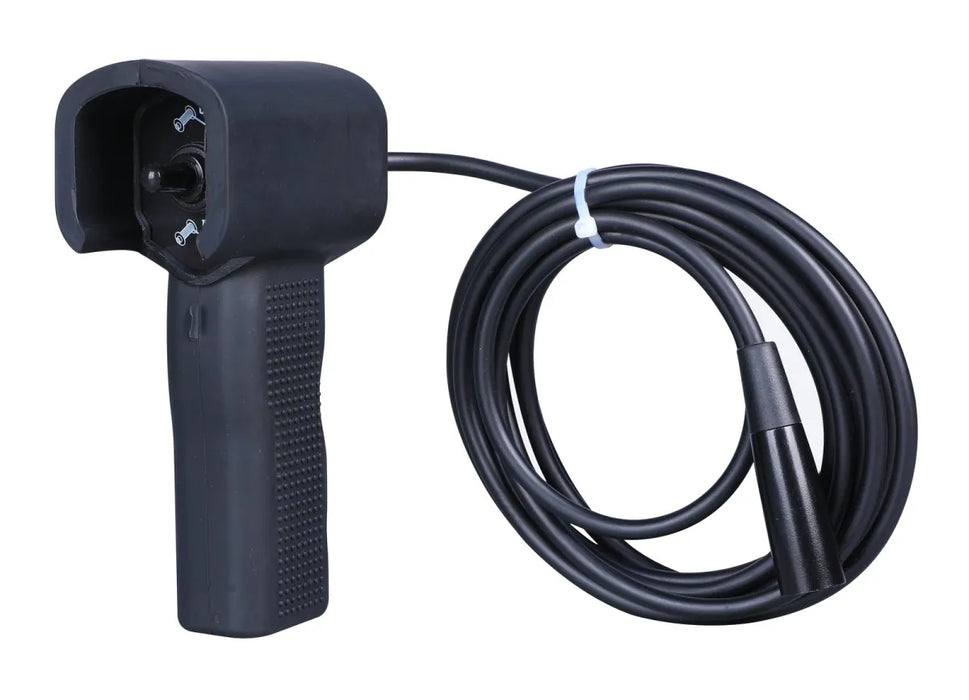

  • 3.7m heavy-duty handheld remote

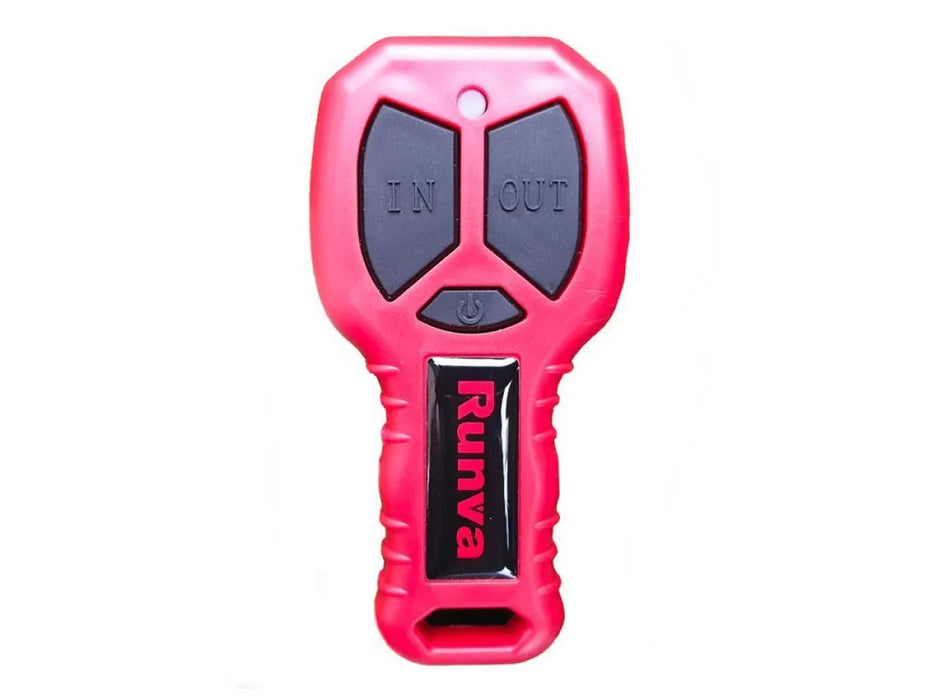

  • IP67 wireless remote

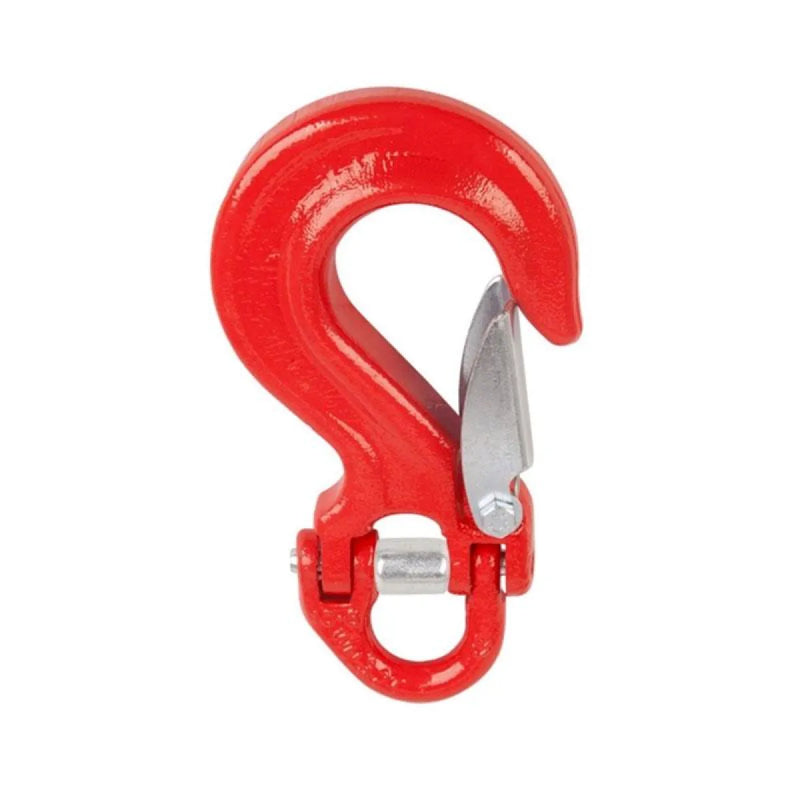

  • Large recovery hook and hand saver strap

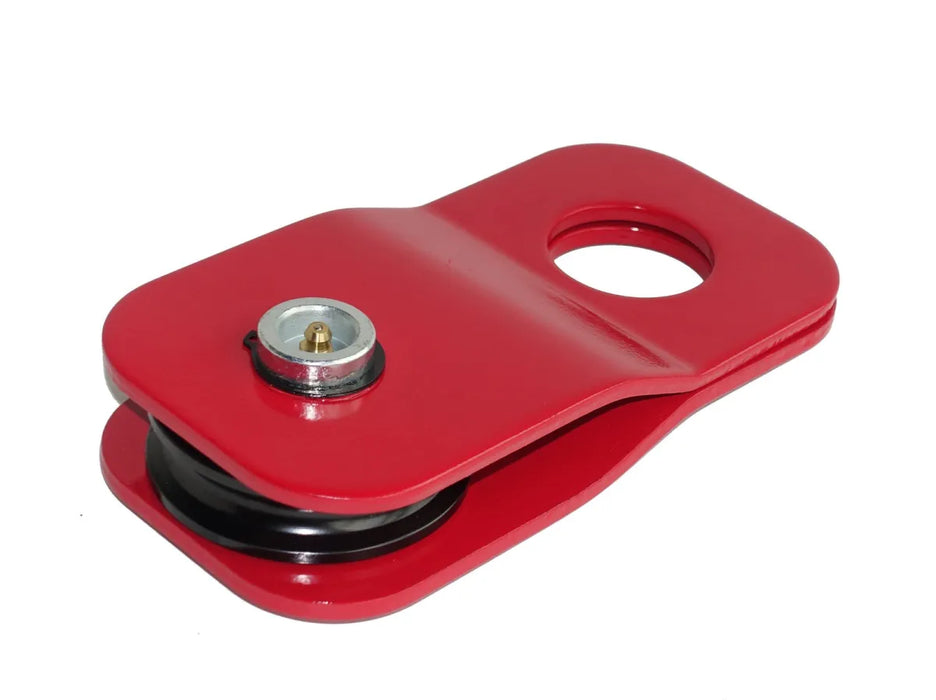

  • Snatch block
  • 2-in-1 hawse fairlead for offset or standard mounting
  • Power isolator switch, bracket and power cable
  • 2 x 1.8m heavy-duty battery leads
  • Mounting bolts and instruction manual

Installation video

Frequently Asked Questions

What vehicles is the 13XP Premium designed for?

The 13XP Premium is rated to 13,000lb (5,897kg) on the first layer of rope. It is intended for heavier 4WD builds, including loaded LandCruiser and Patrol wagons or dual cabs carrying substantial touring equipment. For lighter or standard setups, the 11XP Premium is the smaller option.

What is included in the box?

The kit includes the winch and synthetic rope, control box with power cables and three mounting options, wired and wireless remotes, large recovery hook, snatch block, 2-in-1 hawse fairlead, hand saver strap, power isolator switch and bracket, mounting bolts, heavy-duty battery leads and an instruction manual.

What are the dimensions and mounting bolt pattern?

The 13XP Premium measures 602mm x 160mm x 200mm. Its mounting bolt pattern is 254mm x 114.3mm with four M10 bolts. The control box can be mounted over the motor, over the drum or on the winch bar.

How does the ratchet brake work?

The automatic ratchet brake is integrated into the gearbox, separating braking from the rope and avoiding the heat transfer associated with a drum-mounted friction brake.

Do I need a dual battery setup?

At full rated load the 12V model draws up to 470 amps. The source recommends a dual battery system for sustained or repeated pulls and consulting a qualified auto electrician about cable sizing, fusing and isolator placement.

What fairlead does the 13XP use?

The kit includes Runva's 2-in-1 aluminium hawse fairlead, which supports offset and standard mounting positions and is intended for the supplied synthetic rope.

How does the 13XP compare with the 11XP Premium?

Both models share the standard mounting pattern, IP67 protection, gearbox-mounted ratchet brake and control-box bracket system. The 13XP is longer, heavier and provides 2,000lb more rated line pull.

Product Bundles

If you'd like a discount price on a bundle of items not displayed below please contact us here and we'll give you our best price.
Description

13XP Premium 12V/24V Winch with Synthetic Rope by Runva

The Runva 13XP Premium is a 13,000lb (5,897kg) electric 4WD winch designed for demanding recovery work in bogs, sand and other difficult conditions.

Its automatic ratchet brake is integrated into the gearbox rather than the drum. This separates braking heat from the synthetic rope and provides positive load holding without relying on a friction brake.

Available in 12V and 24V versions, the 13XP Premium combines full IP67 protection with flexible control-box mounting and both wired and wireless remote operation.

Runva 13XP Premium winch with red synthetic rope
13,000lbRated line pull 5,897kgRated line pull 228:1Gear ratio IP67Ingress protection

Features

Gearbox-mounted ratchet brakeSeparates braking heat from the synthetic rope and provides automatic load holding. 13,000lb rated line pullDesigned for heavier 4WD builds and demanding recovery situations. Full IP67 protectionThe motor and winch assembly are protected against dust, dirt and water ingress. Three control-box positionsMount over the motor, over the drum or on the winch bar with the supplied brackets. Wired and wireless operationIncludes a 3.7m heavy-duty handheld remote and an IP67 wireless remote. Full steel planetary gearboxThree-stage gearing delivers a 228:1 ratio. Synthetic recovery ropeSupplied with 11mm red Dyneema synthetic rope. Australian supportSupported locally for technical and warranty assistance.
Runva 13XP Premium winch side profile Runva 13XP Premium dimensions drawing

Closer views of the 13XP Premium’s winch body, synthetic rope and recovery-ready construction.

Specifications

  • Rated line pull13,000lb (5,897kg)
  • Motor, 12VSeries wound, 5.6kW / 7.6HP
  • Motor, 24VSeries wound, 6.5kW / 8.8HP
  • Gear trainFull steel three-stage planetary
  • Gear ratio228:1
  • BrakeAutomatic ratchet load holding in gearbox
  • Synthetic rope11mm x 25m
  • Mounting bolt pattern254mm x 114.3mm, 4 x M10 bolts
  • Overall dimensions602mm x 160mm x 200mm
  • Winch weight with control box31kg
  • Gross shipping weight41kg
Will the Runva 13XP Premium fit my bar guide

Controls, installation and finish

Remote control3.7m heavy-duty handheld remote and wireless remote. Battery leads2 x 1.8m heavy-duty leads included. Control-box mountingOver the motor, over the drum or on the winch bar. FinishBlack powder coat. WarrantyFive years electrical and lifetime mechanical. Protection12V and 24V motors are fully IP67 rated.

Performance

Line pull lb (kg) 12V speed ft/min (m/min) 24V speed ft/min (m/min) 12V current (A) 24V current (A) Layer Rated pull lb (kg) Rope on drum ft (m)
0 (0) 32.8 (10.0) 35.1 (10.7) 75 60 1 13,000 (5,897) 16.1 (4.9)
4,000 (1,814) 13.8 (4.2) 14.7 (4.5) 200 120 2 10,204 (4,628) 36.4 (11.1)
8,000 (3,629) 10.5 (3.2) 11.5 (3.5) 320 190 3 8,398 (3,809) 60.0 (18.3)
13,000 (5,897) 4.6 (1.4) 5.9 (1.8) 470 280 4 7,135 (3,236) 83.7 (25.5)

Fitment note: Check the overall dimensions and 254mm x 114.3mm mounting pattern against the bull bar before installation. Maximum line pull is measured on the first layer of rope.

Runva 13XP Premium winch kit and included recovery equipment

What's in the box

  • Runva 13XP Premium winch with synthetic rope
  • Control box with power cables and multiple mounting brackets
  • 3.7m heavy-duty handheld remote
  • IP67 wireless remote
  • Large recovery hook and hand saver strap
  • Snatch block
  • 2-in-1 hawse fairlead for offset or standard mounting
  • Power isolator switch, bracket and power cable
  • 2 x 1.8m heavy-duty battery leads
  • Mounting bolts and instruction manual

Installation video

 

Frequently Asked Questions

What vehicles is the 13XP Premium designed for?

The 13XP Premium is rated to 13,000lb (5,897kg) on the first layer of rope. It is intended for heavier 4WD builds, including loaded LandCruiser and Patrol wagons or dual cabs carrying substantial touring equipment. For lighter or standard setups, the 11XP Premium is the smaller option.

What is included in the box?

The kit includes the winch and synthetic rope, control box with power cables and three mounting options, wired and wireless remotes, large recovery hook, snatch block, 2-in-1 hawse fairlead, hand saver strap, power isolator switch and bracket, mounting bolts, heavy-duty battery leads and an instruction manual.

What are the dimensions and mounting bolt pattern?

The 13XP Premium measures 602mm x 160mm x 200mm. Its mounting bolt pattern is 254mm x 114.3mm with four M10 bolts. The control box can be mounted over the motor, over the drum or on the winch bar.

How does the ratchet brake work?

The automatic ratchet brake is integrated into the gearbox, separating braking from the rope and avoiding the heat transfer associated with a drum-mounted friction brake.

Do I need a dual battery setup?

At full rated load the 12V model draws up to 470 amps. The source recommends a dual battery system for sustained or repeated pulls and consulting a qualified auto electrician about cable sizing, fusing and isolator placement.

What fairlead does the 13XP use?

The kit includes Runva's 2-in-1 aluminium hawse fairlead, which supports offset and standard mounting positions and is intended for the supplied synthetic rope.

How does the 13XP compare with the 11XP Premium?

Both models share the standard mounting pattern, IP67 protection, gearbox-mounted ratchet brake and control-box bracket system. The 13XP is longer, heavier and provides 2,000lb more rated line pull.
